Viewing Geometry

pyg4ometry uses the Visualisation Toolkit - VTK - to view geometry. This provides a window with a 3D view of a model that can be manipulated with a cursor (rotate, pan, zoom, click). Most manipulation can be done by calling methods on the instance of the visualiser class in the terminal.

Basic loading and viewing is described in Loading Geometry. Here, more detailed individual features are described.

Visualiser Classes

Several visualiser classes are provided but ultimately, the only difference is the default colouring of volumes.

• VtkViewer - all in grey

• VtkViewerColoured - user-provided dictionary of materials to colours

• VtkViewerColouredMaterial - default dictionary of material colours included

Both VtkViewerColoured and VtkViewerColouredMaterial inherit VtkViewer and have the same functionality and differ only in colouring of volumes.

Generally:

v = pyg4ometry.visualisation.VtkViewer()
v.addLogicalVolume(lv)
v.view()
# or
v.view(interactive=False) # to not block the terminal

Exact documentation can be found in Visualisation module.

If not adding a whole geometry tree, then individual solids can be added and overlaid with transparency for comparison purposes.

Using the Visualiser

Action	Outcome
click and drag	rotate the geometry
shift key + click and drag	pan (move) the geometry
right click	‘pick’ a volume and print out its name if found
scroll	zoom in and out

Rotating

Rotate by clicking and dragging, then release.

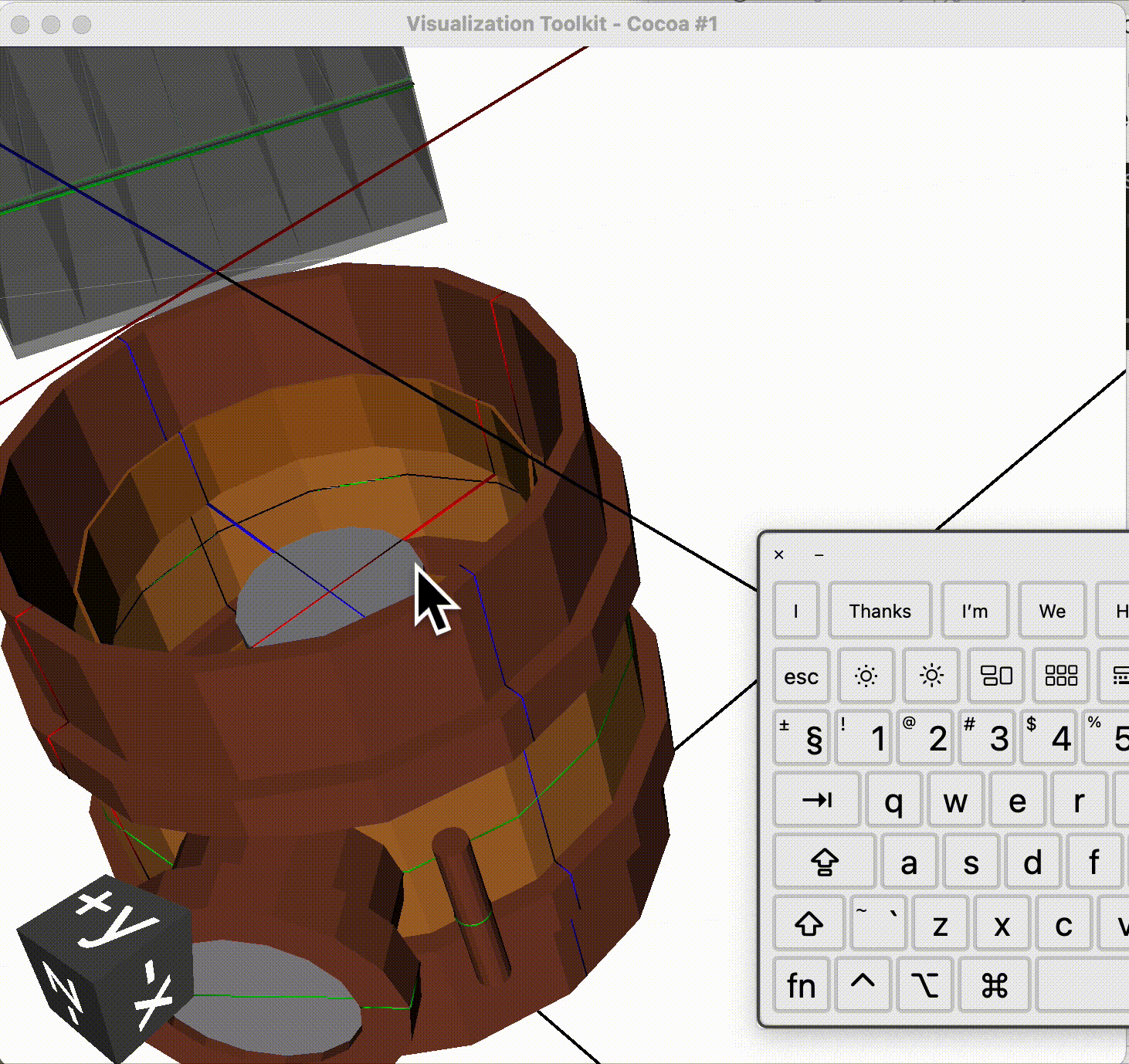

Zooming

Scroll in and out on a mouse or trackpad whilst pointing at the visualiser.

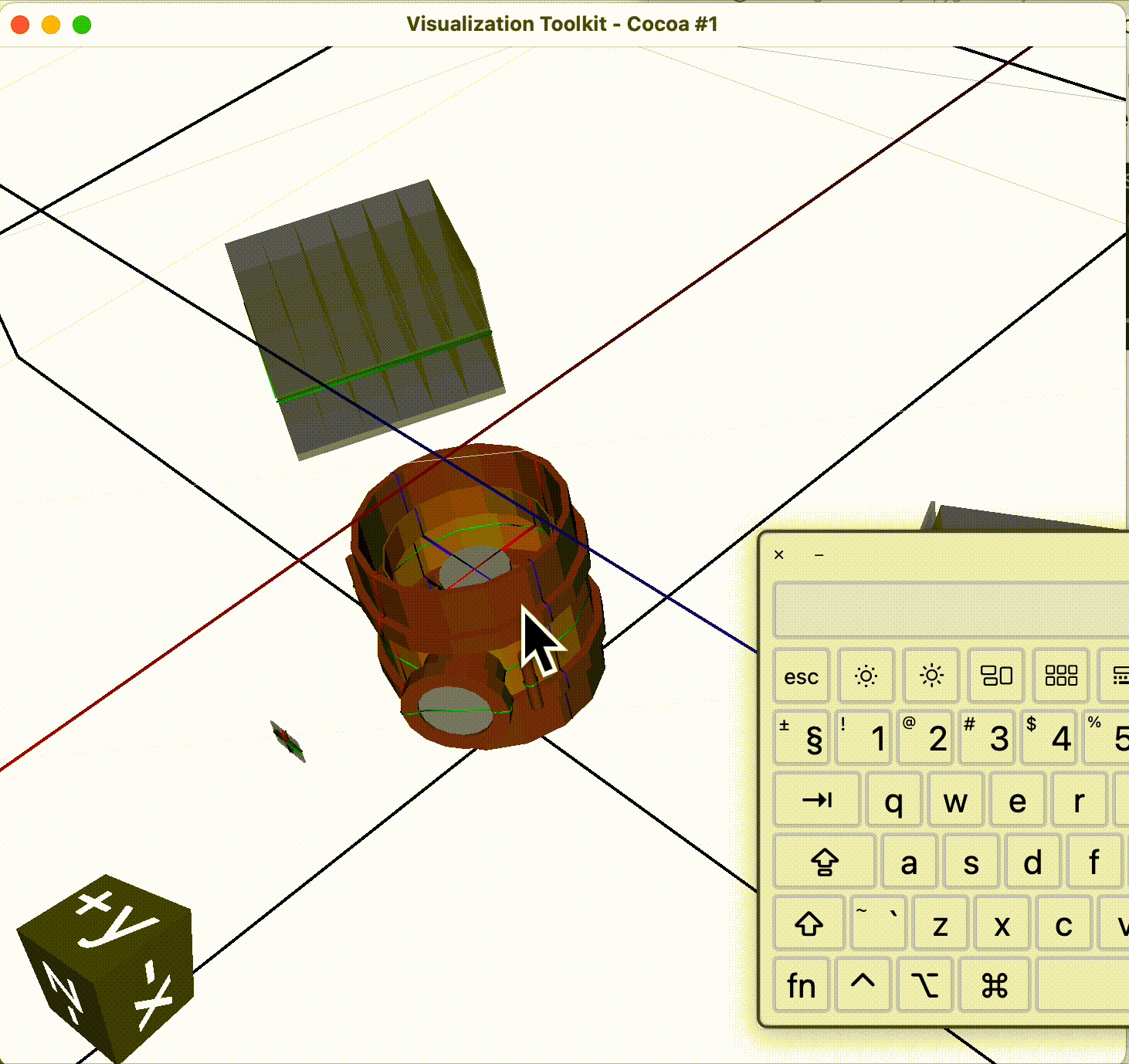

Panning And Rotating

Click and drag to rotate. Hold the shift key on the keyboard, then click and drag to pan.

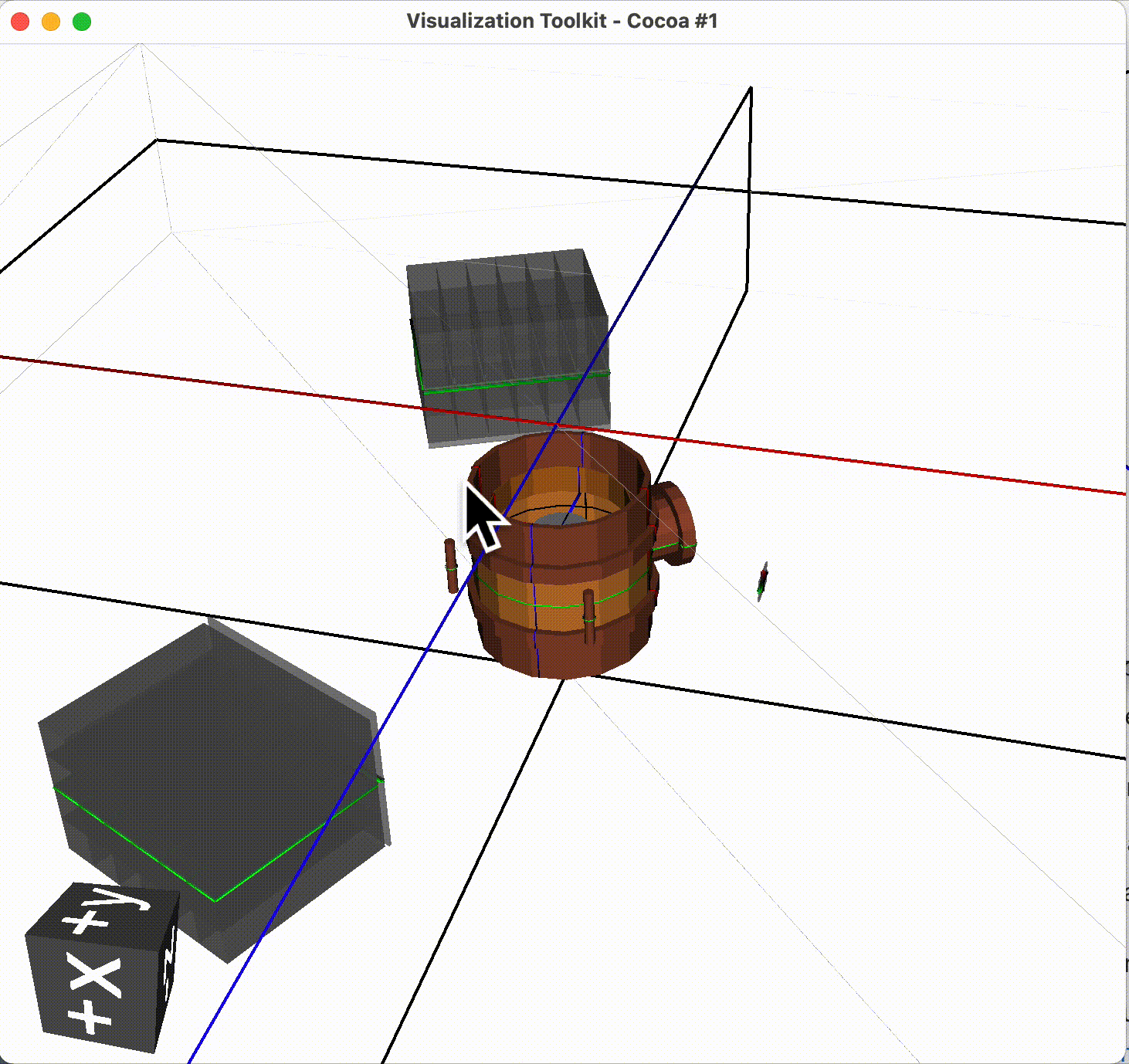

When we rotate the geometry it may twist in multiple angles. To rotate in a specific way we can click and drag and draw it small circles where the geometry will precess.

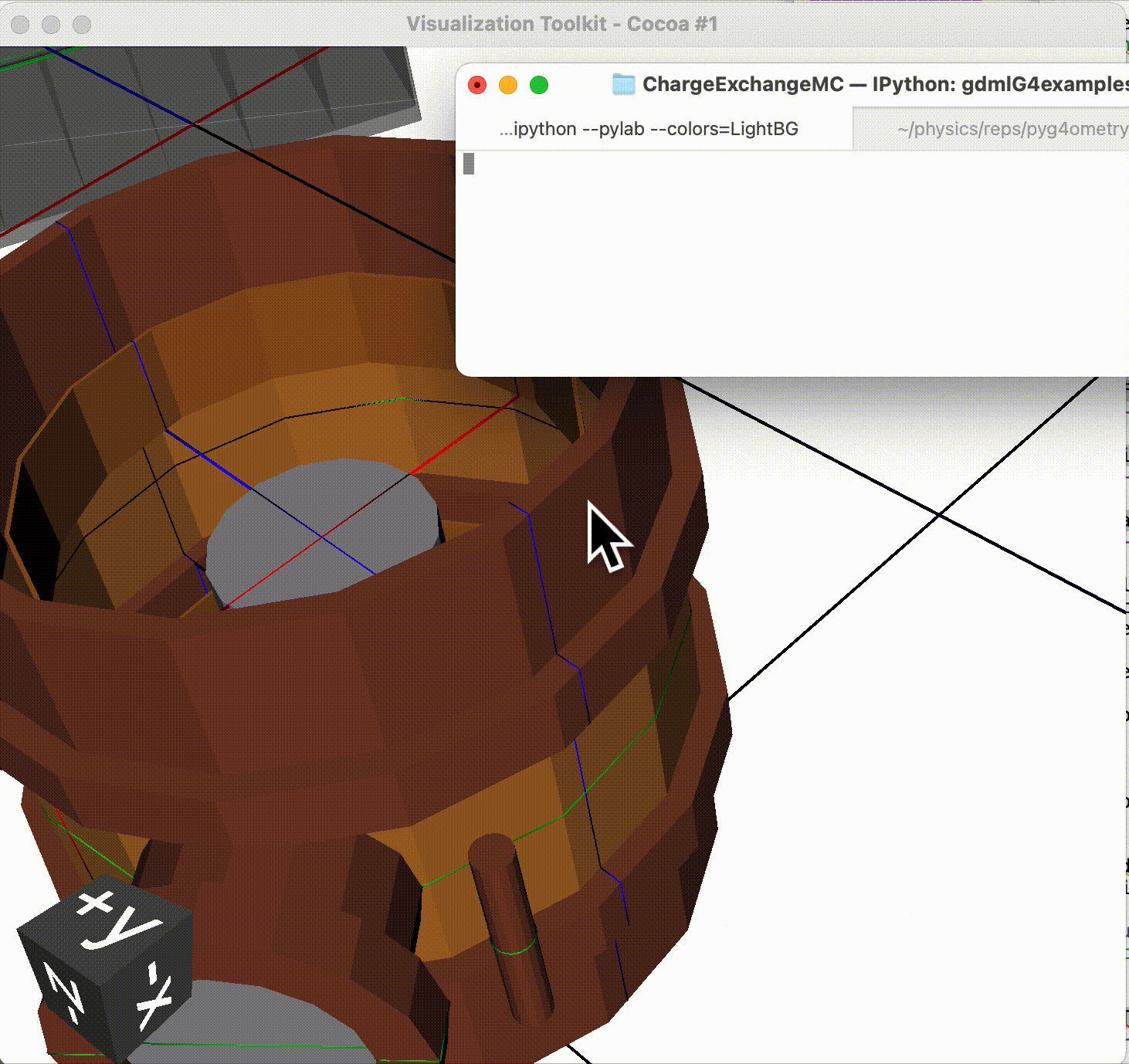

Picking

If you right click on a volume and look at the terminal, if pyg4ometry can find a volume behind the point clicked it will print out the name.

Solid or Wireframe

When using the visualiser window, the same geometry can be viewed as solid surfaces or as a wireframe by pressing s key or the w key respectively.

Note, the original visualisation has the outermost volume as wireframe and the contents as solid. Once, the wireframe or solid option has been chosen, all volumes will have the same style.

Logical Volume

A pyg4ometry.geant4.LogicalVolume instance can be added to the visualiser. A logical volume has no concept of translation or rotation on its own, so it is placed in the centre of the visualiser coordinate system, i.e. in its own frame.

lv # pyg4ometry.geant4.LogicalVolume instance
v = pyg4ometry.visualisation.VtkViewer()
v.addLogicalVolume(lv)
v.view()

It is possible to view the logical volume with an offset (i.e. translation) and rotation. This is purely for adding the scene of the viewer and does not affect the logical volume itself or anything it is used in. We can see the docstring:

>>> v = pyg4ometry.visualisation.VtkViewer()
>>> v.addLogicalVolume?
    Signature:
    v.addLogicalVolume(
    logical,
    mtra=matrix([[1, 0, 0],
    [0, 1, 0],
    [0, 0, 1]]),
    tra=array([0, 0, 0]),
    recursive=True,
    )

If we start from a rotation as a series of Tait-Bryan angles, we can turn this into a matrix with:

import numpy as np
rotation = [0, np.pi/2, 0] # for example
matrix = np.linalg.inv(pyg4ometry.transformation.tbxyz2matrix(rotation))
l # a pyg4ometry.geant4.LogicalVolume instance
v = pyg4ometry.visualisation.VtkViewer()
v.addLogicalVolume(l, mtra=rotation, tra=[0,0,500])

Note

When directly using rotations and translations, the units are radians and mm.

If overlap checking has been used, this produces overlap meshes (if any) and these will be visualised automatically when visualising a LogicalVolume instance as they are associated with that instance.

Solid

It is possible to view an individual solid, i.e. any instance of a class in pyg4ometry.geant4.solid module.

s # e.g. a pyg4ometry.geant4.solid.Box instance
v = pyg4ometry.visualisation.VtkViewer()
v.addSolid(s)
v.view()

Similarly to a logical volume, an individual solid has no concept of placement position and will by default be placed at the centre of the scene. It is also possible to add it to the scene with a rotation and translation.

v.addSolid?
Signature:
v.addSolid(
solid,
rotation=[0, 0, 0],
position=[0, 0, 0],
representation='surface',
colour=[0.5, 0.5, 0.5],
opacity=0.2,
)

This uses Tait-Bryan angles for the rotation.

Boolean Solid

When creating geometry, it is common to use Boolean operations. Sometimes, we make mistakes in these and it is useful to understand the individual constituents even if the result is not a valid solid or mesh (i.e. completely disconnected solids). To do this we can visualise just a Boolean solid on its own.

s # e.g. a pyg4ometry.geant4.solid.Subtraction instance
v = pyg4ometry.visualisation.VtkViewer()
v.addBooleanSolidRecursive(s)
v.view()

This will work recursively for each solid that makes up the Boolean even if they are Booleans themselves. It will tolerate shapes that cannot form a valid mesh such as the resultant Boolean solid.

Default Colour Coding

With the VtkViewer class all volumes are visualised as semi-transparent grey.

Custom Colour Coding

With the VtkViewerColoured class, we can provide a default general colour and also a dictionary of specific colours for materials by name.

Random Colours

With the VtkViewerColoured class, we can supply the default colour as "random", which will result in every volume being visualised with a random colour to be different.

v = pyg4ometry.visualisation.VtkViewerColourd(defaultColour="random")

Overlaying Two Geometries

In the visualiser we add “meshes” to the scene that are displayed. We are not restricted to make a physically accurate model and we can draw multiple meshes on top of each other by successively adding them to the scene.

Logical Volume Difference

The function pyg4ometry.visualisation.viewLogicalVolumeDifference is provided that will view two pyg4ometry.geant4.LogicalVolume instances. It will also calculate the difference mesh between the two and visualise that also on top of the two with a different colour to highlight it.
