Reflect field values for a dipolar field in the positive quadrant. More...

#include <BDSArrayOperatorValueReflectDipoleXY.hh>

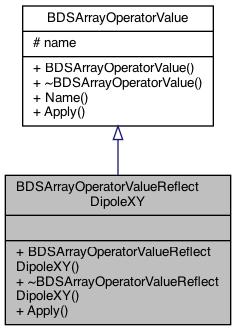

Inheritance diagram for BDSArrayOperatorValueReflectDipoleXY:

Collaboration diagram for BDSArrayOperatorValueReflectDipoleXY:

Public Member Functions
virtual BDSFieldValue	Apply (BDSFieldValue v, G4int xInd, G4int yInd=0, G4int=0, G4int=0) const

Public Member Functions inherited from BDSArrayOperatorValue
	BDSArrayOperatorValue (const G4String &nameIn="None")

virtual G4String	Name () const
	Return a name of the operator for feedback to the user in print out. More...

virtual BDSFieldValue	Apply (BDSFieldValue v, G4int, G4int=0, G4int=0, G4int=0) const

Additional Inherited Members
Protected Attributes inherited from BDSArrayOperatorValue
G4String	name

Detailed Description

Reflect field values for a dipolar field in the positive quadrant.

Note this must work in combination with a coordinate reflection in x and y. Ultimately, the goal is this:

*       y
*       ∧
*       |
*    ∧  |  ∧
*    |  |  | original
* <---  |  --->
*       |
* -------------------> x
* ∧     |     ∧
* |     |     |
* --->  |  <---
*       |
*       |
*
