Reflect field values for a solenoid-like field in the z axis. More...

#include <BDSArrayOperatorValueReflectSolenoidZ.hh>

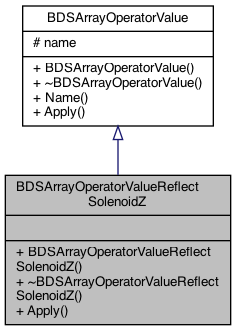

Inheritance diagram for BDSArrayOperatorValueReflectSolenoidZ:

Collaboration diagram for BDSArrayOperatorValueReflectSolenoidZ:

Public Member Functions
virtual BDSFieldValue	Apply (BDSFieldValue v, G4int, G4int, G4int zInd=0, G4int=0) const

Public Member Functions inherited from BDSArrayOperatorValue
	BDSArrayOperatorValue (const G4String &nameIn="None")

virtual G4String	Name () const
	Return a name of the operator for feedback to the user in print out. More...

virtual BDSFieldValue	Apply (BDSFieldValue v, G4int, G4int=0, G4int=0, G4int=0) const

Additional Inherited Members
Protected Attributes inherited from BDSArrayOperatorValue
G4String	name

Detailed Description

Reflect field values for a solenoid-like field in the z axis.

Note this must work in combination with a coordinate reflection in x and y. Ultimately, the goal is this:

*         x,y
*         ∧
*         |
*         |  ∧
*   --->  |  | original
*      |  |  --->
*      v  |
*----------------------> z
*         |
*         |
*

Author: Laurie Nevay

Definition at line 50 of file BDSArrayOperatorValueReflectSolenoidZ.hh.

Constructor & Destructor Documentation

◆ BDSArrayOperatorValueReflectSolenoidZ()

BDSArrayOperatorValueReflectSolenoidZ::BDSArrayOperatorValueReflectSolenoidZ ( )

inline

Definition at line 53 of file BDSArrayOperatorValueReflectSolenoidZ.hh.

◆ ~BDSArrayOperatorValueReflectSolenoidZ()

virtual BDSArrayOperatorValueReflectSolenoidZ::~BDSArrayOperatorValueReflectSolenoidZ ( )

inlinevirtual

Definition at line 56 of file BDSArrayOperatorValueReflectSolenoidZ.hh.

Member Function Documentation

◆ Apply()

virtual BDSFieldValue BDSArrayOperatorValueReflectSolenoidZ::Apply	(	BDSFieldValue	v,
		G4int	,
		G4int	,
		G4int	= `0`,
		G4int	= `0`
	)		const

inlinevirtual

Index arguments are original coordinate space indices, i.e. allowed to be negative. No action by default.

Reimplemented from BDSArrayOperatorValue.

Definition at line 58 of file BDSArrayOperatorValueReflectSolenoidZ.hh.

The documentation for this class was generated from the following file:

/Users/nevay/physics/reps/bdsim/include/BDSArrayOperatorValueReflectSolenoidZ.hh
