All info required to build complete field of any type. More...

#include <BDSFieldInfo.hh>

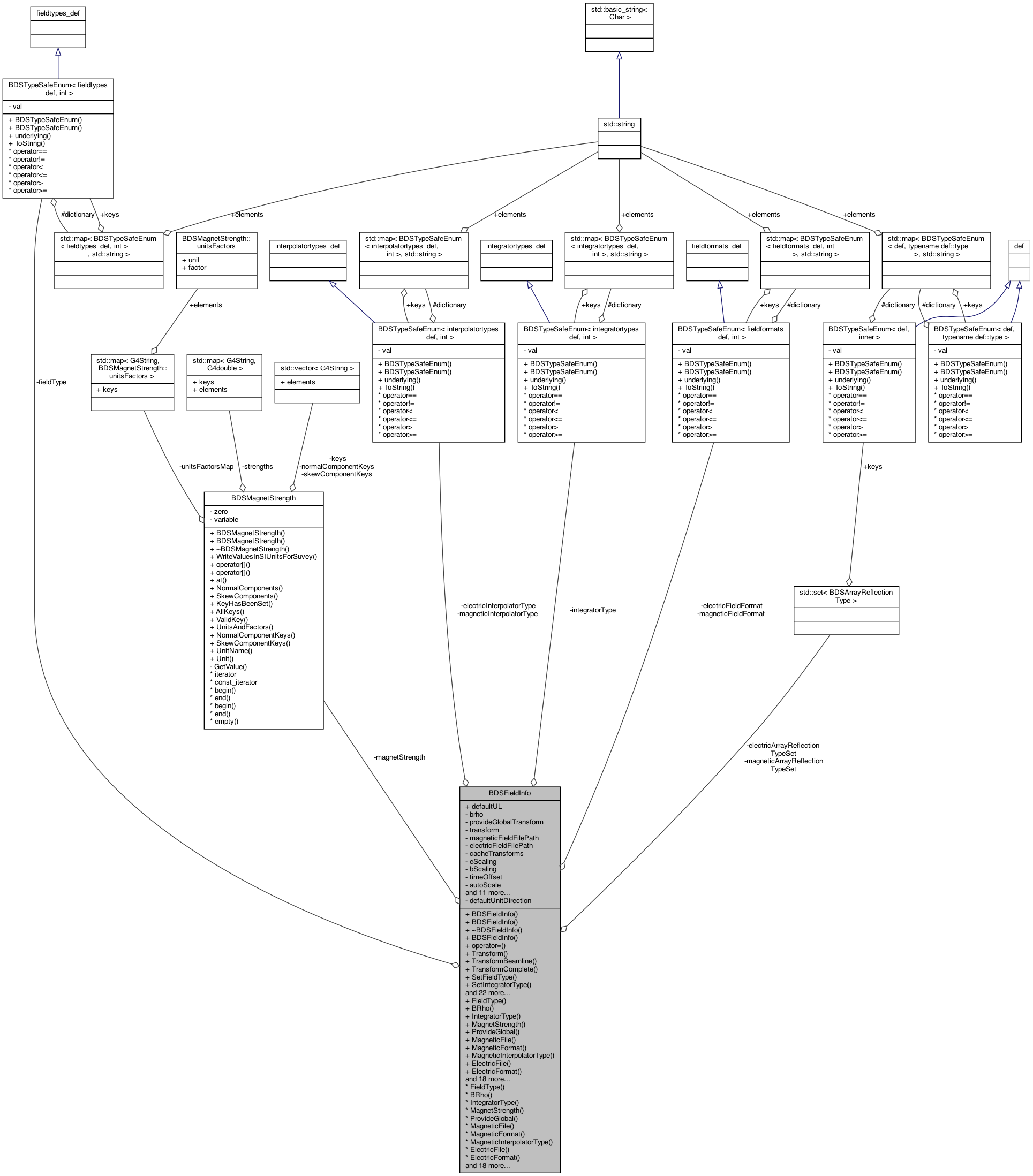

Collaboration diagram for BDSFieldInfo:

Public Member Functions
	BDSFieldInfo ()
	Default constructor for zero field effectively. More...

	BDSFieldInfo (BDSFieldType fieldTypeIn, G4double brhoIn, BDSIntegratorType integratorTypeIn, BDSMagnetStrength magnetStrengthIn=nullptr, G4bool provideGlobalTransformIn=true, const G4Transform3D &transformIn=G4Transform3D(), const G4String &magneticFieldFilePathIn="", BDSFieldFormat magneticFieldFormatIn=BDSFieldFormat::bdsim1d, BDSInterpolatorType magneticInterpolatorTypeIn=BDSInterpolatorType::nearest3d, const G4String &electricFieldFilePathIn="", BDSFieldFormat electricFieldFormatIn=BDSFieldFormat::bdsim1d, BDSInterpolatorType electricInterpolatorTypeIn=BDSInterpolatorType::nearest3d, G4bool cacheTransformsIn=false, G4double eScalingIn=1.0, G4double bScalingIn=1.0, G4double timeOffsetIn=0, G4bool autoScaleIn=false, G4UserLimits stepLimitIn=nullptr, G4double poleTipRadiusIn=1, G4double beamPipeRadiusIn=0, G4bool left=true, const G4String &magneticSubFieldNameIn="", const G4String &electricSubFieldNameIn="")

	BDSFieldInfo (const BDSFieldInfo &other)
	Copy constructor. More...

BDSFieldInfo &	operator= (const BDSFieldInfo &)=delete
	Assignment operator not used.

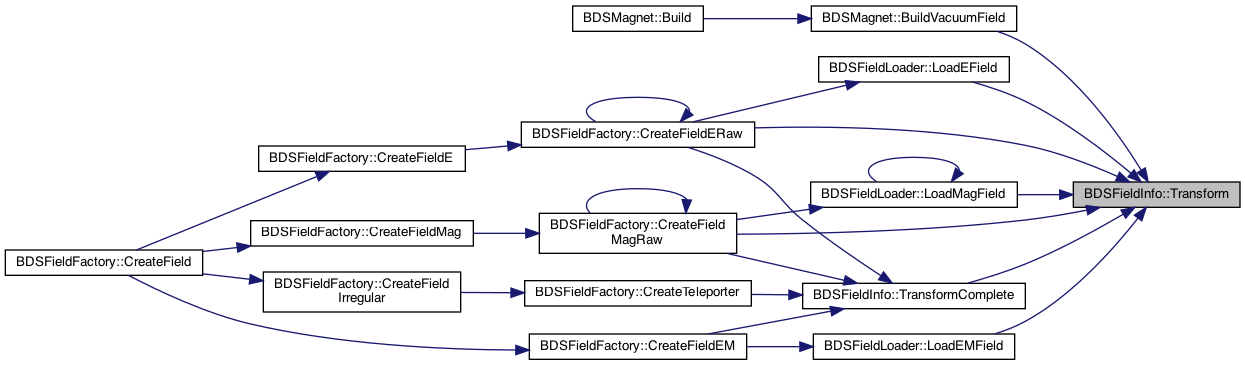

G4Transform3D	Transform () const
	Transform for the field definition only. More...

G4Transform3D	TransformBeamline () const
	Transform from the curvilinear coordinates to the beam line component. More...

G4Transform3D	TransformComplete () const
	Compound transform of field + beam line transform. More...

void	SetFieldType (BDSFieldType fieldTypeIn)
	Set Transform - could be done afterwards once instance of this class is passed around. More...

void	SetIntegratorType (BDSIntegratorType typeIn)

void	SetProvideGlobalTransform (G4bool provideGlobalTransformIn)

void	SetMagneticInterpolatorType (BDSInterpolatorType typeIn)

void	SetMagneticArrayReflectionType (const BDSArrayReflectionTypeSet &typeIn)

void	SetElectricArrayReflectionType (const BDSArrayReflectionTypeSet &typeIn)

void	SetBScaling (G4double bScalingIn)

void	SetAutoScale (G4bool autoScaleIn)

void	SetScalingRadius (G4double poleTipRadiusIn)

void	SetBeamPipeRadius (G4double beamPipeRadiusIn)

void	SetChordStepMinimum (G4double chordStepMinimumIn)

void	SetSecondFieldOnLeft (G4bool leftIn)

void	SetMagneticSubField (const G4String &mfnIn)

void	SetElectricSubField (const G4String &efnIn)

void	SetUsePlacementWorldTransform (G4bool use)

void	CompoundBScaling (G4double extraBScalingIn)
	*= for BScaling. More...

void	CompoundEScaling (G4double extraEScalingIn)
	*= for EScaling. More...

void	SetTransform (const G4Transform3D &transformIn)
	Set the field definition transform. More...

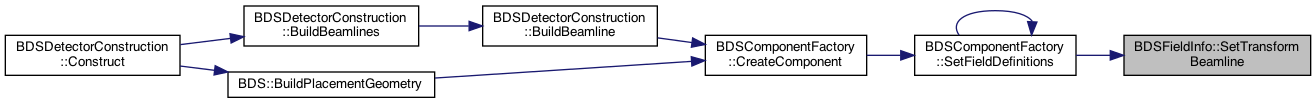

void	SetTransformBeamline (const G4Transform3D &transformIn)
	Set the beam line transform. More...

void	SetUserLimits (G4UserLimits *userLimitsIn)
	Delete and replace the user limits which this class owns (only if not default ul). More...

void	SetNameOfParserDefinition (const G4String &nameIn)

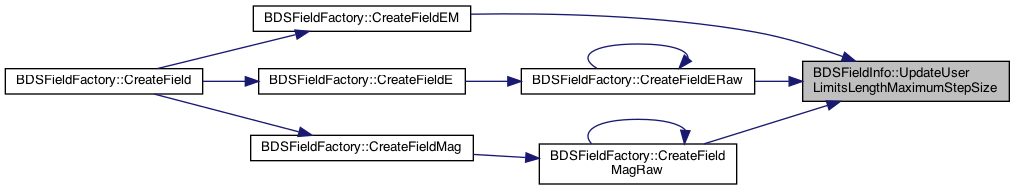

void	UpdateUserLimitsLengthMaximumStepSize (G4double maximumStepSize, G4bool warn=false) const

void	Translate (const G4ThreeVector &translationIn)

void	CacheTransforms (G4bool cacheTransformsIn)
	Turn on or off transform caching. More...


BDSFieldType	FieldType () const
	Accessor. More...

G4double	BRho () const
	Accessor. More...

BDSIntegratorType	IntegratorType () const
	Accessor. More...

BDSMagnetStrength *	MagnetStrength () const
	Accessor. More...

G4bool	ProvideGlobal () const
	Accessor. More...

G4String	MagneticFile () const
	Accessor. More...

BDSFieldFormat	MagneticFormat () const
	Accessor. More...

BDSInterpolatorType	MagneticInterpolatorType () const
	Accessor. More...

G4String	ElectricFile () const
	Accessor. More...

BDSFieldFormat	ElectricFormat () const
	Accessor. More...

BDSInterpolatorType	ElectricInterpolatorType () const
	Accessor. More...

G4bool	CacheTransforms () const
	Accessor. More...

G4double	EScaling () const
	Accessor. More...

G4double	BScaling () const
	Accessor. More...

G4double	TimeOffset () const
	Accessor. More...

G4bool	AutoScale () const
	Accessor. More...

G4UserLimits *	UserLimits () const
	Accessor. More...

G4double	PoleTipRadius () const
	Accessor. More...

G4double	BeamPipeRadius () const
	Accessor. More...

G4double	ChordStepMinimum () const
	Accessor. More...

G4double	Tilt () const
	Accessor. More...

G4bool	SecondFieldOnLeft () const
	Accessor. More...

G4String	MagneticSubFieldName () const
	Accessor. More...

G4String	ElectricSubFieldName () const
	Accessor. More...

G4String	NameOfParserDefinition () const
	Accessor. More...

G4bool	UsePlacementWorldTransform () const
	Accessor. More...

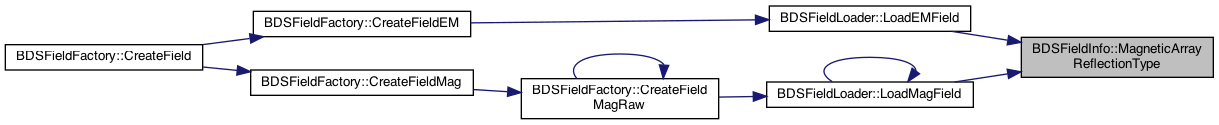

const BDSArrayReflectionTypeSet &	MagneticArrayReflectionType () const
	Accessor. More...

const BDSArrayReflectionTypeSet &	ElectricArrayReflectionType () const
	Accessor. More...

Static Public Attributes
static G4UserLimits *	defaultUL = nullptr
	Cache of default user limits. More...

Private Attributes
BDSFieldType	fieldType

G4double	brho

BDSIntegratorType	integratorType

BDSMagnetStrength *	magnetStrength

G4bool	provideGlobalTransform

G4Transform3D *	transform
	Transform w.r.t. solid field will be attached to. More...

G4String	magneticFieldFilePath

BDSFieldFormat	magneticFieldFormat

BDSInterpolatorType	magneticInterpolatorType

BDSArrayReflectionTypeSet	magneticArrayReflectionTypeSet

G4String	electricFieldFilePath

BDSFieldFormat	electricFieldFormat

BDSInterpolatorType	electricInterpolatorType

BDSArrayReflectionTypeSet	electricArrayReflectionTypeSet

G4bool	cacheTransforms

G4double	eScaling

G4double	bScaling

G4double	timeOffset

G4bool	autoScale

G4UserLimits *	stepLimit

G4double	poleTipRadius
	Radius at which point the field will be scaled to. More...

G4double	beamPipeRadius
	Optional radius of beam pipe. More...

G4double	chordStepMinimum

G4double	tilt
	Cache of tilt of field. More...

G4bool	secondFieldOnLeft
	Flag for case of two-beam field - if not left, it's right. More...

G4String	magneticSubFieldName

G4String	electricSubFieldName

G4bool	usePlacementWorldTransform

G4Transform3D *	transformBeamline
	Transform from curvilinear frame to this field - ie beam line bit only. More...

G4String	nameOfParserDefinition

Static Private Attributes
static const G4ThreeVector	defaultUnitDirection

Friends
std::ostream &	operator<< (std::ostream &out, BDSFieldInfo const &info)
	output stream More...

Detailed Description

All info required to build complete field of any type.

With an instance of this class, the field factory should be able to create the desired fully functional field with all required associated Geant4 objects.

Owns the magnetic strength instance & cavity info instance.

Owns G4ThreeVector for unitDirection. It's a pointer to save memory on average.

Pole tip radius is used for normalisation purposes for outer yoke fields. Beam pipe radius is used to decide whether there's a gap between the pole and the beam pipe and therefore to use a normal inner field for that part.

Transforms are optional to save memory. The complete required transform is stored as 2 optional bits - the transform from the curvilinear reference frame to that of the specific component (tilt + offset), as well as the transform of the field definition itself (e.g. a field map maybe rotated 90 degrees). The full transform is the compound of these. They're kept separate in case we want to wrap multiple instances (with individual field transforms) in one holder instance (with the beam line transform).

Author: Laurie Nevay

Definition at line 64 of file BDSFieldInfo.hh.

Constructor & Destructor Documentation

◆ BDSFieldInfo() [1/3]

BDSFieldInfo::BDSFieldInfo ( )

Default constructor for zero field effectively.

Definition at line 39 of file BDSFieldInfo.cc.

◆ BDSFieldInfo() [2/3]

BDSFieldInfo::BDSFieldInfo	(	BDSFieldType	fieldTypeIn,
		G4double	brhoIn,
		BDSIntegratorType	integratorTypeIn,
		BDSMagnetStrength *	magnetStrengthIn = `nullptr`,
		G4bool	provideGlobalTransformIn = `true`,
		const G4Transform3D &	transformIn = `G4Transform3D()`,
		const G4String &	magneticFieldFilePathIn = `""`,
		BDSFieldFormat	magneticFieldFormatIn = `BDSFieldFormat::bdsim1d`,
		BDSInterpolatorType	magneticInterpolatorTypeIn = `BDSInterpolatorType::nearest3d`,
		const G4String &	electricFieldFilePathIn = `""`,
		BDSFieldFormat	electricFieldFormatIn = `BDSFieldFormat::bdsim1d`,
		BDSInterpolatorType	electricInterpolatorTypeIn = `BDSInterpolatorType::nearest3d`,
		G4bool	cacheTransformsIn = `false`,
		G4double	eScalingIn = `1.0`,
		G4double	bScalingIn = `1.0`,
		G4double	timeOffsetIn = `0`,
		G4bool	autoScaleIn = `false`,
		G4UserLimits *	stepLimitIn = `nullptr`,
		G4double	poleTipRadiusIn = `1`,
		G4double	beamPipeRadiusIn = `0`,
		G4bool	left = `true`,
		const G4String &	magneticSubFieldNameIn = `""`,
		const G4String &	electricSubFieldNameIn = `""`
	)

Definition at line 72 of file BDSFieldInfo.cc.

◆ ~BDSFieldInfo()

BDSFieldInfo::~BDSFieldInfo ( )

Definition at line 134 of file BDSFieldInfo.cc.

◆ BDSFieldInfo() [3/3]

BDSFieldInfo::BDSFieldInfo ( const BDSFieldInfo & other )

Copy constructor.

Definition at line 142 of file BDSFieldInfo.cc.

References transform, and transformBeamline.

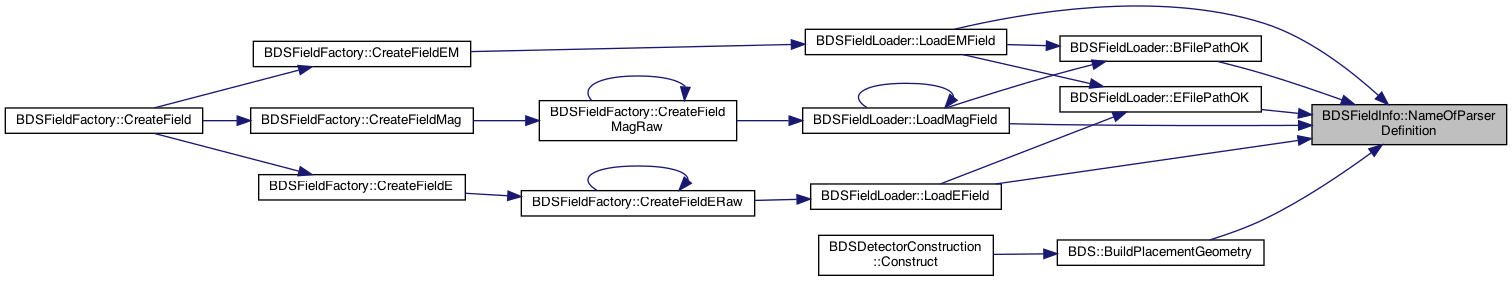

Member Function Documentation

◆ AutoScale()

G4bool BDSFieldInfo::AutoScale ( ) const

inline

Accessor.

Definition at line 115 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadMagField().

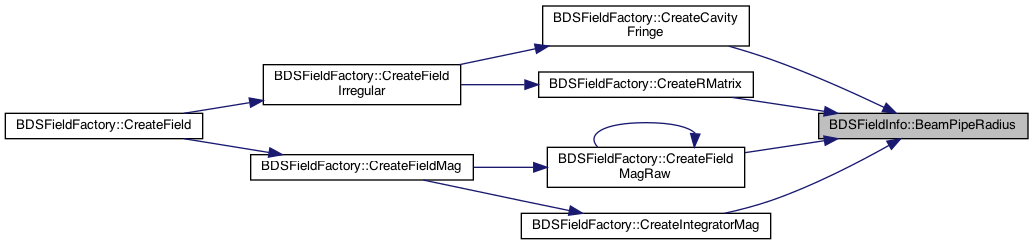

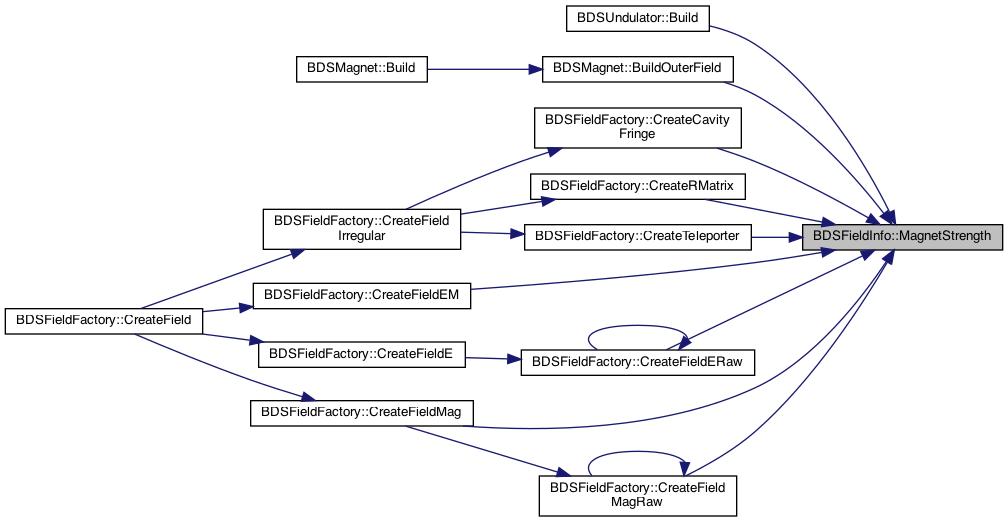

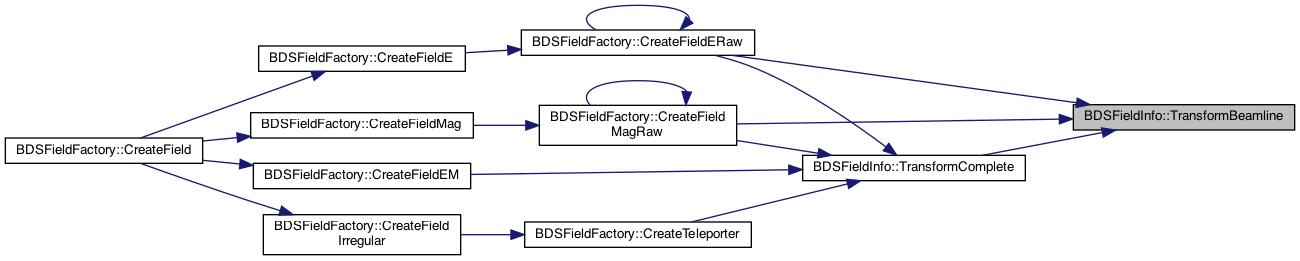

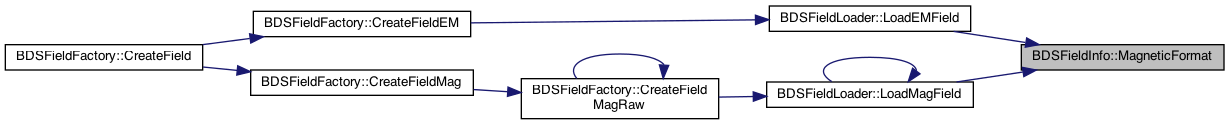

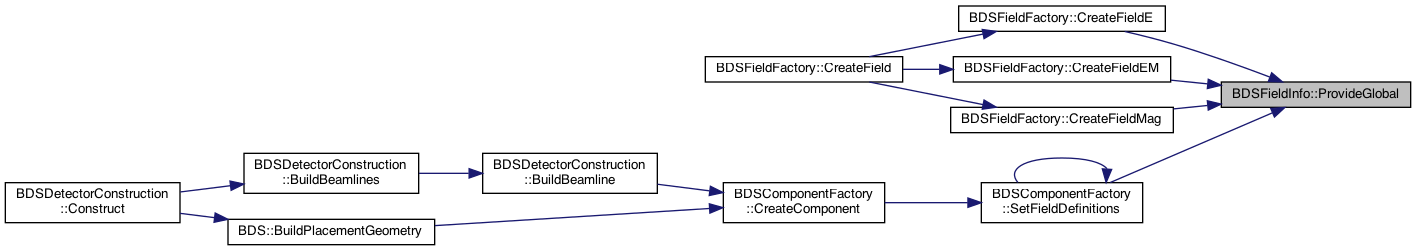

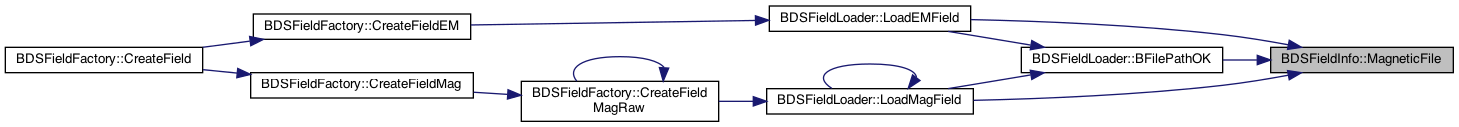

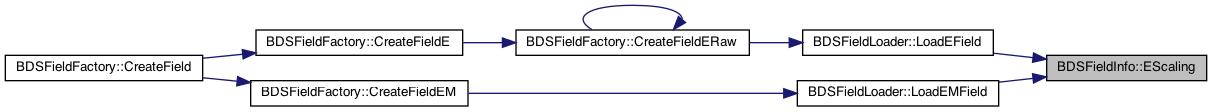

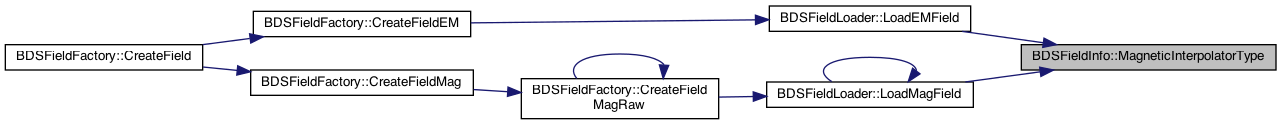

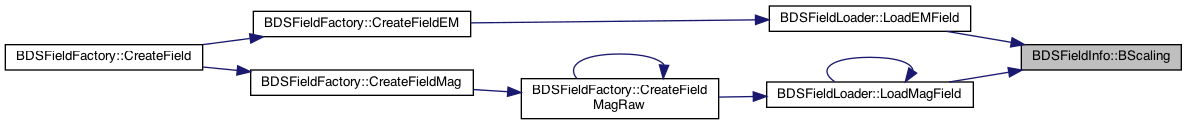

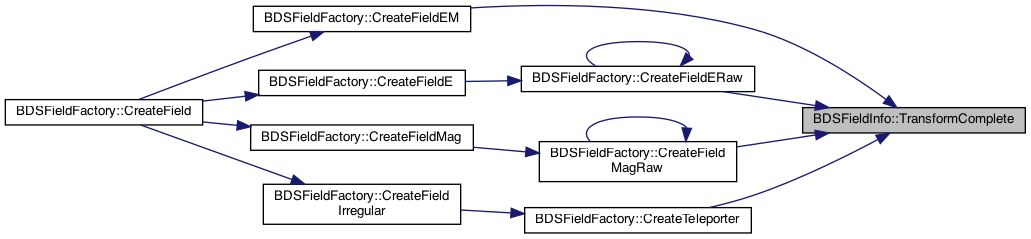

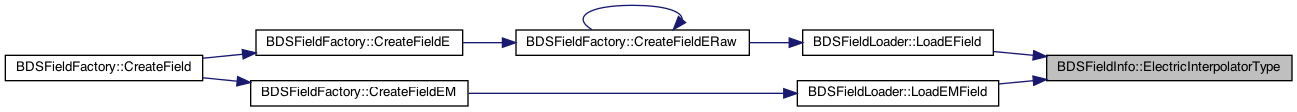

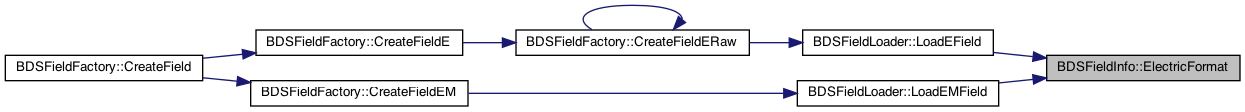

Here is the caller graph for this function:

◆ BeamPipeRadius()

G4double BDSFieldInfo::BeamPipeRadius ( ) const

inline

Accessor.

Definition at line 118 of file BDSFieldInfo.hh.

References beamPipeRadius.

Referenced by BDSFieldFactory::CreateCavityFringe(), BDSFieldFactory::CreateFieldMagRaw(), BDSFieldFactory::CreateIntegratorMag(), and BDSFieldFactory::CreateRMatrix().

Here is the caller graph for this function:

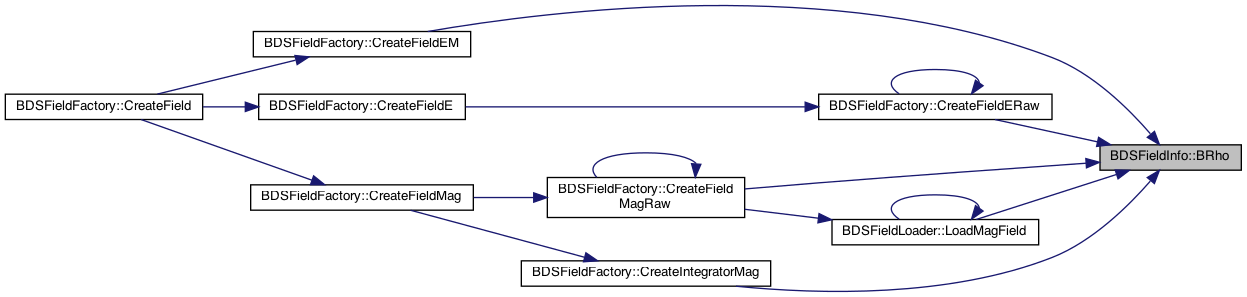

◆ BRho()

G4double BDSFieldInfo::BRho ( ) const

inline

Accessor.

Definition at line 101 of file BDSFieldInfo.hh.

Referenced by BDSFieldFactory::CreateFieldEM(), BDSFieldFactory::CreateFieldERaw(), BDSFieldFactory::CreateFieldMagRaw(), BDSFieldFactory::CreateIntegratorMag(), and BDSFieldLoader::LoadMagField().

Here is the caller graph for this function:

◆ BScaling()

G4double BDSFieldInfo::BScaling ( ) const

inline

Accessor.

Definition at line 113 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadEMField(), and BDSFieldLoader::LoadMagField().

Here is the caller graph for this function:

◆ CacheTransforms() [1/2]

G4bool BDSFieldInfo::CacheTransforms ( ) const

inline

Accessor.

Definition at line 111 of file BDSFieldInfo.hh.

◆ CacheTransforms() [2/2]

void BDSFieldInfo::CacheTransforms ( G4bool cacheTransformsIn )

inline

Turn on or off transform caching.

Definition at line 174 of file BDSFieldInfo.hh.

◆ ChordStepMinimum()

G4double BDSFieldInfo::ChordStepMinimum ( ) const

inline

Accessor.

Definition at line 119 of file BDSFieldInfo.hh.

Referenced by BDSFieldObjects::BDSFieldObjects().

Here is the caller graph for this function:

◆ CompoundBScaling()

void BDSFieldInfo::CompoundBScaling ( G4double extraBScalingIn )

inline

*= for BScaling.

Definition at line 152 of file BDSFieldInfo.hh.

Referenced by BDSComponentFactory::SetFieldDefinitions().

Here is the caller graph for this function:

◆ CompoundEScaling()

void BDSFieldInfo::CompoundEScaling ( G4double extraEScalingIn )

inline

*= for EScaling.

Definition at line 154 of file BDSFieldInfo.hh.

◆ ElectricArrayReflectionType()

const BDSArrayReflectionTypeSet & BDSFieldInfo::ElectricArrayReflectionType ( ) const

inline

Accessor.

Definition at line 127 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadEField(), and BDSFieldLoader::LoadEMField().

Here is the caller graph for this function:

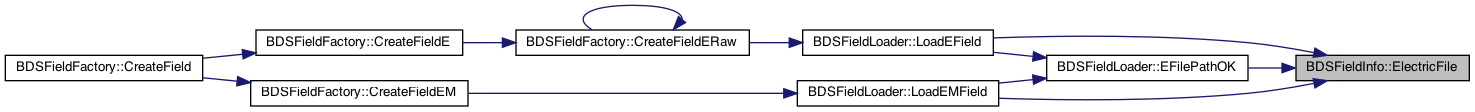

◆ ElectricFile()

G4String BDSFieldInfo::ElectricFile ( ) const

inline

Accessor.

Definition at line 108 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::EFilePathOK(), BDSFieldLoader::LoadEField(), and BDSFieldLoader::LoadEMField().

Here is the caller graph for this function:

◆ ElectricFormat()

BDSFieldFormat BDSFieldInfo::ElectricFormat ( ) const

inline

Accessor.

Definition at line 109 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadEField(), and BDSFieldLoader::LoadEMField().

Here is the caller graph for this function:

◆ ElectricInterpolatorType()

BDSInterpolatorType BDSFieldInfo::ElectricInterpolatorType ( ) const

inline

Accessor.

Definition at line 110 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadEField(), and BDSFieldLoader::LoadEMField().

Here is the caller graph for this function:

◆ ElectricSubFieldName()

G4String BDSFieldInfo::ElectricSubFieldName ( ) const

inline

Accessor.

Definition at line 123 of file BDSFieldInfo.hh.

Referenced by BDSFieldFactory::CreateFieldERaw().

Here is the caller graph for this function:

◆ EScaling()

G4double BDSFieldInfo::EScaling ( ) const

inline

Accessor.

Definition at line 112 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadEField(), and BDSFieldLoader::LoadEMField().

Here is the caller graph for this function:

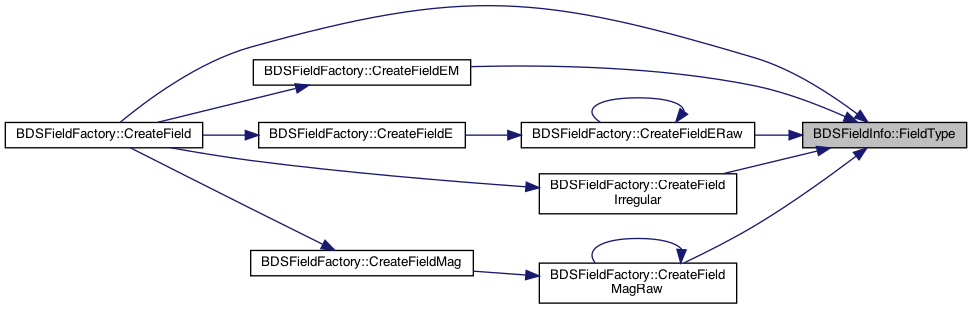

◆ FieldType()

BDSFieldType BDSFieldInfo::FieldType ( ) const

inline

Accessor.

Definition at line 100 of file BDSFieldInfo.hh.

Referenced by BDSFieldFactory::CreateField(), BDSFieldFactory::CreateFieldEM(), BDSFieldFactory::CreateFieldERaw(), BDSFieldFactory::CreateFieldIrregular(), and BDSFieldFactory::CreateFieldMagRaw().

Here is the caller graph for this function:

◆ IntegratorType()

BDSIntegratorType BDSFieldInfo::IntegratorType ( ) const

inline

Accessor.

Definition at line 102 of file BDSFieldInfo.hh.

Referenced by BDSFieldFactory::CreateIntegratorEM(), and BDSFieldFactory::CreateIntegratorMag().

Here is the caller graph for this function:

◆ MagneticArrayReflectionType()

const BDSArrayReflectionTypeSet & BDSFieldInfo::MagneticArrayReflectionType ( ) const

inline

Accessor.

Definition at line 126 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadEMField(), and BDSFieldLoader::LoadMagField().

Here is the caller graph for this function:

◆ MagneticFile()

G4String BDSFieldInfo::MagneticFile ( ) const

inline

Accessor.

Definition at line 105 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::BFilePathOK(), BDSFieldLoader::LoadEMField(), and BDSFieldLoader::LoadMagField().

Here is the caller graph for this function:

◆ MagneticFormat()

BDSFieldFormat BDSFieldInfo::MagneticFormat ( ) const

inline

Accessor.

Definition at line 106 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadEMField(), and BDSFieldLoader::LoadMagField().

Here is the caller graph for this function:

◆ MagneticInterpolatorType()

BDSInterpolatorType BDSFieldInfo::MagneticInterpolatorType ( ) const

inline

Accessor.

Definition at line 107 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::LoadEMField(), and BDSFieldLoader::LoadMagField().

Here is the caller graph for this function:

◆ MagneticSubFieldName()

G4String BDSFieldInfo::MagneticSubFieldName ( ) const

inline

Accessor.

Definition at line 122 of file BDSFieldInfo.hh.

Referenced by BDSFieldFactory::CreateFieldMagRaw().

Here is the caller graph for this function:

◆ MagnetStrength()

BDSMagnetStrength * BDSFieldInfo::MagnetStrength ( ) const

inline

Accessor.

Definition at line 103 of file BDSFieldInfo.hh.

Referenced by BDSUndulator::Build(), BDSMagnet::BuildOuterField(), BDSFieldFactory::CreateCavityFringe(), BDSFieldFactory::CreateFieldEM(), BDSFieldFactory::CreateFieldERaw(), BDSFieldFactory::CreateFieldMag(), BDSFieldFactory::CreateFieldMagRaw(), BDSFieldFactory::CreateRMatrix(), and BDSFieldFactory::CreateTeleporter().

Here is the caller graph for this function:

◆ NameOfParserDefinition()

G4String BDSFieldInfo::NameOfParserDefinition ( ) const

inline

Accessor.

Definition at line 124 of file BDSFieldInfo.hh.

Referenced by BDSFieldLoader::BFilePathOK(), BDS::BuildPlacementGeometry(), BDSFieldLoader::EFilePathOK(), BDSFieldLoader::LoadEField(), BDSFieldLoader::LoadEMField(), and BDSFieldLoader::LoadMagField().

Here is the caller graph for this function:

◆ PoleTipRadius()

G4double BDSFieldInfo::PoleTipRadius ( ) const

inline

Accessor.

Definition at line 117 of file BDSFieldInfo.hh.

References poleTipRadius.

Referenced by BDSFieldFactory::CreateFieldMagRaw().

Here is the caller graph for this function:

◆ ProvideGlobal()

G4bool BDSFieldInfo::ProvideGlobal ( ) const

inline

Accessor.

Definition at line 104 of file BDSFieldInfo.hh.

Referenced by BDSFieldFactory::CreateFieldE(), BDSFieldFactory::CreateFieldEM(), BDSFieldFactory::CreateFieldMag(), and BDSComponentFactory::SetFieldDefinitions().

Here is the caller graph for this function:

◆ SecondFieldOnLeft()

G4bool BDSFieldInfo::SecondFieldOnLeft ( ) const

inline

Accessor.

Definition at line 121 of file BDSFieldInfo.hh.

References secondFieldOnLeft.

Referenced by BDSFieldFactory::CreateFieldMagRaw().

Here is the caller graph for this function:

◆ SetAutoScale()

void BDSFieldInfo::SetAutoScale ( G4bool autoScaleIn )

inline

Definition at line 142 of file BDSFieldInfo.hh.

◆ SetBeamPipeRadius()

void BDSFieldInfo::SetBeamPipeRadius ( G4double beamPipeRadiusIn )

inline

Definition at line 144 of file BDSFieldInfo.hh.

◆ SetBScaling()

void BDSFieldInfo::SetBScaling ( G4double bScalingIn )

inline

Definition at line 141 of file BDSFieldInfo.hh.

◆ SetChordStepMinimum()

void BDSFieldInfo::SetChordStepMinimum ( G4double chordStepMinimumIn )

inline

Definition at line 145 of file BDSFieldInfo.hh.

◆ SetElectricArrayReflectionType()

void BDSFieldInfo::SetElectricArrayReflectionType ( const BDSArrayReflectionTypeSet & typeIn )

inline

Definition at line 140 of file BDSFieldInfo.hh.

◆ SetElectricSubField()

void BDSFieldInfo::SetElectricSubField ( const G4String & efnIn )

inline

Definition at line 148 of file BDSFieldInfo.hh.

◆ SetFieldType()

void BDSFieldInfo::SetFieldType ( BDSFieldType fieldTypeIn )

inline

Set Transform - could be done afterwards once instance of this class is passed around.

Definition at line 135 of file BDSFieldInfo.hh.

Referenced by BDSComponentFactory::PrepareMagnetOuterFieldInfo().

Here is the caller graph for this function:

◆ SetIntegratorType()

void BDSFieldInfo::SetIntegratorType ( BDSIntegratorType typeIn )

inline

Definition at line 136 of file BDSFieldInfo.hh.

◆ SetMagneticArrayReflectionType()

void BDSFieldInfo::SetMagneticArrayReflectionType ( const BDSArrayReflectionTypeSet & typeIn )

inline

Definition at line 139 of file BDSFieldInfo.hh.

◆ SetMagneticInterpolatorType()

void BDSFieldInfo::SetMagneticInterpolatorType ( BDSInterpolatorType typeIn )

inline

Definition at line 138 of file BDSFieldInfo.hh.

◆ SetMagneticSubField()

void BDSFieldInfo::SetMagneticSubField ( const G4String & mfnIn )

inline

Definition at line 147 of file BDSFieldInfo.hh.

◆ SetNameOfParserDefinition()

void BDSFieldInfo::SetNameOfParserDefinition ( const G4String & nameIn )

inline

Definition at line 162 of file BDSFieldInfo.hh.

◆ SetProvideGlobalTransform()

void BDSFieldInfo::SetProvideGlobalTransform ( G4bool provideGlobalTransformIn )

inline

Definition at line 137 of file BDSFieldInfo.hh.

◆ SetScalingRadius()

void BDSFieldInfo::SetScalingRadius ( G4double poleTipRadiusIn )

inline

Definition at line 143 of file BDSFieldInfo.hh.

◆ SetSecondFieldOnLeft()

void BDSFieldInfo::SetSecondFieldOnLeft ( G4bool leftIn )

inline

Definition at line 146 of file BDSFieldInfo.hh.

◆ SetTransform()

void BDSFieldInfo::SetTransform ( const G4Transform3D & transformIn )

Set the field definition transform.

Definition at line 284 of file BDSFieldInfo.cc.

References transform.

Referenced by BDSMagnet::BuildVacuumField().

Here is the caller graph for this function:

◆ SetTransformBeamline()

void BDSFieldInfo::SetTransformBeamline ( const G4Transform3D & transformIn )

Set the beam line transform.

Definition at line 290 of file BDSFieldInfo.cc.

References transformBeamline.

Referenced by BDSComponentFactory::SetFieldDefinitions().

Here is the caller graph for this function:

◆ SetUsePlacementWorldTransform()

void BDSFieldInfo::SetUsePlacementWorldTransform ( G4bool use )

inline

Definition at line 149 of file BDSFieldInfo.hh.

◆ SetUserLimits()

void BDSFieldInfo::SetUserLimits ( G4UserLimits * userLimitsIn )

Delete and replace the user limits which this class owns (only if not default ul).

Definition at line 189 of file BDSFieldInfo.cc.

References defaultUL.

◆ Tilt()

G4double BDSFieldInfo::Tilt ( ) const

inline

Accessor.

Definition at line 120 of file BDSFieldInfo.hh.

References tilt.

Referenced by BDSFieldFactory::CreateIntegratorMag().

Here is the caller graph for this function:

◆ TimeOffset()

G4double BDSFieldInfo::TimeOffset ( ) const

inline

Accessor.

Definition at line 114 of file BDSFieldInfo.hh.

◆ Transform()

G4Transform3D BDSFieldInfo::Transform ( ) const

Transform for the field definition only.

Definition at line 269 of file BDSFieldInfo.cc.

References transform.

Referenced by BDSMagnet::BuildVacuumField(), BDSFieldFactory::CreateFieldERaw(), BDSFieldFactory::CreateFieldMagRaw(), BDSFieldLoader::LoadEField(), BDSFieldLoader::LoadEMField(), BDSFieldLoader::LoadMagField(), and TransformComplete().

Here is the caller graph for this function:

◆ TransformBeamline()

G4Transform3D BDSFieldInfo::TransformBeamline ( ) const

Transform from the curvilinear coordinates to the beam line component.

Definition at line 274 of file BDSFieldInfo.cc.

References transformBeamline.

Referenced by BDSFieldFactory::CreateFieldERaw(), BDSFieldFactory::CreateFieldMagRaw(), and TransformComplete().

Here is the caller graph for this function:

◆ TransformComplete()

G4Transform3D BDSFieldInfo::TransformComplete ( ) const

Compound transform of field + beam line transform.

Definition at line 279 of file BDSFieldInfo.cc.

References Transform(), and TransformBeamline().

Referenced by BDSFieldFactory::CreateFieldEM(), BDSFieldFactory::CreateFieldERaw(), BDSFieldFactory::CreateFieldMagRaw(), and BDSFieldFactory::CreateTeleporter().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Translate()

void BDSFieldInfo::Translate ( const G4ThreeVector & translationIn )

Translate - adds an additional translation to the transform member variable. May only be known at assembly time given parameterised geometry. Used by AWAKE Spectrometer only.

Definition at line 257 of file BDSFieldInfo.cc.

References transform.

Referenced by BDSMagnet::BuildOuterField().

Here is the caller graph for this function:

◆ UpdateUserLimitsLengthMaximumStepSize()

void BDSFieldInfo::UpdateUserLimitsLengthMaximumStepSize	(	G4double	maximumStepSize,
		G4bool	warn = `false`
	)		const

Update the user limits object (stepLimit) to the minimum of the current and supplied maximum step size. Mutable, so can be called on const object.

Definition at line 196 of file BDSFieldInfo.cc.

References BDS::CreateUserLimits(), and defaultUL.

Referenced by BDSFieldFactory::CreateFieldEM(), BDSFieldFactory::CreateFieldERaw(), and BDSFieldFactory::CreateFieldMagRaw().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ UsePlacementWorldTransform()

G4bool BDSFieldInfo::UsePlacementWorldTransform ( ) const

inline

Accessor.

Definition at line 125 of file BDSFieldInfo.hh.

Referenced by BDSFieldFactory::CreateFieldE(), BDSFieldFactory::CreateFieldEM(), and BDSFieldFactory::CreateFieldMag().

Here is the caller graph for this function:

◆ UserLimits()

G4UserLimits * BDSFieldInfo::UserLimits ( ) const

inline

Accessor.

Definition at line 116 of file BDSFieldInfo.hh.

Referenced by BDSFieldObjects::AttachToVolume().

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		BDSFieldInfo const &	info
	)

friend

output stream

Definition at line 218 of file BDSFieldInfo.cc.

Field Documentation

◆ autoScale

G4bool BDSFieldInfo::autoScale

private

Definition at line 200 of file BDSFieldInfo.hh.

◆ beamPipeRadius

G4double BDSFieldInfo::beamPipeRadius

private

Optional radius of beam pipe.

Definition at line 203 of file BDSFieldInfo.hh.

Referenced by BeamPipeRadius().

◆ brho

G4double BDSFieldInfo::brho

private

Definition at line 183 of file BDSFieldInfo.hh.

◆ bScaling

G4double BDSFieldInfo::bScaling

private

Definition at line 198 of file BDSFieldInfo.hh.

◆ cacheTransforms

G4bool BDSFieldInfo::cacheTransforms

private

Definition at line 196 of file BDSFieldInfo.hh.

◆ chordStepMinimum

G4double BDSFieldInfo::chordStepMinimum

private

Definition at line 204 of file BDSFieldInfo.hh.

◆ defaultUL

G4UserLimits * BDSFieldInfo::defaultUL = nullptr

static

Cache of default user limits.

Definition at line 179 of file BDSFieldInfo.hh.

Referenced by SetUserLimits(), and UpdateUserLimitsLengthMaximumStepSize().

◆ defaultUnitDirection

const G4ThreeVector BDSFieldInfo::defaultUnitDirection

staticprivate

Definition at line 216 of file BDSFieldInfo.hh.

◆ electricArrayReflectionTypeSet

BDSArrayReflectionTypeSet BDSFieldInfo::electricArrayReflectionTypeSet

private

Definition at line 195 of file BDSFieldInfo.hh.

◆ electricFieldFilePath

G4String BDSFieldInfo::electricFieldFilePath

private

Definition at line 192 of file BDSFieldInfo.hh.

◆ electricFieldFormat

BDSFieldFormat BDSFieldInfo::electricFieldFormat

private

Definition at line 193 of file BDSFieldInfo.hh.

◆ electricInterpolatorType

BDSInterpolatorType BDSFieldInfo::electricInterpolatorType

private

Definition at line 194 of file BDSFieldInfo.hh.

◆ electricSubFieldName

G4String BDSFieldInfo::electricSubFieldName

private

Definition at line 208 of file BDSFieldInfo.hh.

◆ eScaling

G4double BDSFieldInfo::eScaling

private

Definition at line 197 of file BDSFieldInfo.hh.

◆ fieldType

BDSFieldType BDSFieldInfo::fieldType

private

Definition at line 182 of file BDSFieldInfo.hh.

◆ integratorType

BDSIntegratorType BDSFieldInfo::integratorType

private

Definition at line 184 of file BDSFieldInfo.hh.

◆ magneticArrayReflectionTypeSet

BDSArrayReflectionTypeSet BDSFieldInfo::magneticArrayReflectionTypeSet

private

Definition at line 191 of file BDSFieldInfo.hh.

◆ magneticFieldFilePath

G4String BDSFieldInfo::magneticFieldFilePath

private

Definition at line 188 of file BDSFieldInfo.hh.

◆ magneticFieldFormat

BDSFieldFormat BDSFieldInfo::magneticFieldFormat

private

Definition at line 189 of file BDSFieldInfo.hh.

◆ magneticInterpolatorType

BDSInterpolatorType BDSFieldInfo::magneticInterpolatorType

private

Definition at line 190 of file BDSFieldInfo.hh.

◆ magneticSubFieldName

G4String BDSFieldInfo::magneticSubFieldName

private

Definition at line 207 of file BDSFieldInfo.hh.

◆ magnetStrength

BDSMagnetStrength* BDSFieldInfo::magnetStrength

private

Definition at line 185 of file BDSFieldInfo.hh.

◆ nameOfParserDefinition

G4String BDSFieldInfo::nameOfParserDefinition

private

Definition at line 213 of file BDSFieldInfo.hh.

◆ poleTipRadius

G4double BDSFieldInfo::poleTipRadius

private

Radius at which point the field will be scaled to.

Definition at line 202 of file BDSFieldInfo.hh.

Referenced by PoleTipRadius().

◆ provideGlobalTransform

G4bool BDSFieldInfo::provideGlobalTransform

private

Definition at line 186 of file BDSFieldInfo.hh.

◆ secondFieldOnLeft

G4bool BDSFieldInfo::secondFieldOnLeft

private

Flag for case of two-beam field - if not left, it's right.

Definition at line 206 of file BDSFieldInfo.hh.

Referenced by SecondFieldOnLeft().

◆ stepLimit

G4UserLimits* BDSFieldInfo::stepLimit

mutableprivate

Definition at line 201 of file BDSFieldInfo.hh.

◆ tilt

G4double BDSFieldInfo::tilt

private

Cache of tilt of field.

Definition at line 205 of file BDSFieldInfo.hh.

Referenced by Tilt().

◆ timeOffset

G4double BDSFieldInfo::timeOffset

private

Definition at line 199 of file BDSFieldInfo.hh.

◆ transform

G4Transform3D* BDSFieldInfo::transform

private

Transform w.r.t. solid field will be attached to.

Definition at line 187 of file BDSFieldInfo.hh.

Referenced by BDSFieldInfo(), SetTransform(), Transform(), and Translate().

◆ transformBeamline

G4Transform3D* BDSFieldInfo::transformBeamline

private

Transform from curvilinear frame to this field - ie beam line bit only.

Definition at line 211 of file BDSFieldInfo.hh.

Referenced by BDSFieldInfo(), SetTransformBeamline(), and TransformBeamline().

◆ usePlacementWorldTransform

G4bool BDSFieldInfo::usePlacementWorldTransform

private

Definition at line 209 of file BDSFieldInfo.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSFieldInfo.hh
/Users/nevay/physics/reps/bdsim/src/BDSFieldInfo.cc

Public Member Functions

Static Public Attributes

Private Attributes

Static Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ BDSFieldInfo() [1/3]

◆ BDSFieldInfo() [2/3]

◆ ~BDSFieldInfo()

◆ BDSFieldInfo() [3/3]

Member Function Documentation

◆ AutoScale()

◆ BeamPipeRadius()

◆ BRho()

◆ BScaling()

◆ CacheTransforms() [1/2]

◆ CacheTransforms() [2/2]

◆ ChordStepMinimum()

◆ CompoundBScaling()

◆ CompoundEScaling()

◆ ElectricArrayReflectionType()

◆ ElectricFile()

◆ ElectricFormat()

◆ ElectricInterpolatorType()

◆ ElectricSubFieldName()

◆ EScaling()

◆ FieldType()

◆ IntegratorType()

◆ MagneticArrayReflectionType()

◆ MagneticFile()

◆ MagneticFormat()

◆ MagneticInterpolatorType()

◆ MagneticSubFieldName()

◆ MagnetStrength()

◆ NameOfParserDefinition()

◆ PoleTipRadius()

◆ ProvideGlobal()

◆ SecondFieldOnLeft()

◆ SetAutoScale()

◆ SetBeamPipeRadius()

◆ SetBScaling()

◆ SetChordStepMinimum()

◆ SetElectricArrayReflectionType()

◆ SetElectricSubField()

◆ SetFieldType()

◆ SetIntegratorType()

◆ SetMagneticArrayReflectionType()

◆ SetMagneticInterpolatorType()

◆ SetMagneticSubField()

◆ SetNameOfParserDefinition()

◆ SetProvideGlobalTransform()

◆ SetScalingRadius()

◆ SetSecondFieldOnLeft()

◆ SetTransform()

◆ SetTransformBeamline()

◆ SetUsePlacementWorldTransform()

◆ SetUserLimits()

◆ Tilt()

◆ TimeOffset()

◆ Transform()

◆ TransformBeamline()

◆ TransformComplete()

◆ Translate()

◆ UpdateUserLimitsLengthMaximumStepSize()

◆ UsePlacementWorldTransform()

◆ UserLimits()

Friends And Related Function Documentation

◆ operator<<

Field Documentation

◆ autoScale

◆ beamPipeRadius

◆ brho

◆ bScaling

◆ cacheTransforms

◆ chordStepMinimum

◆ defaultUL

◆ defaultUnitDirection

◆ electricArrayReflectionTypeSet

◆ electricFieldFilePath
