Class that provides the magnetic strength in a mixed dipole / quadrupole. More...

#include <BDSFieldMagDipoleQuadrupole.hh>

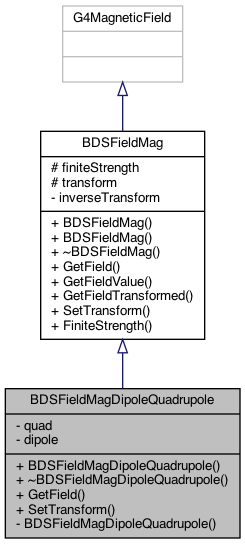

Inheritance diagram for BDSFieldMagDipoleQuadrupole:

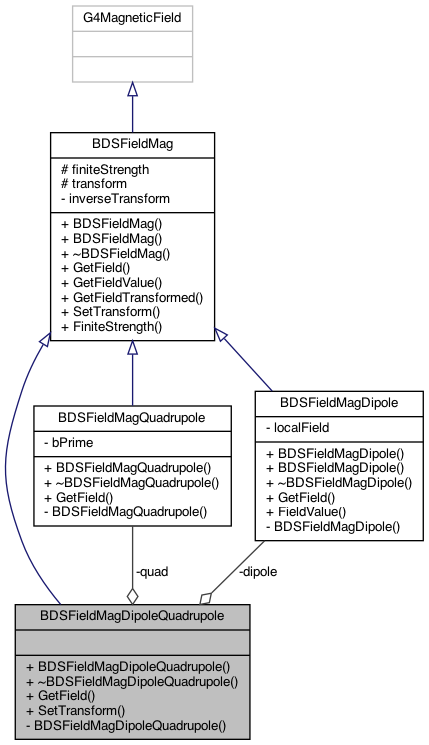

Collaboration diagram for BDSFieldMagDipoleQuadrupole:

Public Member Functions
	BDSFieldMagDipoleQuadrupole (BDSMagnetStrength const *strength, G4double const brho)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
	Access the field value. More...

virtual void	SetTransform (const G4Transform3D &transformIn)

Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()

	BDSFieldMag (G4Transform3D transformIn)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset. More...

virtual void	SetTransform (const G4Transform3D &transformIn)

G4bool	FiniteStrength () const
	Accessor. More...

Private Member Functions
	BDSFieldMagDipoleQuadrupole ()
	Private default constructor to force use of supplied constructor.

Private Attributes
BDSFieldMagQuadrupole *	quad

BDSFieldMagDipole *	dipole

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not. More...

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry. More...

Detailed Description

Class that provides the magnetic strength in a mixed dipole / quadrupole.

This is the linear sum of a dipole and quadrupolar field (as defined by k1).

Author: Laurie Nevay

Definition at line 40 of file BDSFieldMagDipoleQuadrupole.hh.

Constructor & Destructor Documentation

◆ BDSFieldMagDipoleQuadrupole()

BDSFieldMagDipoleQuadrupole::BDSFieldMagDipoleQuadrupole	(	BDSMagnetStrength const *	strength,
		G4double const	brho
	)

Definition at line 28 of file BDSFieldMagDipoleQuadrupole.cc.

◆ ~BDSFieldMagDipoleQuadrupole()

BDSFieldMagDipoleQuadrupole::~BDSFieldMagDipoleQuadrupole ( )

virtual

Definition at line 36 of file BDSFieldMagDipoleQuadrupole.cc.

Member Function Documentation

◆ GetField()

G4ThreeVector BDSFieldMagDipoleQuadrupole::GetField	(	const G4ThreeVector &	position,
		const G4double	t = `0`
	)		const

virtual

Access the field value.

Implements BDSFieldMag.

Definition at line 42 of file BDSFieldMagDipoleQuadrupole.cc.

References BDSFieldMag::GetFieldTransformed().

Here is the call graph for this function:

◆ SetTransform()

void BDSFieldMagDipoleQuadrupole::SetTransform ( const G4Transform3D & transformIn )

virtual

Set the transform applied before evaluating the field. This can be used to account for any difference between the field coordinate system and the coordinate system of the geometry. Ie an offset aperture. This is a public interface to allow the transform to be set after construction so that derived classes don't need modified constructors.

Reimplemented from BDSFieldMag.

Definition at line 50 of file BDSFieldMagDipoleQuadrupole.cc.

References BDSFieldMag::SetTransform().

Here is the call graph for this function:
