A wrapper class for BDSFieldMagSkew where it owns the field. More...

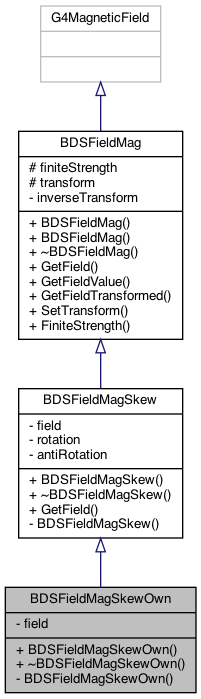

Inheritance diagram for BDSFieldMagSkewOwn:

Collaboration diagram for BDSFieldMagSkewOwn:

Public Member Functions
	BDSFieldMagSkewOwn (BDSFieldMag *fieldIn, G4double angle=0)
	Wrap a field and rotate it by angle (rad) in the x-y plane (about z axis). More...

Public Member Functions inherited from BDSFieldMagSkew
	BDSFieldMagSkew (BDSFieldMag *fieldIn, G4double angle=0)
	Wrap a field and rotate it by angle (rad) in the x-y plane (about z axis). More...

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
	Get the field - local coordinates, and rotated. More...

Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()

	BDSFieldMag (G4Transform3D transformIn)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset. More...

virtual void	SetTransform (const G4Transform3D &transformIn)

G4bool	FiniteStrength () const
	Accessor. More...

Private Member Functions
	BDSFieldMagSkewOwn ()=delete
	Private default constructor to force use of supplied ones.

Private Attributes
BDSFieldMag *const	field
	The nominal non-skewed field. More...

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not. More...

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry. More...

Detailed Description

A wrapper class for BDSFieldMagSkew where it owns the field.

Definition at line 34 of file BDSFieldMagSkewOwn.hh.

Constructor & Destructor Documentation

BDSFieldMagSkewOwn::BDSFieldMagSkewOwn	(	BDSFieldMag *	fieldIn,
		G4double	angle = `0`
	)

Wrap a field and rotate it by angle (rad) in the x-y plane (about z axis).

Definition at line 22 of file BDSFieldMagSkewOwn.cc.

BDSFieldMagSkewOwn::~BDSFieldMagSkewOwn ( )

virtual

Definition at line 28 of file BDSFieldMagSkewOwn.cc.

BDSFieldMag* const BDSFieldMagSkewOwn::field

private

The nominal non-skewed field.

Definition at line 47 of file BDSFieldMagSkewOwn.hh.

The documentation for this class was generated from the following files:
