Base class for external geometry loading factories. More...

#include <BDSGeometryFactoryBase.hh>

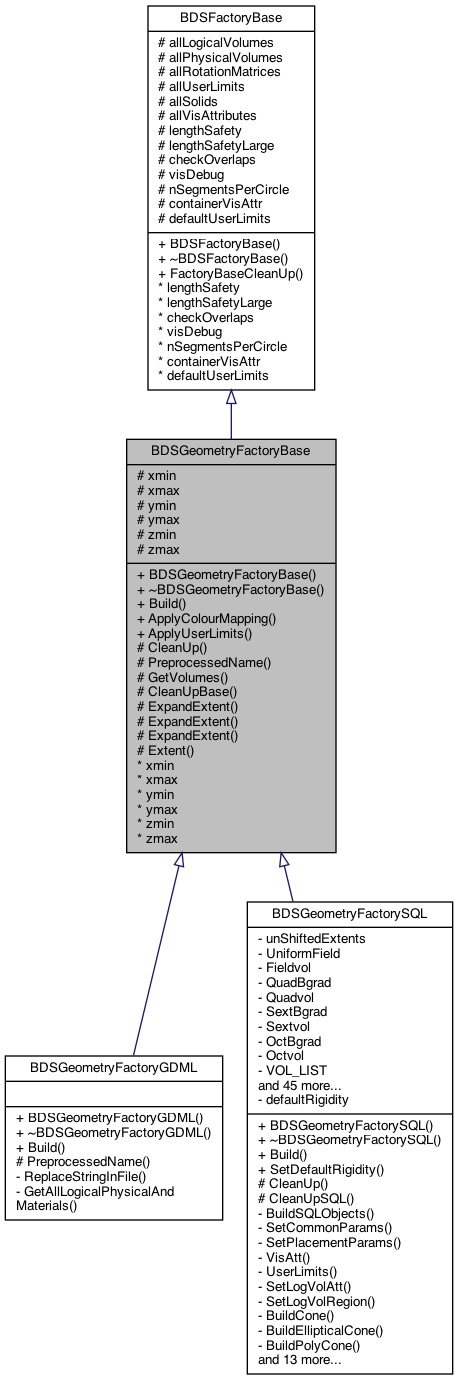

Inheritance diagram for BDSGeometryFactoryBase:

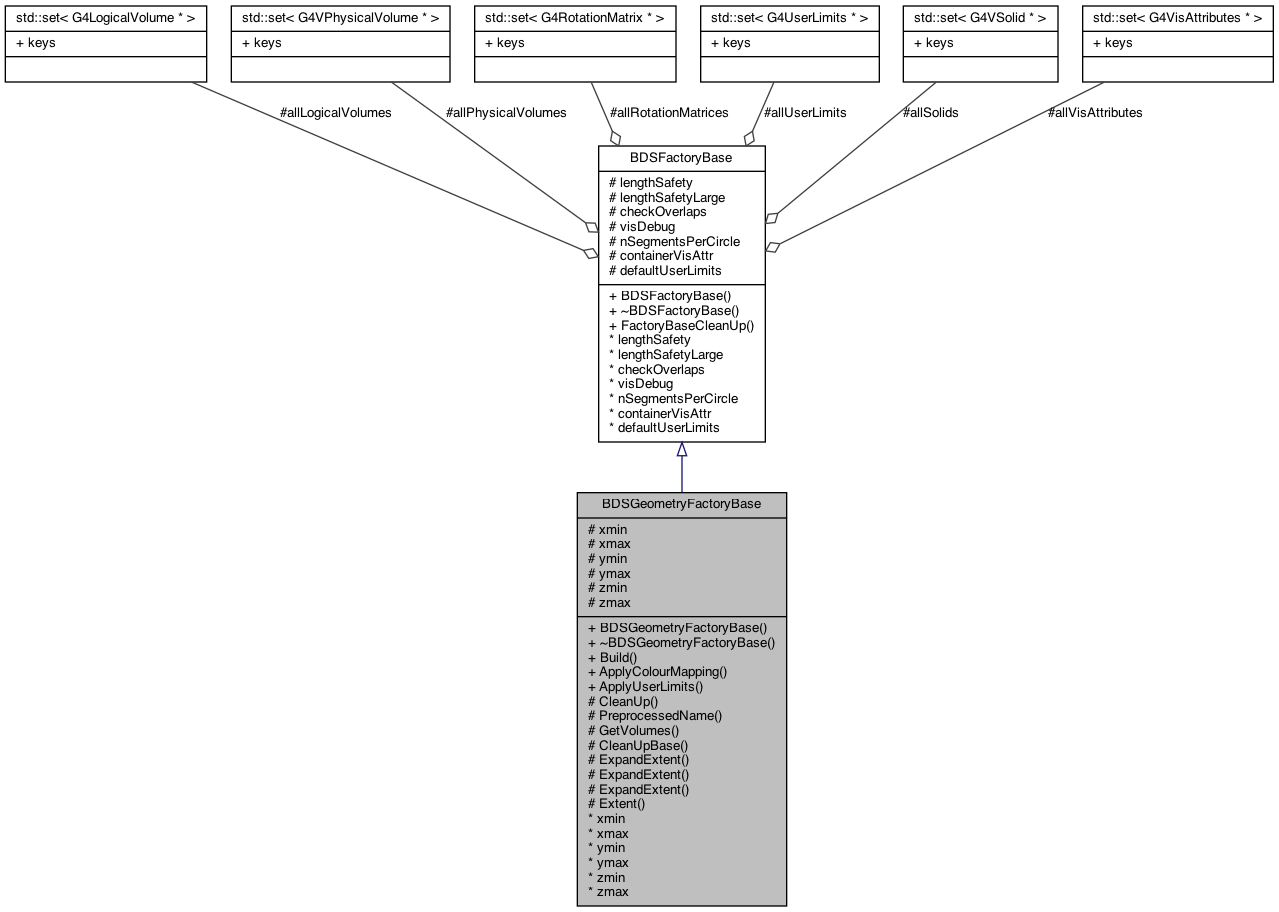

Collaboration diagram for BDSGeometryFactoryBase:

Public Member Functions
virtual BDSGeometryExternal *	Build (G4String componentName, G4String fileName, std::map< G4String, G4Colour * > colourMapping=nullptr, G4bool autoColour=true, G4double suggestedLength=0, G4double suggestedHorizontalWidth=0, std::vector< G4String > vacuumBiasVolumeNames=nullptr, G4UserLimits *userLimitsToAttachToAllLVs=nullptr)=0
	Main method to load and construct geometry. More...

virtual std::set< G4VisAttributes * >	ApplyColourMapping (std::set< G4LogicalVolume * > &lvs, std::map< G4String, G4Colour * > *mapping, G4bool autoColour, const G4String &preprocessPrefix="")

virtual void	ApplyUserLimits (const std::set< G4LogicalVolume * > &lvsIn, G4UserLimits *userLimits)
	Attach a set of user limits to every logical volume supplied. More...

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope. More...

Protected Member Functions
virtual void	CleanUp ()
	Virtual clean up that derived classes can override that calls CleanUpBase(). More...

virtual G4String	PreprocessedName (const G4String &objectName, const G4String &acceleratorComponentName) const

std::set< G4LogicalVolume * >	GetVolumes (const std::set< G4LogicalVolume * > &allLVs, std::vector< G4String > *volumeNames, G4bool preprocessGDML, const G4String &componentName) const
	Get the volumes that match the name. Volume names are matched exactly and are case sensitive. More...

void	CleanUpBase ()

void	ExpandExtent (const BDSExtent &extent)
	Expand the acuumulated extents using a (possibly asymmetric) extent instance. More...

void	ExpandExtent (G4double xO, G4double rx, G4double y0, G4double ry, G4double z0, G4double rz)

void	ExpandExtent (G4double x0, G4double xLow, G4double xHigh, G4double y0, G4double yLow, G4double yHigh, G4double z0, G4double zLow, G4double zHigh)
	Expand the extent but asymmetrically. More...

BDSExtent	Extent () const

Protected Attributes

G4double	xmin
	Extent in one dimension. More...

G4double	xmax
	Extent in one dimension. More...

G4double	ymin
	Extent in one dimension. More...

G4double	ymax
	Extent in one dimension. More...

G4double	zmin
	Extent in one dimension. More...

G4double	zmax
	Extent in one dimension. More...

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable. More...

G4double	lengthSafetyLarge
	Cache of global constants variable. More...

G4bool	checkOverlaps
	Cache of global constants variable. More...

G4bool	visDebug
	Cache of global constants variable. More...

G4double	nSegmentsPerCircle
	Cache of global constants variable. More...

G4VisAttributes *	containerVisAttr
	Cache of global constants variable. More...

G4UserLimits *	defaultUserLimits
	Cache of global constants variable. More...

Detailed Description

Base class for external geometry loading factories.

Author: Laurie Nevay

Definition at line 47 of file BDSGeometryFactoryBase.hh.

Constructor & Destructor Documentation

◆ BDSGeometryFactoryBase()

BDSGeometryFactoryBase::BDSGeometryFactoryBase ( )

Definition at line 40 of file BDSGeometryFactoryBase.cc.

◆ ~BDSGeometryFactoryBase()

BDSGeometryFactoryBase::~BDSGeometryFactoryBase ( )

virtual

Definition at line 45 of file BDSGeometryFactoryBase.cc.

Member Function Documentation

◆ ApplyColourMapping()

std::set< G4VisAttributes * > BDSGeometryFactoryBase::ApplyColourMapping	(	std::set< G4LogicalVolume * > &	lvs,
		std::map< G4String, G4Colour * > *	mapping,
		G4bool	autoColour,
		const G4String &	preprocessPrefix = `""`
	)

virtual

Apply a colour mapping to a set of logical volumes. This applies a colour from the map if the key value is found as a substring or whole part of the logical volume name. Ie the BDSColour* (red) is defined to key 'quad' and any logical volume with 'quad' (case sensitive) will be set as red. Caches common G4VisAttributes (so no repeats for same colour) and returns those constructed. Map is searched through so key order gives precedence order.

Definition at line 48 of file BDSGeometryFactoryBase.cc.

References BDSColourFromMaterial::GetColour(), BDSColourFromMaterial::Instance(), BDSColours::Instance(), and BDS::StrContains().

Referenced by BDSGeometryFactoryGDML::Build(), and BDSGeometryFactorySQL::Build().

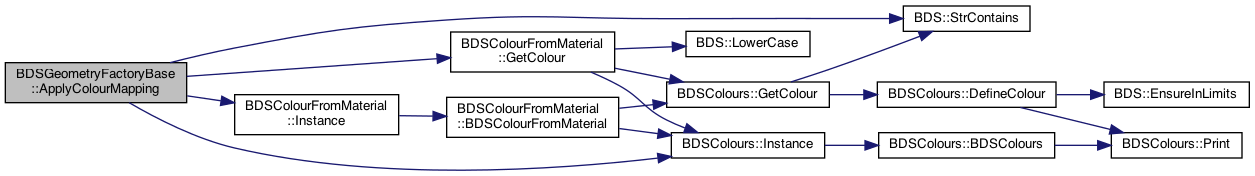

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ApplyUserLimits()

void BDSGeometryFactoryBase::ApplyUserLimits	(	const std::set< G4LogicalVolume * > &	lvsIn,
		G4UserLimits *	userLimits
	)

virtual

Attach a set of user limits to every logical volume supplied.

Definition at line 115 of file BDSGeometryFactoryBase.cc.

Referenced by BDSGeometryFactoryGDML::Build().

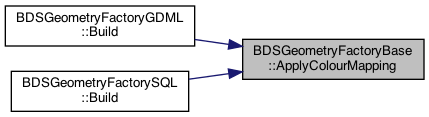

Here is the caller graph for this function:

◆ Build()

virtual BDSGeometryExternal * BDSGeometryFactoryBase::Build	(	G4String	componentName,
		G4String	fileName,
		std::map< G4String, G4Colour * > *	colourMapping = `nullptr`,
		G4bool	autoColour = `true`,
		G4double	suggestedLength = `0`,
		G4double	suggestedHorizontalWidth = `0`,
		std::vector< G4String > *	vacuumBiasVolumeNames = `nullptr`,
		G4UserLimits *	userLimitsToAttachToAllLVs = `nullptr`
	)

pure virtual

Main method to load and construct geometry.

Implemented in BDSGeometryFactoryGDML, and BDSGeometryFactorySQL.

Referenced by BDSGeometryFactory::BuildGeometry().

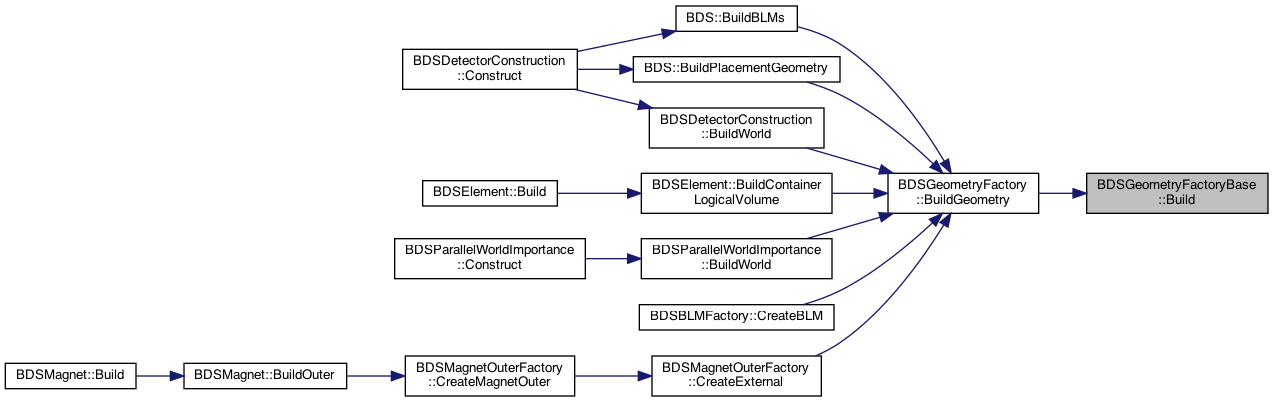

Here is the caller graph for this function:

◆ CleanUp()

void BDSGeometryFactoryBase::CleanUp ( )

protectedvirtual

Virtual clean up that derived classes can override that calls CleanUpBase().

Reimplemented in BDSGeometryFactorySQL.

Definition at line 122 of file BDSGeometryFactoryBase.cc.

References CleanUpBase().

Referenced by BDSGeometryFactoryGDML::Build(), and BDSGeometryFactorySQL::CleanUp().

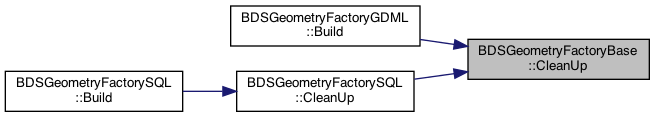

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CleanUpBase()

void BDSGeometryFactoryBase::CleanUpBase ( )

protected

Initialise variables - used to reset variables before each use of the factory. Non-virtual as used in constructor.

Definition at line 164 of file BDSGeometryFactoryBase.cc.

References BDSFactoryBase::FactoryBaseCleanUp(), xmax, xmin, ymax, ymin, zmax, and zmin.

Referenced by CleanUp().

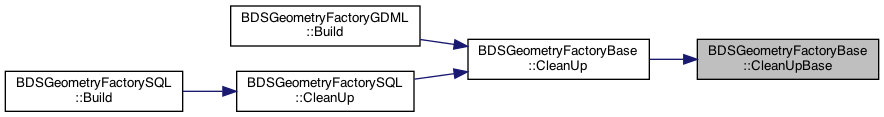

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ExpandExtent() [1/3]

void BDSGeometryFactoryBase::ExpandExtent ( const BDSExtent & extent )

protected

Expand the acuumulated extents using a (possibly asymmetric) extent instance.

Definition at line 175 of file BDSGeometryFactoryBase.cc.

References xmax, xmin, BDSExtent::XNeg(), BDSExtent::XPos(), ymax, ymin, BDSExtent::YNeg(), BDSExtent::YPos(), zmax, zmin, BDSExtent::ZNeg(), and BDSExtent::ZPos().

Referenced by BDSGeometryFactorySQL::PlaceComponents().

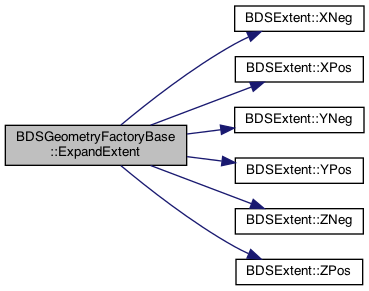

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ExpandExtent() [2/3]

void BDSGeometryFactoryBase::ExpandExtent	(	G4double	x0,
		G4double	xLow,
		G4double	xHigh,
		G4double	y0,
		G4double	yLow,
		G4double	yHigh,
		G4double	z0,
		G4double	zLow,
		G4double	zHigh
	)

protected

Expand the extent but asymmetrically.

Definition at line 197 of file BDSGeometryFactoryBase.cc.

References xmax, xmin, ymax, ymin, zmax, and zmin.

◆ ExpandExtent() [3/3]

void BDSGeometryFactoryBase::ExpandExtent	(	G4double	xO,
		G4double	rx,
		G4double	y0,
		G4double	ry,
		G4double	z0,
		G4double	rz
	)

protected

Expand the accumulated extents with a symmetric extent in each dimension (rx,ry,rz) about the offset x0,y0,z0.

Definition at line 185 of file BDSGeometryFactoryBase.cc.

References xmax, xmin, ymax, ymin, zmax, and zmin.

◆ Extent()

BDSExtent BDSGeometryFactoryBase::Extent ( ) const

inlineprotected

Definition at line 121 of file BDSGeometryFactoryBase.hh.

◆ GetVolumes()

std::set< G4LogicalVolume * > BDSGeometryFactoryBase::GetVolumes	(	const std::set< G4LogicalVolume * > &	allLVs,
		std::vector< G4String > *	volumeNames,
		G4bool	preprocessGDML,
		const G4String &	componentName
	)		const

protected

Get the volumes that match the name. Volume names are matched exactly and are case sensitive.

Definition at line 131 of file BDSGeometryFactoryBase.cc.

Referenced by BDSGeometryFactoryGDML::Build().

Here is the caller graph for this function:

◆ PreprocessedName()

G4String BDSGeometryFactoryBase::PreprocessedName	(	const G4String &	objectName,
		const G4String &	acceleratorComponentName
	)		const

G4double BDSGeometryFactoryBase::zmin

protected

Extent in one dimension.

Definition at line 117 of file BDSGeometryFactoryBase.hh.

Referenced by CleanUpBase(), and ExpandExtent().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSGeometryFactoryBase.hh
/Users/nevay/physics/reps/bdsim/src/BDSGeometryFactoryBase.cc
