Snapshot of information for particle passing through a collimator. More...

#include <BDSHitApertureImpact.hh>

Inheritance diagram for BDSHitApertureImpact:

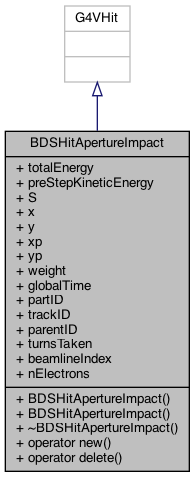

Collaboration diagram for BDSHitApertureImpact:

Public Member Functions
	BDSHitApertureImpact (G4double totalEnergyIn, G4double preStepKineticEnergyIn, G4double SIn, G4double xIn, G4double yIn, G4double pxIn, G4double pyIn, G4double weightIn, G4double globalTimeIn, G4int partIDIn, G4int trackIDIn, G4int parentIDIn, G4int turnsTakenIn, G4int beamlineIndexIn, G4int nElectronsIn)

virtual	~BDSHitApertureImpact ()
	Note this should not be inline when we use a G4Allocator. More...

void *	operator new (size_t)

void	operator delete (void *aHit)

Data Fields
G4double	totalEnergy

G4double	preStepKineticEnergy

G4double	S

G4double	x

G4double	y

G4double	xp

G4double	yp

G4double	weight

G4double	globalTime

G4int	partID

G4int	trackID

G4int	parentID

G4int	turnsTaken

G4int	beamlineIndex

G4int	nElectrons

Detailed Description

Snapshot of information for particle passing through a collimator.

Everything public for simplicity of the class.

Author: Laurie Nevay

Definition at line 36 of file BDSHitApertureImpact.hh.

Constructor & Destructor Documentation

◆ BDSHitApertureImpact() [1/2]

BDSHitApertureImpact::BDSHitApertureImpact ( )

Definition at line 26 of file BDSHitApertureImpact.cc.

◆ BDSHitApertureImpact() [2/2]

BDSHitApertureImpact::BDSHitApertureImpact	(	G4double	totalEnergyIn,
		G4double	preStepKineticEnergyIn,
		G4double	SIn,
		G4double	xIn,
		G4double	yIn,
		G4double	pxIn,
		G4double	pyIn,
		G4double	weightIn,
		G4double	globalTimeIn,
		G4int	partIDIn,
		G4int	trackIDIn,
		G4int	parentIDIn,
		G4int	turnsTakenIn,
		G4int	beamlineIndexIn,
		G4int	nElectronsIn
	)

Definition at line 44 of file BDSHitApertureImpact.cc.

◆ ~BDSHitApertureImpact()

BDSHitApertureImpact::~BDSHitApertureImpact ( )

virtual

Note this should not be inline when we use a G4Allocator.

Definition at line 76 of file BDSHitApertureImpact.cc.

Member Function Documentation

◆ operator delete()

void BDSHitApertureImpact::operator delete ( void * aHit )

inline

Definition at line 89 of file BDSHitApertureImpact.hh.

◆ operator new()

void * BDSHitApertureImpact::operator new ( size_t )

inline

Definition at line 82 of file BDSHitApertureImpact.hh.

Field Documentation

◆ beamlineIndex

G4int BDSHitApertureImpact::beamlineIndex

Definition at line 75 of file BDSHitApertureImpact.hh.

◆ globalTime

G4double BDSHitApertureImpact::globalTime

Definition at line 70 of file BDSHitApertureImpact.hh.

◆ nElectrons

G4int BDSHitApertureImpact::nElectrons

Definition at line 76 of file BDSHitApertureImpact.hh.

◆ parentID

G4int BDSHitApertureImpact::parentID

Definition at line 73 of file BDSHitApertureImpact.hh.

◆ partID

G4int BDSHitApertureImpact::partID

Definition at line 71 of file BDSHitApertureImpact.hh.

◆ preStepKineticEnergy

G4double BDSHitApertureImpact::preStepKineticEnergy

Definition at line 63 of file BDSHitApertureImpact.hh.

◆ S

G4double BDSHitApertureImpact::S

Definition at line 64 of file BDSHitApertureImpact.hh.

◆ totalEnergy

G4double BDSHitApertureImpact::totalEnergy

Definition at line 62 of file BDSHitApertureImpact.hh.

◆ trackID

G4int BDSHitApertureImpact::trackID

Definition at line 72 of file BDSHitApertureImpact.hh.

◆ turnsTaken

G4int BDSHitApertureImpact::turnsTaken

Definition at line 74 of file BDSHitApertureImpact.hh.

◆ weight

G4double BDSHitApertureImpact::weight

Definition at line 69 of file BDSHitApertureImpact.hh.

◆ x

G4double BDSHitApertureImpact::x

Definition at line 65 of file BDSHitApertureImpact.hh.

◆ xp

G4double BDSHitApertureImpact::xp

Definition at line 67 of file BDSHitApertureImpact.hh.

◆ y

G4double BDSHitApertureImpact::y

Definition at line 66 of file BDSHitApertureImpact.hh.

◆ yp

G4double BDSHitApertureImpact::yp

Definition at line 68 of file BDSHitApertureImpact.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSHitApertureImpact.hh
/Users/nevay/physics/reps/bdsim/src/BDSHitApertureImpact.cc
