The information recorded from a particle impacting a sampler. More...

#include <BDSHitSamplerSphere.hh>

Inheritance diagram for BDSHitSamplerSphere:

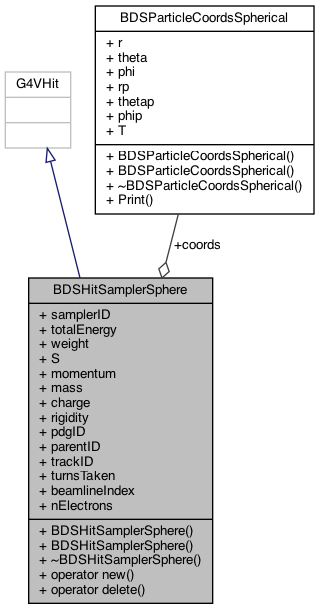

Collaboration diagram for BDSHitSamplerSphere:

Public Member Functions
	BDSHitSamplerSphere ()=delete
	No default constructor.

	BDSHitSamplerSphere (G4int samplerIDIn, const BDSParticleCoordsSpherical &coordsIn, G4double totalEnergyIn, G4double weightIn, G4double SIn, G4double momentumIn, G4double massIn, G4double chargeIn, G4double rigidityIn, G4int pdgIDIn, G4int parentIDIn, G4int trackIDIn, G4int turnsTakenIn, G4int beamlineIndexIn, G4int nElectronsIn=0)

virtual	~BDSHitSamplerSphere ()
	Note this should not be inline when we use a G4Allocator. More...

void *	operator new (size_t)

void	operator delete (void *aHit)

Data Fields
G4int	samplerID

BDSParticleCoordsSpherical	coords

G4double	totalEnergy

G4double	weight

G4double	S

G4double	momentum

G4double	mass

G4double	charge
	Double as g4 uses charge as a double. More...

G4double	rigidity

G4int	pdgID

G4int	parentID

G4int	trackID

G4int	turnsTaken

G4int	beamlineIndex

G4int	nElectrons
	Can only get this at inspection time so include here. More...

Detailed Description

The information recorded from a particle impacting a sampler.

Everything public for simplicity of the class.

Definition at line 34 of file BDSHitSamplerSphere.hh.

Constructor & Destructor Documentation

◆ BDSHitSamplerSphere()

BDSHitSamplerSphere::BDSHitSamplerSphere	(	G4int	samplerIDIn,
		const BDSParticleCoordsSpherical &	coordsIn,
		G4double	totalEnergyIn,
		G4double	weightIn,
		G4double	SIn,
		G4double	momentumIn,
		G4double	massIn,
		G4double	chargeIn,
		G4double	rigidityIn,
		G4int	pdgIDIn,
		G4int	parentIDIn,
		G4int	trackIDIn,
		G4int	turnsTakenIn,
		G4int	beamlineIndexIn,
		G4int	nElectronsIn = `0`
	)

Definition at line 27 of file BDSHitSamplerSphere.cc.

◆ ~BDSHitSamplerSphere()

BDSHitSamplerSphere::~BDSHitSamplerSphere ( )

virtual

Note this should not be inline when we use a G4Allocator.

Definition at line 59 of file BDSHitSamplerSphere.cc.

Member Function Documentation

◆ operator delete()

void BDSHitSamplerSphere::operator delete ( void * aHit )

inline

Definition at line 87 of file BDSHitSamplerSphere.hh.

◆ operator new()

void * BDSHitSamplerSphere::operator new ( size_t )

inline

Definition at line 80 of file BDSHitSamplerSphere.hh.

Field Documentation

◆ beamlineIndex

G4int BDSHitSamplerSphere::beamlineIndex

Definition at line 73 of file BDSHitSamplerSphere.hh.

◆ charge

G4double BDSHitSamplerSphere::charge

Double as g4 uses charge as a double.

Definition at line 67 of file BDSHitSamplerSphere.hh.

◆ coords

BDSParticleCoordsSpherical BDSHitSamplerSphere::coords

Definition at line 61 of file BDSHitSamplerSphere.hh.

◆ mass

G4double BDSHitSamplerSphere::mass

Definition at line 66 of file BDSHitSamplerSphere.hh.

◆ momentum

G4double BDSHitSamplerSphere::momentum

Definition at line 65 of file BDSHitSamplerSphere.hh.

◆ nElectrons

G4int BDSHitSamplerSphere::nElectrons

Can only get this at inspection time so include here.

Definition at line 74 of file BDSHitSamplerSphere.hh.

◆ parentID

G4int BDSHitSamplerSphere::parentID

Definition at line 70 of file BDSHitSamplerSphere.hh.

◆ pdgID

G4int BDSHitSamplerSphere::pdgID

Definition at line 69 of file BDSHitSamplerSphere.hh.

◆ rigidity

G4double BDSHitSamplerSphere::rigidity

Definition at line 68 of file BDSHitSamplerSphere.hh.

◆ S

G4double BDSHitSamplerSphere::S

Definition at line 64 of file BDSHitSamplerSphere.hh.

◆ samplerID

G4int BDSHitSamplerSphere::samplerID

Definition at line 60 of file BDSHitSamplerSphere.hh.

◆ totalEnergy

G4double BDSHitSamplerSphere::totalEnergy

Definition at line 62 of file BDSHitSamplerSphere.hh.

◆ trackID

G4int BDSHitSamplerSphere::trackID

Definition at line 71 of file BDSHitSamplerSphere.hh.

◆ turnsTaken

G4int BDSHitSamplerSphere::turnsTaken

Definition at line 72 of file BDSHitSamplerSphere.hh.

◆ weight

G4double BDSHitSamplerSphere::weight

Definition at line 63 of file BDSHitSamplerSphere.hh.

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSHitSamplerSphere.hh
/Users/nevay/physics/reps/bdsim/src/BDSHitSamplerSphere.cc
