Common functionality to BDSIM integrators. More...

#include <BDSIntegratorMag.hh>

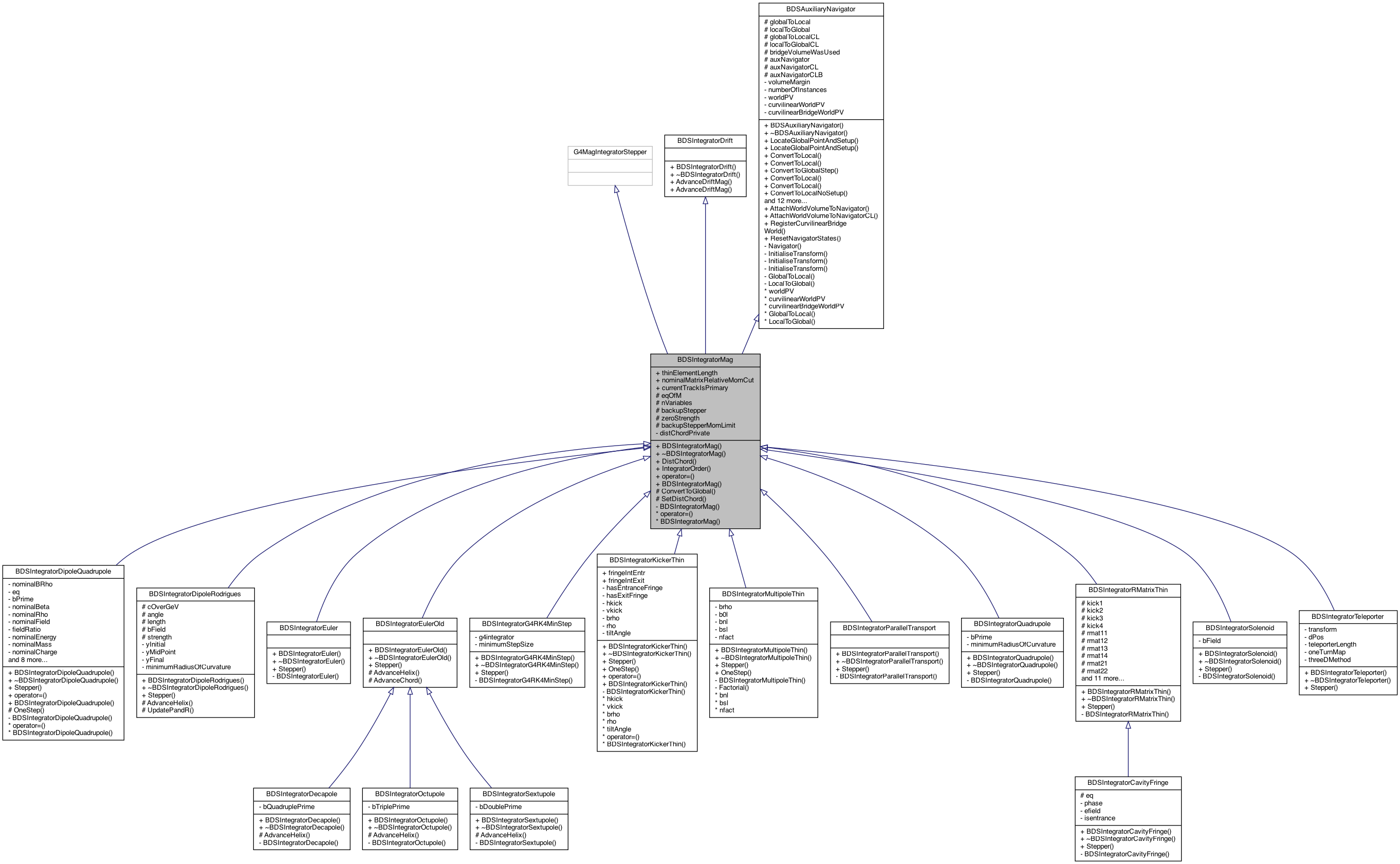

Inheritance diagram for BDSIntegratorMag:

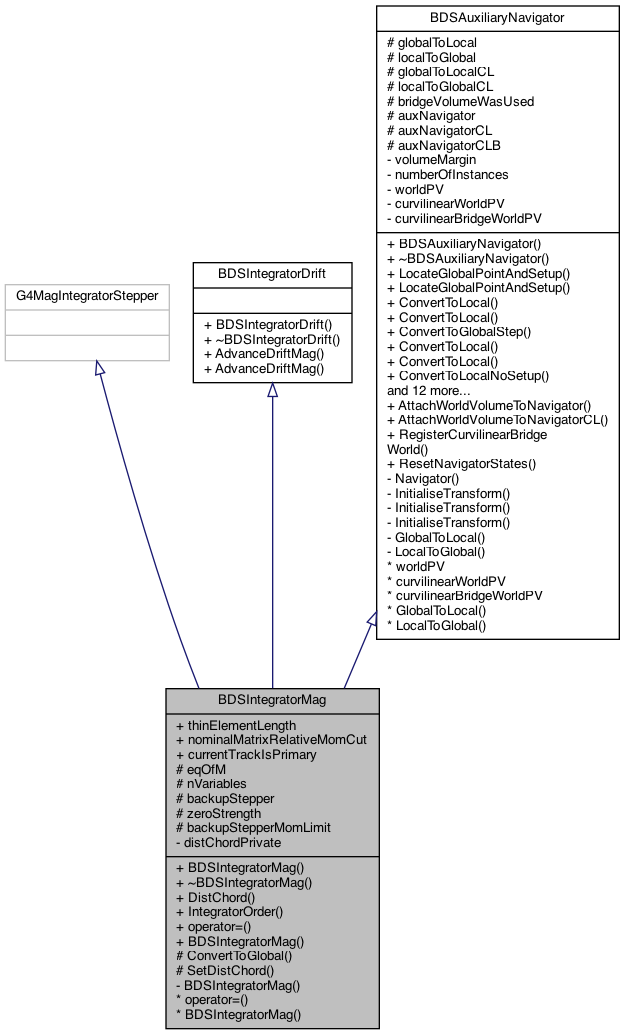

Collaboration diagram for BDSIntegratorMag:

Public Member Functions
	BDSIntegratorMag (G4Mag_EqRhs *eqOfMIn, G4int nVariablesIn)

virtual G4double	DistChord () const
	Estimate maximum distance of curved solution and chord. More...

virtual G4int	IntegratorOrder () const
	Geant4 requires that the integrator order must be supplied by the derived class. More...


BDSIntegratorMag &	operator= (const BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.

	BDSIntegratorMag (BDSIntegratorMag &)=delete
	Assignment and copy constructor not implemented nor used.

Public Member Functions inherited from BDSIntegratorDrift
void	AdvanceDriftMag (const G4double yIn[], const G4double h, G4double yOut[], G4double yErr[]) const
	Error array [6] all 0. More...

void	AdvanceDriftMag (const G4double yIn[], const G4ThreeVector &unitMomentum, const G4double h, G4double yOut[], G4double yErr[]) const

Public Member Functions inherited from BDSAuxiliaryNavigator
G4VPhysicalVolume *	LocateGlobalPointAndSetup (const G4ThreeVector &point, const G4ThreeVector *direction=nullptr, const G4bool pRelativeSearch=true, const G4bool ignoreDirection=true, G4bool useCurvilinear=true) const
	A wrapper for the underlying static navigator instance located within this class. More...

G4VPhysicalVolume *	LocateGlobalPointAndSetup (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (G4Step const *const step, G4bool useCurvilinear=true) const

BDSStep	ConvertToLocal (const G4ThreeVector &globalPosition, const G4ThreeVector &globalDirection, const G4double stepLength=0, const G4bool useCurvilinear=true, const G4double marginLength=1) const

BDSStep	ConvertToGlobalStep (const G4ThreeVector &localPosition, const G4ThreeVector &localDirection, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4double globalPoint[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToLocal (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Vector version - see notes above. More...

G4ThreeVector	ConvertToLocalNoSetup (const G4ThreeVector &globalPosition, const G4bool useCurvilinear=true) const
	Similar to above function but does NOT initialise the transforms. More...

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4double globalPoint[3], const G4double globalAxis[3], const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToLocal (const G4ThreeVector &globalPoint, const G4ThreeVector &globalAxis, const G4bool useCurvilinear=true) const
	Vector version. More...

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

std::pair< G4ThreeVector, G4ThreeVector >	ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localAxis, const G4bool useCurvilinear=true) const

G4ThreeVector	ConvertToGlobal (const G4ThreeVector &globalPosition, const G4ThreeVector &localPosition, const G4bool useCurvilinear=true) const

BDSStep	GlobalToCurvilinear (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

BDSStep	GlobalToCurvilinear (const G4ThreeVector &position, const G4ThreeVector &unitMomentum, const G4double h, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4ThreeVector &localPosition, const G4ThreeVector &localMomentum, const G4bool useCurvilinearWorld)

BDSStep	CurvilinearToGlobal (const G4double fieldArcLength, const G4ThreeVector &unitField, const G4double angle, const G4ThreeVector &CLPosition, const G4ThreeVector &CLMomentum, const G4bool useCurvilinearWorld, const G4double FCof, const G4double tilt=0)

Static Public Attributes
static G4double	thinElementLength = -1

static G4double	nominalMatrixRelativeMomCut = -1

static G4bool	currentTrackIsPrimary = false

Protected Member Functions
void	ConvertToGlobal (const G4ThreeVector &localPos, const G4ThreeVector &localMom, G4double yOut[], G4double yErr[], const G4double momScaling=1.0)
	scaling of momentum in case localMom is a unit vector More...

void	SetDistChord (G4double distChordIn)
	Setter for distChord to private member. More...

Protected Attributes
G4Mag_EqRhs *	eqOfM

const G4int	nVariables
	Cache of the number of variables. More...

G4MagIntegratorStepper *	backupStepper

G4bool	zeroStrength

G4double	backupStepperMomLimit

Protected Attributes inherited from BDSAuxiliaryNavigator
G4AffineTransform	globalToLocal

G4AffineTransform	localToGlobal

G4AffineTransform	globalToLocalCL

G4AffineTransform	localToGlobalCL

G4bool	bridgeVolumeWasUsed

Private Member Functions
	BDSIntegratorMag ()=delete
	Private default constructor to force use of specific constructor.

Private Attributes
G4double	distChordPrivate
	Variable used to record the distance from the chord calculated during the step. More...

Additional Inherited Members
Static Public Member Functions inherited from BDSAuxiliaryNavigator
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume - typically real world. More...

static void	AttachWorldVolumeToNavigatorCL (G4VPhysicalVolume *curvilinearWorldPVIn)

static void	RegisterCurvilinearBridgeWorld (G4VPhysicalVolume *curvilinearBridgeWorldPVIn)

static void	ResetNavigatorStates ()

Static Protected Attributes inherited from BDSAuxiliaryNavigator
static G4Navigator *	auxNavigator = new G4Navigator()

static G4Navigator *	auxNavigatorCL = new G4Navigator()

static G4Navigator *	auxNavigatorCLB = new G4Navigator()

Detailed Description

Common functionality to BDSIM integrators.

This provides a general 4th order Runge Kutta integrator that can be used by the derived class if the coordinates are non-paraxial for example.

The derived class must also satisfy G4MagIntegratorStepper.hh's virtual method Stepper.

Author: Laurie Nevay

Definition at line 43 of file BDSIntegratorMag.hh.

Constructor & Destructor Documentation

◆ BDSIntegratorMag()

BDSIntegratorMag::BDSIntegratorMag	(	G4Mag_EqRhs *	eqOfMIn,
		G4int	nVariablesIn
	)

Definition at line 32 of file BDSIntegratorMag.cc.

◆ ~BDSIntegratorMag()

BDSIntegratorMag::~BDSIntegratorMag ( )

virtual

Definition at line 50 of file BDSIntegratorMag.cc.

Member Function Documentation

◆ ConvertToGlobal()

void BDSIntegratorMag::ConvertToGlobal	(	const G4ThreeVector &	localPos,
		const G4ThreeVector &	localMom,
		G4double	yOut[],
		G4double	yErr[],
		const G4double	momScaling = `1.0`
	)

protected

scaling of momentum in case localMom is a unit vector

Convert final local position and direction to global frame. Allow

Definition at line 55 of file BDSIntegratorMag.cc.

References BDSAuxiliaryNavigator::ConvertToGlobalStep(), BDSStep::PostStepPoint(), and BDSStep::PreStepPoint().

Referenced by BDSIntegratorDipoleRodrigues::AdvanceHelix(), BDSIntegratorDecapole::AdvanceHelix(), BDSIntegratorOctupole::AdvanceHelix(), BDSIntegratorSextupole::AdvanceHelix(), BDSIntegratorKickerThin::Stepper(), and BDSIntegratorMultipoleThin::Stepper().

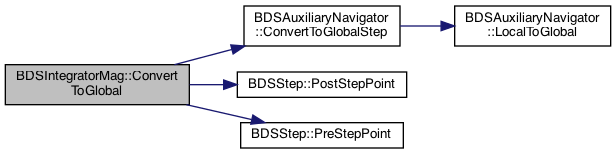

Here is the call graph for this function:

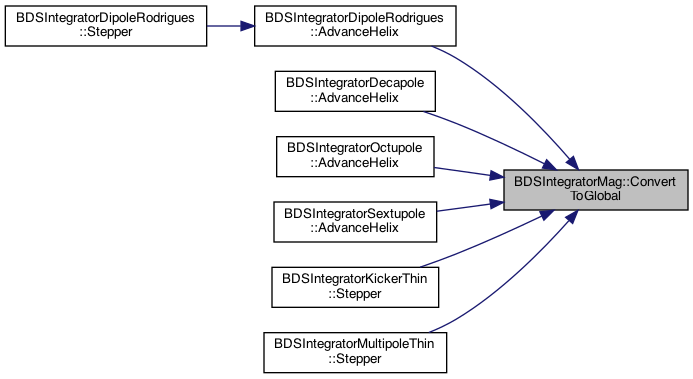

Here is the caller graph for this function:

◆ DistChord()

virtual G4double BDSIntegratorMag::DistChord ( ) const

inlinevirtual

Estimate maximum distance of curved solution and chord.

Definition at line 56 of file BDSIntegratorMag.hh.

References distChordPrivate.

◆ IntegratorOrder()

virtual G4int BDSIntegratorMag::IntegratorOrder ( ) const

inlinevirtual

Geant4 requires that the integrator order must be supplied by the derived class.

Definition at line 59 of file BDSIntegratorMag.hh.

◆ SetDistChord()

void BDSIntegratorMag::SetDistChord ( G4double distChordIn )

inlineprotected

Setter for distChord to private member.

Definition at line 84 of file BDSIntegratorMag.hh.

References distChordPrivate.

Referenced by BDSIntegratorEulerOld::AdvanceChord(), BDSIntegratorDipoleRodrigues::AdvanceHelix(), BDSIntegratorDecapole::AdvanceHelix(), BDSIntegratorOctupole::AdvanceHelix(), BDSIntegratorSextupole::AdvanceHelix(), BDSIntegratorDipoleQuadrupole::Stepper(), BDSIntegratorG4RK4MinStep::Stepper(), BDSIntegratorQuadrupole::Stepper(), BDSIntegratorSolenoid::Stepper(), BDSIntegratorEulerOld::Stepper(), BDSIntegratorKickerThin::Stepper(), BDSIntegratorMultipoleThin::Stepper(), and BDSIntegratorEuler::Stepper().

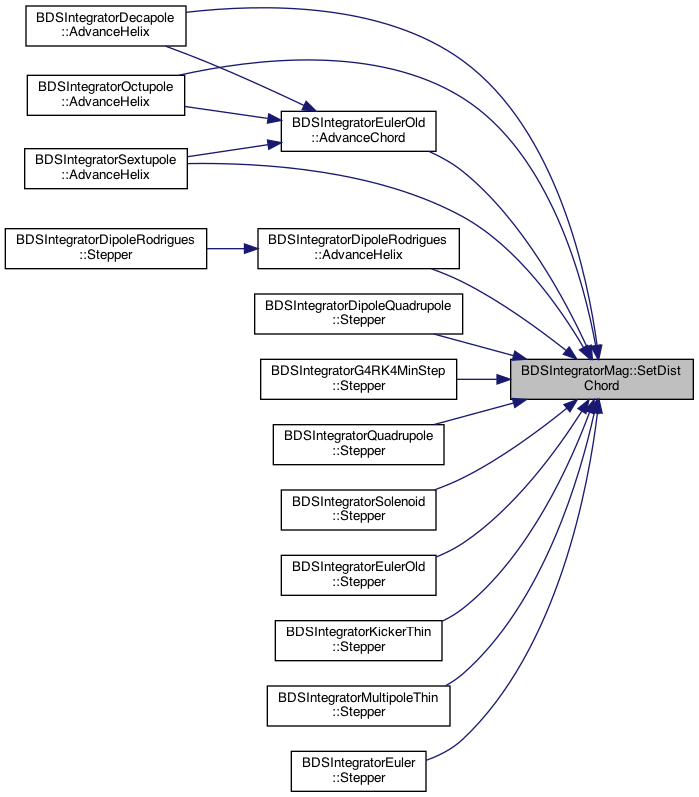

Here is the caller graph for this function:

Field Documentation

◆ backupStepper

G4MagIntegratorStepper* BDSIntegratorMag::backupStepper

protected

General integrator that can be used as a backup if the particle momentum is outside the (transverse) momentum range applicable for the integration scheme used by the derived integrator.

Definition at line 97 of file BDSIntegratorMag.hh.

Referenced by BDSIntegratorDipoleRodrigues::AdvanceHelix(), BDSIntegratorQuadrupole::Stepper(), BDSIntegratorSolenoid::Stepper(), and BDSIntegratorEulerOld::Stepper().

◆ backupStepperMomLimit

G4double BDSIntegratorMag::backupStepperMomLimit

protected

Cache of fractional unit momentum limit above which the matrix routines in the derived integrators revert to a backup integrator to ensure tracking validity.

Definition at line 105 of file BDSIntegratorMag.hh.

Referenced by BDSIntegratorDipoleRodrigues::AdvanceHelix(), BDSIntegratorDipoleQuadrupole::Stepper(), BDSIntegratorQuadrupole::Stepper(), BDSIntegratorSolenoid::Stepper(), BDSIntegratorKickerThin::Stepper(), and BDSIntegratorMultipoleThin::Stepper().

◆ currentTrackIsPrimary

G4bool BDSIntegratorMag::currentTrackIsPrimary = false

static

This static variable is updated by BDSFieldManager that marks each track as primary or not here. This variable is used throughout our integrators for magnetic fields which inherit this class.

Definition at line 72 of file BDSIntegratorMag.hh.

Referenced by BDSFieldManager::ConfigureForTrack(), and BDSTrackingAction::PreUserTrackingAction().

◆ distChordPrivate

G4double BDSIntegratorMag::distChordPrivate

private

Variable used to record the distance from the chord calculated during the step.

Definition at line 112 of file BDSIntegratorMag.hh.

Referenced by DistChord(), and SetDistChord().

◆ eqOfM

G4Mag_EqRhs* BDSIntegratorMag::eqOfM

protected

Keep a reference to the underlying equation of motion, but through a higher level pointer than G4EquationOfMotion* so we can use the correct methods. This class doesn't own this.

Definition at line 89 of file BDSIntegratorMag.hh.

Referenced by BDSIntegratorDipoleRodrigues::AdvanceHelix(), BDSIntegratorDecapole::AdvanceHelix(), BDSIntegratorOctupole::AdvanceHelix(), BDSIntegratorSextupole::AdvanceHelix(), BDSIntegratorMultipoleThin::OneStep(), BDSIntegratorDipoleQuadrupole::Stepper(), BDSIntegratorG4RK4MinStep::Stepper(), BDSIntegratorQuadrupole::Stepper(), BDSIntegratorSolenoid::Stepper(), BDSIntegratorEulerOld::Stepper(), BDSIntegratorKickerThin::Stepper(), BDSIntegratorMultipoleThin::Stepper(), and BDSIntegratorEuler::Stepper().

◆ nominalMatrixRelativeMomCut

G4double BDSIntegratorMag::nominalMatrixRelativeMomCut = -1

static

Cache of the fraction of the momentum outside which don't use a matrix as it's just not feasible.

Definition at line 67 of file BDSIntegratorMag.hh.

Referenced by BDSIntegratorDipoleQuadrupole::Stepper().

◆ nVariables

const G4int BDSIntegratorMag::nVariables

protected

Cache of the number of variables.

Definition at line 92 of file BDSIntegratorMag.hh.

Referenced by BDSIntegratorDipoleRodrigues::Stepper(), and BDSIntegratorEulerOld::Stepper().

◆ thinElementLength

G4double BDSIntegratorMag::thinElementLength = -1

static

Cache of thin element length to know maximum possible length scale step for coordinate lookup.

Definition at line 63 of file BDSIntegratorMag.hh.

Referenced by BDSIntegratorKickerThin::Stepper(), and BDSIntegratorMultipoleThin::Stepper().

◆ zeroStrength

G4bool BDSIntegratorMag::zeroStrength

protected

Whether a magnet has a finite strength or not. Can be set in the constructor for zero strength elements and then a drift routine is used before anything else.

Definition at line 101 of file BDSIntegratorMag.hh.

Referenced by BDSIntegratorDipoleRodrigues::AdvanceHelix(), BDSIntegratorDipoleQuadrupole::Stepper(), BDSIntegratorQuadrupole::Stepper(), BDSIntegratorSolenoid::Stepper(), BDSIntegratorEulerOld::Stepper(), BDSIntegratorKickerThin::Stepper(), BDSIntegratorMultipoleThin::Stepper(), and BDSIntegratorEuler::Stepper().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSIntegratorMag.hh
/Users/nevay/physics/reps/bdsim/src/BDSIntegratorMag.cc
