Linear interpolation over 1d array. More...

#include <BDSInterpolator1DLinear.hh>

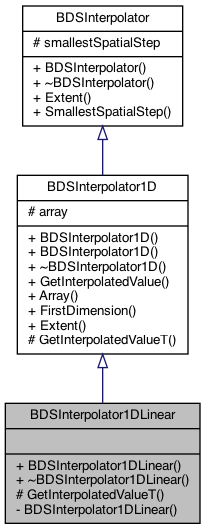

Inheritance diagram for BDSInterpolator1DLinear:

Collaboration diagram for BDSInterpolator1DLinear:

Public Member Functions
	BDSInterpolator1DLinear (BDSArray1DCoords *arrayIn)

Public Member Functions inherited from BDSInterpolator1D
	BDSInterpolator1D (BDSArray1DCoords *arrayIn)

G4ThreeVector	GetInterpolatedValue (G4double x) const
	Public interface to a 1D interpolator. Returns Geant4 type as that's what will be needed. More...

const BDSArray1DCoords *	Array () const
	Accessor for the underlying array data. More...

BDSDimensionType	FirstDimension () const
	Accessor for the active dimension this represents. More...

virtual BDSExtent	Extent () const
	Extent of field. More...

Public Member Functions inherited from BDSInterpolator
	BDSInterpolator (BDSArray4DCoords *arrayIn=nullptr)

virtual BDSExtent	Extent () const =0
	Interface each derived class must provide. More...

G4double	SmallestSpatialStep () const

Protected Member Functions
virtual BDSFieldValue	GetInterpolatedValueT (G4double x) const

virtual BDSFieldValue	GetInterpolatedValueT (G4double x) const =0

Private Member Functions
	BDSInterpolator1DLinear ()=delete
	Private default constructor to force use of provided one.

Additional Inherited Members
Protected Attributes inherited from BDSInterpolator1D
BDSArray1DCoords *	array
	The field data. More...

Protected Attributes inherited from BDSInterpolator
G4double	smallestSpatialStep

Detailed Description

Linear interpolation over 1d array.

Does not own array - so multiple interpolators could be used on same data.

Author: Laurie Nevay

Definition at line 37 of file BDSInterpolator1DLinear.hh.

Constructor & Destructor Documentation

◆ BDSInterpolator1DLinear()

BDSInterpolator1DLinear::BDSInterpolator1DLinear ( BDSArray1DCoords * arrayIn )

explicit

Definition at line 28 of file BDSInterpolator1DLinear.cc.

◆ ~BDSInterpolator1DLinear()

BDSInterpolator1DLinear::~BDSInterpolator1DLinear ( )

virtual

Definition at line 32 of file BDSInterpolator1DLinear.cc.

Member Function Documentation

◆ GetInterpolatedValueT()

BDSFieldValue BDSInterpolator1DLinear::GetInterpolatedValueT ( G4double x ) const

protectedvirtual

Each derived class should implement this function. Note T suffix (was templated) to distinguish it from GetInterpolatedValue which returns Geant4 types and is the main interface to should have the clean name.

Implements BDSInterpolator1D.

Definition at line 35 of file BDSInterpolator1DLinear.cc.

References BDSInterpolator1D::array, BDSArray1DCoords::ExtractSection2(), and BDS::Linear1D().

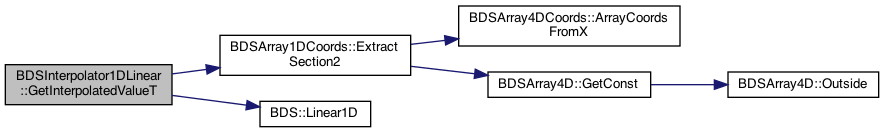

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSInterpolator1DLinear.hh
/Users/nevay/physics/reps/bdsim/src/BDSInterpolator1DLinear.cc
