Interpolated field array that gives the nearest neighbour value. More...

#include <BDSInterpolator4DNearest.hh>

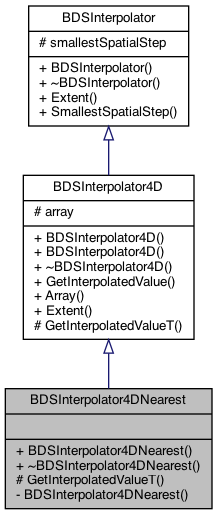

Inheritance diagram for BDSInterpolator4DNearest:

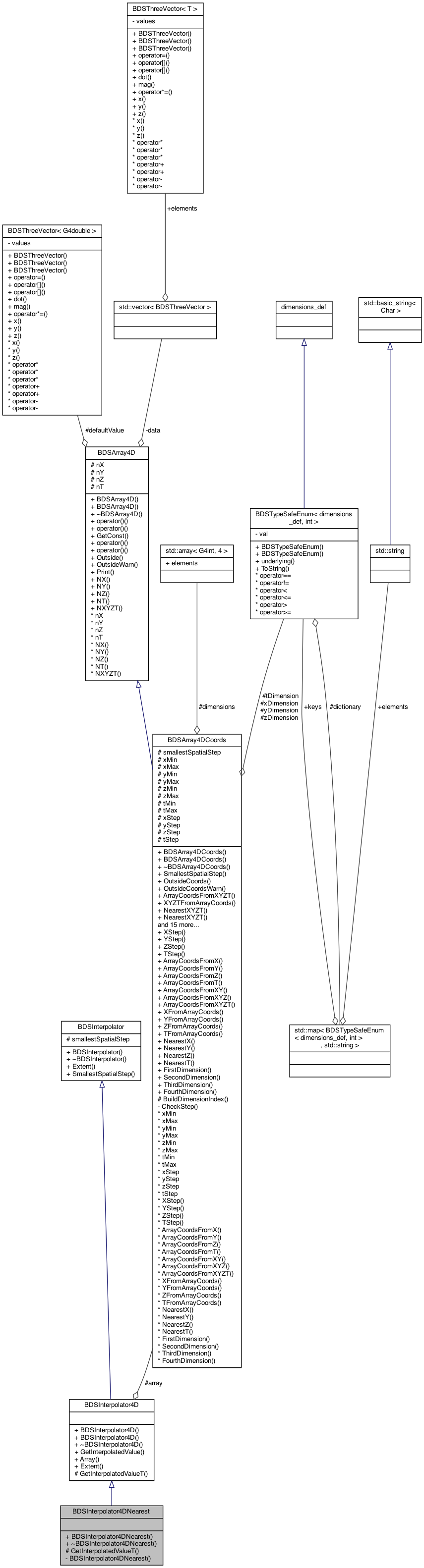

Collaboration diagram for BDSInterpolator4DNearest:

Public Member Functions
	BDSInterpolator4DNearest (BDSArray4DCoords *arrayIn)

Public Member Functions inherited from BDSInterpolator4D
	BDSInterpolator4D (BDSArray4DCoords *arrayIn)

G4ThreeVector	GetInterpolatedValue (G4double x, G4double y, G4double z, G4double t) const
	Public interface to a 4D interpolator. Returns Geant4 type as that's what will be needed. More...

const BDSArray4DCoords *	Array () const

virtual BDSExtent	Extent () const
	Extent of field. More...

Public Member Functions inherited from BDSInterpolator
	BDSInterpolator (BDSArray4DCoords *arrayIn=nullptr)

virtual BDSExtent	Extent () const =0
	Interface each derived class must provide. More...

G4double	SmallestSpatialStep () const

Protected Member Functions
virtual BDSFieldValue	GetInterpolatedValueT (G4double x, G4double y, G4double z, G4double t) const

virtual BDSFieldValue	GetInterpolatedValueT (G4double x, G4double y, G4double z, G4double t) const =0

Private Member Functions
	BDSInterpolator4DNearest ()=delete
	Private default constructor to force the use of the provided one.

Additional Inherited Members
Protected Attributes inherited from BDSInterpolator4D
BDSArray4DCoords *	array
	The field data. More...

Protected Attributes inherited from BDSInterpolator
G4double	smallestSpatialStep

Detailed Description

Interpolated field array that gives the nearest neighbour value.

Does not own array - so multiple interpolators could be used on same data.

Author: Laurie Nevay

Definition at line 37 of file BDSInterpolator4DNearest.hh.

Constructor & Destructor Documentation

◆ BDSInterpolator4DNearest()

BDSInterpolator4DNearest::BDSInterpolator4DNearest ( BDSArray4DCoords * arrayIn )

explicit

Definition at line 22 of file BDSInterpolator4DNearest.cc.

◆ ~BDSInterpolator4DNearest()

BDSInterpolator4DNearest::~BDSInterpolator4DNearest ( )

virtual

Definition at line 26 of file BDSInterpolator4DNearest.cc.

Member Function Documentation

◆ GetInterpolatedValueT()

BDSFieldValue BDSInterpolator4DNearest::GetInterpolatedValueT	(	G4double	x,
		G4double	y,
		G4double	z,
		G4double	t
	)		const

protectedvirtual

Each derived class should implement this function. Note T suffix (was templated) to distinguish it from GetInterpolatedValue which returns Geant4 types and is the main interface to should have the clean name.

Implements BDSInterpolator4D.

Definition at line 29 of file BDSInterpolator4DNearest.cc.

References BDSInterpolator4D::array, and BDSArray4DCoords::ExtractNearest().

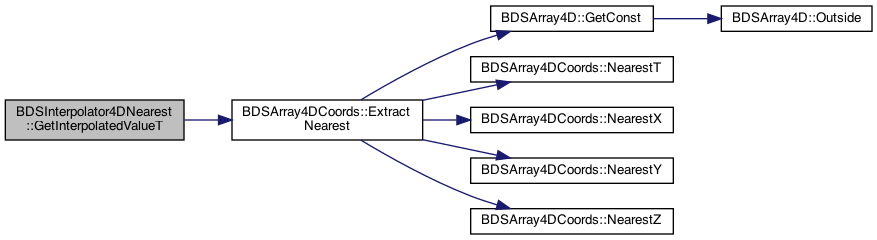

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSInterpolator4DNearest.hh
/Users/nevay/physics/reps/bdsim/src/BDSInterpolator4DNearest.cc
