BDSOutputROOTEventLossWorld Class Reference

Data stored for world hits per event. More...

#include <BDSOutputROOTEventLossWorld.hh>

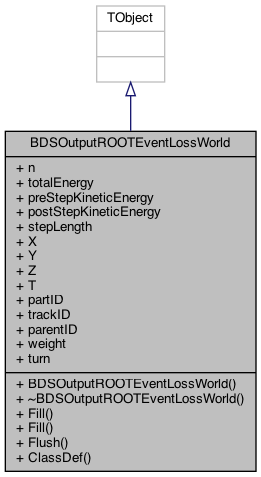

Inheritance diagram for BDSOutputROOTEventLossWorld:

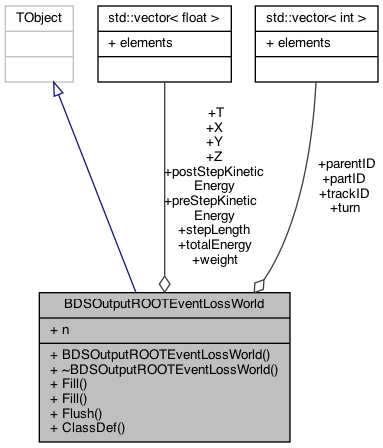

Collaboration diagram for BDSOutputROOTEventLossWorld:

Public Member Functions
void	Fill (const BDSHitEnergyDepositionGlobal *hit)
void	Fill (const BDSOutputROOTEventLossWorld *other)
	Fill from another instance. More...
virtual void	Flush ()
	ClassDef (BDSOutputROOTEventLossWorld, 1)

Data Fields
int	n = 0
	Number of entries. More...
std::vector< float >	totalEnergy
	Energy deposited in step. More...
std::vector< float >	preStepKineticEnergy
	Kinetic energy in GeV at pre step point. More...
std::vector< float >	postStepKineticEnergy
	Kinetic energy in GeV at post step point. More...
std::vector< float >	stepLength
	Step length. More...
std::vector< float >	X
std::vector< float >	Y
std::vector< float >	Z
std::vector< float >	T
	Global time (time since beginning of event). More...
std::vector< int >	partID
	ParticleID that create the deposit. More...
std::vector< int >	trackID
	TrackID that created the deposit. More...
std::vector< int >	parentID
	ParentID that created the deposit. More...
std::vector< float >	weight
	Weight. More...
std::vector< int >	turn
	Turn number. More...

Detailed Description

Data stored for world hits per event.

These are for loss hits that have no concept of S or curvilinear coordinates.

Author

Laurie Nevay

Definition at line 39 of file BDSOutputROOTEventLossWorld.hh.

Constructor & Destructor Documentation

~BDSOutputROOTEventLossWorld()

BDSOutputROOTEventLossWorld::~BDSOutputROOTEventLossWorld ( )

virtual

Definition at line 33 of file BDSOutputROOTEventLossWorld.cc.

Member Function Documentation

Fill() [1/2]

void BDSOutputROOTEventLossWorld::Fill

(

const BDSHitEnergyDepositionGlobal *

hit

)

Definition at line 37 of file BDSOutputROOTEventLossWorld.cc.

Fill() [2/2]

void BDSOutputROOTEventLossWorld::Fill

(

const BDSOutputROOTEventLossWorld *

other

)

Fill from another instance.

Definition at line 56 of file BDSOutputROOTEventLossWorld.cc.

References n, parentID, partID, postStepKineticEnergy, preStepKineticEnergy, stepLength, T, totalEnergy, trackID, turn, and weight.

Flush()

void BDSOutputROOTEventLossWorld::Flush ( )

virtual

Definition at line 77 of file BDSOutputROOTEventLossWorld.cc.

Field Documentation

n

int BDSOutputROOTEventLossWorld::n = 0

Number of entries.

Definition at line 42 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

parentID

std::vector<int> BDSOutputROOTEventLossWorld::parentID

ParentID that created the deposit.

Definition at line 57 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

partID

std::vector<int> BDSOutputROOTEventLossWorld::partID

ParticleID that create the deposit.

Definition at line 55 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

postStepKineticEnergy

std::vector<float> BDSOutputROOTEventLossWorld::postStepKineticEnergy

Kinetic energy in GeV at post step point.

Definition at line 45 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

preStepKineticEnergy

std::vector<float> BDSOutputROOTEventLossWorld::preStepKineticEnergy

Kinetic energy in GeV at pre step point.

Definition at line 44 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

stepLength

std::vector<float> BDSOutputROOTEventLossWorld::stepLength

Step length.

Definition at line 46 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

T

std::vector<float> BDSOutputROOTEventLossWorld::T

Global time (time since beginning of event).

Definition at line 54 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

totalEnergy

std::vector<float> BDSOutputROOTEventLossWorld::totalEnergy

Energy deposited in step.

Definition at line 43 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

trackID

std::vector<int> BDSOutputROOTEventLossWorld::trackID

TrackID that created the deposit.

Definition at line 56 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

turn

std::vector<int> BDSOutputROOTEventLossWorld::turn

Turn number.

Definition at line 59 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

weight

std::vector<float> BDSOutputROOTEventLossWorld::weight

Weight.

Definition at line 58 of file BDSOutputROOTEventLossWorld.hh.

Referenced by Fill().

X

std::vector<float> BDSOutputROOTEventLossWorld::X

Definition at line 49 of file BDSOutputROOTEventLossWorld.hh.

Y

std::vector<float> BDSOutputROOTEventLossWorld::Y

Definition at line 50 of file BDSOutputROOTEventLossWorld.hh.

Z

std::vector<float> BDSOutputROOTEventLossWorld::Z

Definition at line 51 of file BDSOutputROOTEventLossWorld.hh.

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/include/BDSOutputROOTEventLossWorld.hh
• /Users/nevay/physics/reps/bdsim/src/BDSOutputROOTEventLossWorld.cc
