A parallel world for placement field transform shapes. More...

#include <BDSParallelWorldPlacementFields.hh>

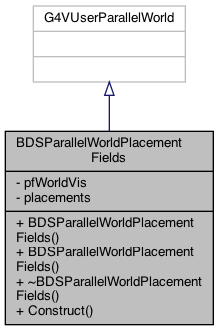

Inheritance diagram for BDSParallelWorldPlacementFields:

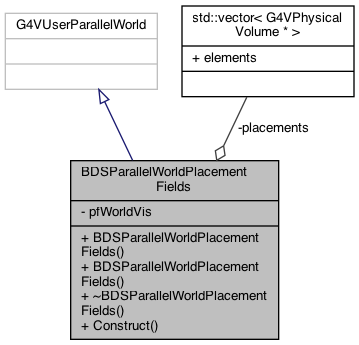

Collaboration diagram for BDSParallelWorldPlacementFields:

Public Member Functions
	BDSParallelWorldPlacementFields (const G4String &name)

virtual void	Construct ()

Private Attributes
G4VisAttributes *	pfWorldVis

std::vector< G4VPhysicalVolume * >	placements
	Cache of the placements to clean up at the end. More...

Detailed Description

A parallel world for placement field transform shapes.

Author: Laurie Nevay

Definition at line 35 of file BDSParallelWorldPlacementFields.hh.

Constructor & Destructor Documentation

◆ BDSParallelWorldPlacementFields()

BDSParallelWorldPlacementFields::BDSParallelWorldPlacementFields ( const G4String & name )

explicit

Definition at line 36 of file BDSParallelWorldPlacementFields.cc.

◆ ~BDSParallelWorldPlacementFields()

BDSParallelWorldPlacementFields::~BDSParallelWorldPlacementFields ( )

virtual

Definition at line 41 of file BDSParallelWorldPlacementFields.cc.

Member Function Documentation

◆ Construct()

void BDSParallelWorldPlacementFields::Construct ( )

virtual

Construct the required parallel world geometry. This must overload the pure virtual method in G4VUserParallelWorld.

"placement fields" -> pf

Register it (statically) to all navigators for fields in the placement world.

Definition at line 50 of file BDSParallelWorldPlacementFields.cc.

References BDSNavigatorPlacements::AttachWorldVolumeToNavigator(), BDSGlobalConstants::Instance(), BDSAcceleratorModel::PlacementFieldPWPlacements(), and placements.

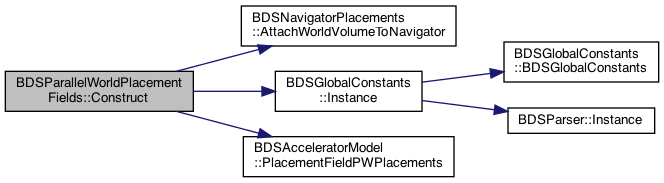

Here is the call graph for this function:

Field Documentation

◆ pfWorldVis

G4VisAttributes* BDSParallelWorldPlacementFields::pfWorldVis

private

Definition at line 47 of file BDSParallelWorldPlacementFields.hh.

◆ placements

std::vector<G4VPhysicalVolume*> BDSParallelWorldPlacementFields::placements

private

Cache of the placements to clean up at the end.

Definition at line 50 of file BDSParallelWorldPlacementFields.hh.

Referenced by Construct().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSParallelWorldPlacementFields.hh
/Users/nevay/physics/reps/bdsim/src/BDSParallelWorldPlacementFields.cc
