Const entry to parser objects. More...

#include <BDSParser.hh>

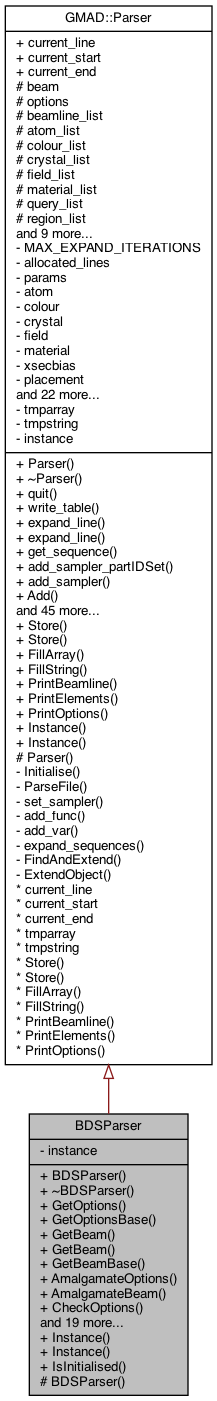

Inheritance diagram for BDSParser:

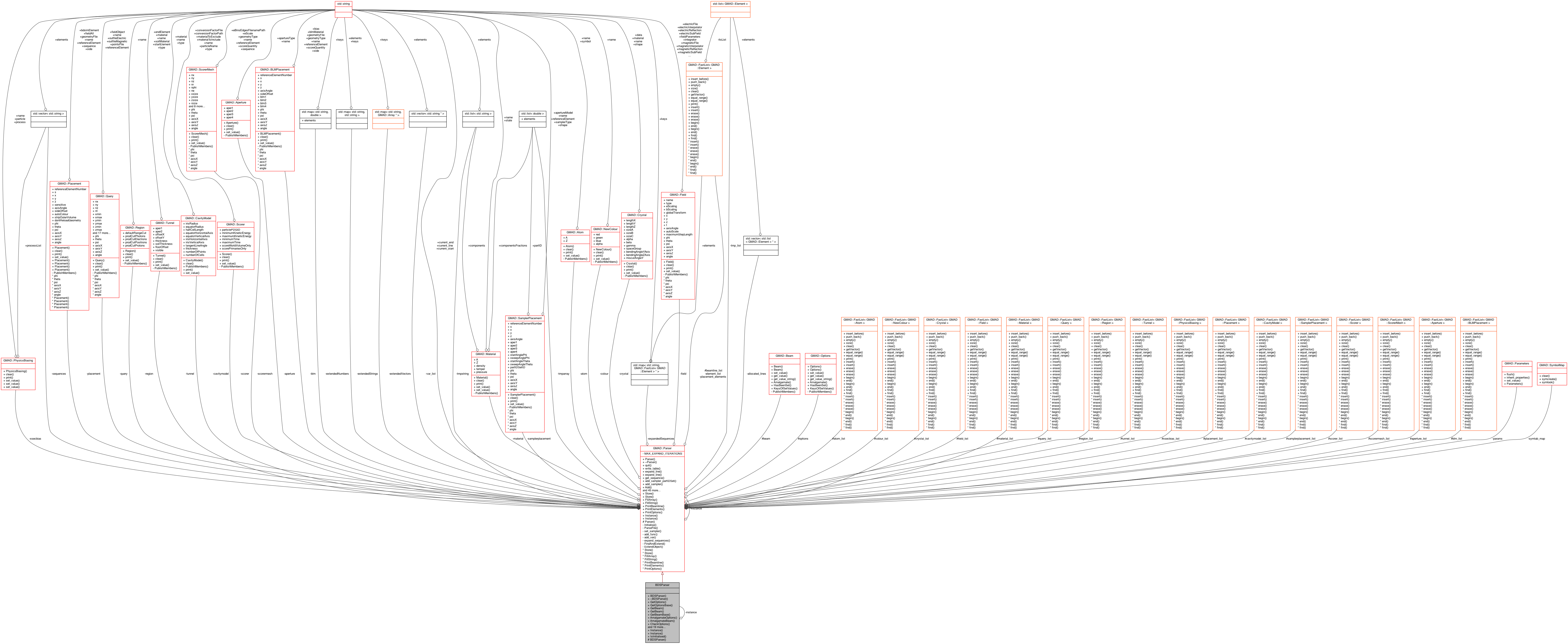

Collaboration diagram for BDSParser:

Public Member Functions
	BDSParser ()=delete
	No default constructor.

virtual	~BDSParser ()
	Destructor. More...

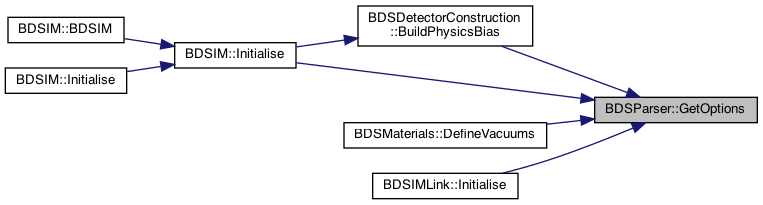

const GMAD::Options &	GetOptions () const
	Return options. More...

const GMAD::OptionsBase *	GetOptionsBase () const
	Return bare options base class. More...

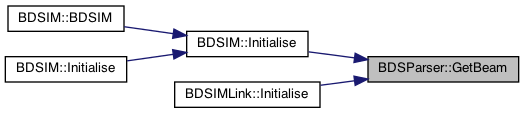

const GMAD::Beam &	GetBeam () const
	Return beam. More...

GMAD::Beam &	GetBeam ()
	Return beam non-const. Required when loading a file and need to change beam parameters to match. More...

const GMAD::BeamBase *	GetBeamBase () const
	Return bare beam base class. More...

void	AmalgamateOptions (const GMAD::Options &optionsIn)
	Amalgamate the input options with the ones stored in the parser. More...

void	AmalgamateBeam (const GMAD::Beam &beamIn, bool recreate)
	Amalgamate the input beam definition with the ones stored in teh parser. More...

void	CheckOptions ()
	Check options for consistency. This also checks the beam options. More...

const GMAD::FastList< GMAD::Element > &	GetSequence (const std::string &name)
	Return sequence. More...

const GMAD::Element *	GetElement (const std::string &name)

std::vector< GMAD::Atom >	GetAtoms () const
	Return the vector of atom objects. More...

const GMAD::Element *	GetPlacementElement (const std::string &name)

const GMAD::FastList< GMAD::PhysicsBiasing > &	GetBiasing () const
	Return biasing list. More...

const std::vector< GMAD::PhysicsBiasing >	GetBiasingVector () const

std::vector< GMAD::CavityModel >	GetCavityModels () const
	Return cavity model list. More...

std::vector< GMAD::NewColour >	GetColours () const
	Return colour model list. More...

std::vector< GMAD::Crystal >	GetCrystals () const
	Return crystal model list. More...

std::vector< GMAD::Field >	GetFields () const
	Return the vector of field objects. More...

std::vector< GMAD::Material >	GetMaterials () const
	Return material list. More...

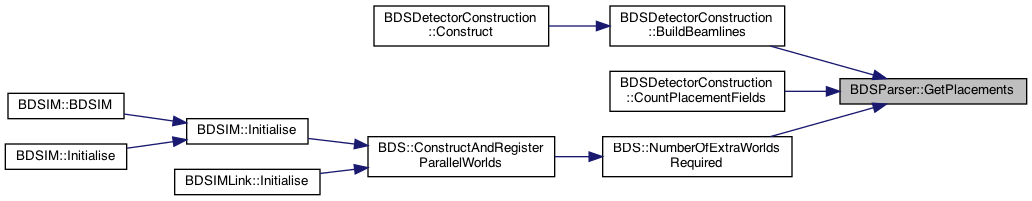

std::vector< GMAD::Placement >	GetPlacements () const
	Return the vector of placement objects. More...

std::vector< GMAD::Query >	GetQuery () const
	Query list. More...

std::vector< GMAD::Region >	GetRegions () const
	Return region list. More...

std::vector< GMAD::SamplerPlacement >	GetSamplerPlacements () const
	Return sampler placement list. More...

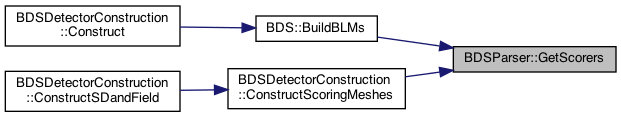

std::vector< GMAD::Scorer >	GetScorers () const
	Return scorer list. More...

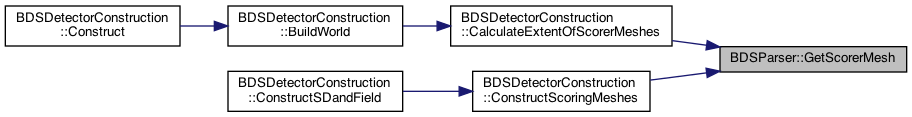

std::vector< GMAD::ScorerMesh >	GetScorerMesh () const
	Return scorermesh list. More...

std::vector< GMAD::BLMPlacement >	GetBLMs () const
	Return blm list. More...

std::vector< GMAD::Aperture >	GetApertures () const
	Return aperture list. More...

Static Public Member Functions
static BDSParser *	Instance (const std::string &filename)
	Constructor method. More...

static BDSParser *	Instance ()
	Access method. More...

static bool	IsInitialised ()
	Returns if parser is initialised. More...

Protected Member Functions
	BDSParser (const std::string &filename)
	Constructor from filename. More...

Static Private Attributes
static BDSParser *	instance = nullptr
	Instance. More...

Additional Inherited Members
Private Member Functions inherited from GMAD::Parser
	Parser ()=delete
	No default constructor.

virtual	~Parser ()
	Destructor. More...

void	quit ()
	Exit method. More...

void	write_table (std::string *name, ElementType type, bool isLine=false)
	Method that transfers parameters to element properties. More...

void	expand_line (FastList< Element > &target, const std::string &name, std::string start="", std::string end="")

void	expand_line (const std::string &name, std::string start, std::string end)
	Expand the main beamline as defined by the use command. More...

const FastList< Element > &	get_sequence (const std::string &name)

int	add_sampler_partIDSet (std::list< int > *samplerPartIDListIn)

void	add_sampler (const std::string &name, int count, ElementType type, std::string samplerType, std::list< int > *samplerPartIDListIn=nullptr)
	insert a sampler into beamline_list More...

template<class C , class Container = FastList<C>>
void	Add ()
	Insert global object of parser class C in Container class. More...

template<class C , class Container = FastList<C>>
void	Add (bool unique, const std::string &className)

template<class C >
C &	GetGlobal ()
	Get global object of parser class C.

template<class C , class Container = FastList<C>>
Container &	GetList ()
	Get list for parser class C.

const std::set< std::set< int > > &	GetSamplerFilters () const

const std::map< int, std::set< int > > &	GetSamplerFilterIDToSet () const

Element &	find_element (const std::string &element_name)
	find element More...

const Element &	find_element (const std::string &element_name) const
	find element (const) More...

const Element *	find_element_safe (const std::string &element_name) const
	find element by pointer - nullptr if not found - searches element_list More...

const Element *	find_placement_element_safe (const std::string &element_name) const
	search placement_element More...

double	property_lookup (const std::string &element_name, const std::string &property_name) const
	access property of Element with element_name More...

void	add_element_temp (const std::string &name, int number, bool pushfront, ElementType linetype)
	add element to temporary element sequence tmp_list More...

int	copy_element_to_params (const std::string &elementName)
	copy properties from Element into params, returns element type as integer, returs _NONE if not found More...

bool	InvalidSymbolName (const std::string &s, std::string &errorReason)

Symtab *	symcreate (const std::string &s)
	create new parser symbol More...

Symtab *	symlook (const std::string &s)
	look up parser symbol More...

void	ClearParams ()

template<class C , typename T >
void	SetValue (std::string property, T value)
	Set value for parser class. More...

template<class C >
double	GetValue (std::string property)
	Get value for parser class (only for doubles) More...

template<typename T >
std::list< T > *	ArrayToList (Array *)

template<typename T >
void	ExtendValue (const std::string &property, T value)
	Add value to be extended to object.

void	Overwrite (const std::string &objectName)
	Overwrite object with current values. More...

void	AddVariable (std::string *name)
	Add variable memory to variable list for memory management. More...

bool	TryPrintingObject (const std::string &objectName) const

const FastList< Element > &	GetBeamline () const

template<>
Beam &	GetGlobal ()

template<>
FastList< Region > &	GetList ()

template<>
FastList< NewColour > &	GetList ()

template<>
FastList< Crystal > &	GetList ()

template<>
FastList< Field > &	GetList ()

template<>
FastList< Query > &	GetList ()

template<>
FastList< Atom > &	GetList ()

template<>
FastList< Material > &	GetList ()

template<>
FastList< Tunnel > &	GetList ()

template<>
FastList< CavityModel > &	GetList ()

template<>
FastList< Scorer > &	GetList ()

template<>
FastList< ScorerMesh > &	GetList ()

template<>
FastList< Placement > &	GetList ()

template<>
FastList< PhysicsBiasing > &	GetList ()

template<>
FastList< SamplerPlacement > &	GetList ()

template<>
FastList< BLMPlacement > &	GetList ()

template<>
FastList< Aperture > &	GetList ()

template<>
void	ExtendValue (const std::string &property, double value)

template<>
void	ExtendValue (const std::string &property, std::string value)

template<>
void	ExtendValue (const std::string &property, Array *value)

template<>
void	Add (bool unique, const std::string &className)

void	Store (double value)
	Add value to front of temporary list. More...

void	Store (const std::string &name)
	Add value to front of temporary list. More...

void	FillArray (Array *)

void	FillString (Array *)

void	PrintBeamline () const
	Print methods. More...

void	PrintElements () const
	Print methods. More...

void	PrintOptions () const
	Print methods. More...

	Parser (std::string filename)
	Constructor from filename. More...

Static Private Member Functions inherited from GMAD::Parser
static Parser *	Instance (const std::string &filename)
	Constructor method. More...

static Parser *	Instance ()
	Access method. More...

Private Attributes inherited from GMAD::Parser
std::string	current_line
	Name of beamline. More...

std::string	current_start
	Name of beamline. More...

std::string	current_end
	Name of beamline. More...

Beam	beam
	Beam instance;. More...

Options	options
	General options. More...

FastList< Element >	beamline_list
	Beamline. More...

FastList< Atom >	atom_list
	List of parser defined atoms. More...

FastList< NewColour >	colour_list
	List of parser defined colours. More...

FastList< Crystal >	crystal_list

FastList< Field >	field_list
	List of parser defined fields. More...

FastList< Material >	material_list
	List of parser defined materials. More...

FastList< Query >	query_list
	List of parser defined query objects. More...

FastList< Region >	region_list
	List of parser defined regions. More...

FastList< Tunnel >	tunnel_list
	List of parser defined tunnels. More...

FastList< PhysicsBiasing >	xsecbias_list
	List of parser defined cross section biasing objects. More...

FastList< Placement >	placement_list
	List of parser defined placements. More...

FastList< CavityModel >	cavitymodel_list
	List of parser defined rf cavity models. More...

FastList< SamplerPlacement >	samplerplacement_list
	List of parser defined sampler placements. More...

FastList< Scorer >	scorer_list

FastList< ScorerMesh >	scorermesh_list

FastList< Aperture >	aperture_list
	List of parser defined apertures. More...

FastList< BLMPlacement >	blm_list
	List of parser defined blms. More...

Detailed Description

Const entry to parser objects.

Singleton pattern

Author: Jochem Snuverink

Definition at line 35 of file BDSParser.hh.

Constructor & Destructor Documentation

◆ ~BDSParser()

BDSParser::~BDSParser ( )

virtual

Destructor.

Definition at line 54 of file BDSParser.cc.

References instance.

◆ BDSParser()

BDSParser::BDSParser ( const std::string & filename )

explicitprotected

Constructor from filename.

Definition at line 59 of file BDSParser.cc.

Member Function Documentation

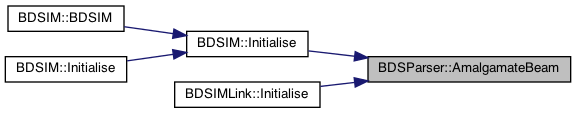

◆ AmalgamateBeam()

void BDSParser::AmalgamateBeam	(	const GMAD::Beam &	beamIn,
		bool	recreate
	)

Amalgamate the input beam definition with the ones stored in teh parser.

Definition at line 65 of file BDSParser.cc.

References GMAD::Beam::Amalgamate(), and GMAD::Parser::beam.

Referenced by BDSIM::Initialise(), and BDSIMLink::Initialise().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ AmalgamateOptions()

void BDSParser::AmalgamateOptions ( const GMAD::Options & optionsIn )

Amalgamate the input options with the ones stored in the parser.

Definition at line 76 of file BDSParser.cc.

References GMAD::Options::Amalgamate(), GMAD::Parser::options, and GMAD::OptionsBase::recreate.

Referenced by BDSIM::Initialise(), and BDSIMLink::Initialise().

Here is the call graph for this function:

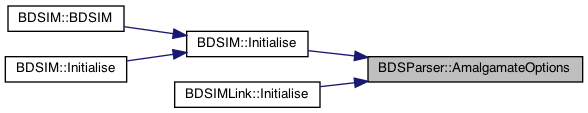

Here is the caller graph for this function:

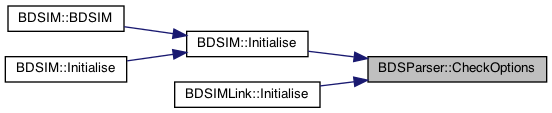

◆ CheckOptions()

void BDSParser::CheckOptions ( )

Check options for consistency. This also checks the beam options.

Definition at line 84 of file BDSParser.cc.

References GMAD::Parser::beam, GMAD::OptionsBase::beamlineS, BDS::IsFinite(), GMAD::OptionsBase::nGenerate, GMAD::Parser::options, and GMAD::BeamBase::S0.

Referenced by BDSIM::Initialise(), and BDSIMLink::Initialise().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetApertures()

std::vector< GMAD::Aperture > BDSParser::GetApertures ( ) const

inline

Return aperture list.

Definition at line 135 of file BDSParser.hh.

References GMAD::Parser::aperture_list.

◆ GetAtoms()

std::vector< GMAD::Atom > BDSParser::GetAtoms ( ) const

inline

Return the vector of atom objects.

Definition at line 88 of file BDSParser.hh.

References GMAD::Parser::atom_list.

Referenced by BDSMaterials::PrepareRequiredMaterials().

Here is the caller graph for this function:

◆ GetBeam() [1/2]

GMAD::Beam & BDSParser::GetBeam ( )

inline

Return beam non-const. Required when loading a file and need to change beam parameters to match.

Definition at line 59 of file BDSParser.hh.

References GMAD::Parser::beam.

◆ GetBeam() [2/2]

const GMAD::Beam & BDSParser::GetBeam ( ) const

inline

Return beam.

Definition at line 56 of file BDSParser.hh.

References GMAD::Parser::beam.

Referenced by BDSIM::Initialise(), and BDSIMLink::Initialise().

Here is the caller graph for this function:

◆ GetBeamBase()

const GMAD::BeamBase * BDSParser::GetBeamBase ( ) const

inline

Return bare beam base class.

Definition at line 62 of file BDSParser.hh.

References GMAD::Parser::beam.

Referenced by BDSIM::Initialise().

Here is the caller graph for this function:

◆ GetBiasing()

const GMAD::FastList< GMAD::PhysicsBiasing > & BDSParser::GetBiasing ( ) const

inline

Return biasing list.

Definition at line 95 of file BDSParser.hh.

References GMAD::Parser::xsecbias_list.

Referenced by BDSDetectorConstruction::BuildPhysicsBias(), and BDSIM::Initialise().

Here is the caller graph for this function:

◆ GetBiasingVector()

const std::vector< GMAD::PhysicsBiasing > BDSParser::GetBiasingVector ( ) const

inline

Definition at line 96 of file BDSParser.hh.

◆ GetBLMs()

std::vector< GMAD::BLMPlacement > BDSParser::GetBLMs ( ) const

inline

Return blm list.

Definition at line 132 of file BDSParser.hh.

References GMAD::Parser::blm_list.

◆ GetCavityModels()

std::vector< GMAD::CavityModel > BDSParser::GetCavityModels ( ) const

inline

Return cavity model list.

Definition at line 99 of file BDSParser.hh.

References GMAD::Parser::cavitymodel_list.

◆ GetColours()

std::vector< GMAD::NewColour > BDSParser::GetColours ( ) const

inline

Return colour model list.

Definition at line 102 of file BDSParser.hh.

References GMAD::Parser::colour_list.

◆ GetCrystals()

std::vector< GMAD::Crystal > BDSParser::GetCrystals ( ) const

inline

Return crystal model list.

Definition at line 105 of file BDSParser.hh.

References GMAD::Parser::crystal_list.

◆ GetElement()

const GMAD::Element * BDSParser::GetElement ( const std::string & name )

inline

Return an element definition. Returns nullptr if not found. Note the element_list is emptied after parsing.

Definition at line 85 of file BDSParser.hh.

References GMAD::Parser::find_element_safe().

Here is the call graph for this function:

◆ GetFields()

std::vector< GMAD::Field > BDSParser::GetFields ( ) const

inline

Return the vector of field objects.

Definition at line 108 of file BDSParser.hh.

References GMAD::Parser::field_list.

◆ GetMaterials()

std::vector< GMAD::Material > BDSParser::GetMaterials ( ) const

inline

Return material list.

Definition at line 111 of file BDSParser.hh.

References GMAD::Parser::material_list.

Referenced by BDSMaterials::PrepareRequiredMaterials().

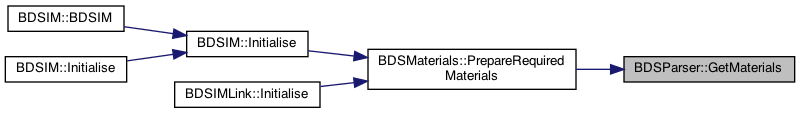

Here is the caller graph for this function:

◆ GetOptions()

const GMAD::Options & BDSParser::GetOptions ( ) const

inline

Return options.

Definition at line 50 of file BDSParser.hh.

References GMAD::Parser::options.

Referenced by BDSDetectorConstruction::BuildPhysicsBias(), BDSMaterials::DefineVacuums(), BDSIM::Initialise(), and BDSIMLink::Initialise().

Here is the caller graph for this function:

◆ GetOptionsBase()

const GMAD::OptionsBase * BDSParser::GetOptionsBase ( ) const

inline

Return bare options base class.

Definition at line 53 of file BDSParser.hh.

References GMAD::Parser::options.

Referenced by BDSIM::Initialise().

Here is the caller graph for this function:

◆ GetPlacementElement()

const GMAD::Element * BDSParser::GetPlacementElement ( const std::string & name )

inline

Return a placement element definition. Returns nullptr if not found. Only searches elements used in the placement.

Definition at line 92 of file BDSParser.hh.

References GMAD::Parser::find_placement_element_safe().

Referenced by BDS::BuildPlacementGeometry().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetPlacements()

std::vector< GMAD::Placement > BDSParser::GetPlacements ( ) const

inline

Return the vector of placement objects.

Definition at line 114 of file BDSParser.hh.

References GMAD::Parser::placement_list.

Referenced by BDSDetectorConstruction::BuildBeamlines(), BDSDetectorConstruction::CountPlacementFields(), and BDS::NumberOfExtraWorldsRequired().

Here is the caller graph for this function:

◆ GetQuery()

std::vector< GMAD::Query > BDSParser::GetQuery ( ) const

inline

Query list.

Definition at line 117 of file BDSParser.hh.

References GMAD::Parser::query_list.

Referenced by BDSDetectorConstruction::PrepareFieldQueries().

Here is the caller graph for this function:

◆ GetRegions()

std::vector< GMAD::Region > BDSParser::GetRegions ( ) const

inline

Return region list.

Definition at line 120 of file BDSParser.hh.

References GMAD::Parser::region_list.

◆ GetSamplerPlacements()

std::vector< GMAD::SamplerPlacement > BDSParser::GetSamplerPlacements ( ) const

inline

Return sampler placement list.

Definition at line 123 of file BDSParser.hh.

References GMAD::Parser::samplerplacement_list.

Referenced by BDSDetectorConstruction::CalculateExtentOfSamplerPlacements(), BDSParallelWorldSampler::Construct(), and BDSDetectorConstruction::UpdateSamplerDiameterAndCountSamplers().

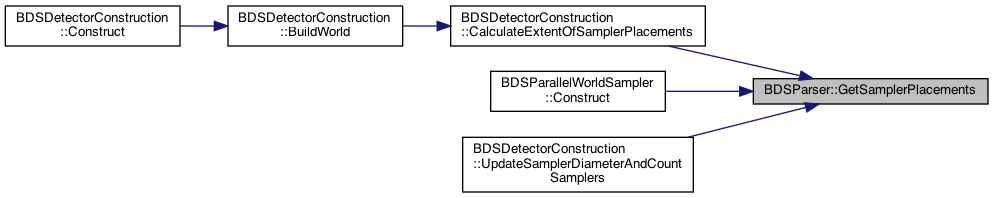

Here is the caller graph for this function:

◆ GetScorerMesh()

std::vector< GMAD::ScorerMesh > BDSParser::GetScorerMesh ( ) const

inline

Return scorermesh list.

Definition at line 129 of file BDSParser.hh.

Referenced by BDSDetectorConstruction::CalculateExtentOfScorerMeshes(), and BDSDetectorConstruction::ConstructScoringMeshes().

Here is the caller graph for this function:

◆ GetScorers()

std::vector< GMAD::Scorer > BDSParser::GetScorers ( ) const

inline

Return scorer list.

Definition at line 126 of file BDSParser.hh.

Referenced by BDS::BuildBLMs(), and BDSDetectorConstruction::ConstructScoringMeshes().

Here is the caller graph for this function:

◆ GetSequence()

const GMAD::FastList< GMAD::Element > & BDSParser::GetSequence ( const std::string & name )

inline

Return sequence.

Definition at line 81 of file BDSParser.hh.

References GMAD::Parser::get_sequence().

Referenced by BDSDetectorConstruction::BuildBeamlines().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Instance() [1/2]

BDSParser * BDSParser::Instance ( )

static

Access method.

Definition at line 28 of file BDSParser.cc.

References instance.

Here is the caller graph for this function:

◆ Instance() [2/2]

BDSParser * BDSParser::Instance ( const std::string & filename )

static

Constructor method.

Definition at line 38 of file BDSParser.cc.

References BDSParser(), and instance.

Here is the call graph for this function:

◆ IsInitialised()

bool BDSParser::IsInitialised ( )

static

Returns if parser is initialised.

Definition at line 49 of file BDSParser.cc.

References instance.

Referenced by BDSMaterials::DefineVacuums().

Here is the caller graph for this function:

Field Documentation

◆ instance

BDSParser * BDSParser::instance = nullptr

staticprivate

Instance.

Definition at line 143 of file BDSParser.hh.

Referenced by Instance(), IsInitialised(), and ~BDSParser().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSParser.hh
/Users/nevay/physics/reps/bdsim/src/BDSParser.cc

Public Member Functions

Static Public Member Functions

Protected Member Functions

Static Private Attributes

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ~BDSParser()

◆ BDSParser()

Member Function Documentation

◆ AmalgamateBeam()

◆ AmalgamateOptions()

◆ CheckOptions()

◆ GetApertures()

◆ GetAtoms()

◆ GetBeam() [1/2]

◆ GetBeam() [2/2]

◆ GetBeamBase()

◆ GetBiasing()

◆ GetBiasingVector()

◆ GetBLMs()

◆ GetCavityModels()

◆ GetColours()

◆ GetCrystals()

◆ GetElement()

◆ GetFields()

◆ GetMaterials()

◆ GetOptions()

◆ GetOptionsBase()

◆ GetPlacementElement()

◆ GetPlacements()

◆ GetQuery()

◆ GetRegions()

◆ GetSamplerPlacements()

◆ GetScorerMesh()

◆ GetScorers()

◆ GetSequence()

◆ Instance() [1/2]

◆ Instance() [2/2]

◆ IsInitialised()

Field Documentation

◆ instance
