BDSPhysicsCutsAndLimits Class Reference

Physics processes required for user tracking limits. More...

#include <BDSPhysicsCutsAndLimits.hh>

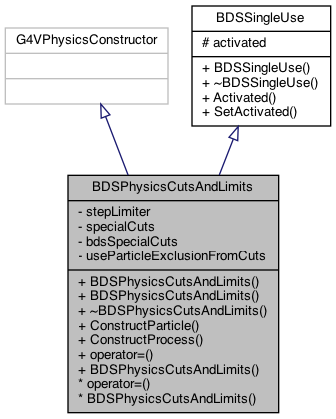

Inheritance diagram for BDSPhysicsCutsAndLimits:

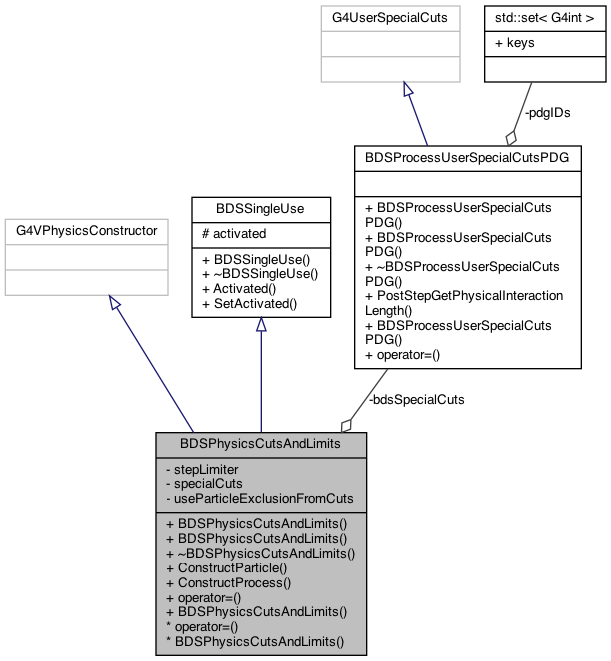

Collaboration diagram for BDSPhysicsCutsAndLimits:

Public Member Functions
	BDSPhysicsCutsAndLimits (const std::set< G4int > &pdgsToExcludeFromCuts={})
virtual void	ConstructParticle ()
	Construct gamma, e+- and proton - the minimum this sets limits for. More...
virtual void	ConstructProcess ()
	Construct and attach step limiter and cuts processes. More...
BDSPhysicsCutsAndLimits &	operator= (const BDSPhysicsCutsAndLimits &)=delete
	Assignment and copy constructor not implemented nor used.
	BDSPhysicsCutsAndLimits (BDSPhysicsCutsAndLimits &)=delete
	Assignment and copy constructor not implemented nor used.
Public Member Functions inherited from BDSSingleUse
G4bool	Activated () const
	Get whether this instance has been activated. More...
void	SetActivated ()
	Flag this instance as activated for later querying. More...

Private Attributes
G4StepLimiter *	stepLimiter
	Step limit process for MaxAllowedStep. More...
G4UserSpecialCuts *	specialCuts
	Process for all other limits. More...
BDSProcessUserSpecialCutsPDG *	bdsSpecialCuts
G4bool	useParticleExclusionFromCuts

Additional Inherited Members
Protected Attributes inherited from BDSSingleUse
G4bool	activated = false

Detailed Description

Physics processes required for user tracking limits.

Definition at line 36 of file BDSPhysicsCutsAndLimits.hh.

Constructor & Destructor Documentation

BDSPhysicsCutsAndLimits()

BDSPhysicsCutsAndLimits::BDSPhysicsCutsAndLimits ( const std::set< G4int > &  pdgsToExcludeFromCuts = {} )

explicit

Definition at line 35 of file BDSPhysicsCutsAndLimits.cc.

~BDSPhysicsCutsAndLimits()

BDSPhysicsCutsAndLimits::~BDSPhysicsCutsAndLimits ( )

virtual

Definition at line 51 of file BDSPhysicsCutsAndLimits.cc.

Member Function Documentation

ConstructParticle()

void BDSPhysicsCutsAndLimits::ConstructParticle ( )

virtual

Construct gamma, e+- and proton - the minimum this sets limits for.

Definition at line 58 of file BDSPhysicsCutsAndLimits.cc.

ConstructProcess()

void BDSPhysicsCutsAndLimits::ConstructProcess ( )

virtual

Construct and attach step limiter and cuts processes.

Definition at line 66 of file BDSPhysicsCutsAndLimits.cc.

References BDSSingleUse::Activated(), BDSSingleUse::SetActivated(), specialCuts, and stepLimiter.

Here is the call graph for this function:

Field Documentation

bdsSpecialCuts

BDSProcessUserSpecialCutsPDG* BDSPhysicsCutsAndLimits::bdsSpecialCuts

private

Definition at line 56 of file BDSPhysicsCutsAndLimits.hh.

specialCuts

G4UserSpecialCuts* BDSPhysicsCutsAndLimits::specialCuts

private

Process for all other limits.

Definition at line 55 of file BDSPhysicsCutsAndLimits.hh.

Referenced by ConstructProcess().

stepLimiter

G4StepLimiter* BDSPhysicsCutsAndLimits::stepLimiter

private

Step limit process for MaxAllowedStep.

Definition at line 54 of file BDSPhysicsCutsAndLimits.hh.

Referenced by ConstructProcess().

useParticleExclusionFromCuts

G4bool BDSPhysicsCutsAndLimits::useParticleExclusionFromCuts

private

Definition at line 57 of file BDSPhysicsCutsAndLimits.hh.

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/include/BDSPhysicsCutsAndLimits.hh
• /Users/nevay/physics/reps/bdsim/src/BDSPhysicsCutsAndLimits.cc
