Rectangular sampler with fixed thickness but variable x,y. More...
#include <BDSSamplerPlane.hh>
Inheritance diagram for BDSSamplerPlane:

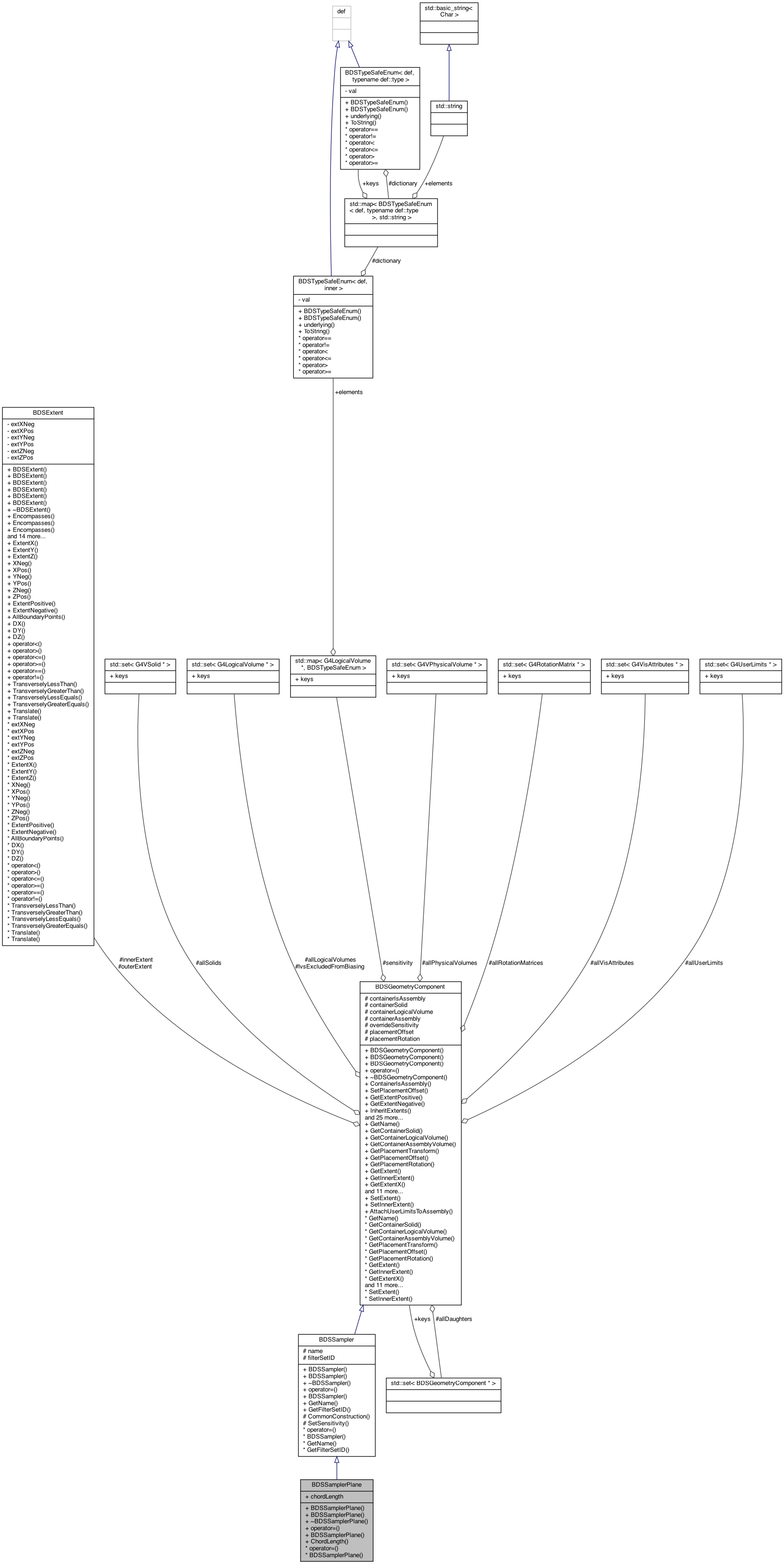

Collaboration diagram for BDSSamplerPlane:
Public Member Functions | |
| BDSSamplerPlane ()=delete | |
| No default constructor. | |
| BDSSamplerPlane (const G4String &name, G4double boxHalfWidth, G4int filterSetIDIn=-1) | |
| BDSSamplerPlane & | operator= (const BDSSamplerPlane &)=delete |
| Assignment and copy constructor not implemented nor used. | |
| BDSSamplerPlane (BDSSamplerPlane &)=delete | |
| Assignment and copy constructor not implemented nor used. | |
 Public Member Functions inherited from BDSSampler | |
| BDSSampler (const G4String &nameIn, G4int filterSetIDIn=-1) | |
| BDSSampler ()=delete | |
| No default constructor. | |
| BDSSampler & | operator= (const BDSSampler &)=delete |
| Assignment and copy constructor not implemented nor used. | |
| BDSSampler (BDSSampler &)=delete | |
| Assignment and copy constructor not implemented nor used. | |
| virtual G4String | GetName () const |
| Accessor. More... | |
| G4int | GetFilterSetID () const |
| Accessor. More... | |
| Public Member Functions inherited from BDSGeometryComponent | |
| BDSGeometryComponent (G4VSolid *containerSolidIn, G4LogicalVolume *containerLVIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr) | |
| BDSGeometryComponent (G4AssemblyVolume *containerAssemblyIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr) | |
| BDSGeometryComponent (const BDSGeometryComponent &component) | |
| Copy constructor (no copying of registered objects) More... | |
| BDSGeometryComponent & | operator= (const BDSGeometryComponent &)=delete |
| Assignment operator not used. | |
| G4bool | ContainerIsAssembly () const |
| Whether the container is an assembly. If not, it's a logical volume. More... | |
| void | SetPlacementOffset (const G4ThreeVector &offsetIn) |
| Set the offset from 0,0,0 that the object should ideally be placed in its parent. More... | |
| G4ThreeVector | GetExtentPositive () const |
| Get the extent of the object in the positive direction in all dimensions. More... | |
| G4ThreeVector | GetExtentNegative () const |
| Get the extent of the object in the negative direction in all dimensions. More... | |
| void | InheritExtents (BDSGeometryComponent const *const anotherComponent) |
| Update the extents of this object with those of another object. More... | |
| void | InheritExtents (BDSGeometryComponent const *const anotherComponent, const G4ThreeVector &offset) |
| void | RegisterDaughter (BDSGeometryComponent *anotherComponent) |
| void | RegisterSolid (G4VSolid *solid) |
| void | RegisterSolid (const std::set< G4VSolid * > &solids) |
| Similarly for a set of unique solids. More... | |
| void | RegisterLogicalVolume (G4LogicalVolume *logicalVolume) |
| void | RegisterLogicalVolume (const std::set< G4LogicalVolume * > &localVolumes) |
| Apply RegisterLogicalVolume() to a set of logical volumes. More... | |
| void | RegisterSensitiveVolume (G4LogicalVolume *sensitiveVolume, BDSSDType sensitivityType) |
| void | RegisterSensitiveVolume (const std::set< G4LogicalVolume * > &sensitiveVolumes, BDSSDType sensitivityType) |
| void | RegisterSensitiveVolume (const std::map< G4LogicalVolume *, BDSSDType > &sensitiveVolumes) |
| Copy in a mapping of sensitive volumes to sensitive detectors. More... | |
| void | RegisterPhysicalVolume (G4VPhysicalVolume *physicalVolume) |
| void | RegisterPhysicalVolume (const std::set< G4VPhysicalVolume * > &physicalVolumes) |
| Apply RegisterPhysicalVolume() to a set of physical volumes. More... | |
| void | RegisterRotationMatrix (G4RotationMatrix *rotationMatrix) |
| void | RegisterRotationMatrix (const std::set< G4RotationMatrix * > &rotationMatrices) |
| Apply Register RotationMatrix() to a set of rotation matrices. More... | |
| void | RegisterVisAttributes (G4VisAttributes *visAttribute) |
| void | RegisterVisAttributes (const std::set< G4VisAttributes * > &visAttributes) |
| Apply RegisterVisAttribute() to a set of visualisation attributes. More... | |
| void | RegisterUserLimits (G4UserLimits *userLimit) |
| void | RegisterUserLimits (const std::set< G4UserLimits * > &userLimits) |
| Apply RegisterUserLimit to a set of user limits. More... | |
| void | InheritObjects (BDSGeometryComponent *component) |
| virtual std::set< G4LogicalVolume * > | GetAllLogicalVolumes () const |
| Access all logical volumes belonging to this component. More... | |
| virtual std::set< G4LogicalVolume * > | GetAllBiasingVolumes () const |
| Return all logical volumes that should be used for biasing minus any that are in the excluded set. More... | |
| virtual std::map< G4LogicalVolume *, BDSSDType > | GetAllSensitiveVolumes () const |
| Access all sensitive volumes belonging to this component. More... | |
| void | MakeAllVolumesSensitive (BDSSDType stype=BDSSDType::energydep) |
| virtual void | AttachSensitiveDetectors () |
| Attach a sensitive detector class to all registered sensitive volumes in this component. More... | |
| virtual void | ExcludeLogicalVolumeFromBiasing (G4LogicalVolume *lv) |
| void | StripOuterAndMakeAssemblyVolume () |
| Change from a container logical volume to an assembly volume. More... | |
| G4VSolid * | GetContainerSolid () const |
| Accessor - see member for more info. More... | |
| G4LogicalVolume * | GetContainerLogicalVolume () const |
| Accessor - see member for more info. More... | |
| G4AssemblyVolume * | GetContainerAssemblyVolume () const |
| Accessor - see member for more info. More... | |
| G4Transform3D | GetPlacementTransform () const |
| Accessor - see member for more info. More... | |
| G4ThreeVector | GetPlacementOffset () const |
| Accessor - see member for more info. More... | |
| G4RotationMatrix * | GetPlacementRotation () const |
| Accessor - see member for more info. More... | |
| BDSExtent | GetExtent () const |
| Accessor - see member for more info. More... | |
| BDSExtent | GetInnerExtent () const |
| Accessor - see member for more info. More... | |
| std::pair< G4double, G4double > | GetExtentX () const |
| Accessor - see member for more info. More... | |
| std::pair< G4double, G4double > | GetExtentY () const |
| Accessor - see member for more info. More... | |
| std::pair< G4double, G4double > | GetExtentZ () const |
| Accessor - see member for more info. More... | |
| std::pair< G4double, G4double > | GetInnerExtentX () const |
| Accessor - see member for more info. More... | |
| std::pair< G4double, G4double > | GetInnerExtentY () const |
| Accessor - see member for more info. More... | |
| std::pair< G4double, G4double > | GetInnerExtentZ () const |
| Accessor - see member for more info. More... | |
| virtual std::set< G4VPhysicalVolume * > | GetAllPhysicalVolumes () const |
| Accessor - see member for more info. More... | |
| virtual std::set< G4RotationMatrix * > | GetAllRotationMatrices () const |
| Accessor - see member for more info. More... | |
| virtual std::set< G4VisAttributes * > | GetAllVisAttributes () const |
| Accessor - see member for more info. More... | |
| virtual std::set< G4UserLimits * > | GetAllUserLimits () const |
| Accessor - see member for more info. More... | |
| virtual std::set< BDSGeometryComponent * > | GetAllDaughters () const |
| Accessor - see member for more info. More... | |
| virtual std::set< G4VSolid * > | GetAllSolids () const |
| Accessor - see member for more info. More... | |
| void | SetExtent (const BDSExtent &extIn) |
| Set extent. More... | |
| void | SetInnerExtent (const BDSExtent &extIn) |
| Set extent. More... | |
Static Public Member Functions | |
| static G4double | ChordLength () |
| Access the sampler plane length in other classes. More... | |
| Static Public Member Functions inherited from BDSGeometryComponent | |
| static void | AttachUserLimitsToAssembly (G4AssemblyVolume *av, G4UserLimits *ul) |
| Utility function to apply user limits to an assembly volume as there's not interface. More... | |
Static Public Attributes | |
| static G4double | chordLength = -1 |
| The chord length for all is fixed and can be static. More... | |
Additional Inherited Members | |
| Protected Member Functions inherited from BDSSampler | |
| virtual void | CommonConstruction () |
| virtual void | SetSensitivity () |
| Attach sensitive detector to containerLogicalVolume. More... | |
| Protected Attributes inherited from BDSSampler | |
| const G4String | name |
| const G4int | filterSetID |
| Protected Attributes inherited from BDSGeometryComponent | |
| G4bool | containerIsAssembly |
| True if the 'container' is really an assembly; false if an LV. More... | |
| G4VSolid * | containerSolid |
| G4LogicalVolume * | containerLogicalVolume |
| G4AssemblyVolume * | containerAssembly |
| BDSExtent | outerExtent |
| BDSExtent | innerExtent |
| std::set< BDSGeometryComponent * > | allDaughters |
| registry of all daughter geometry components More... | |
| std::set< G4VSolid * > | allSolids |
| registry of all solids belonging to this component More... | |
| std::set< G4LogicalVolume * > | allLogicalVolumes |
| std::map< G4LogicalVolume *, BDSSDType > | sensitivity |
| G4bool | overrideSensitivity |
| std::set< G4VPhysicalVolume * > | allPhysicalVolumes |
| registry of all physical volumes belonging to this component More... | |
| std::set< G4RotationMatrix * > | allRotationMatrices |
| registry of all rotation matrices belonging to this component More... | |
| std::set< G4VisAttributes * > | allVisAttributes |
| registry of all visualisation attributes belonging to this component More... | |
| std::set< G4UserLimits * > | allUserLimits |
| registry of all user limits belonging to this component More... | |
| G4ThreeVector | placementOffset |
| G4RotationMatrix * | placementRotation |
| std::set< G4LogicalVolume * > * | lvsExcludedFromBiasing |
| Volumes that should not be included when return GetAllBiasingVolumes(). More... | |
Detailed Description
Rectangular sampler with fixed thickness but variable x,y.
This produces a square box that's 4e-8m thick but has square half width of boxHalfWidth. This thickness is chosen to be just above the geometry tolerance set in bdsim.cc. If any dimension is smaller than the geometry tolerance, Geant4 will exit.
Definition at line 35 of file BDSSamplerPlane.hh.
Constructor & Destructor Documentation
◆ BDSSamplerPlane()
| BDSSamplerPlane::BDSSamplerPlane | ( | const G4String & | name, |
| G4double | boxHalfWidth, | ||
| G4int | filterSetIDIn = -1 |
||
| ) |
Definition at line 27 of file BDSSamplerPlane.cc.
◆ ~BDSSamplerPlane()
|
inlinevirtual |
Definition at line 47 of file BDSSamplerPlane.hh.
Member Function Documentation
◆ ChordLength()
|
inlinestatic |
Access the sampler plane length in other classes.
Definition at line 50 of file BDSSamplerPlane.hh.
References chordLength.
Referenced by BDSBeamline::AddSingleComponent(), BDSBeamlineElement::BDSBeamlineElement(), BDS::CalculateTeleporterDelta(), and BDSLinkDetectorConstruction::PlaceOneComponent().

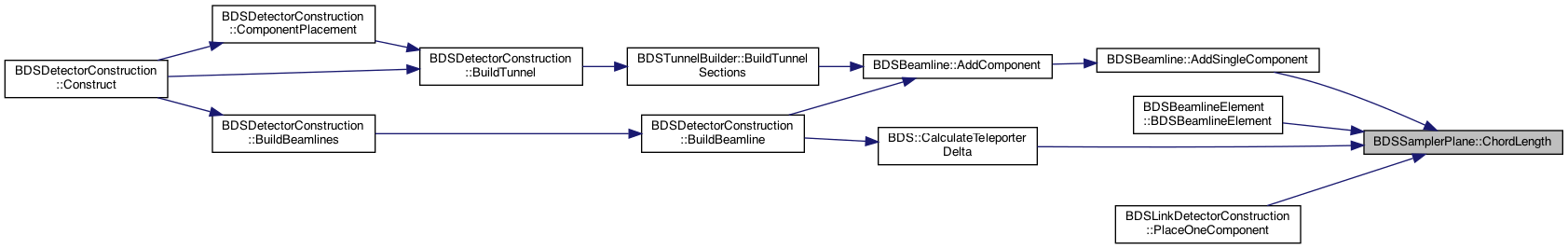

Here is the caller graph for this function:
Field Documentation
◆ chordLength
|
static |
The chord length for all is fixed and can be static.
Definition at line 53 of file BDSSamplerPlane.hh.
Referenced by BDSGlobalConstants::BDSGlobalConstants(), and ChordLength().
The documentation for this class was generated from the following files:
- /Users/nevay/physics/reps/bdsim/include/BDSSamplerPlane.hh
- /Users/nevay/physics/reps/bdsim/src/BDSSamplerPlane.cc
