Definition for a scorer histogram. More...

#include <BDSScorerHistogramDef.hh>

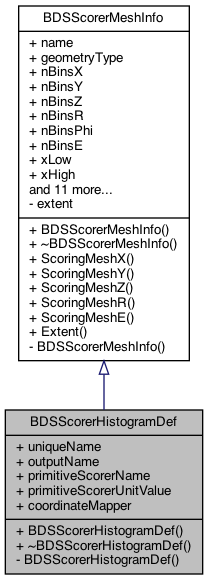

Inheritance diagram for BDSScorerHistogramDef:

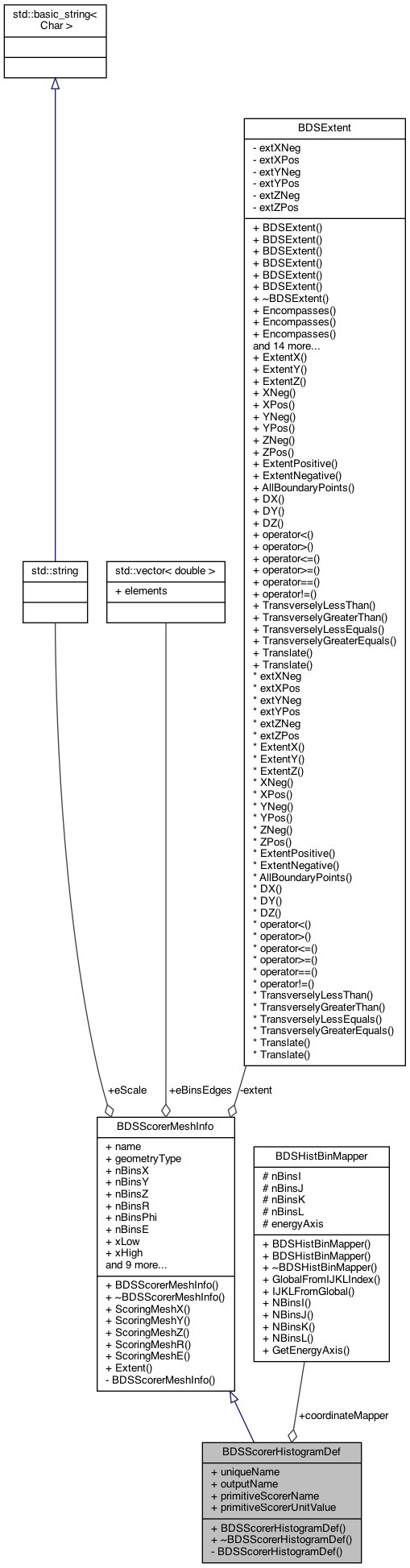

Collaboration diagram for BDSScorerHistogramDef:

Public Member Functions
	BDSScorerHistogramDef (const BDSScorerMeshInfo &meshInfo, const G4String &uniqueNameIn, const G4String &primitiveScorerNameIn, G4double primitiveScorerUnitValueIn, const BDSHistBinMapper &coordinateMapperIn)

Public Member Functions inherited from BDSScorerMeshInfo
	BDSScorerMeshInfo (const GMAD::ScorerMesh &scorer)

G4double	ScoringMeshX () const

G4double	ScoringMeshY () const

G4double	ScoringMeshZ () const

G4double	ScoringMeshR () const

G4double	ScoringMeshE () const

BDSExtent	Extent () const

Data Fields
G4String	uniqueName
	Unique name of mesh/scorer -> slash required by Geant4. More...

G4String	outputName
	Copy of unique name that's safe for output. More...

G4String	primitiveScorerName
	Primitive scorer name used to look up units. More...

G4double	primitiveScorerUnitValue
	Numerical factor to use for scorer units. More...

BDSHistBinMapper	coordinateMapper
	Coordinate mapper - this class owns it. More...

Data Fields inherited from BDSScorerMeshInfo
G4String	name

G4String	geometryType

G4int	nBinsX

G4int	nBinsY

G4int	nBinsZ

G4int	nBinsR

G4int	nBinsPhi

G4int	nBinsE

G4double	xLow

G4double	xHigh

G4double	yLow

G4double	yHigh

G4double	zLow

G4double	zHigh

G4double	rLow

G4double	rHigh

G4double	eLow

G4double	eHigh

std::string	eScale

std::vector< double >	eBinsEdges ={}

boost_histogram_axes_variant	energyAxis

Private Member Functions
	BDSScorerHistogramDef ()=delete
	No default constructor required.

Detailed Description

Definition for a scorer histogram.

Information kept from when a scoring mesh is created for passing to the output.

Author: Laurie Nevay

Definition at line 36 of file BDSScorerHistogramDef.hh.

Constructor & Destructor Documentation

◆ BDSScorerHistogramDef()

BDSScorerHistogramDef::BDSScorerHistogramDef	(	const BDSScorerMeshInfo &	meshInfo,
		const G4String &	uniqueNameIn,
		const G4String &	primitiveScorerNameIn,
		G4double	primitiveScorerUnitValueIn,
		const BDSHistBinMapper &	coordinateMapperIn
	)

Definition at line 27 of file BDSScorerHistogramDef.cc.

◆ ~BDSScorerHistogramDef()

virtual BDSScorerHistogramDef::~BDSScorerHistogramDef ( )

inlinevirtual

Definition at line 45 of file BDSScorerHistogramDef.hh.

Field Documentation

◆ coordinateMapper

BDSHistBinMapper BDSScorerHistogramDef::coordinateMapper

Coordinate mapper - this class owns it.

Definition at line 51 of file BDSScorerHistogramDef.hh.

◆ outputName

G4String BDSScorerHistogramDef::outputName

Copy of unique name that's safe for output.

Definition at line 48 of file BDSScorerHistogramDef.hh.

◆ primitiveScorerName

G4String BDSScorerHistogramDef::primitiveScorerName

Primitive scorer name used to look up units.

Definition at line 49 of file BDSScorerHistogramDef.hh.

◆ primitiveScorerUnitValue

G4double BDSScorerHistogramDef::primitiveScorerUnitValue

Numerical factor to use for scorer units.

Definition at line 50 of file BDSScorerHistogramDef.hh.

◆ uniqueName

G4String BDSScorerHistogramDef::uniqueName

Unique name of mesh/scorer -> slash required by Geant4.

Definition at line 47 of file BDSScorerHistogramDef.hh.

Referenced by BDSAcceleratorModel::RegisterScorerHistogramDefinition().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/include/BDSScorerHistogramDef.hh
/Users/nevay/physics/reps/bdsim/src/BDSScorerHistogramDef.cc
