BDSScoringMeshBox Class Reference

Wrapper for G4ScoringBox to allow full access to placement. More...

#include <BDSScoringMeshBox.hh>

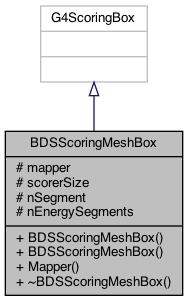

Inheritance diagram for BDSScoringMeshBox:

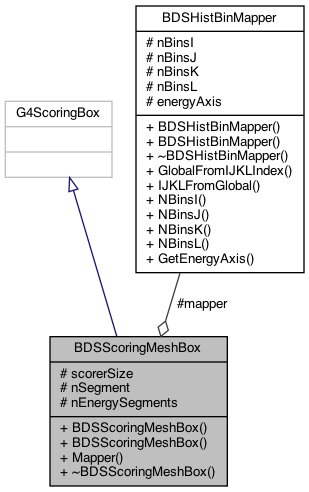

Collaboration diagram for BDSScoringMeshBox:

Public Member Functions
	BDSScoringMeshBox (const G4String &name, const BDSScorerMeshInfo &recipe, const G4Transform3D &placementTransform)
	BDSScoringMeshBox (const G4String &name, const G4ThreeVector &translation, const G4RotationMatrix &rotation)
const BDSHistBinMapper *	Mapper () const

Protected Attributes
BDSHistBinMapper *	mapper
G4double	scorerSize [3]
G4int	nSegment [3]
G4int	nEnergySegments

Detailed Description

Wrapper for G4ScoringBox to allow full access to placement.

The G4ScoringBox class provides an incomplete interface to the underlying translation 3 vector and rotation matrix. Here, we wrap the class to assign these protected members directly.

We have several constructors to retain compatibility with Geant4's delayed construction model for use interactively.

Author

Laurie Nevay

Definition at line 43 of file BDSScoringMeshBox.hh.

Constructor & Destructor Documentation

BDSScoringMeshBox() [1/2]

BDSScoringMeshBox::BDSScoringMeshBox	(	const G4String &	name,
		const BDSScorerMeshInfo &	recipe,
		const G4Transform3D &	placementTransform
	)

Construct with size and divisions from recipe class. Retain full control over name of mesh.

Definition at line 28 of file BDSScoringMeshBox.cc.

BDSScoringMeshBox() [2/2]

BDSScoringMeshBox::BDSScoringMeshBox	(	const G4String &	name,
		const G4ThreeVector &	translation,
		const G4RotationMatrix &	rotation
	)

Separate constructor with objects that are assigned directly to protected base class members.

Definition at line 53 of file BDSScoringMeshBox.cc.

~BDSScoringMeshBox()

BDSScoringMeshBox::~BDSScoringMeshBox ( )

virtual

Definition at line 72 of file BDSScoringMeshBox.cc.

Member Function Documentation

Mapper()

const BDSHistBinMapper * BDSScoringMeshBox::Mapper

(

)

const

Definition at line 63 of file BDSScoringMeshBox.cc.

Field Documentation

mapper

BDSHistBinMapper* BDSScoringMeshBox::mapper

mutableprotected

Definition at line 63 of file BDSScoringMeshBox.hh.

nEnergySegments

G4int BDSScoringMeshBox::nEnergySegments

protected

Definition at line 67 of file BDSScoringMeshBox.hh.

nSegment

G4int BDSScoringMeshBox::nSegment[3]

protected

Definition at line 66 of file BDSScoringMeshBox.hh.

scorerSize

G4double BDSScoringMeshBox::scorerSize[3]

protected

Definition at line 65 of file BDSScoringMeshBox.hh.

---

The documentation for this class was generated from the following files:

• /Users/nevay/physics/reps/bdsim/include/BDSScoringMeshBox.hh
• /Users/nevay/physics/reps/bdsim/src/BDSScoringMeshBox.cc
