BDSBeamPipe Class Reference

A holder class for a piece of beam pipe geometry. More...

#include <BDSBeamPipe.hh>

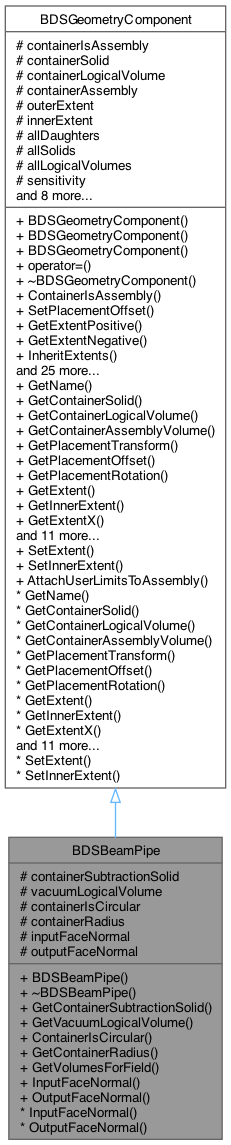

Inheritance diagram for BDSBeamPipe:

Collaboration diagram for BDSBeamPipe:

Public Member Functions
	BDSBeamPipe (G4VSolid *containerSolidIn, G4LogicalVolume *containerLVIn, BDSExtent extentIn, G4VSolid *containerSubtractionSolidIn, G4LogicalVolume *vacuumLVIn, G4bool containerIsCircularIn=false, G4double containerRadiusIn=0.0, G4ThreeVector inputFaceNormalIn=G4ThreeVector(0, 0,-1), G4ThreeVector outputFaceNormalIn=G4ThreeVector(0, 0, 1))
G4VSolid *	GetContainerSubtractionSolid () const
	default destructor sufficient as G4 manages solids and LVs
G4LogicalVolume *	GetVacuumLogicalVolume () const
	Access the vacuum volume to set fields and limits.
G4bool	ContainerIsCircular () const
G4double	GetContainerRadius () const
	If it is circular, we need the radius.
std::set< G4LogicalVolume * >	GetVolumesForField () const
G4ThreeVector	InputFaceNormal () const
	Accessor.
G4ThreeVector	OutputFaceNormal () const
	Accessor.
Public Member Functions inherited from BDSGeometryComponent
	BDSGeometryComponent (G4VSolid *containerSolidIn, G4LogicalVolume *containerLVIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)
	BDSGeometryComponent (G4AssemblyVolume *containerAssemblyIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)
	BDSGeometryComponent (const BDSGeometryComponent &component)
	Copy constructor (no copying of registered objects)
BDSGeometryComponent &	operator= (const BDSGeometryComponent &)=delete
	Assignment operator not used.
G4bool	ContainerIsAssembly () const
	Whether the container is an assembly. If not, it's a logical volume.
void	SetPlacementOffset (const G4ThreeVector &offsetIn)
	Set the offset from 0,0,0 that the object should ideally be placed in its parent.
G4ThreeVector	GetExtentPositive () const
	Get the extent of the object in the positive direction in all dimensions.
G4ThreeVector	GetExtentNegative () const
	Get the extent of the object in the negative direction in all dimensions.
void	InheritExtents (BDSGeometryComponent const *const anotherComponent)
	Update the extents of this object with those of another object.
void	InheritExtents (BDSGeometryComponent const *const anotherComponent, const G4ThreeVector &offset)
void	RegisterDaughter (BDSGeometryComponent *anotherComponent)
void	RegisterSolid (G4VSolid *solid)
void	RegisterSolid (const std::set< G4VSolid * > &solids)
	Similarly for a set of unique solids.
void	RegisterLogicalVolume (G4LogicalVolume *logicalVolume)
void	RegisterLogicalVolume (const std::set< G4LogicalVolume * > &localVolumes)
	Apply RegisterLogicalVolume() to a set of logical volumes.
void	RegisterSensitiveVolume (G4LogicalVolume *sensitiveVolume, BDSSDType sensitivityType)
void	RegisterSensitiveVolume (const std::set< G4LogicalVolume * > &sensitiveVolumes, BDSSDType sensitivityType)
void	RegisterSensitiveVolume (const std::map< G4LogicalVolume *, BDSSDType > &sensitiveVolumes)
	Copy in a mapping of sensitive volumes to sensitive detectors.
void	RegisterPhysicalVolume (G4VPhysicalVolume *physicalVolume)
void	RegisterPhysicalVolume (const std::set< G4VPhysicalVolume * > &physicalVolumes)
	Apply RegisterPhysicalVolume() to a set of physical volumes.
void	RegisterRotationMatrix (G4RotationMatrix *rotationMatrix)
void	RegisterRotationMatrix (const std::set< G4RotationMatrix * > &rotationMatrices)
	Apply Register RotationMatrix() to a set of rotation matrices.
void	RegisterVisAttributes (G4VisAttributes *visAttribute)
void	RegisterVisAttributes (const std::set< G4VisAttributes * > &visAttributes)
	Apply RegisterVisAttribute() to a set of visualisation attributes.
void	RegisterUserLimits (G4UserLimits *userLimit)
void	RegisterUserLimits (const std::set< G4UserLimits * > &userLimits)
	Apply RegisterUserLimit to a set of user limits.
void	InheritObjects (BDSGeometryComponent *component)
virtual std::set< G4LogicalVolume * >	GetAllLogicalVolumes () const
	Access all logical volumes belonging to this component.
virtual std::set< G4LogicalVolume * >	GetAllBiasingVolumes () const
	Return all logical volumes that should be used for biasing minus any that are in the excluded set.
virtual std::map< G4LogicalVolume *, BDSSDType >	GetAllSensitiveVolumes () const
	Access all sensitive volumes belonging to this component.
void	MakeAllVolumesSensitive (BDSSDType stype=BDSSDType::energydep)
virtual void	AttachSensitiveDetectors ()
	Attach a sensitive detector class to all registered sensitive volumes in this component.
virtual void	ExcludeLogicalVolumeFromBiasing (G4LogicalVolume *lv)
void	StripOuterAndMakeAssemblyVolume ()
	Change from a container logical volume to an assembly volume.
virtual G4String	GetName () const
	Accessor - see member for more info.
G4VSolid *	GetContainerSolid () const
	Accessor - see member for more info.
G4LogicalVolume *	GetContainerLogicalVolume () const
	Accessor - see member for more info.
G4AssemblyVolume *	GetContainerAssemblyVolume () const
	Accessor - see member for more info.
G4Transform3D	GetPlacementTransform () const
	Accessor - see member for more info.
G4ThreeVector	GetPlacementOffset () const
	Accessor - see member for more info.
G4RotationMatrix *	GetPlacementRotation () const
	Accessor - see member for more info.
BDSExtent	GetExtent () const
	Accessor - see member for more info.
BDSExtent	GetInnerExtent () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetExtentX () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetExtentY () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetExtentZ () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetInnerExtentX () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetInnerExtentY () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetInnerExtentZ () const
	Accessor - see member for more info.
virtual std::set< G4VPhysicalVolume * >	GetAllPhysicalVolumes () const
	Accessor - see member for more info.
virtual std::set< G4RotationMatrix * >	GetAllRotationMatrices () const
	Accessor - see member for more info.
virtual std::set< G4VisAttributes * >	GetAllVisAttributes () const
	Accessor - see member for more info.
virtual std::set< G4UserLimits * >	GetAllUserLimits () const
	Accessor - see member for more info.
virtual std::set< BDSGeometryComponent * >	GetAllDaughters () const
	Accessor - see member for more info.
virtual std::set< G4VSolid * >	GetAllSolids () const
	Accessor - see member for more info.
void	SetExtent (const BDSExtent &extIn)
	Set extent.
void	SetInnerExtent (const BDSExtent &extIn)
	Set extent.

Protected Attributes
G4VSolid *	containerSubtractionSolid
G4LogicalVolume *	vacuumLogicalVolume
G4bool	containerIsCircular
G4double	containerRadius
G4ThreeVector	inputFaceNormal
G4ThreeVector	outputFaceNormal
Protected Attributes inherited from BDSGeometryComponent
G4bool	containerIsAssembly
	True if the 'container' is really an assembly; false if an LV.
G4VSolid *	containerSolid
G4LogicalVolume *	containerLogicalVolume
G4AssemblyVolume *	containerAssembly
BDSExtent	outerExtent
BDSExtent	innerExtent
std::set< BDSGeometryComponent * >	allDaughters
	registry of all daughter geometry components
std::set< G4VSolid * >	allSolids
	registry of all solids belonging to this component
std::set< G4LogicalVolume * >	allLogicalVolumes
std::map< G4LogicalVolume *, BDSSDType >	sensitivity
G4bool	overrideSensitivity
std::set< G4VPhysicalVolume * >	allPhysicalVolumes
	registry of all physical volumes belonging to this component
std::set< G4RotationMatrix * >	allRotationMatrices
	registry of all rotation matrices belonging to this component
std::set< G4VisAttributes * >	allVisAttributes
	registry of all visualisation attributes belonging to this component
std::set< G4UserLimits * >	allUserLimits
	registry of all user limits belonging to this component
G4ThreeVector	placementOffset
G4RotationMatrix *	placementRotation
std::set< G4LogicalVolume * > *	lvsExcludedFromBiasing
	Volumes that should not be included when return GetAllBiasingVolumes().

Additional Inherited Members
Static Public Member Functions inherited from BDSGeometryComponent
static void	AttachUserLimitsToAssembly (G4AssemblyVolume *av, G4UserLimits *ul)
	Utility function to apply user limits to an assembly volume as there's not interface.

Detailed Description

A holder class for a piece of beam pipe geometry.

This does not implement the construction of the beampipe but merely holds all relevant objects and information.

Face normals are ensured to be unit.

Author

Laurie Nevay

Definition at line 44 of file BDSBeamPipe.hh.

Constructor & Destructor Documentation

BDSBeamPipe()

BDSBeamPipe::BDSBeamPipe	(	G4VSolid *	containerSolidIn,
		G4LogicalVolume *	containerLVIn,
		BDSExtent	extentIn,
		G4VSolid *	containerSubtractionSolidIn,
		G4LogicalVolume *	vacuumLVIn,
		G4bool	containerIsCircularIn = false,
		G4double	containerRadiusIn = 0.0,
		G4ThreeVector	inputFaceNormalIn = G4ThreeVector(0,0,-1),
		G4ThreeVector	outputFaceNormalIn = G4ThreeVector(0,0, 1)
	)

constructor has BDSGeometryComponent members first, then everything extra for this derived class

Parameters

containerSolidIn	Container solid.
containerLVIn	Container logical volume.
containerIsCircularIn	Whether the container is circular.

Definition at line 25 of file BDSBeamPipe.cc.

~BDSBeamPipe()

BDSBeamPipe::~BDSBeamPipe ( )

virtual

Definition at line 43 of file BDSBeamPipe.cc.

Member Function Documentation

ContainerIsCircular()

G4bool BDSBeamPipe::ContainerIsCircular ( ) const

inline

Flag to tell whether the parent volume needn't use a subtraction solid and can simply use a G4Tubs for example

Definition at line 68 of file BDSBeamPipe.hh.

Referenced by BDSMagnetOuterFactoryCylindrical::CreateCylindricalSolids(), BDSMagnetOuterFactoryLHC::CreateLHCDipole(), BDSMagnetOuterFactoryLHC::CreateQuadrupole(), and BDSMagnetOuterFactoryCylindrical::TestInputParameters().

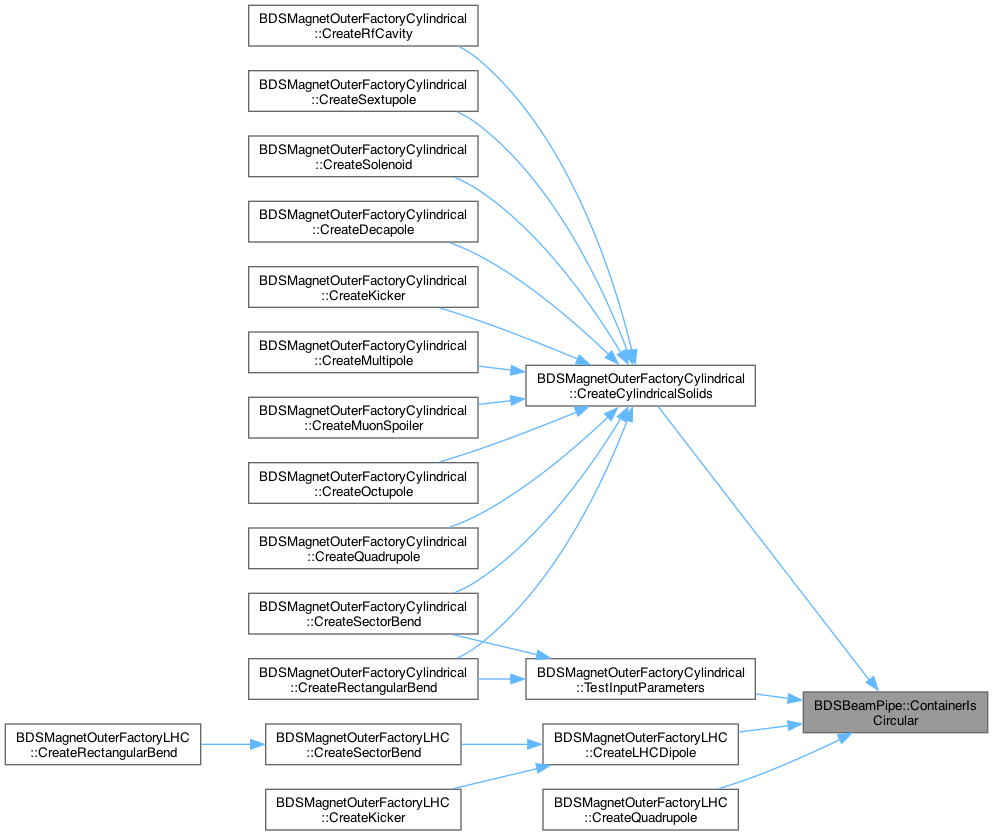

Here is the caller graph for this function:

GetContainerRadius()

G4double BDSBeamPipe::GetContainerRadius ( ) const

inline

If it is circular, we need the radius.

Definition at line 70 of file BDSBeamPipe.hh.

Referenced by BDSMagnetOuterFactoryPolesBase::CalculatePoleAndYoke(), BDSMagnetOuterFactoryCylindrical::CreateCylindricalSolids(), BDSMagnetOuterFactoryLHC::CreateLHCDipole(), BDSMagnetOuterFactoryLHC::CreateQuadrupole(), BDSMagnetOuterFactoryCylindrical::CreateSolenoid(), and BDSMagnetOuterFactoryCylindrical::TestInputParameters().

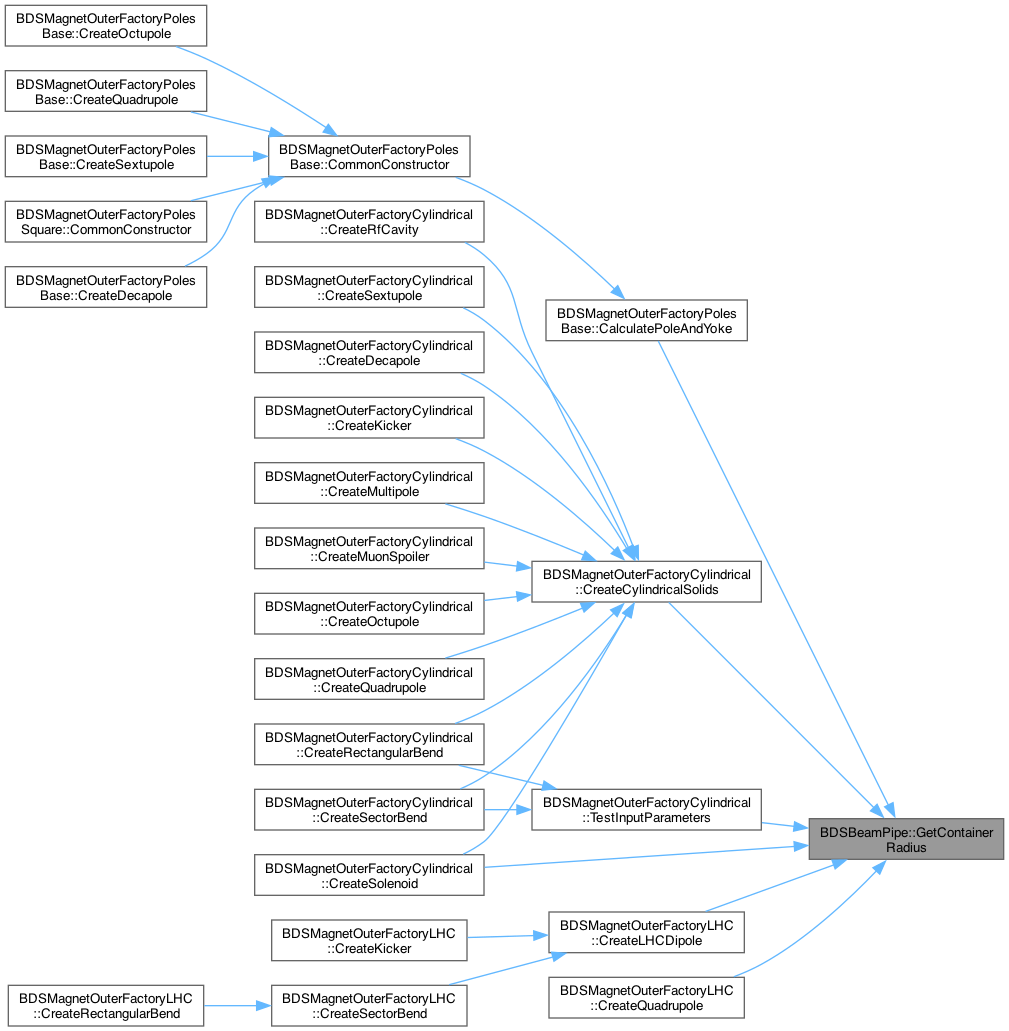

Here is the caller graph for this function:

GetContainerSubtractionSolid()

G4VSolid * BDSBeamPipe::GetContainerSubtractionSolid ( ) const

inline

default destructor sufficient as G4 manages solids and LVs

Access a solid for beampipe subtraction - note this is typically longer than the actual beampipe for unambiguous subtraction

Definition at line 63 of file BDSBeamPipe.hh.

Referenced by BDSMagnetOuterFactoryCylindrical::CreateCylindricalSolids(), BDSMagnetOuterFactoryLHC::CreateLHCDipole(), and BDSMagnetOuterFactoryLHC::CreateQuadrupole().

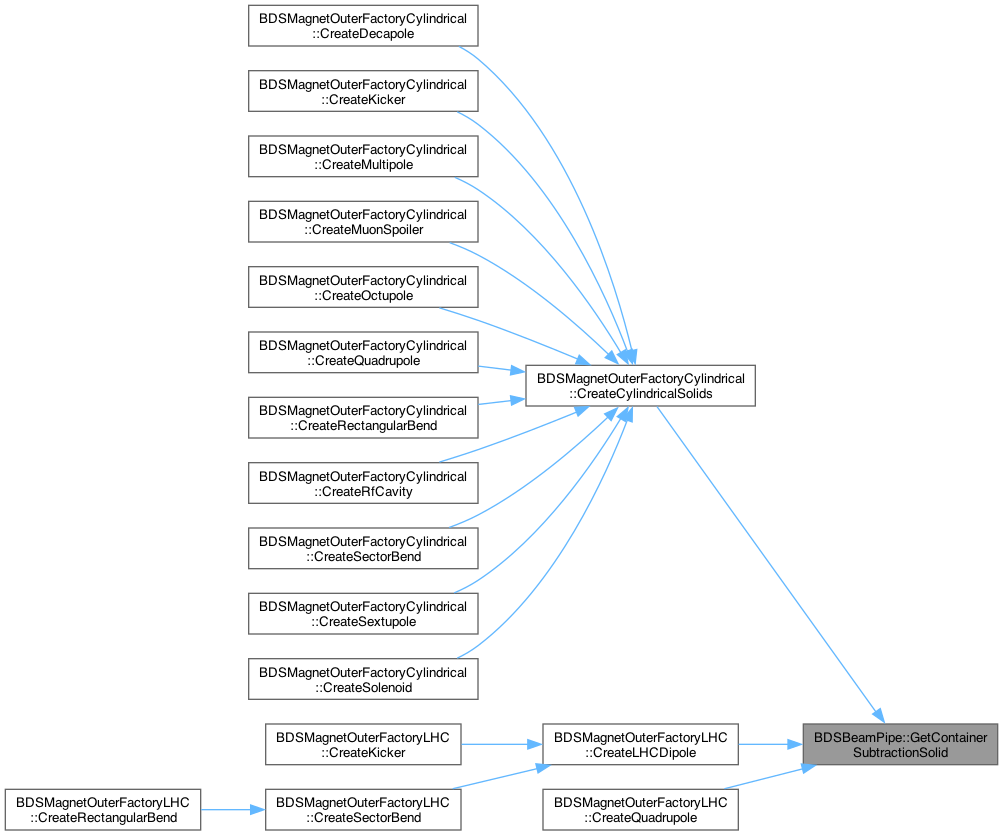

Here is the caller graph for this function:

GetVacuumLogicalVolume()

G4LogicalVolume * BDSBeamPipe::GetVacuumLogicalVolume ( ) const

inline

Access the vacuum volume to set fields and limits.

Definition at line 65 of file BDSBeamPipe.hh.

Referenced by BDSCollimatorCrystal::Build(), BDSDrift::Build(), BDSUndulator::Build(), BDSMagnet::BuildBeampipe(), and BDSWireScanner::BuildContainerLogicalVolume().

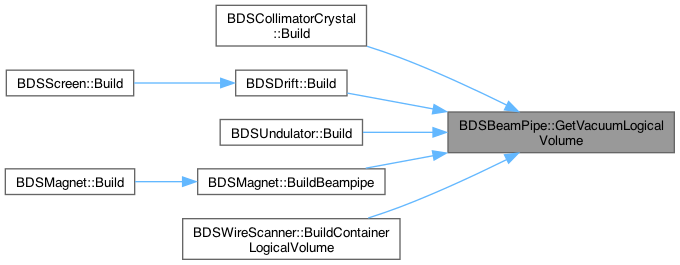

Here is the caller graph for this function:

GetVolumesForField()

std::set< G4LogicalVolume * > BDSBeamPipe::GetVolumesForField

(

)

const

Get all volumes except the container logical volume as this is the optimal set of volumes for putting fields on.

Definition at line 50 of file BDSBeamPipe.cc.

References BDSGeometryComponent::GetAllLogicalVolumes(), BDSGeometryComponent::GetContainerLogicalVolume(), and BDS::IsFinite().

Referenced by BDSMagnet::BuildVacuumField().

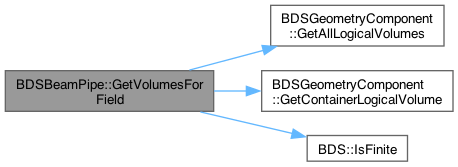

Here is the call graph for this function:

Here is the caller graph for this function:

InputFaceNormal()

G4ThreeVector BDSBeamPipe::InputFaceNormal ( ) const

inline

Accessor.

Definition at line 73 of file BDSBeamPipe.hh.

Referenced by BDSCollimatorCrystal::Build(), BDSDrift::Build(), BDSUndulator::Build(), BDSMagnet::BuildBeampipe(), BDSWireScanner::BuildContainerLogicalVolume(), and BDSMagnetOuterFactory::CreateContainerForExternal().

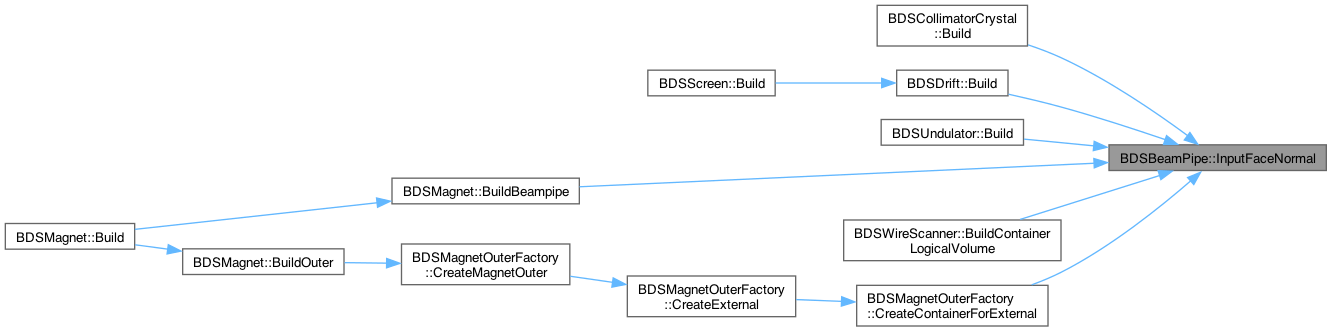

Here is the caller graph for this function:

OutputFaceNormal()

G4ThreeVector BDSBeamPipe::OutputFaceNormal ( ) const

inline

Accessor.

Definition at line 74 of file BDSBeamPipe.hh.

Referenced by BDSCollimatorCrystal::Build(), BDSDrift::Build(), BDSUndulator::Build(), BDSMagnet::BuildBeampipe(), BDSWireScanner::BuildContainerLogicalVolume(), and BDSMagnetOuterFactory::CreateContainerForExternal().

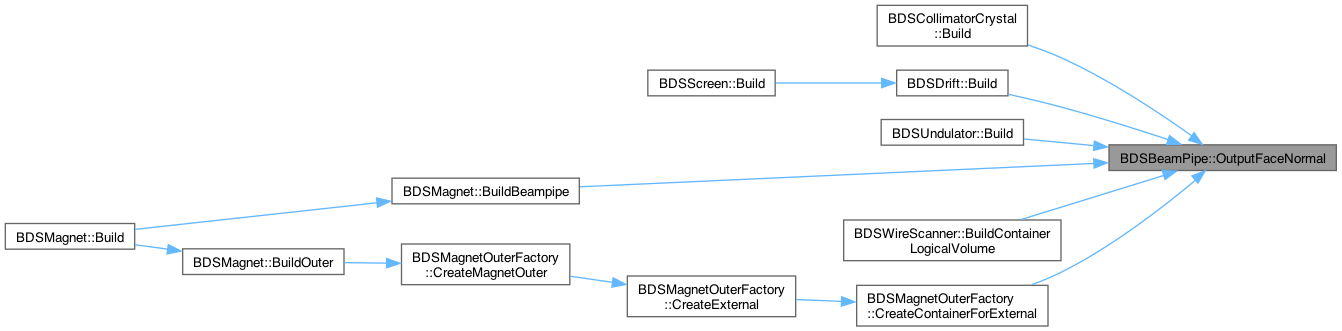

Here is the caller graph for this function:

Field Documentation

containerIsCircular

G4bool BDSBeamPipe::containerIsCircular

protected

Definition at line 84 of file BDSBeamPipe.hh.

containerRadius

G4double BDSBeamPipe::containerRadius

protected

Definition at line 85 of file BDSBeamPipe.hh.

containerSubtractionSolid

G4VSolid* BDSBeamPipe::containerSubtractionSolid

protected

Definition at line 82 of file BDSBeamPipe.hh.

inputFaceNormal

G4ThreeVector BDSBeamPipe::inputFaceNormal

protected

Definition at line 86 of file BDSBeamPipe.hh.

outputFaceNormal

G4ThreeVector BDSBeamPipe::outputFaceNormal

protected

Definition at line 87 of file BDSBeamPipe.hh.

vacuumLogicalVolume

G4LogicalVolume* BDSBeamPipe::vacuumLogicalVolume

protected

Definition at line 83 of file BDSBeamPipe.hh.

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSBeamPipe.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSBeamPipe.cc
