Abstract base class for rf cavity geometry factories. More...

#include <BDSCavityFactoryBase.hh>

Inheritance diagram for BDSCavityFactoryBase:

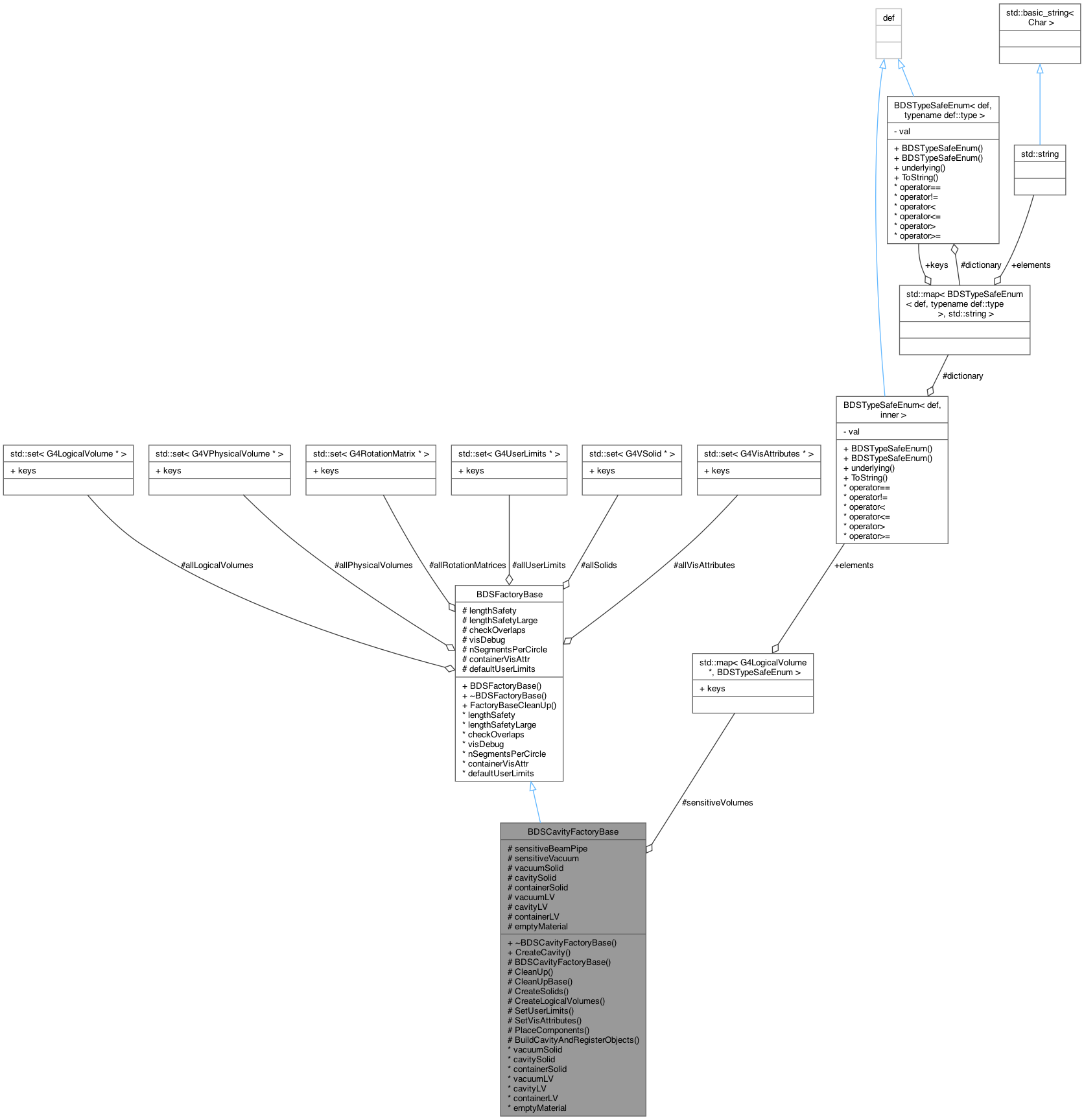

Collaboration diagram for BDSCavityFactoryBase:

Public Member Functions
BDSCavity *	CreateCavity (G4String name, G4double totalChordLength, const BDSCavityInfo info, G4Material vacuumMaterial)

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope.

Protected Member Functions
virtual void	CleanUp ()
	Ensure all internal members are reset before reuse. Calls CleanUpBase.

void	CleanUpBase ()
	Non-virtual clean up that can be used in the constructor safely.

virtual G4double	CreateSolids (G4String name, G4double totalChordLength, const BDSCavityInfo *info)=0
	Create vacuumSolid and cavitySolid. Must return the container radius.

virtual void	CreateLogicalVolumes (G4String name, const BDSCavityInfo info, G4Material vacuumMaterial)
	Create vacuumLV, cavityLV and containerLV.

virtual void	SetUserLimits (G4double length)

virtual void	SetVisAttributes (G4String colourName="rfcavity")
	Set vis attributes for cavityLV, vacuumLV and containerLV.

virtual void	PlaceComponents (G4String name)
	Place the vacuum and cavity centrally in the container logical volume.

virtual BDSCavity *	BuildCavityAndRegisterObjects (const BDSExtent &extent)
	Construct output object and register all temporary objects from vectors.

Protected Attributes
std::map< G4LogicalVolume *, BDSSDType >	sensitiveVolumes
	Map to sensitivity for volumes.

G4bool	sensitiveBeamPipe
	Whether the beam pipe will record energy deposition.

G4bool	sensitiveVacuum
	Whether the vacuum will record energy deposition.


G4VSolid *	vacuumSolid
	Cache of particular solid or lv for common functionality in this class.

G4VSolid *	cavitySolid
	Cache of particular solid or lv for common functionality in this class.

G4VSolid *	containerSolid
	Cache of particular solid or lv for common functionality in this class.

G4LogicalVolume *	vacuumLV
	Cache of particular solid or lv for common functionality in this class.

G4LogicalVolume *	cavityLV
	Cache of particular solid or lv for common functionality in this class.

G4LogicalVolume *	containerLV
	Cache of particular solid or lv for common functionality in this class.


G4Material *	emptyMaterial
	Cache of variable from BDSGlobalConstants.

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable.

G4double	lengthSafetyLarge
	Cache of global constants variable.

G4bool	checkOverlaps
	Cache of global constants variable.

G4bool	visDebug
	Cache of global constants variable.

G4int	nSegmentsPerCircle
	Cache of global constants variable.

G4VisAttributes *	containerVisAttr
	Cache of global constants variable.

G4UserLimits *	defaultUserLimits
	Cache of global constants variable.

Detailed Description

Abstract base class for rf cavity geometry factories.

Author: Laurie Nevay

Definition at line 49 of file BDSCavityFactoryBase.hh.

Constructor & Destructor Documentation

◆ ~BDSCavityFactoryBase()

virtual BDSCavityFactoryBase::~BDSCavityFactoryBase ( )

inlinevirtual

Definition at line 52 of file BDSCavityFactoryBase.hh.

◆ BDSCavityFactoryBase()

BDSCavityFactoryBase::BDSCavityFactoryBase ( )

protected

Definition at line 45 of file BDSCavityFactoryBase.cc.

Member Function Documentation

◆ BuildCavityAndRegisterObjects()

BDSCavity * BDSCavityFactoryBase::BuildCavityAndRegisterObjects ( const BDSExtent & extent )

protectedvirtual

Construct output object and register all temporary objects from vectors.

Definition at line 163 of file BDSCavityFactoryBase.cc.

References containerLV, containerSolid, BDSGeometryComponent::RegisterLogicalVolume(), BDSGeometryComponent::RegisterPhysicalVolume(), BDSGeometryComponent::RegisterRotationMatrix(), BDSGeometryComponent::RegisterSensitiveVolume(), BDSGeometryComponent::RegisterSolid(), BDSGeometryComponent::RegisterUserLimits(), BDSGeometryComponent::RegisterVisAttributes(), sensitiveBeamPipe, sensitiveVolumes, and vacuumLV.

Referenced by CreateCavity().

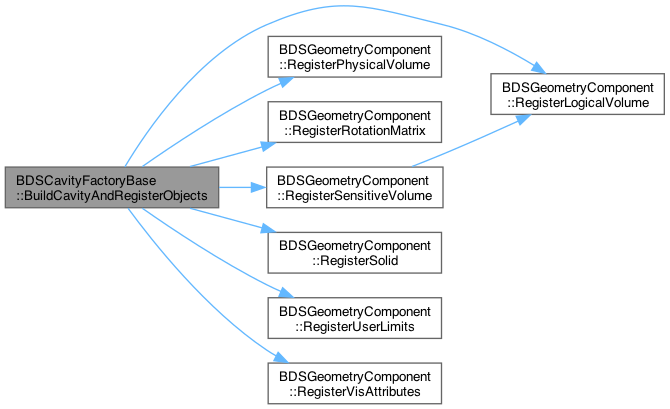

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CleanUp()

void BDSCavityFactoryBase::CleanUp ( )

protectedvirtual

Ensure all internal members are reset before reuse. Calls CleanUpBase.

Definition at line 72 of file BDSCavityFactoryBase.cc.

References CleanUpBase().

Referenced by CreateCavity().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CleanUpBase()

void BDSCavityFactoryBase::CleanUpBase ( )

protected

Non-virtual clean up that can be used in the constructor safely.

Definition at line 77 of file BDSCavityFactoryBase.cc.

References cavityLV, cavitySolid, containerLV, containerSolid, BDSFactoryBase::FactoryBaseCleanUp(), vacuumLV, and vacuumSolid.

Referenced by CleanUp().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateCavity()

BDSCavity * BDSCavityFactoryBase::CreateCavity	(	G4String	name,
		G4double	totalChordLength,
		const BDSCavityInfo *	info,
		G4Material *	vacuumMaterial
	)

Method that calls protected virtual methods in order. Sets general recipe of construction - in order below.

Definition at line 54 of file BDSCavityFactoryBase.cc.

References BuildCavityAndRegisterObjects(), CleanUp(), CreateLogicalVolumes(), CreateSolids(), PlaceComponents(), SetUserLimits(), and SetVisAttributes().

Referenced by BDSCavityFactory::CreateCavity().

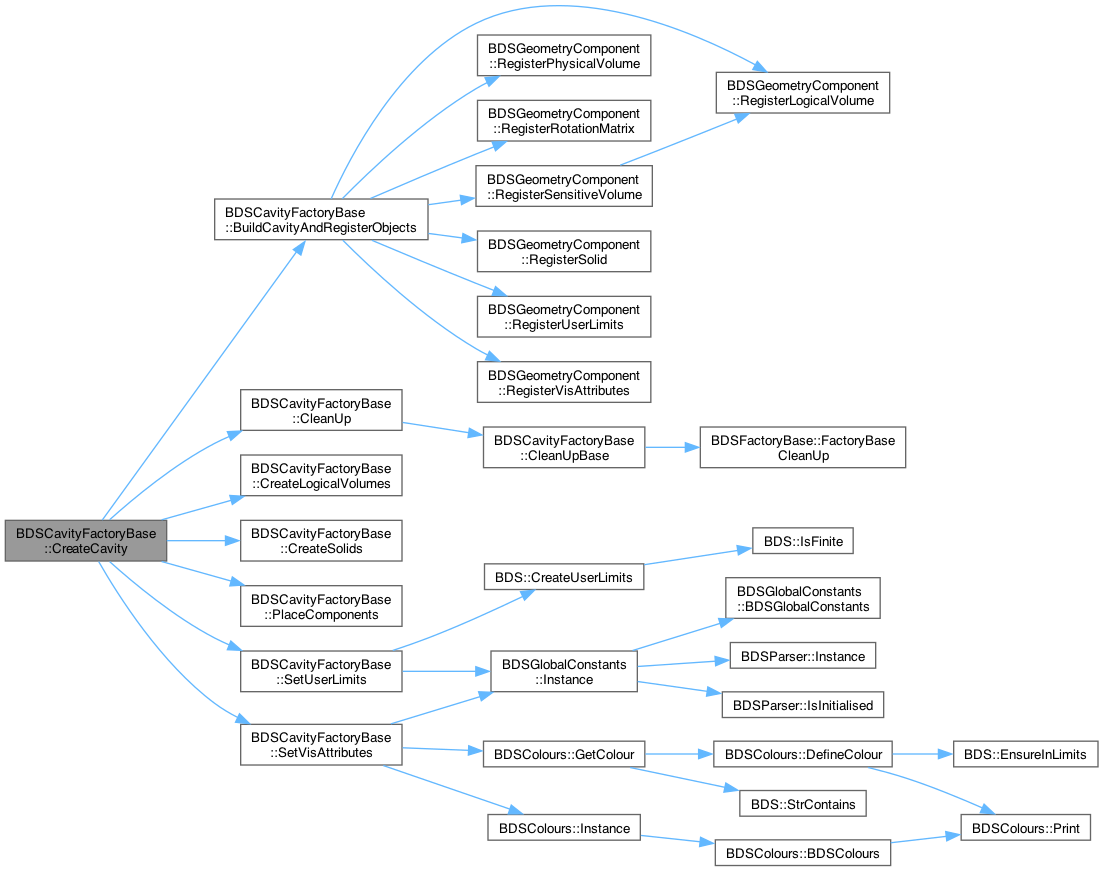

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateLogicalVolumes()

void BDSCavityFactoryBase::CreateLogicalVolumes	(	G4String	name,
		const BDSCavityInfo *	info,
		G4Material *	vacuumMaterial
	)

protectedvirtual

Create vacuumLV, cavityLV and containerLV.

Definition at line 89 of file BDSCavityFactoryBase.cc.

References cavityLV, cavitySolid, containerLV, containerSolid, emptyMaterial, BDSCavityInfo::material, sensitiveVacuum, sensitiveVolumes, vacuumLV, and vacuumSolid.

Referenced by CreateCavity().

Here is the caller graph for this function:

◆ CreateSolids()

virtual G4double BDSCavityFactoryBase::CreateSolids	(	G4String	name,
		G4double	totalChordLength,
		const BDSCavityInfo *	info
	)

protectedpure virtual

Create vacuumSolid and cavitySolid. Must return the container radius.

Implemented in BDSCavityFactoryElliptical, BDSCavityFactoryPillBox, and BDSCavityFactoryRectangular.

Referenced by CreateCavity().

Here is the caller graph for this function:

◆ PlaceComponents()

void BDSCavityFactoryBase::PlaceComponents ( G4String name )

protectedvirtual

Place the vacuum and cavity centrally in the container logical volume.

Definition at line 140 of file BDSCavityFactoryBase.cc.

References cavityLV, BDSFactoryBase::checkOverlaps, containerLV, and vacuumLV.

Referenced by CreateCavity().

Here is the caller graph for this function:

◆ SetUserLimits()

void BDSCavityFactoryBase::SetUserLimits ( G4double length )

protectedvirtual

If the length is shorter than the default user limits in global constants, create a new user limits object and apply to all lvs in allLogicalVolumes.

Definition at line 111 of file BDSCavityFactoryBase.cc.

References BDS::CreateUserLimits(), and BDSGlobalConstants::Instance().

Referenced by CreateCavity().

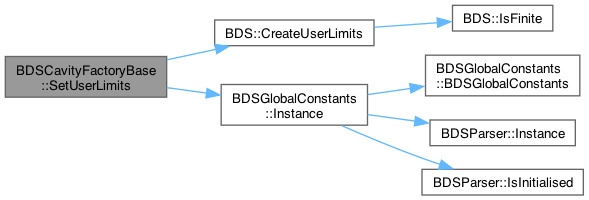

Here is the call graph for this function:

Here is the caller graph for this function:

◆ SetVisAttributes()

void BDSCavityFactoryBase::SetVisAttributes ( G4String colourName = "rfcavity" )

protectedvirtual

Set vis attributes for cavityLV, vacuumLV and containerLV.

Reimplemented in BDSCavityFactoryElliptical.

Definition at line 124 of file BDSCavityFactoryBase.cc.

References cavityLV, containerLV, BDSColours::GetColour(), BDSColours::Instance(), BDSGlobalConstants::Instance(), BDSFactoryBase::nSegmentsPerCircle, and vacuumLV.

Referenced by CreateCavity(), and BDSCavityFactoryElliptical::SetVisAttributes().

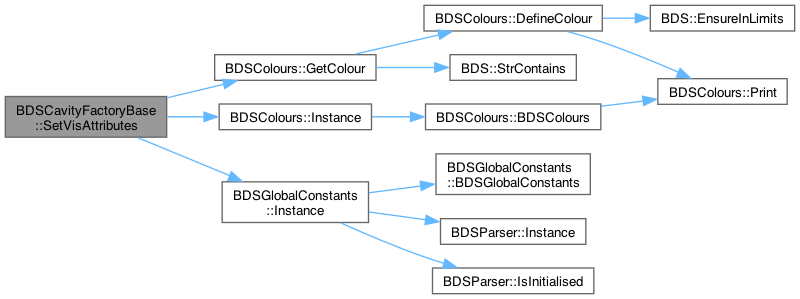

Here is the call graph for this function:

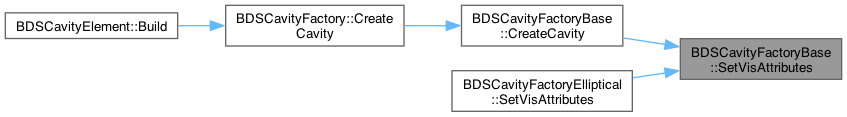

Here is the caller graph for this function:

Field Documentation

◆ cavityLV

G4LogicalVolume* BDSCavityFactoryBase::cavityLV

protected

Cache of particular solid or lv for common functionality in this class.

Definition at line 100 of file BDSCavityFactoryBase.hh.

Referenced by CleanUpBase(), CreateLogicalVolumes(), PlaceComponents(), and SetVisAttributes().

◆ cavitySolid

G4VSolid* BDSCavityFactoryBase::cavitySolid

protected

Cache of particular solid or lv for common functionality in this class.

Definition at line 97 of file BDSCavityFactoryBase.hh.

Referenced by CleanUpBase(), CreateLogicalVolumes(), BDSCavityFactoryElliptical::CreateSolids(), BDSCavityFactoryPillBox::CreateSolids(), and BDSCavityFactoryRectangular::CreateSolids().

◆ containerLV

G4LogicalVolume* BDSCavityFactoryBase::containerLV

protected

Cache of particular solid or lv for common functionality in this class.

Definition at line 101 of file BDSCavityFactoryBase.hh.

Referenced by BuildCavityAndRegisterObjects(), CleanUpBase(), CreateLogicalVolumes(), PlaceComponents(), and SetVisAttributes().

◆ containerSolid

G4VSolid* BDSCavityFactoryBase::containerSolid

protected

Cache of particular solid or lv for common functionality in this class.

Definition at line 98 of file BDSCavityFactoryBase.hh.

Referenced by BuildCavityAndRegisterObjects(), CleanUpBase(), CreateLogicalVolumes(), BDSCavityFactoryElliptical::CreateSolids(), BDSCavityFactoryPillBox::CreateSolids(), and BDSCavityFactoryRectangular::CreateSolids().

◆ emptyMaterial

G4Material* BDSCavityFactoryBase::emptyMaterial

protected

Cache of variable from BDSGlobalConstants.

Definition at line 105 of file BDSCavityFactoryBase.hh.

Referenced by CreateLogicalVolumes().

◆ sensitiveBeamPipe

G4bool BDSCavityFactoryBase::sensitiveBeamPipe

protected

Whether the beam pipe will record energy deposition.

Definition at line 107 of file BDSCavityFactoryBase.hh.

Referenced by BuildCavityAndRegisterObjects().

◆ sensitiveVacuum

G4bool BDSCavityFactoryBase::sensitiveVacuum

protected

Whether the vacuum will record energy deposition.

Definition at line 108 of file BDSCavityFactoryBase.hh.

Referenced by CreateLogicalVolumes().

◆ sensitiveVolumes

std::map<G4LogicalVolume*, BDSSDType> BDSCavityFactoryBase::sensitiveVolumes

protected

Map to sensitivity for volumes.

Definition at line 93 of file BDSCavityFactoryBase.hh.

Referenced by BuildCavityAndRegisterObjects(), and CreateLogicalVolumes().

◆ vacuumLV

G4LogicalVolume* BDSCavityFactoryBase::vacuumLV

protected

Cache of particular solid or lv for common functionality in this class.

Definition at line 99 of file BDSCavityFactoryBase.hh.

Referenced by BuildCavityAndRegisterObjects(), CleanUpBase(), CreateLogicalVolumes(), PlaceComponents(), and SetVisAttributes().

◆ vacuumSolid

G4VSolid* BDSCavityFactoryBase::vacuumSolid

protected

Cache of particular solid or lv for common functionality in this class.

Definition at line 96 of file BDSCavityFactoryBase.hh.

Referenced by CleanUpBase(), CreateLogicalVolumes(), BDSCavityFactoryElliptical::CreateSolids(), BDSCavityFactoryPillBox::CreateSolids(), and BDSCavityFactoryRectangular::CreateSolids().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSCavityFactoryBase.hh
/Users/lnevay/physics/reps/bdsim/src/BDSCavityFactoryBase.cc
