BDSFieldMagGlobalPlacement Class Reference

A base class for magnetic fields in local to be used in global coordinates. More...

#include <BDSFieldMagGlobalPlacement.hh>

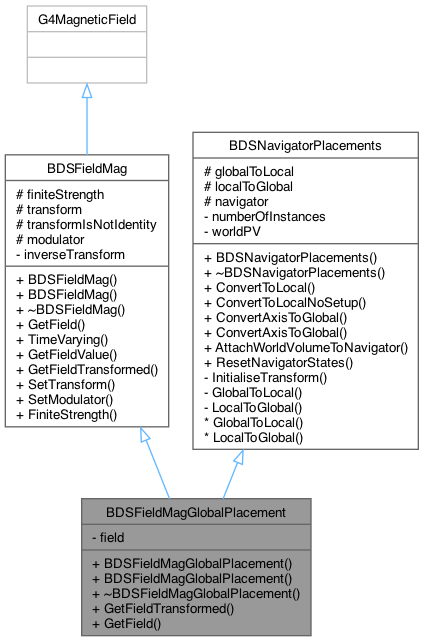

Inheritance diagram for BDSFieldMagGlobalPlacement:

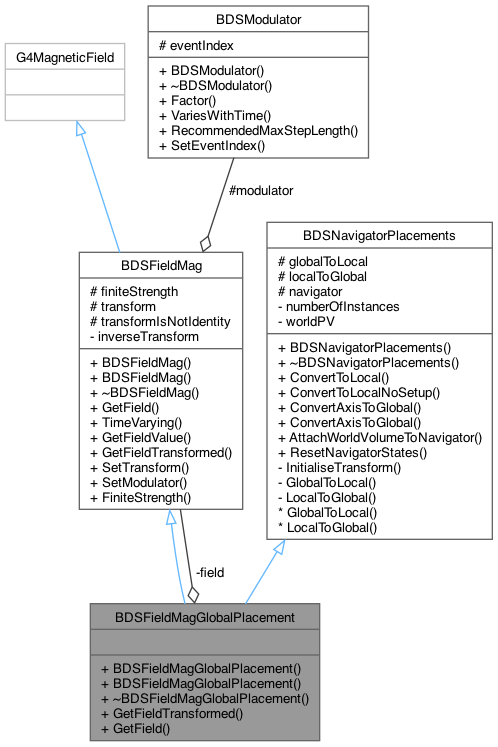

Collaboration diagram for BDSFieldMagGlobalPlacement:

Public Member Functions
	BDSFieldMagGlobalPlacement (BDSFieldMag *fieldIn)
virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const
Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()
	BDSFieldMag (G4Transform3D transformIn)
virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0
virtual G4bool	TimeVarying () const
virtual void	GetFieldValue (const G4double point[4], G4double *field) const
virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.
virtual void	SetTransform (const G4Transform3D &transformIn)
void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.
G4bool	FiniteStrength () const
	Accessor.
Public Member Functions inherited from BDSNavigatorPlacements
G4ThreeVector	ConvertToLocal (const G4ThreeVector &globalPosition, G4bool &foundAPlacementVolume) const
G4ThreeVector	ConvertToLocalNoSetup (const G4ThreeVector &globalPosition) const
	Similar to above function but does NOT initialise the transforms.
G4ThreeVector	ConvertAxisToGlobal (const G4ThreeVector &localAxis) const
std::pair< G4ThreeVector, G4ThreeVector >	ConvertAxisToGlobal (const std::pair< G4ThreeVector, G4ThreeVector > &localAxis) const

Private Attributes
BDSFieldMag *	field
	The field on which this is based.

Additional Inherited Members
Static Public Member Functions inherited from BDSNavigatorPlacements
static void	AttachWorldVolumeToNavigator (G4VPhysicalVolume *worldPVIn)
	Setup the navigator w.r.t. to a world volume - typically real world.
static void	ResetNavigatorStates ()
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.
G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.
G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.
BDSModulator *	modulator
	Optional modulator;.
Protected Attributes inherited from BDSNavigatorPlacements
G4AffineTransform	globalToLocal
G4AffineTransform	localToGlobal
Static Protected Attributes inherited from BDSNavigatorPlacements
static G4Navigator *	navigator = new G4Navigator()

Detailed Description

A base class for magnetic fields in local to be used in global coordinates.

This is done using a navigator for the placement world not the curvilinear one.

This base class provides the aggregate inheritance and utility functions for magnetic fields in local coordinates to be used in global coordinates.

Constness is particularly important here as member functions are called from inside G4MagneticField::GetField function which is const.

This owns the field it wraps.

Author

Laurie Nevay

Definition at line 44 of file BDSFieldMagGlobalPlacement.hh.

Constructor & Destructor Documentation

BDSFieldMagGlobalPlacement()

BDSFieldMagGlobalPlacement::BDSFieldMagGlobalPlacement ( BDSFieldMag *  fieldIn )

explicit

Definition at line 25 of file BDSFieldMagGlobalPlacement.cc.

~BDSFieldMagGlobalPlacement()

BDSFieldMagGlobalPlacement::~BDSFieldMagGlobalPlacement ( )

virtual

Definition at line 31 of file BDSFieldMagGlobalPlacement.cc.

Member Function Documentation

GetField()

G4ThreeVector BDSFieldMagGlobalPlacement::GetField ( const G4ThreeVector &  position, const G4double  t = 0  ) const

virtual

Apply the global to local transform, query the wrapped field object and transform this field to global coordinates before returning.

Implements BDSFieldMag.

Definition at line 45 of file BDSFieldMagGlobalPlacement.cc.

References BDSNavigatorPlacements::ConvertAxisToGlobal(), BDSNavigatorPlacements::ConvertToLocal(), field, and BDSFieldMag::GetFieldTransformed().

Referenced by GetFieldTransformed().

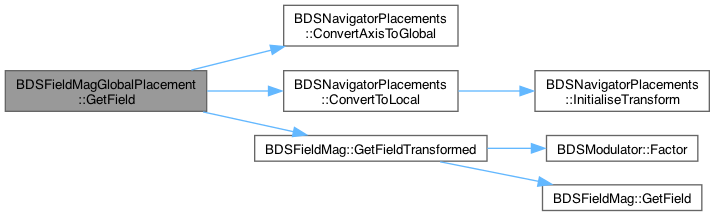

Here is the call graph for this function:

Here is the caller graph for this function:

GetFieldTransformed()

G4ThreeVector BDSFieldMagGlobalPlacement::GetFieldTransformed ( const G4ThreeVector &  position, const G4double  t  ) const

virtual

As we use a discrete member field object, we do not need to apply the transform. Override default method and just directly call GetField().

Reimplemented from BDSFieldMag.

Definition at line 36 of file BDSFieldMagGlobalPlacement.cc.

References BDSFieldMag::finiteStrength, and GetField().

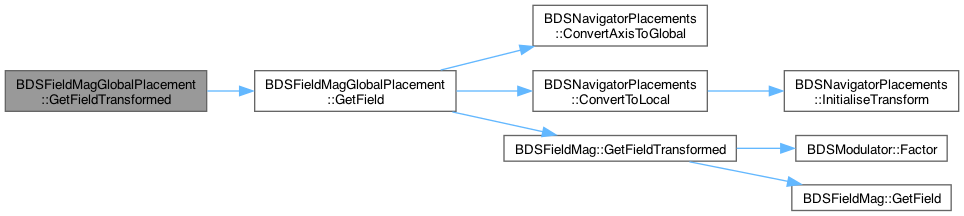

Here is the call graph for this function:

Field Documentation

field

BDSFieldMag* BDSFieldMagGlobalPlacement::field

private

The field on which this is based.

Definition at line 63 of file BDSFieldMagGlobalPlacement.hh.

Referenced by GetField().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSFieldMagGlobalPlacement.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSFieldMagGlobalPlacement.cc
