BDSIM is a Geant4 extension toolkit for simulation of particle transport in accelerator beamlines.
|
A 2D field from an interpolated array with any interpolation. More...
#include <BDSFieldMagInterpolated2D.hh>
Public Member Functions | |
BDSFieldMagInterpolated2D (BDSInterpolator2D *interpolatorIn, const G4Transform3D &offset=G4Transform3D::Identity, G4double scalingIn=1.0) | |
virtual G4ThreeVector | GetField (const G4ThreeVector &position, const G4double t=0) const |
const BDSInterpolator2D * | Interpolator () const |
![]() | |
BDSFieldMagInterpolated (const BDSInterpolator *interpolator, const G4Transform3D &offset, G4double scalingIn=1.0) | |
virtual G4bool | TimeVarying () const |
G4double | Scaling () const |
void | SetScaling (G4double scalingIn) |
BDSExtent | ExtentNoOffset () const |
Extent of field without any offset (ie in its own coordinate frame). | |
BDSExtent | Extent () const |
For now, we will ignore any rotation of the transform. TODO. | |
G4double | SmallestSpatialStep () const |
![]() | |
BDSFieldMag () | |
BDSFieldMag (G4Transform3D transformIn) | |
virtual G4ThreeVector | GetField (const G4ThreeVector &position, const G4double t=0) const =0 |
virtual G4bool | TimeVarying () const |
virtual void | GetFieldValue (const G4double point[4], G4double *field) const |
virtual G4ThreeVector | GetFieldTransformed (const G4ThreeVector &position, const G4double t) const |
Get the field value after applying transform for local offset. | |
virtual void | SetTransform (const G4Transform3D &transformIn) |
void | SetModulator (BDSModulator *modulatorIn) |
Set the optional modulator. | |
G4bool | FiniteStrength () const |
Accessor. | |
Private Attributes | |
BDSInterpolator2D * | interpolator |
Interpolator the field is based on. | |
const G4int | firstDimensionIndex |
Integer index to dimension to use. | |
const G4bool | firstTime |
Cache of whether to use time coordinate. | |
const G4int | secondDimensionIndex |
Integer index to dimension to use. | |
const G4bool | secondTime |
Cache of whether to use time coordinate. | |
Additional Inherited Members | |
![]() | |
G4bool | timeVarying |
![]() | |
G4bool | finiteStrength |
Flag to cache whether finite nor not. | |
G4Transform3D | transform |
Transform to apply for the field relative to the local coordinates of the geometry. | |
G4bool | transformIsNotIdentity |
Cache of whether to use transform at all. | |
BDSModulator * | modulator |
Optional modulator;. | |
A 2D field from an interpolated array with any interpolation.
Owns interpolator.
This provides a simple interface for magnetic fields to use a 2D interpolator irrespective of which type of interpolator it is.
Definition at line 40 of file BDSFieldMagInterpolated2D.hh.
|
explicit |
Definition at line 25 of file BDSFieldMagInterpolated2D.cc.
|
virtual |
Definition at line 36 of file BDSFieldMagInterpolated2D.cc.
|
virtual |
Return the interpolated field value at a given point. Note this doesn't depend on the z position, only x & y.
Implements BDSFieldMag.
Definition at line 41 of file BDSFieldMagInterpolated2D.cc.

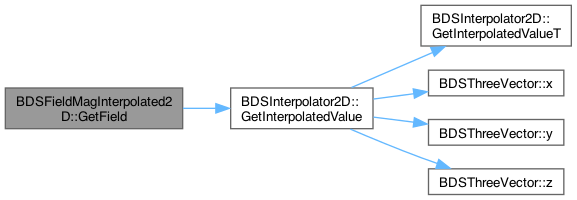

References firstDimensionIndex, firstTime, BDSInterpolator2D::GetInterpolatedValue(), interpolator, secondDimensionIndex, and secondTime.
|
inline |
Definition at line 55 of file BDSFieldMagInterpolated2D.hh.
|
private |
Integer index to dimension to use.
Definition at line 59 of file BDSFieldMagInterpolated2D.hh.
Referenced by GetField().
|
private |
Cache of whether to use time coordinate.
Definition at line 60 of file BDSFieldMagInterpolated2D.hh.
Referenced by GetField().
|
private |
Interpolator the field is based on.
Definition at line 58 of file BDSFieldMagInterpolated2D.hh.
Referenced by GetField().
|
private |
Integer index to dimension to use.
Definition at line 61 of file BDSFieldMagInterpolated2D.hh.
Referenced by GetField().
|
private |
Cache of whether to use time coordinate.
Definition at line 62 of file BDSFieldMagInterpolated2D.hh.
Referenced by GetField().
