Null B field - for special cases where we need a valid object. More...

#include <BDSFieldMagZero.hh>

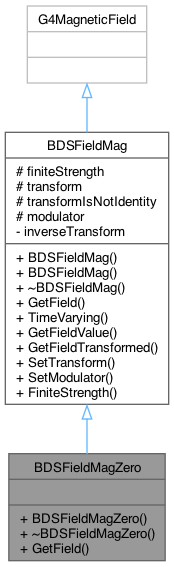

Inheritance diagram for BDSFieldMagZero:

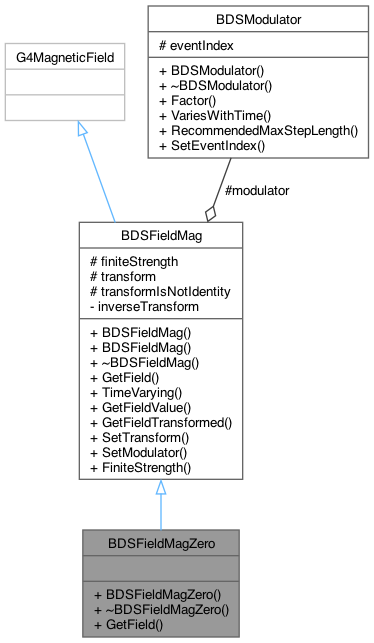

Collaboration diagram for BDSFieldMagZero:

Public Member Functions
virtual G4ThreeVector	GetField (const G4ThreeVector &, const G4double=0) const
	Access the field value.

Public Member Functions inherited from BDSFieldMag
	BDSFieldMag ()

	BDSFieldMag (G4Transform3D transformIn)

virtual G4ThreeVector	GetField (const G4ThreeVector &position, const G4double t=0) const =0

virtual G4bool	TimeVarying () const

virtual void	GetFieldValue (const G4double point[4], G4double *field) const

virtual G4ThreeVector	GetFieldTransformed (const G4ThreeVector &position, const G4double t) const
	Get the field value after applying transform for local offset.

virtual void	SetTransform (const G4Transform3D &transformIn)

void	SetModulator (BDSModulator *modulatorIn)
	Set the optional modulator.

G4bool	FiniteStrength () const
	Accessor.

Additional Inherited Members
Protected Attributes inherited from BDSFieldMag
G4bool	finiteStrength
	Flag to cache whether finite nor not.

G4Transform3D	transform
	Transform to apply for the field relative to the local coordinates of the geometry.

G4bool	transformIsNotIdentity
	Cache of whether to use transform at all.

BDSModulator *	modulator
	Optional modulator;.

Detailed Description

Null B field - for special cases where we need a valid object.

Simply returns 0,0,0,0,0,0 for all field components. Used for teleporter or specifically written tracking routines that may ignore the 'field' but still need a valid object that can be called by Geant4 in order to fit into its scheme.

Author: Laurie Nevay.

Definition at line 38 of file BDSFieldMagZero.hh.

Constructor & Destructor Documentation

◆ BDSFieldMagZero()

BDSFieldMagZero::BDSFieldMagZero ( )

inline

Definition at line 41 of file BDSFieldMagZero.hh.

◆ ~BDSFieldMagZero()

virtual BDSFieldMagZero::~BDSFieldMagZero ( )

inlinevirtual

Definition at line 43 of file BDSFieldMagZero.hh.

Member Function Documentation

◆ GetField()

virtual G4ThreeVector BDSFieldMagZero::GetField	(	const G4ThreeVector &	,
		const	G4double = `0`
	)		const

inlinevirtual

Access the field value.

Implements BDSFieldMag.

Definition at line 46 of file BDSFieldMagZero.hh.

The documentation for this class was generated from the following file:

/Users/lnevay/physics/reps/bdsim/include/BDSFieldMagZero.hh
