BDSGeometryExternal Class Reference

A loaded piece of externally provided geometry. More...

#include <BDSGeometryExternal.hh>

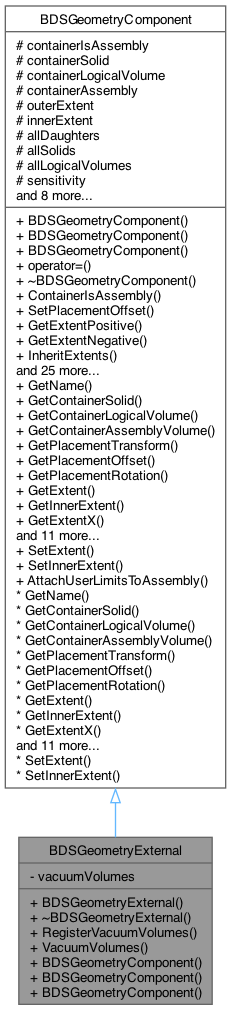

Inheritance diagram for BDSGeometryExternal:

Collaboration diagram for BDSGeometryExternal:

Public Member Functions
	BDSGeometryExternal ()=delete
	No default constructor.
void	RegisterVacuumVolumes (const std::set< G4LogicalVolume * > &vacuumVolumesIn)
	Register a set of volumes to be identified as vacuum volumes for the BDSAcceleratorComponent.
const std::set< G4LogicalVolume * > &	VacuumVolumes () const
	Access the vacuum volumes.
	BDSGeometryComponent (G4VSolid *containerSolidIn, G4LogicalVolume *containerLVIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)
	Use constructors of BDSGeometryComponent.
	BDSGeometryComponent (G4AssemblyVolume *containerAssemblyIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)
	Use constructors of BDSGeometryComponent.
	BDSGeometryComponent (const BDSGeometryComponent &component)
	Use constructors of BDSGeometryComponent.
Public Member Functions inherited from BDSGeometryComponent
	BDSGeometryComponent (G4VSolid *containerSolidIn, G4LogicalVolume *containerLVIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)
	BDSGeometryComponent (G4AssemblyVolume *containerAssemblyIn, const BDSExtent &extentIn=BDSExtent(), const BDSExtent &innerExtentIn=BDSExtent(), const G4ThreeVector &placementOffsetIn=G4ThreeVector(0, 0, 0), G4RotationMatrix *placementRotationIn=nullptr)
	BDSGeometryComponent (const BDSGeometryComponent &component)
	Copy constructor (no copying of registered objects)
BDSGeometryComponent &	operator= (const BDSGeometryComponent &)=delete
	Assignment operator not used.
G4bool	ContainerIsAssembly () const
	Whether the container is an assembly. If not, it's a logical volume.
void	SetPlacementOffset (const G4ThreeVector &offsetIn)
	Set the offset from 0,0,0 that the object should ideally be placed in its parent.
G4ThreeVector	GetExtentPositive () const
	Get the extent of the object in the positive direction in all dimensions.
G4ThreeVector	GetExtentNegative () const
	Get the extent of the object in the negative direction in all dimensions.
void	InheritExtents (BDSGeometryComponent const *const anotherComponent)
	Update the extents of this object with those of another object.
void	InheritExtents (BDSGeometryComponent const *const anotherComponent, const G4ThreeVector &offset)
void	RegisterDaughter (BDSGeometryComponent *anotherComponent)
void	RegisterSolid (G4VSolid *solid)
void	RegisterSolid (const std::set< G4VSolid * > &solids)
	Similarly for a set of unique solids.
void	RegisterLogicalVolume (G4LogicalVolume *logicalVolume)
void	RegisterLogicalVolume (const std::set< G4LogicalVolume * > &localVolumes)
	Apply RegisterLogicalVolume() to a set of logical volumes.
void	RegisterSensitiveVolume (G4LogicalVolume *sensitiveVolume, BDSSDType sensitivityType)
void	RegisterSensitiveVolume (const std::set< G4LogicalVolume * > &sensitiveVolumes, BDSSDType sensitivityType)
void	RegisterSensitiveVolume (const std::map< G4LogicalVolume *, BDSSDType > &sensitiveVolumes)
	Copy in a mapping of sensitive volumes to sensitive detectors.
void	RegisterPhysicalVolume (G4VPhysicalVolume *physicalVolume)
void	RegisterPhysicalVolume (const std::set< G4VPhysicalVolume * > &physicalVolumes)
	Apply RegisterPhysicalVolume() to a set of physical volumes.
void	RegisterRotationMatrix (G4RotationMatrix *rotationMatrix)
void	RegisterRotationMatrix (const std::set< G4RotationMatrix * > &rotationMatrices)
	Apply Register RotationMatrix() to a set of rotation matrices.
void	RegisterVisAttributes (G4VisAttributes *visAttribute)
void	RegisterVisAttributes (const std::set< G4VisAttributes * > &visAttributes)
	Apply RegisterVisAttribute() to a set of visualisation attributes.
void	RegisterUserLimits (G4UserLimits *userLimit)
void	RegisterUserLimits (const std::set< G4UserLimits * > &userLimits)
	Apply RegisterUserLimit to a set of user limits.
void	InheritObjects (BDSGeometryComponent *component)
virtual std::set< G4LogicalVolume * >	GetAllLogicalVolumes () const
	Access all logical volumes belonging to this component.
virtual std::set< G4LogicalVolume * >	GetAllBiasingVolumes () const
	Return all logical volumes that should be used for biasing minus any that are in the excluded set.
virtual std::map< G4LogicalVolume *, BDSSDType >	GetAllSensitiveVolumes () const
	Access all sensitive volumes belonging to this component.
void	MakeAllVolumesSensitive (BDSSDType stype=BDSSDType::energydep)
virtual void	AttachSensitiveDetectors ()
	Attach a sensitive detector class to all registered sensitive volumes in this component.
virtual void	ExcludeLogicalVolumeFromBiasing (G4LogicalVolume *lv)
void	StripOuterAndMakeAssemblyVolume ()
	Change from a container logical volume to an assembly volume.
virtual G4String	GetName () const
	Accessor - see member for more info.
G4VSolid *	GetContainerSolid () const
	Accessor - see member for more info.
G4LogicalVolume *	GetContainerLogicalVolume () const
	Accessor - see member for more info.
G4AssemblyVolume *	GetContainerAssemblyVolume () const
	Accessor - see member for more info.
G4Transform3D	GetPlacementTransform () const
	Accessor - see member for more info.
G4ThreeVector	GetPlacementOffset () const
	Accessor - see member for more info.
G4RotationMatrix *	GetPlacementRotation () const
	Accessor - see member for more info.
BDSExtent	GetExtent () const
	Accessor - see member for more info.
BDSExtent	GetInnerExtent () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetExtentX () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetExtentY () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetExtentZ () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetInnerExtentX () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetInnerExtentY () const
	Accessor - see member for more info.
std::pair< G4double, G4double >	GetInnerExtentZ () const
	Accessor - see member for more info.
virtual std::set< G4VPhysicalVolume * >	GetAllPhysicalVolumes () const
	Accessor - see member for more info.
virtual std::set< G4RotationMatrix * >	GetAllRotationMatrices () const
	Accessor - see member for more info.
virtual std::set< G4VisAttributes * >	GetAllVisAttributes () const
	Accessor - see member for more info.
virtual std::set< G4UserLimits * >	GetAllUserLimits () const
	Accessor - see member for more info.
virtual std::set< BDSGeometryComponent * >	GetAllDaughters () const
	Accessor - see member for more info.
virtual std::set< G4VSolid * >	GetAllSolids () const
	Accessor - see member for more info.
void	SetExtent (const BDSExtent &extIn)
	Set extent.
void	SetInnerExtent (const BDSExtent &extIn)
	Set extent.

Private Attributes
std::set< G4LogicalVolume * >	vacuumVolumes

Additional Inherited Members
Static Public Member Functions inherited from BDSGeometryComponent
static void	AttachUserLimitsToAssembly (G4AssemblyVolume *av, G4UserLimits *ul)
	Utility function to apply user limits to an assembly volume as there's not interface.
Protected Attributes inherited from BDSGeometryComponent
G4bool	containerIsAssembly
	True if the 'container' is really an assembly; false if an LV.
G4VSolid *	containerSolid
G4LogicalVolume *	containerLogicalVolume
G4AssemblyVolume *	containerAssembly
BDSExtent	outerExtent
BDSExtent	innerExtent
std::set< BDSGeometryComponent * >	allDaughters
	registry of all daughter geometry components
std::set< G4VSolid * >	allSolids
	registry of all solids belonging to this component
std::set< G4LogicalVolume * >	allLogicalVolumes
std::map< G4LogicalVolume *, BDSSDType >	sensitivity
G4bool	overrideSensitivity
std::set< G4VPhysicalVolume * >	allPhysicalVolumes
	registry of all physical volumes belonging to this component
std::set< G4RotationMatrix * >	allRotationMatrices
	registry of all rotation matrices belonging to this component
std::set< G4VisAttributes * >	allVisAttributes
	registry of all visualisation attributes belonging to this component
std::set< G4UserLimits * >	allUserLimits
	registry of all user limits belonging to this component
G4ThreeVector	placementOffset
G4RotationMatrix *	placementRotation
std::set< G4LogicalVolume * > *	lvsExcludedFromBiasing
	Volumes that should not be included when return GetAllBiasingVolumes().

Detailed Description

A loaded piece of externally provided geometry.

This is a wrapper class for BDSGeometryComponent. Currently, this provides no additional members, but experience with beam pipes and magnet outer geometry says that this class will undoubtedly be required. Easier to implement now than rewrite all factories later.

Author

Laurie Nevay

Definition at line 39 of file BDSGeometryExternal.hh.

Constructor & Destructor Documentation

~BDSGeometryExternal()

virtual BDSGeometryExternal::~BDSGeometryExternal ( )

inlinevirtual

Definition at line 47 of file BDSGeometryExternal.hh.

Member Function Documentation

BDSGeometryComponent() [1/3]

BDSGeometryComponent::BDSGeometryComponent

(

const BDSGeometryComponent &

component

)

Use constructors of BDSGeometryComponent.

Definition at line 86 of file BDSGeometryComponent.cc.

BDSGeometryComponent() [2/3]

BDSGeometryComponent::BDSGeometryComponent	(	G4AssemblyVolume *	containerAssemblyIn,
		const BDSExtent &	extentIn = BDSExtent(),
		const BDSExtent &	innerExtentIn = BDSExtent(),
		const G4ThreeVector &	placementOffsetIn = G4ThreeVector(0,0,0),
		G4RotationMatrix *	placementRotationIn = nullptr
	)

Use constructors of BDSGeometryComponent.

Definition at line 79 of file BDSGeometryComponent.cc.

BDSGeometryComponent() [3/3]

BDSGeometryComponent::BDSGeometryComponent	(	G4VSolid *	containerSolidIn,
		G4LogicalVolume *	containerLVIn,
		const BDSExtent &	extentIn = BDSExtent(),
		const BDSExtent &	innerExtentIn = BDSExtent(),
		const G4ThreeVector &	placementOffsetIn = G4ThreeVector(0,0,0),
		G4RotationMatrix *	placementRotationIn = nullptr
	)

Use constructors of BDSGeometryComponent.

Definition at line 72 of file BDSGeometryComponent.cc.

RegisterVacuumVolumes()

void BDSGeometryExternal::RegisterVacuumVolumes ( const std::set< G4LogicalVolume * > &  vacuumVolumesIn )

inline

Register a set of volumes to be identified as vacuum volumes for the BDSAcceleratorComponent.

Definition at line 50 of file BDSGeometryExternal.hh.

Referenced by BDSGeometryFactoryGDML::Build().

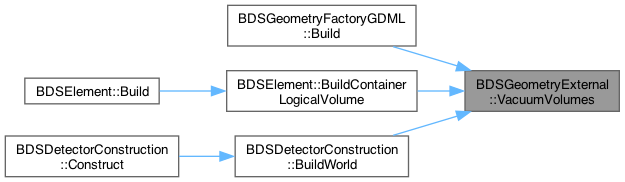

Here is the caller graph for this function:

VacuumVolumes()

const std::set< G4LogicalVolume * > & BDSGeometryExternal::VacuumVolumes ( ) const

inline

Access the vacuum volumes.

Definition at line 52 of file BDSGeometryExternal.hh.

Referenced by BDSGeometryFactoryGDML::Build(), BDSElement::BuildContainerLogicalVolume(), and BDSDetectorConstruction::BuildWorld().

Here is the caller graph for this function:

Field Documentation

vacuumVolumes

std::set<G4LogicalVolume*> BDSGeometryExternal::vacuumVolumes

private

Definition at line 55 of file BDSGeometryExternal.hh.

---

The documentation for this class was generated from the following file:

• /Users/lnevay/physics/reps/bdsim/include/BDSGeometryExternal.hh
