BDSHitEnergyDepositionExtra Class Reference

Extra information recorded for a single piece of energy deposition. More...

#include <BDSHitEnergyDepositionExtra.hh>

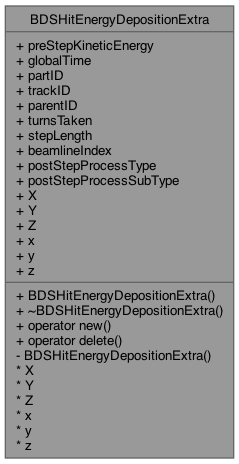

Collaboration diagram for BDSHitEnergyDepositionExtra:

Public Member Functions
	BDSHitEnergyDepositionExtra (G4double preStepKineticEnergy, G4double XIn, G4double YIn, G4double ZIn, G4double xIn, G4double yIn, G4double zIn, G4double globalTimeIn, G4int partIDIn, G4int trackID, G4int parentID, G4int turnsTakenIn, G4double stepLengthIn, G4int beamlineIndexIn=-1, G4int postProcessTypeIn=-1, G4int postProcessSubTypeIn=-1)
	~BDSHitEnergyDepositionExtra ()
	Note this should not be inline when we use a G4Allocator.
void *	operator new (size_t)
void	operator delete (void *aHit)

Data Fields
G4double	preStepKineticEnergy
G4double	globalTime
	Time since start of event.
G4int	partID
G4int	trackID
G4int	parentID
G4int	turnsTaken
G4double	stepLength
G4int	beamlineIndex
G4int	postStepProcessType
	Process type of post step point.
G4int	postStepProcessSubType
	Process sub type of post step point.
G4double	X
	Global coordinate.
G4double	Y
	Global coordinate.
G4double	Z
	Global coordinate.
G4double	x
	Local coordinate.
G4double	y
	Local coordinate.
G4double	z
	Local coordinate.

Private Member Functions
	BDSHitEnergyDepositionExtra ()=delete
	Private default constructor.

Detailed Description

Extra information recorded for a single piece of energy deposition.

Author

Laurie Nevay

Definition at line 32 of file BDSHitEnergyDepositionExtra.hh.

Constructor & Destructor Documentation

BDSHitEnergyDepositionExtra()

BDSHitEnergyDepositionExtra::BDSHitEnergyDepositionExtra	(	G4double	preStepKineticEnergy,
		G4double	XIn,
		G4double	YIn,
		G4double	ZIn,
		G4double	xIn,
		G4double	yIn,
		G4double	zIn,
		G4double	globalTimeIn,
		G4int	partIDIn,
		G4int	trackID,
		G4int	parentID,
		G4int	turnsTakenIn,
		G4double	stepLengthIn,
		G4int	beamlineIndexIn = -1,
		G4int	postProcessTypeIn = -1,
		G4int	postProcessSubTypeIn = -1
	)

Default (in effect) constructor for energy counter hit. The intention (by a lack of setter methods is that all information should be provided as instantiation time for an instance of this class.

Definition at line 26 of file BDSHitEnergyDepositionExtra.cc.

~BDSHitEnergyDepositionExtra()

BDSHitEnergyDepositionExtra::~BDSHitEnergyDepositionExtra

(

)

Note this should not be inline when we use a G4Allocator.

Definition at line 60 of file BDSHitEnergyDepositionExtra.cc.

Member Function Documentation

operator delete()

void BDSHitEnergyDepositionExtra::operator delete ( void *  aHit )

inline

Definition at line 102 of file BDSHitEnergyDepositionExtra.hh.

operator new()

void * BDSHitEnergyDepositionExtra::operator new ( size_t  )

inline

Definition at line 95 of file BDSHitEnergyDepositionExtra.hh.

Field Documentation

beamlineIndex

G4int BDSHitEnergyDepositionExtra::beamlineIndex

Definition at line 82 of file BDSHitEnergyDepositionExtra.hh.

globalTime

G4double BDSHitEnergyDepositionExtra::globalTime

Time since start of event.

Definition at line 76 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::GetGlobalTime().

parentID

G4int BDSHitEnergyDepositionExtra::parentID

Definition at line 79 of file BDSHitEnergyDepositionExtra.hh.

partID

G4int BDSHitEnergyDepositionExtra::partID

Definition at line 77 of file BDSHitEnergyDepositionExtra.hh.

postStepProcessSubType

G4int BDSHitEnergyDepositionExtra::postStepProcessSubType

Process sub type of post step point.

Definition at line 85 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::GetPostStepProcessSubType().

postStepProcessType

G4int BDSHitEnergyDepositionExtra::postStepProcessType

Process type of post step point.

Definition at line 84 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::GetPostStepProcessType().

preStepKineticEnergy

G4double BDSHitEnergyDepositionExtra::preStepKineticEnergy

Definition at line 62 of file BDSHitEnergyDepositionExtra.hh.

stepLength

G4double BDSHitEnergyDepositionExtra::stepLength

Definition at line 81 of file BDSHitEnergyDepositionExtra.hh.

trackID

G4int BDSHitEnergyDepositionExtra::trackID

Definition at line 78 of file BDSHitEnergyDepositionExtra.hh.

turnsTaken

G4int BDSHitEnergyDepositionExtra::turnsTaken

Definition at line 80 of file BDSHitEnergyDepositionExtra.hh.

X

G4double BDSHitEnergyDepositionExtra::X

Global coordinate.

Definition at line 65 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::GetX().

x

G4double BDSHitEnergyDepositionExtra::x

Local coordinate.

Definition at line 71 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::Getx().

Y

G4double BDSHitEnergyDepositionExtra::Y

Global coordinate.

Definition at line 66 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::GetY().

y

G4double BDSHitEnergyDepositionExtra::y

Local coordinate.

Definition at line 72 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::Gety().

Z

G4double BDSHitEnergyDepositionExtra::Z

Global coordinate.

Definition at line 67 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::GetZ().

z

G4double BDSHitEnergyDepositionExtra::z

Local coordinate.

Definition at line 73 of file BDSHitEnergyDepositionExtra.hh.

Referenced by BDSHitEnergyDeposition::Getz().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSHitEnergyDepositionExtra.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSHitEnergyDepositionExtra.cc
