The information recorded from a particle impacting a sampler. More...

#include <BDSHitSampler.hh>

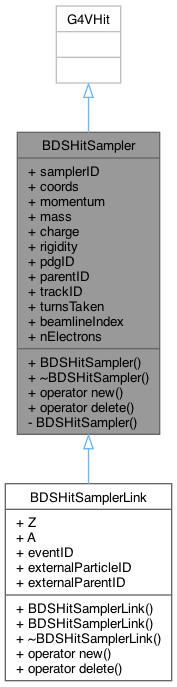

Inheritance diagram for BDSHitSampler:

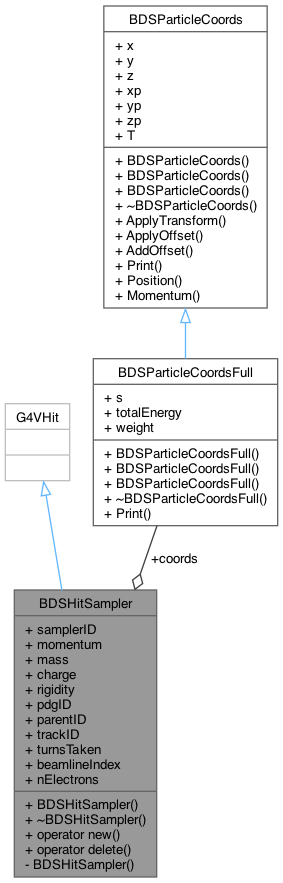

Collaboration diagram for BDSHitSampler:

Public Member Functions
	BDSHitSampler (G4int samplerIDIn, const BDSParticleCoordsFull &coordsIn, G4double momentumIn, G4double massIn, G4double chargeIn, G4double rigidityIn, G4int pdgIDIn, G4int parentIDIn, G4int trackIDIn, G4int turnsTakenIn, G4int beamlineIndexIn, G4int nElectronsIn=0)

virtual	~BDSHitSampler ()
	Note this should not be inline when we use a G4Allocator.

void *	operator new (size_t)

void	operator delete (void *aHit)

Data Fields
G4int	samplerID

BDSParticleCoordsFull	coords

G4double	momentum

G4double	mass

G4double	charge
	Double as g4 uses charge as a double.

G4double	rigidity

G4int	pdgID

G4int	parentID

G4int	trackID

G4int	turnsTaken

G4int	beamlineIndex

G4int	nElectrons
	Can only get this at inspection time so include here.

Private Member Functions
	BDSHitSampler ()=delete
	No default constructor.

Detailed Description

The information recorded from a particle impacting a sampler.

Everything public for simplicity of the class.

Definition at line 35 of file BDSHitSampler.hh.

Constructor & Destructor Documentation

◆ BDSHitSampler()

BDSHitSampler::BDSHitSampler	(	G4int	samplerIDIn,
		const BDSParticleCoordsFull &	coordsIn,
		G4double	momentumIn,
		G4double	massIn,
		G4double	chargeIn,
		G4double	rigidityIn,
		G4int	pdgIDIn,
		G4int	parentIDIn,
		G4int	trackIDIn,
		G4int	turnsTakenIn,
		G4int	beamlineIndexIn,
		G4int	nElectronsIn = `0`
	)

Definition at line 27 of file BDSHitSampler.cc.

◆ ~BDSHitSampler()

BDSHitSampler::~BDSHitSampler ( )

virtual

Note this should not be inline when we use a G4Allocator.

Definition at line 53 of file BDSHitSampler.cc.

Member Function Documentation

◆ operator delete()

void BDSHitSampler::operator delete ( void * aHit )

inline

Definition at line 84 of file BDSHitSampler.hh.

◆ operator new()

void * BDSHitSampler::operator new ( size_t )

inline

Definition at line 77 of file BDSHitSampler.hh.

Field Documentation

◆ beamlineIndex

G4int BDSHitSampler::beamlineIndex

Definition at line 67 of file BDSHitSampler.hh.

◆ charge

G4double BDSHitSampler::charge

Double as g4 uses charge as a double.

Definition at line 61 of file BDSHitSampler.hh.

Referenced by BDSOutputROOTEventSampler< float >::getIonZ().

◆ coords

BDSParticleCoordsFull BDSHitSampler::coords

Definition at line 58 of file BDSHitSampler.hh.

◆ mass

G4double BDSHitSampler::mass

Definition at line 60 of file BDSHitSampler.hh.

◆ momentum

G4double BDSHitSampler::momentum

Definition at line 59 of file BDSHitSampler.hh.

◆ nElectrons

G4int BDSHitSampler::nElectrons

Can only get this at inspection time so include here.

Definition at line 68 of file BDSHitSampler.hh.

◆ parentID

G4int BDSHitSampler::parentID

Definition at line 64 of file BDSHitSampler.hh.

◆ pdgID

G4int BDSHitSampler::pdgID

Definition at line 63 of file BDSHitSampler.hh.

◆ rigidity

G4double BDSHitSampler::rigidity

Definition at line 62 of file BDSHitSampler.hh.

◆ samplerID

G4int BDSHitSampler::samplerID

Definition at line 57 of file BDSHitSampler.hh.

◆ trackID

G4int BDSHitSampler::trackID

Definition at line 65 of file BDSHitSampler.hh.

◆ turnsTaken

G4int BDSHitSampler::turnsTaken

Definition at line 66 of file BDSHitSampler.hh.

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSHitSampler.hh
/Users/lnevay/physics/reps/bdsim/src/BDSHitSampler.cc
