Interface class to use BDSIM with trackers. More...

#include <BDSIMLink.hh>

Collaboration diagram for BDSIMLink:

Public Member Functions
	BDSIMLink (BDSBunch *bunchIn)

int	Initialise (int argc, char **argv, bool usualPrintOut=true, double minimumKineticEnergy=0, bool protonsAndIonsOnly=true)
	Initialise everything given these arguments. The minimumKinetic energy should be in GeV.

	BDSIMLink (int argc, char **argv, bool usualPrintOut=true)
	Construct and initialise BDSIM.

	~BDSIMLink ()
	The destructor opens the geometry in Geant4 and deletes everything.

bool	Initialised () const

int	InitialisationResult () const

void	BeamOn (int nGenerate=-1)

void	SelectLinkElement (const std::string &elementName, bool debug=false)

void	SelectLinkElement (int index, bool debug=false)

int	AddLinkCollimatorJaw (const std::string &collimatorName, const std::string &materialName, double length, double halfApertureLeft, double halfApertureRight, double rotation, double xOffset, double yOffset, double jawTiltLeft=0.0, double jawTiltRight=0.0, bool buildLeftJaw=true, bool buildRightJaw=true, bool isACrystal=false, double crystalAngle=0, bool sampleIn=false)
	Use standard C++ types as expected to be used externally.

BDSHitsCollectionSamplerLink *	SamplerHits () const

void	ClearSamplerHits ()

int	GetCurrentMaximumSixTrackParticleID () const

void	SetCurrentMaximumExternalParticleID (int currentMaximumExternalParticleID)

G4int	NSecondariesToReturn () const

G4int	NPrimariesToReturn () const

int	GetLinkIndex (const std::string &elementName) const
	Get the internal index of a component by name.

const BDSLinkComponent *	GetLinkComponent (int linkID) const

void	RegisterUserPhysicsList (G4VModularPhysicsList *userPhysicsListIn)
	Provide a physics list that will be used inplace of the BDSIM generate one.

G4VModularPhysicsList *	UserPhysicsList () const
	Access user physics list.


double	GetChordLengthOfLinkElement (int beamlineIndex) const
	Access the length of a component. If bad name or ID given, -1 will be returned.

double	GetChordLengthOfLinkElement (const std::string &elementName)
	Access the length of a component. If bad name or ID given, -1 will be returned.

double	GetArcLengthOfLinkElement (int beamlineIndex) const
	Access the length of a component. If bad name or ID given, -1 will be returned.

double	GetArcLengthOfLinkElement (const std::string &elementName)
	Access the length of a component. If bad name or ID given, -1 will be returned.

Private Member Functions
int	Initialise (double minimumKineticEnergy=0, bool protonsAndIonsOnly=true)
	The main function where everything is constructed.

Private Attributes
bool	ignoreSIGINT
	For cmake testing.

bool	usualPrintOut
	Whether to allow the usual cout output.

bool	initialised
	Whether initialisation was completed safely.

int	initialisationResult
	Possible to not finish initialisation but have completed ok - flag for this.

int	argcCache
	Cache of argc.

char **	argvCache
	Cache of argv.

std::vector< BDSParticleExternal * >	externalParticles

std::map< std::string, int >	nameToElementIndex

std::map< int, int >	linkIDToBeamlineIndex

int	currentElementIndex
	Element to track in.

G4VModularPhysicsList *	userPhysicsList
	Optional user registered physics list.


BDSParser *	parser
	Cache of main object in BDSIM.

BDSOutput *	bdsOutput
	Cache of main object in BDSIM.

BDSBunch *	bdsBunch
	Cache of main object in BDSIM.

G4RunManager *	runManager
	Cache of main object in BDSIM.

BDSLinkDetectorConstruction *	construction
	Cache of main object in BDSIM.

BDSLinkRunAction *	runAction
	Cache of main object in BDSIM.

Detailed Description

Interface class to use BDSIM with trackers.

First way to use: bds = new BDSIMLink(argc, argv); bds->TrackThin(...)

Second way to use (delayed initialisation): bds = new BDSIMLink(); // modify bds in some way bds->Initialise(argc, argv); bds->TrackThin(...)

Author: Laurie Nevay

Definition at line 57 of file BDSIMLink.hh.

Constructor & Destructor Documentation

◆ BDSIMLink() [1/2]

BDSIMLink::BDSIMLink ( BDSBunch * bunchIn )

explicit

Construct an instance but don't initialise. Requires initialisation with arguments argc and arv

Definition at line 75 of file BDSIMLink.cc.

◆ BDSIMLink() [2/2]

BDSIMLink::BDSIMLink	(	int	argc,
		char **	argv,
		bool	usualPrintOut = `true`
	)

Construct and initialise BDSIM.

Definition at line 92 of file BDSIMLink.cc.

References initialisationResult, and Initialise().

Here is the call graph for this function:

◆ ~BDSIMLink()

BDSIMLink::~BDSIMLink ( )

The destructor opens the geometry in Geant4 and deletes everything.

Termination & clean up.

Definition at line 395 of file BDSIMLink.cc.

References bdsOutput, BDSAperturePointsCache::ClearCachedFiles(), BDSOutput::CloseFile(), initialisationResult, BDSAperturePointsCache::Instance(), BDSBeamPipeFactory::Instance(), BDSCavityFactory::Instance(), BDSColours::Instance(), BDSFieldFactory::Instance(), BDSFieldLoader::Instance(), BDSGeometryFactory::Instance(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), BDSSamplerRegistry::Instance(), BDSTemporaryFiles::Instance(), parser, runManager, and usualPrintOut.

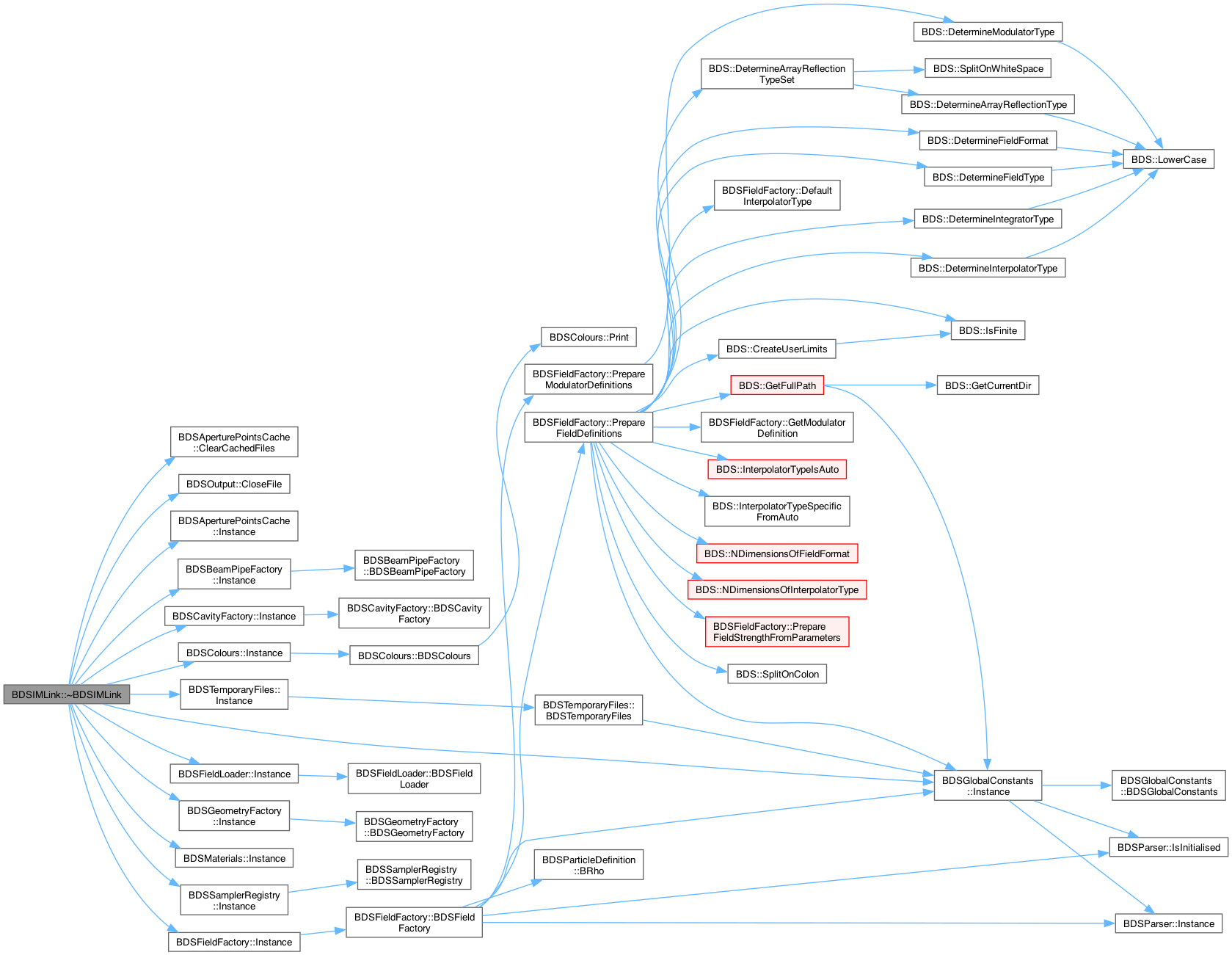

Here is the call graph for this function:

Member Function Documentation

◆ AddLinkCollimatorJaw()

int BDSIMLink::AddLinkCollimatorJaw	(	const std::string &	collimatorName,
		const std::string &	materialName,
		double	length,
		double	halfApertureLeft,
		double	halfApertureRight,
		double	rotation,
		double	xOffset,
		double	yOffset,
		double	jawTiltLeft = `0.0`,
		double	jawTiltRight = `0.0`,
		bool	buildLeftJaw = `true`,
		bool	buildRightJaw = `true`,
		bool	isACrystal = `false`,
		double	crystalAngle = `0`,
		bool	sampleIn = `false`
	)

Use standard C++ types as expected to be used externally.

Close the geometry in preparation for running - everything is now fixed.

Definition at line 506 of file BDSIMLink.cc.

References BDSLinkDetectorConstruction::AddLinkCollimatorJaw(), bdsOutput, construction, and BDSOutput::UpdateSamplers().

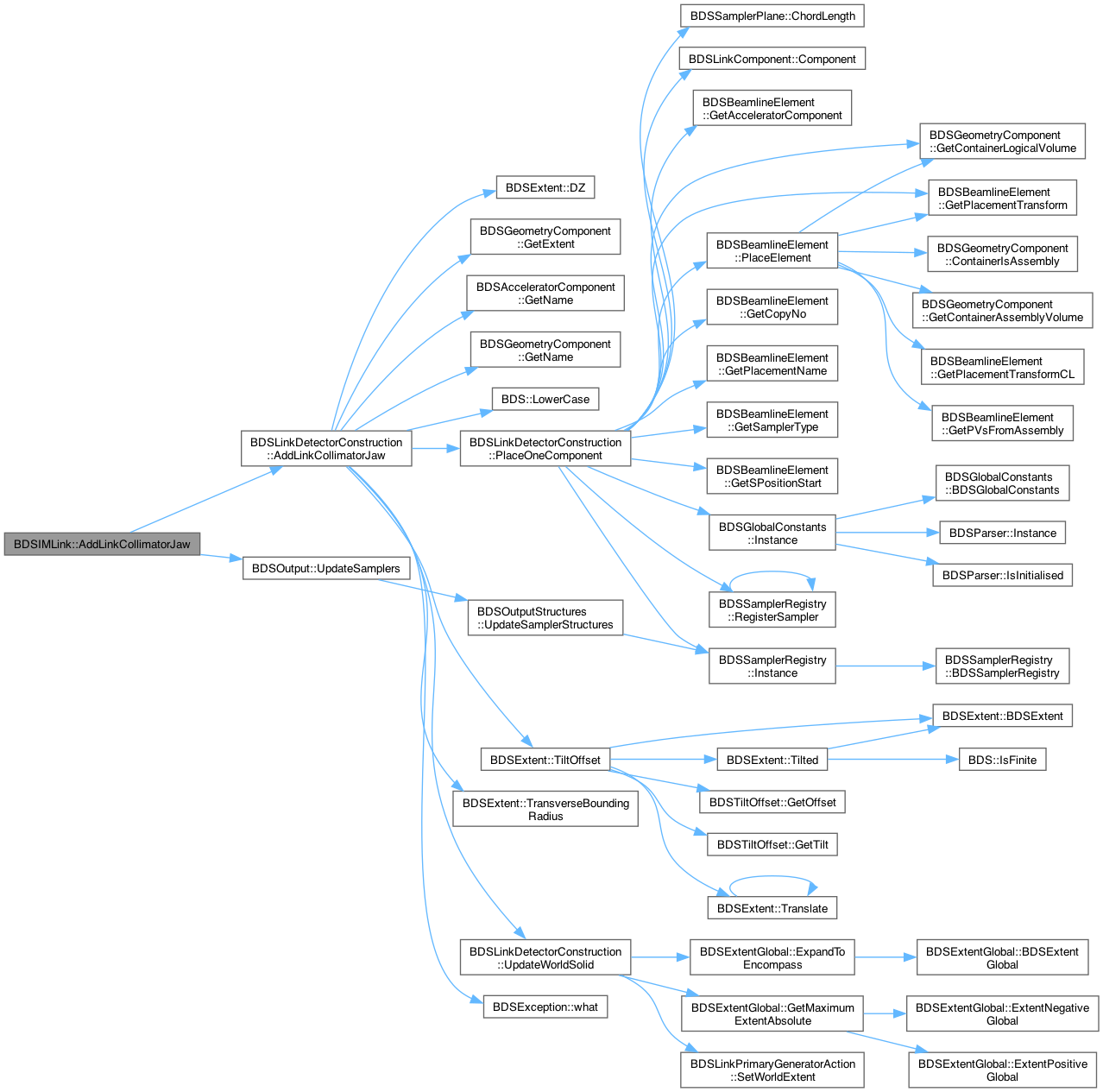

Here is the call graph for this function:

◆ BeamOn()

void BDSIMLink::BeamOn ( int nGenerate = -1 )

Generate nGenerate events. If the default argument -1 is used, the number is taken from the standard input e.g. the executable option ngenerate and then the one specified in the input gmad files as an option.

Catch aborts to close output stream/file. perhaps not all are needed.

Run in either interactive or batch mode

Definition at line 352 of file BDSIMLink.cc.

References argcCache, argvCache, BDS::HandleAborts(), ignoreSIGINT, initialisationResult, initialised, BDSGlobalConstants::Instance(), runManager, BDSVisManager::StartSession(), and BDSException::what().

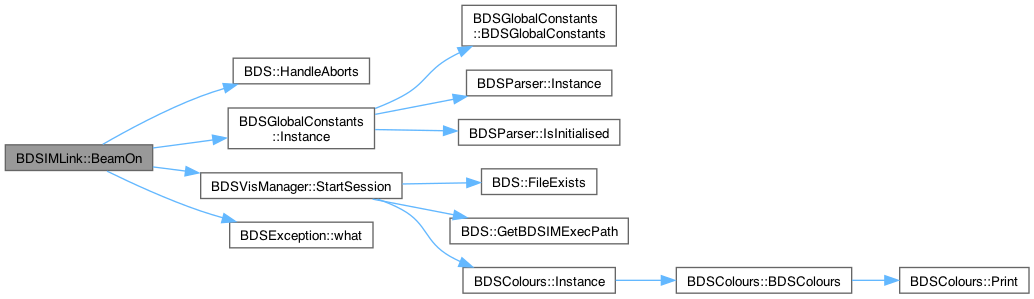

Here is the call graph for this function:

◆ ClearSamplerHits()

void BDSIMLink::ClearSamplerHits ( )

inline

Definition at line 109 of file BDSIMLink.hh.

◆ GetArcLengthOfLinkElement() [1/2]

double BDSIMLink::GetArcLengthOfLinkElement ( const std::string & elementName )

Access the length of a component. If bad name or ID given, -1 will be returned.

Definition at line 483 of file BDSIMLink.cc.

References GetArcLengthOfLinkElement(), and GetLinkIndex().

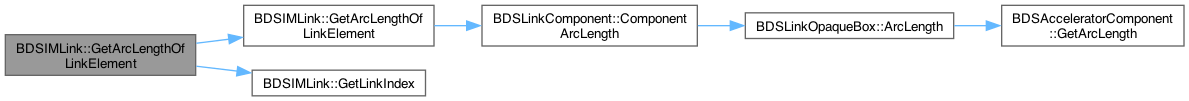

Here is the call graph for this function:

◆ GetArcLengthOfLinkElement() [2/2]

double BDSIMLink::GetArcLengthOfLinkElement ( int beamlineIndex ) const

Access the length of a component. If bad name or ID given, -1 will be returned.

Definition at line 475 of file BDSIMLink.cc.

References BDSLinkComponent::ComponentArcLength().

Referenced by GetArcLengthOfLinkElement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetChordLengthOfLinkElement() [1/2]

double BDSIMLink::GetChordLengthOfLinkElement ( const std::string & elementName )

Access the length of a component. If bad name or ID given, -1 will be returned.

Definition at line 468 of file BDSIMLink.cc.

References GetChordLengthOfLinkElement(), and GetLinkIndex().

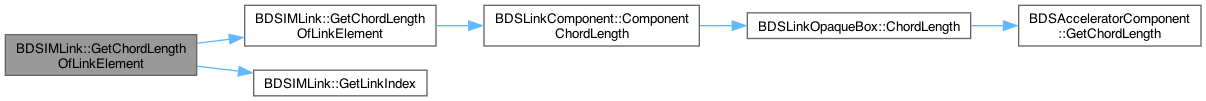

Here is the call graph for this function:

◆ GetChordLengthOfLinkElement() [2/2]

double BDSIMLink::GetChordLengthOfLinkElement ( int beamlineIndex ) const

Access the length of a component. If bad name or ID given, -1 will be returned.

Definition at line 460 of file BDSIMLink.cc.

References BDSLinkComponent::ComponentChordLength().

Referenced by GetChordLengthOfLinkElement().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ GetCurrentMaximumSixTrackParticleID()

int BDSIMLink::GetCurrentMaximumSixTrackParticleID ( ) const

Definition at line 560 of file BDSIMLink.cc.

◆ GetLinkComponent()

const BDSLinkComponent * BDSIMLink::GetLinkComponent ( int linkID ) const

Definition at line 448 of file BDSIMLink.cc.

◆ GetLinkIndex()

int BDSIMLink::GetLinkIndex ( const std::string & elementName ) const

Get the internal index of a component by name.

Definition at line 439 of file BDSIMLink.cc.

Referenced by GetArcLengthOfLinkElement(), and GetChordLengthOfLinkElement().

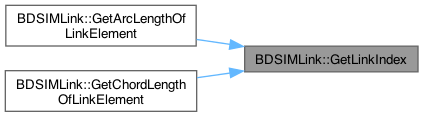

Here is the caller graph for this function:

◆ InitialisationResult()

int BDSIMLink::InitialisationResult ( ) const

inline

Definition at line 81 of file BDSIMLink.hh.

◆ Initialise() [1/2]

int BDSIMLink::Initialise	(	double	minimumKineticEnergy = `0`,
		bool	protonsAndIonsOnly = `true`
	)

private

The main function where everything is constructed.

Initialize executable command line options reader object

Parse lattice file

Update options generated by parser with those from executable options.

Check options for consistency

Explicitly initialise materials to construct required materials before global constants.

No longer needed. Everything can safely use BDSGlobalConstants from now on.

Force construction of global constants after parser has been initialised (requires materials first). This uses the options and beam from BDSParser. Non-const as we'll update the particle definition.

Initialize random number generator

Construct output

Check geant4 exists in the current environment

Construct mandatory run manager (the G4 kernel) and register mandatory initialization classes.

Register the geometry and parallel world construction methods with run manager.

Here the geometry isn't actually constructed - this is called by the runManager->Initialize()

Instantiate the specific type of bunch distribution.

We no longer need beamParticle so delete it to avoid confusion. The definition is held inside bdsBunch (can be updated dynamically).

Print the geometry tolerance

Set user action classes

Initialize G4 kernel

Implement bias operations on all volumes only after G4RunManager::Initialize()

Set verbosity levels at run and G4 event level. Per event and stepping are controlled in event, tracking and stepping action. These have to be done here due to the order of construction in Geant4.

Close the geometry in preparation for running - everything is now fixed.

Definition at line 124 of file BDSIMLink.cc.

References BDSParser::AmalgamateBeam(), BDSParser::AmalgamateOptions(), argcCache, argvCache, bdsBunch, bdsOutput, BDSExecOptions::Beam(), BDS::BuildPhysics(), BDSParser::CheckOptions(), BDS::ConstructAndRegisterParallelWorlds(), BDS::ConstructDesignAndBeamParticle(), construction, BDS::ConstructParallelWorldPhysics(), BDSBunchFactory::CreateBunch(), BDSOutputFactory::CreateOutput(), currentElementIndex, GMAD::BeamBase::distrType, BDSGeometryWriter::ExportGeometry(), BDS::Geant4EnvironmentIsSet(), BDSParser::GetBeam(), BDSParser::GetOptions(), BDSExecOptions::IgnoreSIGINT(), ignoreSIGINT, initialised, BDSOutput::InitialiseGeometryDependent(), BDSExecOptions::InputFileName(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), BDSParser::Instance(), BDSParticleDefinition::Name(), BDSOutput::NewFile(), BDSExecOptions::Options(), parser, BDSBunch::ParticleDefinition(), GMAD::OptionsBase::physicsList, BDSMaterials::PrepareRequiredMaterials(), BDSExecOptions::Print(), BDSExecOptions::PrintCopyright(), BDS::PrintDefinedParticles(), BDS::PrintPrimaryParticleProcesses(), GMAD::OptionsBase::recreate, BDS::RegisterSamplerPhysics(), runAction, runManager, BDSLinkDetectorConstruction::SetDesignParticle(), BDSBunch::SetOptions(), userPhysicsList, usualPrintOut, GMAD::OptionsBase::verbose, and BDS::VerboseEventStop().

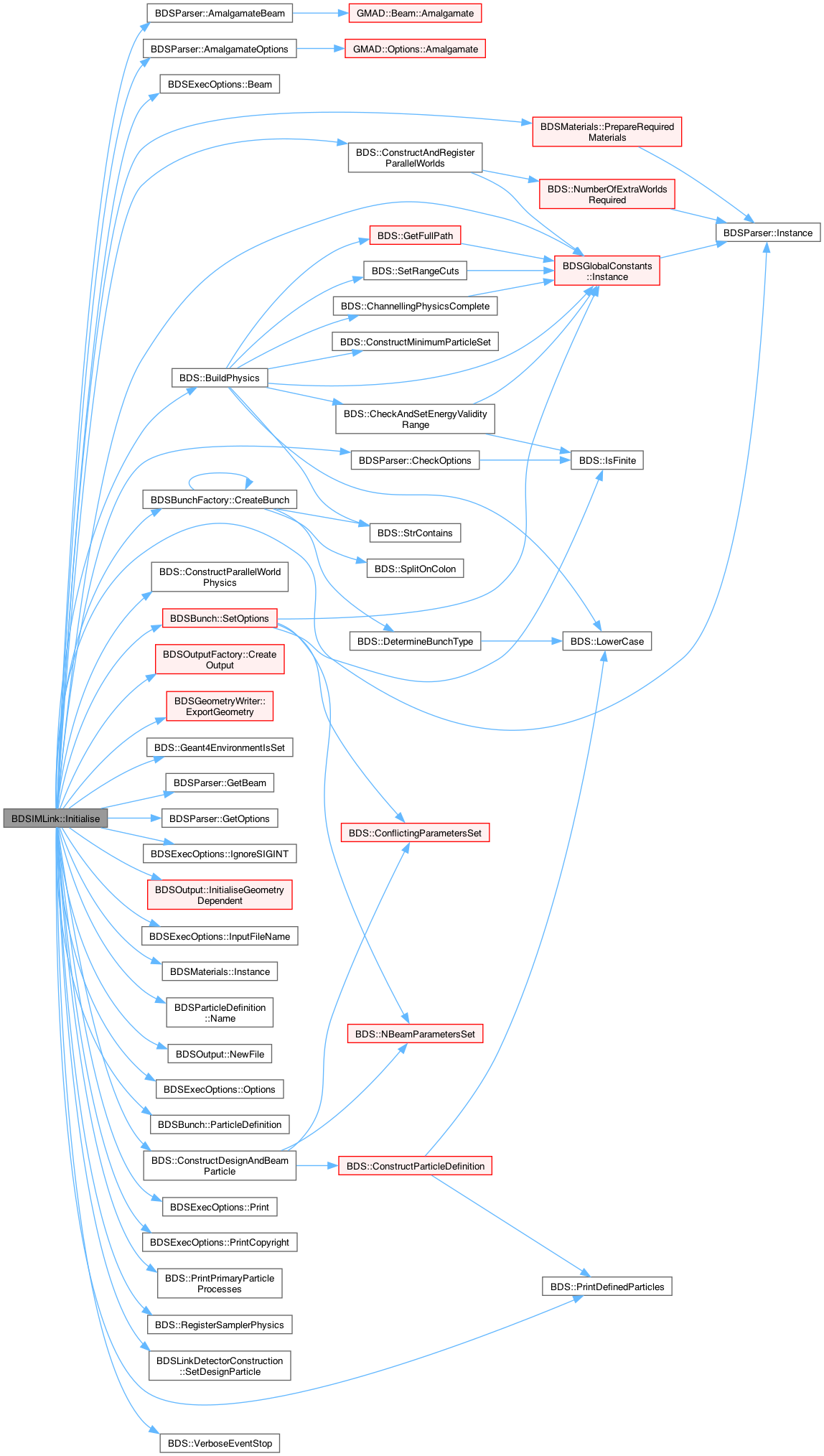

Here is the call graph for this function:

◆ Initialise() [2/2]

int BDSIMLink::Initialise	(	int	argc,
		char **	argv,
		bool	usualPrintOut = `true`,
		double	minimumKineticEnergy = `0`,
		bool	protonsAndIonsOnly = `true`
	)

Initialise everything given these arguments. The minimumKinetic energy should be in GeV.

Definition at line 111 of file BDSIMLink.cc.

References argcCache, argvCache, initialisationResult, Initialise(), and usualPrintOut.

Referenced by BDSIMLink(), and Initialise().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialised()

bool BDSIMLink::Initialised ( ) const

inline

Accessor as to whether BDSIM kernel is initialised - ie all geometry and physics constructed.

Definition at line 79 of file BDSIMLink.hh.

References initialised.

◆ NPrimariesToReturn()

G4int BDSIMLink::NPrimariesToReturn ( ) const

inline

Definition at line 115 of file BDSIMLink.hh.

◆ NSecondariesToReturn()

G4int BDSIMLink::NSecondariesToReturn ( ) const

inline

Definition at line 114 of file BDSIMLink.hh.

◆ RegisterUserPhysicsList()

void BDSIMLink::RegisterUserPhysicsList ( G4VModularPhysicsList * userPhysicsListIn )

inline

Provide a physics list that will be used inplace of the BDSIM generate one.

Definition at line 129 of file BDSIMLink.hh.

References userPhysicsList.

◆ SamplerHits()

BDSHitsCollectionSamplerLink * BDSIMLink::SamplerHits ( ) const

Definition at line 555 of file BDSIMLink.cc.

◆ SetCurrentMaximumExternalParticleID()

void BDSIMLink::SetCurrentMaximumExternalParticleID ( int currentMaximumExternalParticleID )

Definition at line 565 of file BDSIMLink.cc.

◆ UserPhysicsList()

G4VModularPhysicsList * BDSIMLink::UserPhysicsList ( ) const

inline

Access user physics list.

Definition at line 130 of file BDSIMLink.hh.

References userPhysicsList.

Field Documentation

◆ argcCache

int BDSIMLink::argcCache

private

Cache of argc.

Definition at line 141 of file BDSIMLink.hh.

Referenced by BeamOn(), and Initialise().

◆ argvCache

char** BDSIMLink::argvCache

private

Cache of argv.

Definition at line 142 of file BDSIMLink.hh.

Referenced by BeamOn(), and Initialise().

◆ bdsBunch

BDSBunch* BDSIMLink::bdsBunch

private

Cache of main object in BDSIM.

Definition at line 147 of file BDSIMLink.hh.

Referenced by Initialise().

◆ bdsOutput

BDSOutput* BDSIMLink::bdsOutput

private

Cache of main object in BDSIM.

Definition at line 146 of file BDSIMLink.hh.

Referenced by AddLinkCollimatorJaw(), Initialise(), and ~BDSIMLink().

◆ construction

BDSLinkDetectorConstruction* BDSIMLink::construction

private

Cache of main object in BDSIM.

Definition at line 149 of file BDSIMLink.hh.

Referenced by AddLinkCollimatorJaw(), and Initialise().

◆ currentElementIndex

int BDSIMLink::currentElementIndex

private

Element to track in.

Definition at line 156 of file BDSIMLink.hh.

Referenced by Initialise().

◆ externalParticles

std::vector<BDSParticleExternal*> BDSIMLink::externalParticles

private

Definition at line 153 of file BDSIMLink.hh.

◆ ignoreSIGINT

bool BDSIMLink::ignoreSIGINT

private

For cmake testing.

Definition at line 137 of file BDSIMLink.hh.

Referenced by BeamOn(), and Initialise().

◆ initialisationResult

int BDSIMLink::initialisationResult

private

Possible to not finish initialisation but have completed ok - flag for this.

Definition at line 140 of file BDSIMLink.hh.

Referenced by BDSIMLink(), BeamOn(), Initialise(), and ~BDSIMLink().

◆ initialised

bool BDSIMLink::initialised

private

Whether initialisation was completed safely.

Definition at line 139 of file BDSIMLink.hh.

Referenced by BeamOn(), Initialise(), and Initialised().

◆ linkIDToBeamlineIndex

std::map<int, int> BDSIMLink::linkIDToBeamlineIndex

private

Definition at line 155 of file BDSIMLink.hh.

◆ nameToElementIndex

std::map<std::string, int> BDSIMLink::nameToElementIndex

private

Definition at line 154 of file BDSIMLink.hh.

◆ parser

BDSParser* BDSIMLink::parser

private

Cache of main object in BDSIM.

Definition at line 145 of file BDSIMLink.hh.

Referenced by Initialise(), and ~BDSIMLink().

◆ runAction

BDSLinkRunAction* BDSIMLink::runAction

private

Cache of main object in BDSIM.

Definition at line 150 of file BDSIMLink.hh.

Referenced by Initialise().

◆ runManager

G4RunManager* BDSIMLink::runManager

private

Cache of main object in BDSIM.

Definition at line 148 of file BDSIMLink.hh.

Referenced by BeamOn(), Initialise(), and ~BDSIMLink().

◆ userPhysicsList

G4VModularPhysicsList* BDSIMLink::userPhysicsList

private

Optional user registered physics list.

Definition at line 157 of file BDSIMLink.hh.

Referenced by Initialise(), RegisterUserPhysicsList(), and UserPhysicsList().

◆ usualPrintOut

bool BDSIMLink::usualPrintOut

private

Whether to allow the usual cout output.

Definition at line 138 of file BDSIMLink.hh.

Referenced by Initialise(), and ~BDSIMLink().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSIMLink.hh
/Users/lnevay/physics/reps/bdsim/src/BDSIMLink.cc

Public Member Functions

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ BDSIMLink() [1/2]

◆ BDSIMLink() [2/2]

◆ ~BDSIMLink()

Member Function Documentation

◆ AddLinkCollimatorJaw()

◆ BeamOn()

◆ ClearSamplerHits()

◆ GetArcLengthOfLinkElement() [1/2]

◆ GetArcLengthOfLinkElement() [2/2]

◆ GetChordLengthOfLinkElement() [1/2]

◆ GetChordLengthOfLinkElement() [2/2]

◆ GetCurrentMaximumSixTrackParticleID()

◆ GetLinkComponent()

◆ GetLinkIndex()

◆ InitialisationResult()

◆ Initialise() [1/2]

◆ Initialise() [2/2]

◆ Initialised()

◆ NPrimariesToReturn()

◆ NSecondariesToReturn()

◆ RegisterUserPhysicsList()

◆ SamplerHits()

◆ SetCurrentMaximumExternalParticleID()

◆ UserPhysicsList()

Field Documentation

◆ argcCache

◆ argvCache

◆ bdsBunch

◆ bdsOutput

◆ construction

◆ currentElementIndex

◆ externalParticles

◆ ignoreSIGINT

◆ initialisationResult

◆ initialised

◆ linkIDToBeamlineIndex

◆ nameToElementIndex

◆ parser

◆ runAction

◆ runManager

◆ userPhysicsList

◆ usualPrintOut
