Cubic interpolation over 4d array. More...

#include <BDSInterpolator4DCubic.hh>

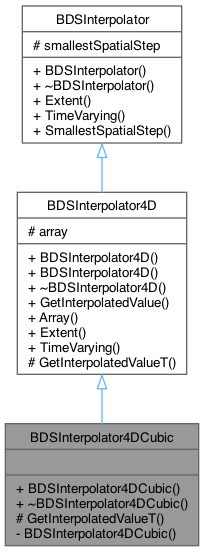

Inheritance diagram for BDSInterpolator4DCubic:

Collaboration diagram for BDSInterpolator4DCubic:

Public Member Functions
	BDSInterpolator4DCubic (BDSArray4DCoords *arrayIn)

Public Member Functions inherited from BDSInterpolator4D
	BDSInterpolator4D (BDSArray4DCoords *arrayIn)

G4ThreeVector	GetInterpolatedValue (G4double x, G4double y, G4double z, G4double t) const
	Public interface to a 4D interpolator. Returns Geant4 type as that's what will be needed.

const BDSArray4DCoords *	Array () const

virtual BDSExtent	Extent () const
	Extent of field.

virtual G4bool	TimeVarying () const

Public Member Functions inherited from BDSInterpolator
	BDSInterpolator (BDSArray4DCoords *arrayIn=nullptr)

virtual BDSExtent	Extent () const =0
	Interface each derived class must provide.

virtual G4bool	TimeVarying () const =0

G4double	SmallestSpatialStep () const

Protected Member Functions
virtual BDSFieldValue	GetInterpolatedValueT (G4double x, G4double y, G4double z, G4double t) const

virtual BDSFieldValue	GetInterpolatedValueT (G4double x, G4double y, G4double z, G4double t) const =0

Private Member Functions
	BDSInterpolator4DCubic ()=delete
	Private default constructor to force use of provided one.

Additional Inherited Members
Protected Attributes inherited from BDSInterpolator4D
BDSArray4DCoords *	array
	The field data.

Protected Attributes inherited from BDSInterpolator
G4double	smallestSpatialStep

Detailed Description

Cubic interpolation over 4d array.

Does not own array - so multiple interpolators could be used on same data.

Author: Laurie Nevay

Definition at line 37 of file BDSInterpolator4DCubic.hh.

Constructor & Destructor Documentation

◆ BDSInterpolator4DCubic()

BDSInterpolator4DCubic::BDSInterpolator4DCubic ( BDSArray4DCoords * arrayIn )

explicit

Definition at line 26 of file BDSInterpolator4DCubic.cc.

◆ ~BDSInterpolator4DCubic()

BDSInterpolator4DCubic::~BDSInterpolator4DCubic ( )

virtual

Definition at line 30 of file BDSInterpolator4DCubic.cc.

Member Function Documentation

◆ GetInterpolatedValueT()

BDSFieldValue BDSInterpolator4DCubic::GetInterpolatedValueT	(	G4double	x,
		G4double	y,
		G4double	z,
		G4double	t
	)		const

protectedvirtual

Each derived class should implement this function. Note T suffix (was templated) to distinguish it from GetInterpolatedValue which returns Geant4 types and is the main interface to should have the clean name.

Implements BDSInterpolator4D.

Definition at line 33 of file BDSInterpolator4DCubic.cc.

References BDSInterpolator4D::array, BDS::Cubic4D(), and BDSArray4DCoords::ExtractSection4x4x4x4().

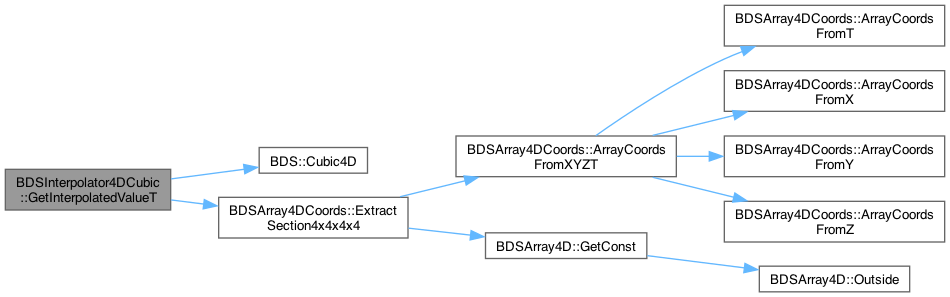

Here is the call graph for this function:

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSInterpolator4DCubic.hh
/Users/lnevay/physics/reps/bdsim/src/BDSInterpolator4DCubic.cc
