BDSLinkTrackingAction Class Reference

Action to decide whether or not to store trajectory information. More...

#include <BDSLinkTrackingAction.hh>

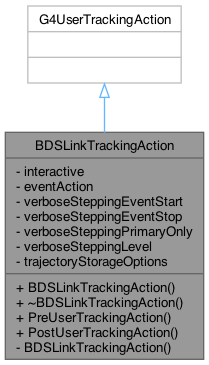

Inheritance diagram for BDSLinkTrackingAction:

Collaboration diagram for BDSLinkTrackingAction:

Public Member Functions
	BDSLinkTrackingAction (G4bool batchMode, BDSLinkEventAction *eventActionIn, G4int verboseSteppingEventStartIn, G4int verboseSteppingEventStopIn, G4bool verboseSteppingPrimaryOnlyIn, G4int verboseSteppingLevelIn)
virtual void	PreUserTrackingAction (const G4Track *track)
	Used to decide whether or not to store trajectories.
virtual void	PostUserTrackingAction (const G4Track *track)
	Detect whether track is a primary and if so whether it ended in a collimator.

Private Member Functions
	BDSLinkTrackingAction ()=delete
	No default constructor required.

Private Attributes
const G4bool	interactive
BDSLinkEventAction *	eventAction
	Cache of event action to communicate whether a primary stopped in a collimator or not.
G4int	verboseSteppingEventStart
G4int	verboseSteppingEventStop
G4bool	verboseSteppingPrimaryOnly
G4int	verboseSteppingLevel
BDS::TrajectoryOptions	trajectoryStorageOptions

Detailed Description

Action to decide whether or not to store trajectory information.

Definition at line 33 of file BDSLinkTrackingAction.hh.

Constructor & Destructor Documentation

BDSLinkTrackingAction()

BDSLinkTrackingAction::BDSLinkTrackingAction	(	G4bool	batchMode,
		BDSLinkEventAction *	eventActionIn,
		G4int	verboseSteppingEventStartIn,
		G4int	verboseSteppingEventStopIn,
		G4bool	verboseSteppingPrimaryOnlyIn,
		G4int	verboseSteppingLevelIn
	)

Definition at line 37 of file BDSLinkTrackingAction.cc.

~BDSLinkTrackingAction()

virtual BDSLinkTrackingAction::~BDSLinkTrackingAction ( )

inlinevirtual

Definition at line 43 of file BDSLinkTrackingAction.hh.

Member Function Documentation

PostUserTrackingAction()

void BDSLinkTrackingAction::PostUserTrackingAction ( const G4Track *  track )

virtual

Detect whether track is a primary and if so whether it ended in a collimator.

Definition at line 91 of file BDSLinkTrackingAction.cc.

References eventAction, BDSLinkEventAction::SetPrimaryAbsorbedInCollimator(), and BDSAcceleratorModel::VolumeSet().

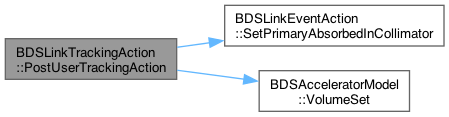

Here is the call graph for this function:

PreUserTrackingAction()

void BDSLinkTrackingAction::PreUserTrackingAction ( const G4Track *  track )

virtual

Used to decide whether or not to store trajectories.

Definition at line 53 of file BDSLinkTrackingAction.cc.

References eventAction, interactive, and BDS::VerboseThisEvent().

Here is the call graph for this function:

Field Documentation

eventAction

BDSLinkEventAction* BDSLinkTrackingAction::eventAction

private

Cache of event action to communicate whether a primary stopped in a collimator or not.

Definition at line 60 of file BDSLinkTrackingAction.hh.

Referenced by PostUserTrackingAction(), and PreUserTrackingAction().

interactive

const G4bool BDSLinkTrackingAction::interactive

private

Whether we're using the visualiser - in which case always store trajectories for visualisation.

Definition at line 57 of file BDSLinkTrackingAction.hh.

Referenced by PreUserTrackingAction().

trajectoryStorageOptions

BDS::TrajectoryOptions BDSLinkTrackingAction::trajectoryStorageOptions

private

Definition at line 66 of file BDSLinkTrackingAction.hh.

verboseSteppingEventStart

G4int BDSLinkTrackingAction::verboseSteppingEventStart

private

Definition at line 62 of file BDSLinkTrackingAction.hh.

verboseSteppingEventStop

G4int BDSLinkTrackingAction::verboseSteppingEventStop

private

Definition at line 63 of file BDSLinkTrackingAction.hh.

verboseSteppingLevel

G4int BDSLinkTrackingAction::verboseSteppingLevel

private

Definition at line 65 of file BDSLinkTrackingAction.hh.

verboseSteppingPrimaryOnly

G4bool BDSLinkTrackingAction::verboseSteppingPrimaryOnly

private

Definition at line 64 of file BDSLinkTrackingAction.hh.

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSLinkTrackingAction.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSLinkTrackingAction.cc
