BDSMagUsualEqRhs Class Reference

Override G4Mag_UsualEqRhs, provides BDSIM integrators access to particle attributes. More...

#include <BDSMagUsualEqRhs.hh>

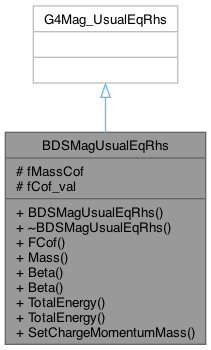

Inheritance diagram for BDSMagUsualEqRhs:

Collaboration diagram for BDSMagUsualEqRhs:

Public Member Functions
	BDSMagUsualEqRhs (G4MagneticField *MagField)
G4double	FCof () const
	Accessor to variable for normalising to charge.
G4double	Mass () const
	Accessor to particle mass.
G4double	Beta (const G4double y[6])
	Calculate particle velocity W.R.T speed of light.
G4double	Beta (const G4ThreeVector &mom)
	Calculate particle velocity W.R.T speed of light.
G4double	TotalEnergy (const G4double y[])
	Calculate total particle energy.
G4double	TotalEnergy (const G4ThreeVector &mom)
	Calculate total particle energy.
virtual void	SetChargeMomentumMass (G4ChargeState particleCharge, G4double MomentumXc, G4double particleMass)
	Copy of class method from G4Mag_UsualEqRhs.

Protected Attributes
G4double	fMassCof
	Particle mass squared.
G4double	fCof_val

Detailed Description

Override G4Mag_UsualEqRhs, provides BDSIM integrators access to particle attributes.

Author

William Shields

Definition at line 36 of file BDSMagUsualEqRhs.hh.

Constructor & Destructor Documentation

BDSMagUsualEqRhs()

BDSMagUsualEqRhs::BDSMagUsualEqRhs

(

G4MagneticField *

MagField

)

Definition at line 32 of file BDSMagUsualEqRhs.cc.

~BDSMagUsualEqRhs()

virtual BDSMagUsualEqRhs::~BDSMagUsualEqRhs ( )

inlinevirtual

Definition at line 41 of file BDSMagUsualEqRhs.hh.

Member Function Documentation

Beta() [1/2]

G4double BDSMagUsualEqRhs::Beta

(

const G4double

y[6]

)

Calculate particle velocity W.R.T speed of light.

Definition at line 49 of file BDSMagUsualEqRhs.cc.

References Beta().

Referenced by Beta().

Here is the call graph for this function:

Here is the caller graph for this function:

Beta() [2/2]

G4double BDSMagUsualEqRhs::Beta

(

const G4ThreeVector &

mom

)

Calculate particle velocity W.R.T speed of light.

Definition at line 56 of file BDSMagUsualEqRhs.cc.

References fMassCof.

FCof()

G4double BDSMagUsualEqRhs::FCof ( ) const

inline

Accessor to variable for normalising to charge.

Definition at line 44 of file BDSMagUsualEqRhs.hh.

Mass()

G4double BDSMagUsualEqRhs::Mass ( ) const

inline

Accessor to particle mass.

Definition at line 47 of file BDSMagUsualEqRhs.hh.

References fMassCof.

SetChargeMomentumMass()

void BDSMagUsualEqRhs::SetChargeMomentumMass ( G4ChargeState  particleCharge, G4double  MomentumXc, G4double  particleMass  )

virtual

Copy of class method from G4Mag_UsualEqRhs.

Definition at line 38 of file BDSMagUsualEqRhs.cc.

References fMassCof.

TotalEnergy() [1/2]

G4double BDSMagUsualEqRhs::TotalEnergy

(

const G4double

y[]

)

Calculate total particle energy.

Definition at line 64 of file BDSMagUsualEqRhs.cc.

References TotalEnergy().

Referenced by BDSIntegratorDipoleQuadrupole::Stepper(), and TotalEnergy().

Here is the call graph for this function:

Here is the caller graph for this function:

TotalEnergy() [2/2]

G4double BDSMagUsualEqRhs::TotalEnergy

(

const G4ThreeVector &

mom

)

Calculate total particle energy.

Definition at line 71 of file BDSMagUsualEqRhs.cc.

References fMassCof.

Field Documentation

fCof_val

G4double BDSMagUsualEqRhs::fCof_val

protected

Definition at line 68 of file BDSMagUsualEqRhs.hh.

fMassCof

G4double BDSMagUsualEqRhs::fMassCof

protected

Particle mass squared.

Definition at line 67 of file BDSMagUsualEqRhs.hh.

Referenced by Beta(), Mass(), SetChargeMomentumMass(), and TotalEnergy().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSMagUsualEqRhs.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSMagUsualEqRhs.cc
