BDSModulatorSinT Class Reference

Sinusoidal modulator as a function of global time. More...

#include <BDSModulatorSinT.hh>

Inheritance diagram for BDSModulatorSinT:

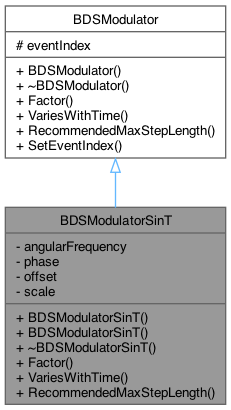

Collaboration diagram for BDSModulatorSinT:

Public Member Functions
	BDSModulatorSinT (G4double frequencyIn, G4double phaseIn=0, G4double amplitudeOffsetIn=0, G4double amplitudeScaleIn=1.0)
virtual G4double	Factor (const G4ThreeVector &xyz, G4double T) const
	Returns value of equation in brief at the top of this file.
virtual G4bool	VariesWithTime () const
	Each derived class should override this.
virtual G4double	RecommendedMaxStepLength () const
	Return the wavlength / 20 of the oscillator.
virtual G4double	Factor (const G4ThreeVector &xyz, G4double T) const =0
virtual G4bool	VariesWithTime () const =0
	Each derived class should override this.
virtual G4double	RecommendedMaxStepLength () const =0
	Must return the smallest spatial.

Private Attributes
G4double	angularFrequency
G4double	phase
G4double	offset
G4double	scale

Additional Inherited Members
Static Public Member Functions inherited from BDSModulator
static void	SetEventIndex (G4int eventIndexIn)
	Setter for the static counter so we can trace where it's used.
Static Protected Attributes inherited from BDSModulator
static G4int	eventIndex = 0

Detailed Description

Sinusoidal modulator as a function of global time.

factor = offset + scale * sin(2pi*frequency*T + phase)

Author

Fabian Metzger

Definition at line 33 of file BDSModulatorSinT.hh.

Constructor & Destructor Documentation

BDSModulatorSinT()

BDSModulatorSinT::BDSModulatorSinT ( G4double  frequencyIn, G4double  phaseIn = 0, G4double  amplitudeOffsetIn = 0, G4double  amplitudeScaleIn = 1.0  )

explicit

Definition at line 29 of file BDSModulatorSinT.cc.

Member Function Documentation

Factor()

G4double BDSModulatorSinT::Factor ( const G4ThreeVector &  xyz, G4double  T  ) const

virtual

Returns value of equation in brief at the top of this file.

Implements BDSModulator.

Definition at line 42 of file BDSModulatorSinT.cc.

RecommendedMaxStepLength()

G4double BDSModulatorSinT::RecommendedMaxStepLength ( ) const

virtual

Return the wavlength / 20 of the oscillator.

Implements BDSModulator.

Definition at line 49 of file BDSModulatorSinT.cc.

VariesWithTime()

virtual G4bool BDSModulatorSinT::VariesWithTime ( ) const

inlinevirtual

Each derived class should override this.

Implements BDSModulator.

Definition at line 47 of file BDSModulatorSinT.hh.

Field Documentation

angularFrequency

G4double BDSModulatorSinT::angularFrequency

private

Definition at line 53 of file BDSModulatorSinT.hh.

offset

G4double BDSModulatorSinT::offset

private

Definition at line 55 of file BDSModulatorSinT.hh.

phase

G4double BDSModulatorSinT::phase

private

Definition at line 54 of file BDSModulatorSinT.hh.

scale

G4double BDSModulatorSinT::scale

private

Definition at line 56 of file BDSModulatorSinT.hh.

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSModulatorSinT.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSModulatorSinT.cc
