BDSOutputROOTEventCoords Class Reference

A set of coordinates. More...

#include <BDSOutputROOTEventCoords.hh>

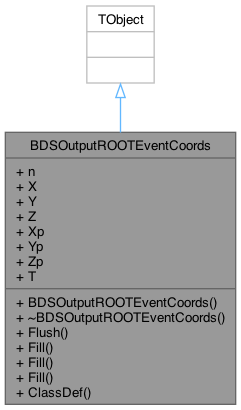

Inheritance diagram for BDSOutputROOTEventCoords:

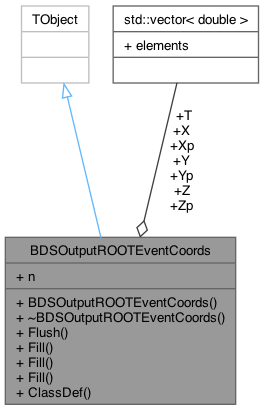

Collaboration diagram for BDSOutputROOTEventCoords:

Public Member Functions
virtual void	Flush ()
void	Fill (const BDSOutputROOTEventCoords *other)
	Fill from another instance.
void	Fill (const BDSParticleCoords &coords)
void	Fill (const BDSPrimaryVertexInformationV *vertexInfos)
	ClassDef (BDSOutputROOTEventCoords, 3)

Data Fields
int	n
std::vector< double >	X
std::vector< double >	Y
std::vector< double >	Z
std::vector< double >	Xp
std::vector< double >	Yp
std::vector< double >	Zp
std::vector< double >	T

Detailed Description

A set of coordinates.

Author

Laurie Nevay

Definition at line 38 of file BDSOutputROOTEventCoords.hh.

Constructor & Destructor Documentation

~BDSOutputROOTEventCoords()

BDSOutputROOTEventCoords::~BDSOutputROOTEventCoords ( )

virtual

Definition at line 32 of file BDSOutputROOTEventCoords.cc.

Member Function Documentation

Fill() [1/3]

void BDSOutputROOTEventCoords::Fill

(

const BDSOutputROOTEventCoords *

other

)

Fill from another instance.

Definition at line 68 of file BDSOutputROOTEventCoords.cc.

Referenced by Event::Fill(), BDSOutput::FillEventPrimaryOnly(), and BDSOutput::FillPrimary().

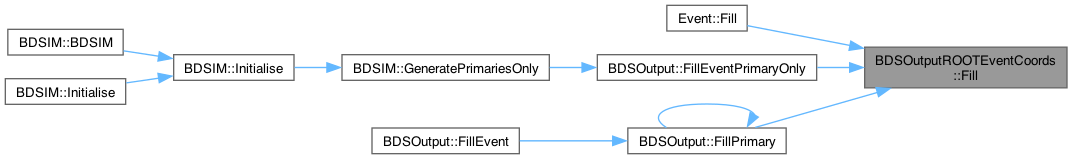

Here is the caller graph for this function:

Fill() [2/3]

void BDSOutputROOTEventCoords::Fill

(

const BDSParticleCoords &

coords

)

Definition at line 48 of file BDSOutputROOTEventCoords.cc.

Fill() [3/3]

void BDSOutputROOTEventCoords::Fill

(

const BDSPrimaryVertexInformationV *

vertexInfos

)

Definition at line 60 of file BDSOutputROOTEventCoords.cc.

Flush()

void BDSOutputROOTEventCoords::Flush ( )

virtual

Definition at line 35 of file BDSOutputROOTEventCoords.cc.

Field Documentation

n

int BDSOutputROOTEventCoords::n

Definition at line 49 of file BDSOutputROOTEventCoords.hh.

T

std::vector<double> BDSOutputROOTEventCoords::T

Definition at line 56 of file BDSOutputROOTEventCoords.hh.

X

std::vector<double> BDSOutputROOTEventCoords::X

Definition at line 50 of file BDSOutputROOTEventCoords.hh.

Xp

std::vector<double> BDSOutputROOTEventCoords::Xp

Definition at line 53 of file BDSOutputROOTEventCoords.hh.

Y

std::vector<double> BDSOutputROOTEventCoords::Y

Definition at line 51 of file BDSOutputROOTEventCoords.hh.

Yp

std::vector<double> BDSOutputROOTEventCoords::Yp

Definition at line 54 of file BDSOutputROOTEventCoords.hh.

Z

std::vector<double> BDSOutputROOTEventCoords::Z

Definition at line 52 of file BDSOutputROOTEventCoords.hh.

Zp

std::vector<double> BDSOutputROOTEventCoords::Zp

Definition at line 55 of file BDSOutputROOTEventCoords.hh.

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSOutputROOTEventCoords.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSOutputROOTEventCoords.cc
