Information pertaining to an individual event. More...

#include <BDSOutputROOTEventInfo.hh>

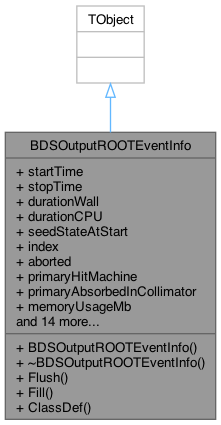

Inheritance diagram for BDSOutputROOTEventInfo:

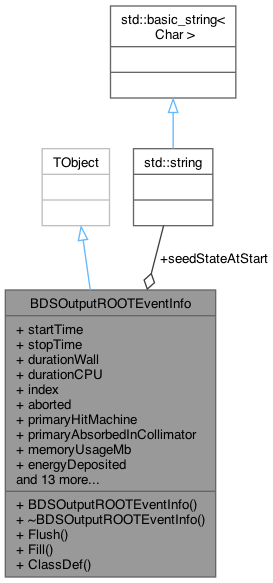

Collaboration diagram for BDSOutputROOTEventInfo:

Public Member Functions
void	Flush ()

void	Fill (const BDSOutputROOTEventInfo *other)
	Fill from another instance.

	ClassDef (BDSOutputROOTEventInfo, 7)

Data Fields
time_t	startTime
	Time stamp at start of event.

time_t	stopTime
	Time stamp at end of event.

float	durationWall
	Number of seconds event took (wall time) to complete simulation (not writing out).

float	durationCPU
	Number of seconds event took (CPU time).

std::string	seedStateAtStart
	Seed state at the start of the event.

int	index
	Number of this event or run.

bool	aborted
	Whether the event was aborted or not.

bool	primaryHitMachine
	Whether the primary particle hit the accelerator or not.

bool	primaryAbsorbedInCollimator
	Whether the primary stopped in a collimator.

double	memoryUsageMb
	Memory usage (rusage.ru_maxrss).

double	energyDeposited
	Total energy deposited in machine (not world or tunnel).

double	energyDepositedVacuum
	Total energy deposited in vacuum volumes.

double	energyDepositedWorld
	Total energy deposited in the world for this event.

double	energyDepositedWorldContents
	Total energy deposited in the world contents for this event.

double	energyDepositedTunnel
	Total energy deposited in the tunnel for this event.

double	energyWorldExit
	Total energy leaving the world.

double	energyWorldExitKinetic
	Total kinetic energy leaving the world.

double	energyImpactingAperture
	Total energy impacting the aperture.

double	energyImpactingApertureKinetic
	Total kinetic energy impacting the aperture.

double	energyKilled
	Total energy of killed particles that weren't in a sensitive volume.

double	energyTotal
	Sum of above 5 variables that totals all energy.

int	nCollimatorsInteracted
	Number of collimators primary interacted with.

long long int	nTracks
	Number of tracks in the event.

int	bunchIndex
	Bunch index for this event.

Detailed Description

Information pertaining to an individual event.

Author: Stewart Boogert

Definition at line 34 of file BDSOutputROOTEventInfo.hh.

Constructor & Destructor Documentation

◆ ~BDSOutputROOTEventInfo()

BDSOutputROOTEventInfo::~BDSOutputROOTEventInfo ( )

virtual

Definition at line 51 of file BDSOutputROOTEventInfo.cc.

Member Function Documentation

◆ Fill()

void BDSOutputROOTEventInfo::Fill ( const BDSOutputROOTEventInfo * other )

Fill from another instance.

Definition at line 82 of file BDSOutputROOTEventInfo.cc.

References aborted, bunchIndex, durationCPU, durationWall, energyDeposited, energyDepositedTunnel, energyDepositedVacuum, energyDepositedWorld, energyDepositedWorldContents, energyImpactingAperture, energyImpactingApertureKinetic, energyKilled, energyTotal, energyWorldExit, energyWorldExitKinetic, index, memoryUsageMb, nCollimatorsInteracted, nTracks, primaryAbsorbedInCollimator, primaryHitMachine, seedStateAtStart, startTime, and stopTime.

Referenced by Event::Fill().

Here is the caller graph for this function:

◆ Flush()

void BDSOutputROOTEventInfo::Flush ( )

Definition at line 54 of file BDSOutputROOTEventInfo.cc.

Field Documentation

◆ aborted

bool BDSOutputROOTEventInfo::aborted

Whether the event was aborted or not.

Definition at line 43 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetAborted().

◆ bunchIndex

int BDSOutputROOTEventInfo::bunchIndex

Bunch index for this event.

Definition at line 60 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetBunchIndex().

◆ durationCPU

float BDSOutputROOTEventInfo::durationCPU

Number of seconds event took (CPU time).

Definition at line 40 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetDurationCPU().

◆ durationWall

float BDSOutputROOTEventInfo::durationWall

Number of seconds event took (wall time) to complete simulation (not writing out).

Definition at line 39 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetDurationWall().

◆ energyDeposited

double BDSOutputROOTEventInfo::energyDeposited

Total energy deposited in machine (not world or tunnel).

Definition at line 47 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyDepositedTunnel

double BDSOutputROOTEventInfo::energyDepositedTunnel

Total energy deposited in the tunnel for this event.

Definition at line 51 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyDepositedVacuum

double BDSOutputROOTEventInfo::energyDepositedVacuum

Total energy deposited in vacuum volumes.

Definition at line 48 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyDepositedWorld

double BDSOutputROOTEventInfo::energyDepositedWorld

Total energy deposited in the world for this event.

Definition at line 49 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyDepositedWorldContents

double BDSOutputROOTEventInfo::energyDepositedWorldContents

Total energy deposited in the world contents for this event.

Definition at line 50 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyImpactingAperture

double BDSOutputROOTEventInfo::energyImpactingAperture

Total energy impacting the aperture.

Definition at line 54 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyImpactingApertureKinetic

double BDSOutputROOTEventInfo::energyImpactingApertureKinetic

Total kinetic energy impacting the aperture.

Definition at line 55 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyKilled

double BDSOutputROOTEventInfo::energyKilled

Total energy of killed particles that weren't in a sensitive volume.

Definition at line 56 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyTotal

double BDSOutputROOTEventInfo::energyTotal

Sum of above 5 variables that totals all energy.

Definition at line 57 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyWorldExit

double BDSOutputROOTEventInfo::energyWorldExit

Total energy leaving the world.

Definition at line 52 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ energyWorldExitKinetic

double BDSOutputROOTEventInfo::energyWorldExitKinetic

Total kinetic energy leaving the world.

Definition at line 53 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ index

int BDSOutputROOTEventInfo::index

Number of this event or run.

Definition at line 42 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetIndex().

◆ memoryUsageMb

double BDSOutputROOTEventInfo::memoryUsageMb

Memory usage (rusage.ru_maxrss).

Definition at line 46 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetMemoryUsage().

◆ nCollimatorsInteracted

int BDSOutputROOTEventInfo::nCollimatorsInteracted

Number of collimators primary interacted with.

Definition at line 58 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSOutput::FillEventInfo().

◆ nTracks

long long int BDSOutputROOTEventInfo::nTracks

Number of tracks in the event.

Definition at line 59 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetNTracks().

◆ primaryAbsorbedInCollimator

bool BDSOutputROOTEventInfo::primaryAbsorbedInCollimator

Whether the primary stopped in a collimator.

Definition at line 45 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetPrimaryAbsorbedInCollimator().

◆ primaryHitMachine

bool BDSOutputROOTEventInfo::primaryHitMachine

Whether the primary particle hit the accelerator or not.

Definition at line 44 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetPrimaryHitMachine().

◆ seedStateAtStart

std::string BDSOutputROOTEventInfo::seedStateAtStart

Seed state at the start of the event.

Definition at line 41 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), BDSOutputLoader::SeedState(), and BDSEventInfo::SetSeedStateAtStart().

◆ startTime

time_t BDSOutputROOTEventInfo::startTime

Time stamp at start of event.

Definition at line 37 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetStartTime().

◆ stopTime

time_t BDSOutputROOTEventInfo::stopTime

Time stamp at end of event.

Definition at line 38 of file BDSOutputROOTEventInfo.hh.

Referenced by Fill(), and BDSEventInfo::SetStopTime().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSOutputROOTEventInfo.hh
/Users/lnevay/physics/reps/bdsim/src/BDSOutputROOTEventInfo.cc
