BDSOutputROOTEventSamplerC Class Reference

Information stored per cylindrical sampler per event. More...

#include <BDSOutputROOTEventSamplerC.hh>

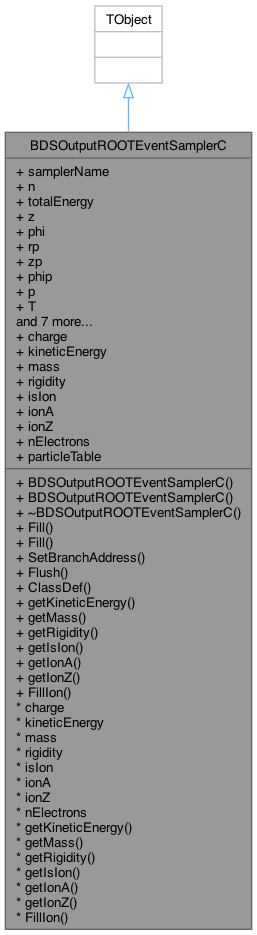

Inheritance diagram for BDSOutputROOTEventSamplerC:

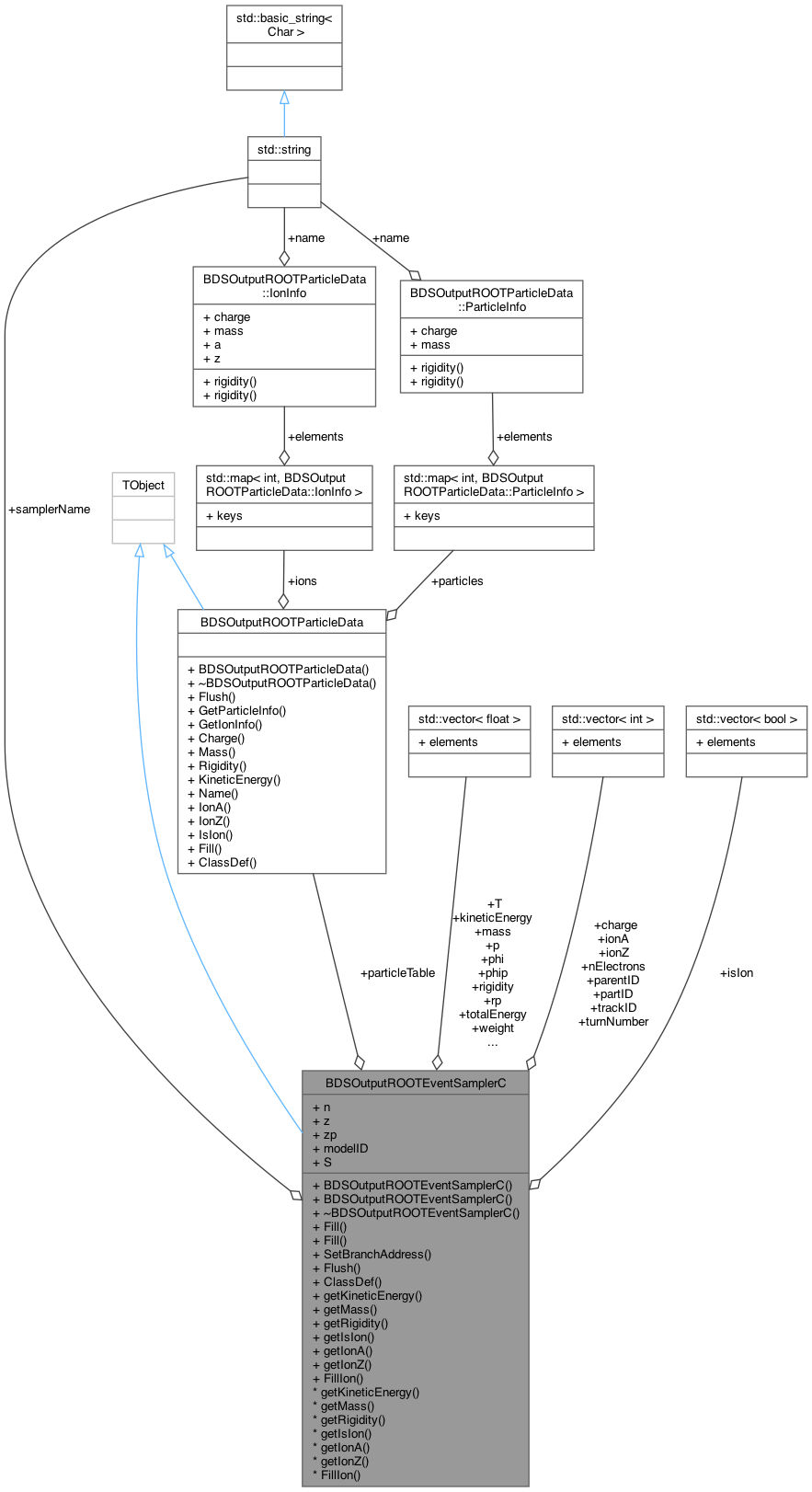

Collaboration diagram for BDSOutputROOTEventSamplerC:

Public Member Functions
	BDSOutputROOTEventSamplerC (const std::string &samplerNameIn)
void	Fill (const BDSHitSamplerCylinder *hit, G4bool storeMass=false, G4bool storeCharge=false, G4bool storeElectrons=false, G4bool storeRigidity=false, G4bool storeKineticEnergy=false)
void	Fill (const BDSOutputROOTEventSamplerC *other)
void	SetBranchAddress (TTree *)
virtual void	Flush ()
	Clean Sampler.
	ClassDef (BDSOutputROOTEventSamplerC, 1)
std::vector< float >	getKineticEnergy ()
	Function to calculate on the fly the parameters.
std::vector< float >	getMass ()
	Function to calculate on the fly the parameters.
std::vector< float >	getRigidity ()
	Function to calculate on the fly the parameters.
std::vector< bool >	getIsIon ()
	Function to calculate on the fly the parameters.
std::vector< int >	getIonA ()
	Function to calculate on the fly the parameters.
std::vector< int >	getIonZ ()
	Function to calculate on the fly the parameters.
void	FillIon ()
	Calculate and fill calculated variables.

Data Fields
std::string	samplerName
int	n
std::vector< float >	totalEnergy
std::vector< float >	z
std::vector< float >	phi
std::vector< float >	rp
std::vector< float >	zp
std::vector< float >	phip
std::vector< float >	p
std::vector< float >	T
std::vector< float >	weight
std::vector< int >	partID
std::vector< int >	parentID
std::vector< int >	trackID
int	modelID
std::vector< int >	turnNumber
float	S
std::vector< int >	charge
	These are not filled by default.
std::vector< float >	kineticEnergy
	These are not filled by default.
std::vector< float >	mass
	These are not filled by default.
std::vector< float >	rigidity
	These are not filled by default.
std::vector< bool >	isIon
	These are not filled by default.
std::vector< int >	ionA
	These are not filled by default.
std::vector< int >	ionZ
	These are not filled by default.
std::vector< int >	nElectrons
	These are not filled by default.

Static Public Attributes
static BDSOutputROOTParticleData *	particleTable = nullptr

Detailed Description

Information stored per cylindrical sampler per event.

Author

Laurie Nevay

Definition at line 44 of file BDSOutputROOTEventSamplerC.hh.

Constructor & Destructor Documentation

BDSOutputROOTEventSamplerC()

BDSOutputROOTEventSamplerC::BDSOutputROOTEventSamplerC ( const std::string &  samplerNameIn )

explicit

Definition at line 47 of file BDSOutputROOTEventSamplerC.cc.

~BDSOutputROOTEventSamplerC()

BDSOutputROOTEventSamplerC::~BDSOutputROOTEventSamplerC ( )

virtual

Definition at line 53 of file BDSOutputROOTEventSamplerC.cc.

Member Function Documentation

Fill() [1/2]

void BDSOutputROOTEventSamplerC::Fill	(	const BDSHitSamplerCylinder *	hit,
		G4bool	storeMass = false,
		G4bool	storeCharge = false,
		G4bool	storeElectrons = false,
		G4bool	storeRigidity = false,
		G4bool	storeKineticEnergy = false
	)

Definition at line 57 of file BDSOutputROOTEventSamplerC.cc.

Fill() [2/2]

void BDSOutputROOTEventSamplerC::Fill

(

const BDSOutputROOTEventSamplerC *

other

)

Definition at line 102 of file BDSOutputROOTEventSamplerC.cc.

FillIon()

void BDSOutputROOTEventSamplerC::FillIon ( )

inline

Calculate and fill calculated variables.

Definition at line 102 of file BDSOutputROOTEventSamplerC.hh.

References getIonA(), getIonZ(), getIsIon(), ionA, ionZ, and isIon.

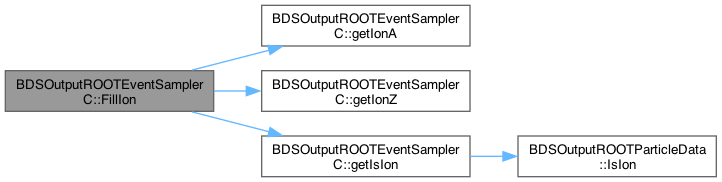

Here is the call graph for this function:

Flush()

void BDSOutputROOTEventSamplerC::Flush ( )

virtual

Clean Sampler.

Definition at line 138 of file BDSOutputROOTEventSamplerC.cc.

References charge, ionA, ionZ, isIon, kineticEnergy, mass, nElectrons, and rigidity.

getIonA()

std::vector< int > BDSOutputROOTEventSamplerC::getIonA

(

)

Function to calculate on the fly the parameters.

Definition at line 213 of file BDSOutputROOTEventSamplerC.cc.

Referenced by FillIon().

Here is the caller graph for this function:

getIonZ()

std::vector< int > BDSOutputROOTEventSamplerC::getIonZ

(

)

Function to calculate on the fly the parameters.

Definition at line 223 of file BDSOutputROOTEventSamplerC.cc.

Referenced by FillIon().

Here is the caller graph for this function:

getIsIon()

std::vector< bool > BDSOutputROOTEventSamplerC::getIsIon

(

)

Function to calculate on the fly the parameters.

Definition at line 198 of file BDSOutputROOTEventSamplerC.cc.

References BDSOutputROOTParticleData::IsIon(), and nElectrons.

Referenced by FillIon().

Here is the call graph for this function:

Here is the caller graph for this function:

getKineticEnergy()

std::vector< float > BDSOutputROOTEventSamplerC::getKineticEnergy

(

)

Function to calculate on the fly the parameters.

Definition at line 168 of file BDSOutputROOTEventSamplerC.cc.

References BDSOutputROOTParticleData::KineticEnergy().

Here is the call graph for this function:

getMass()

std::vector< float > BDSOutputROOTEventSamplerC::getMass

(

)

Function to calculate on the fly the parameters.

Definition at line 178 of file BDSOutputROOTEventSamplerC.cc.

getRigidity()

std::vector< float > BDSOutputROOTEventSamplerC::getRigidity

(

)

Function to calculate on the fly the parameters.

Definition at line 188 of file BDSOutputROOTEventSamplerC.cc.

References BDSOutputROOTParticleData::Rigidity().

Here is the call graph for this function:

SetBranchAddress()

void BDSOutputROOTEventSamplerC::SetBranchAddress

(

TTree *

)

Definition at line 135 of file BDSOutputROOTEventSamplerC.cc.

Field Documentation

charge

std::vector<int> BDSOutputROOTEventSamplerC::charge

These are not filled by default.

Definition at line 69 of file BDSOutputROOTEventSamplerC.hh.

Referenced by Flush().

ionA

std::vector<int> BDSOutputROOTEventSamplerC::ionA

These are not filled by default.

Definition at line 74 of file BDSOutputROOTEventSamplerC.hh.

Referenced by FillIon(), and Flush().

ionZ

std::vector<int> BDSOutputROOTEventSamplerC::ionZ

These are not filled by default.

Definition at line 75 of file BDSOutputROOTEventSamplerC.hh.

Referenced by FillIon(), and Flush().

isIon

std::vector<bool> BDSOutputROOTEventSamplerC::isIon

These are not filled by default.

Definition at line 73 of file BDSOutputROOTEventSamplerC.hh.

Referenced by FillIon(), and Flush().

kineticEnergy

std::vector<float> BDSOutputROOTEventSamplerC::kineticEnergy

These are not filled by default.

Definition at line 70 of file BDSOutputROOTEventSamplerC.hh.

Referenced by Flush().

mass

std::vector<float> BDSOutputROOTEventSamplerC::mass

These are not filled by default.

Definition at line 71 of file BDSOutputROOTEventSamplerC.hh.

Referenced by Flush().

modelID

int BDSOutputROOTEventSamplerC::modelID

Definition at line 63 of file BDSOutputROOTEventSamplerC.hh.

n

int BDSOutputROOTEventSamplerC::n

Definition at line 49 of file BDSOutputROOTEventSamplerC.hh.

nElectrons

std::vector<int> BDSOutputROOTEventSamplerC::nElectrons

These are not filled by default.

Definition at line 76 of file BDSOutputROOTEventSamplerC.hh.

Referenced by Flush(), and getIsIon().

p

std::vector<float> BDSOutputROOTEventSamplerC::p

Definition at line 56 of file BDSOutputROOTEventSamplerC.hh.

parentID

std::vector<int> BDSOutputROOTEventSamplerC::parentID

Definition at line 61 of file BDSOutputROOTEventSamplerC.hh.

particleTable

BDSOutputROOTParticleData * BDSOutputROOTEventSamplerC::particleTable = nullptr

static

Definition at line 108 of file BDSOutputROOTEventSamplerC.hh.

partID

std::vector<int> BDSOutputROOTEventSamplerC::partID

Definition at line 60 of file BDSOutputROOTEventSamplerC.hh.

phi

std::vector<float> BDSOutputROOTEventSamplerC::phi

Definition at line 52 of file BDSOutputROOTEventSamplerC.hh.

phip

std::vector<float> BDSOutputROOTEventSamplerC::phip

Definition at line 55 of file BDSOutputROOTEventSamplerC.hh.

rigidity

std::vector<float> BDSOutputROOTEventSamplerC::rigidity

These are not filled by default.

Definition at line 72 of file BDSOutputROOTEventSamplerC.hh.

Referenced by Flush().

rp

std::vector<float> BDSOutputROOTEventSamplerC::rp

Definition at line 53 of file BDSOutputROOTEventSamplerC.hh.

S

float BDSOutputROOTEventSamplerC::S

Definition at line 66 of file BDSOutputROOTEventSamplerC.hh.

samplerName

std::string BDSOutputROOTEventSamplerC::samplerName

Definition at line 47 of file BDSOutputROOTEventSamplerC.hh.

T

std::vector<float> BDSOutputROOTEventSamplerC::T

Definition at line 57 of file BDSOutputROOTEventSamplerC.hh.

totalEnergy

std::vector<float> BDSOutputROOTEventSamplerC::totalEnergy

Definition at line 50 of file BDSOutputROOTEventSamplerC.hh.

trackID

std::vector<int> BDSOutputROOTEventSamplerC::trackID

Definition at line 62 of file BDSOutputROOTEventSamplerC.hh.

turnNumber

std::vector<int> BDSOutputROOTEventSamplerC::turnNumber

Definition at line 64 of file BDSOutputROOTEventSamplerC.hh.

weight

std::vector<float> BDSOutputROOTEventSamplerC::weight

Definition at line 59 of file BDSOutputROOTEventSamplerC.hh.

z

std::vector<float> BDSOutputROOTEventSamplerC::z

Definition at line 51 of file BDSOutputROOTEventSamplerC.hh.

zp

std::vector<float> BDSOutputROOTEventSamplerC::zp

Definition at line 54 of file BDSOutputROOTEventSamplerC.hh.

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSOutputROOTEventSamplerC.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSOutputROOTEventSamplerC.cc
