A parallel world for curvilinear coordinates. More...

#include <BDSParallelWorldCurvilinear.hh>

Inheritance diagram for BDSParallelWorldCurvilinear:

Collaboration diagram for BDSParallelWorldCurvilinear:

Public Member Functions
	BDSParallelWorldCurvilinear ()=delete
	No default constructor.

	BDSParallelWorldCurvilinear (const G4String &name)
	Constructor with name of sequence this world is for.

virtual void	Construct ()

Private Attributes
G4String	suffix
	Just the input part of the name.

G4VisAttributes *	clWorldVis
	Visualisation attributes for the world volume.

Detailed Description

A parallel world for curvilinear coordinates.

The world isn't used in the main (bdsim.cc) with a parallel world physics process so the boundaries in this world don't affect tracking.

Author: Laurie Nevay

Definition at line 36 of file BDSParallelWorldCurvilinear.hh.

Constructor & Destructor Documentation

◆ BDSParallelWorldCurvilinear()

BDSParallelWorldCurvilinear::BDSParallelWorldCurvilinear ( const G4String & name )

explicit

Constructor with name of sequence this world is for.

Definition at line 33 of file BDSParallelWorldCurvilinear.cc.

◆ ~BDSParallelWorldCurvilinear()

BDSParallelWorldCurvilinear::~BDSParallelWorldCurvilinear ( )

virtual

Definition at line 39 of file BDSParallelWorldCurvilinear.cc.

Member Function Documentation

◆ Construct()

void BDSParallelWorldCurvilinear::Construct ( )

virtual

Construct the required parallel world geometry. This must overload the pure virtual method in G4VUserParallelWorld.

Definition at line 44 of file BDSParallelWorldCurvilinear.cc.

References BDSAuxiliaryNavigator::AttachWorldVolumeToNavigatorCL(), BDSAcceleratorModel::BeamlineSet(), clWorldVis, BDSGlobalConstants::Instance(), BDSDetectorConstruction::PlaceBeamlineInWorld(), and suffix.

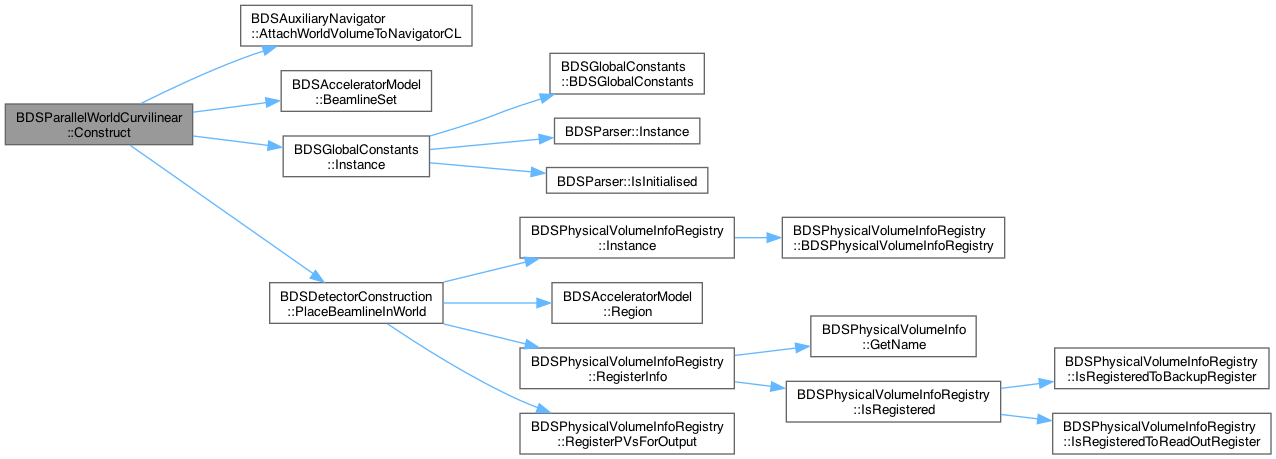

Here is the call graph for this function:

Field Documentation

◆ clWorldVis

G4VisAttributes* BDSParallelWorldCurvilinear::clWorldVis

private

Visualisation attributes for the world volume.

Definition at line 54 of file BDSParallelWorldCurvilinear.hh.

Referenced by Construct().

◆ suffix

G4String BDSParallelWorldCurvilinear::suffix

private

Just the input part of the name.

Definition at line 51 of file BDSParallelWorldCurvilinear.hh.
