Wrapper for particle definition. More...

#include <BDSParticleDefinition.hh>

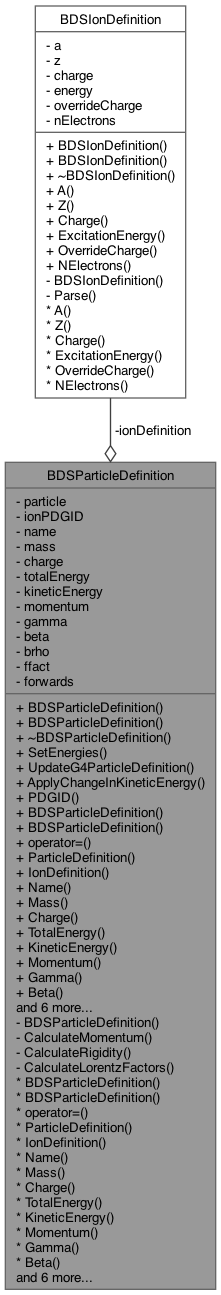

Collaboration diagram for BDSParticleDefinition:

Public Member Functions
	BDSParticleDefinition (G4ParticleDefinition particleIn, G4double totalEnergyIn, G4double kineticEnergyIn, G4double momentumIn, G4double ffact, BDSIonDefinition ionDefinitionIn=nullptr, G4int ionPDGID=0)

	BDSParticleDefinition (const G4String &nameIn, G4double massIn, G4double chargeIn, G4double totalEnergyIn, G4double kineticEnergyIn, G4double momentumIn, G4double ffact, BDSIonDefinition *ionDefinitionIn=nullptr, G4int ionPDGID=0)

void	SetEnergies (G4double totalEnergyIn, G4double kineticEnergyIn, G4double momentumIn)

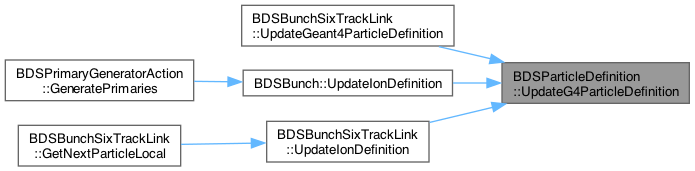

void	UpdateG4ParticleDefinition (G4ParticleDefinition *particleIn)

void	ApplyChangeInKineticEnergy (G4double dEk)
	Utility function to update quantities by adding on dEK (can be negative).

G4int	PDGID () const


	BDSParticleDefinition (const BDSParticleDefinition &other)
	Copy, move and assignment constructors specified as we have to copy the ionDefinition if it exists.

	BDSParticleDefinition (BDSParticleDefinition &&other) noexcept
	Copy, move and assignment constructors specified as we have to copy the ionDefinition if it exists.

BDSParticleDefinition &	operator= (BDSParticleDefinition &&other) noexcept
	Copy, move and assignment constructors specified as we have to copy the ionDefinition if it exists.


G4ParticleDefinition *	ParticleDefinition () const
	Accessor.

BDSIonDefinition *	IonDefinition () const
	Accessor.

G4String	Name () const
	Accessor.

G4double	Mass () const
	Accessor.

G4double	Charge () const
	Accessor.

G4double	TotalEnergy () const
	Accessor.

G4double	KineticEnergy () const
	Accessor.

G4double	Momentum () const
	Accessor.

G4double	Gamma () const
	Accessor.

G4double	Beta () const
	Accessor.

G4double	BRho () const
	Accessor.

G4double	FFact () const
	Accessor.

G4bool	IsAnIon () const
	Accessor.

G4bool	NElectrons () const
	Accessor.

G4double	Velocity () const
	Accessor.

G4bool	Forwards () const
	Accessor.

Private Member Functions
	BDSParticleDefinition ()=delete
	No default constructor.

void	CalculateMomentum ()
	Calculate and set momentum based on totalEnergy and mass.

void	CalculateRigidity (const G4double &ffactIn)
	Calculate and set rigidity based on charge and momentum.

void	CalculateLorentzFactors ()
	Calculate and set lorentz factors.

Private Attributes
G4ParticleDefinition *	particle
	Does not own.

BDSIonDefinition *	ionDefinition
	Optional ion definition. Does own.

G4int	ionPDGID
	Cache this for ions only.

G4String	name
	Particle name.

G4double	mass
	Particle mass.

G4double	charge
	Particle charge.

G4double	totalEnergy
	Particle total energy.

G4double	kineticEnergy
	Particle kinetic energy.

G4double	momentum
	Particle momentum.

G4double	gamma
	Relativistic gamma.

G4double	beta
	Relativistic beta.

G4double	brho
	Particle rigidity.

G4double	ffact
	Flip factor.

G4bool	forwards
	In case of change of direction.

Friends
std::ostream &	operator<< (std::ostream &out, BDSParticleDefinition const &def)
	Output stream operator implementation.

Detailed Description

Wrapper for particle definition.

Used to calculate momentum and kinetic energy and associate any other information required along with a G4ParticleDefinition instance.

Bad construction can throw a BDSException.

Author: Laurie Nevay

Definition at line 42 of file BDSParticleDefinition.hh.

Constructor & Destructor Documentation

◆ BDSParticleDefinition() [1/4]

BDSParticleDefinition::BDSParticleDefinition	(	G4ParticleDefinition *	particleIn,
		G4double	totalEnergyIn,
		G4double	kineticEnergyIn,
		G4double	momentumIn,
		G4double	ffact,
		BDSIonDefinition *	ionDefinitionIn = `nullptr`,
		G4int	ionPDGID = `0`
	)

Constructor requires G4 particle definition as well as one of total energy, kineticEnergy or momentum. Only 1 of these can be non-zero (will throw exception otherwise). The others are calculated using the mass. The optional ion definition may be supplied to override the charge of the ion. The PDGID should also be supplied in this case too. ffact is typically 1 or -1 to flip the rigidity for convention.

Definition at line 38 of file BDSParticleDefinition.cc.

References BDSIonDefinition::Charge(), charge, ionDefinition, BDSIonDefinition::OverrideCharge(), particle, and SetEnergies().

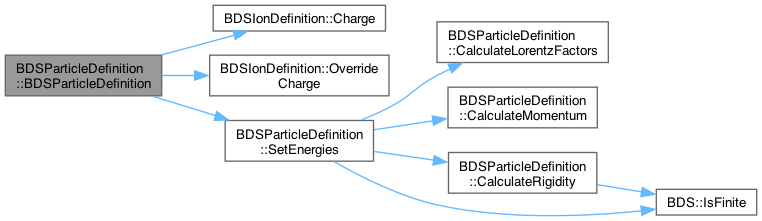

Here is the call graph for this function:

◆ BDSParticleDefinition() [2/4]

BDSParticleDefinition::BDSParticleDefinition	(	const G4String &	nameIn,
		G4double	massIn,
		G4double	chargeIn,
		G4double	totalEnergyIn,
		G4double	kineticEnergyIn,
		G4double	momentumIn,
		G4double	ffact,
		BDSIonDefinition *	ionDefinitionIn = `nullptr`,
		G4int	ionPDGID = `0`
	)

Alternative constructor for when we don't have access to the particle table information. G4ParticleDefinition can be updated later. Developer responsibility to ensure this matches the contents of this class. ffact is typically 1 or -1 to flip the rigidity for convention. As before only one of totalEnergy, kineticEnergy or momentum should be specified.

Definition at line 71 of file BDSParticleDefinition.cc.

References ionDefinition, and SetEnergies().

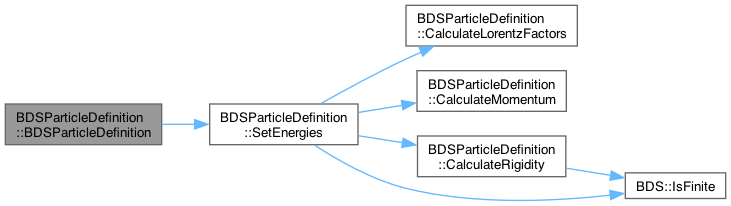

Here is the call graph for this function:

◆ BDSParticleDefinition() [3/4]

BDSParticleDefinition::BDSParticleDefinition ( const BDSParticleDefinition & other )

Copy, move and assignment constructors specified as we have to copy the ionDefinition if it exists.

Definition at line 146 of file BDSParticleDefinition.cc.

References ionDefinition.

◆ BDSParticleDefinition() [4/4]

BDSParticleDefinition::BDSParticleDefinition ( BDSParticleDefinition && other )

noexcept

Copy, move and assignment constructors specified as we have to copy the ionDefinition if it exists.

Definition at line 167 of file BDSParticleDefinition.cc.

◆ ~BDSParticleDefinition()

BDSParticleDefinition::~BDSParticleDefinition ( )

Definition at line 211 of file BDSParticleDefinition.cc.

Member Function Documentation

◆ ApplyChangeInKineticEnergy()

void BDSParticleDefinition::ApplyChangeInKineticEnergy ( G4double dEk )

Utility function to update quantities by adding on dEK (can be negative).

Definition at line 269 of file BDSParticleDefinition.cc.

References forwards, kineticEnergy, and SetEnergies().

Referenced by BDSBeamlineIntegral::Integrate().

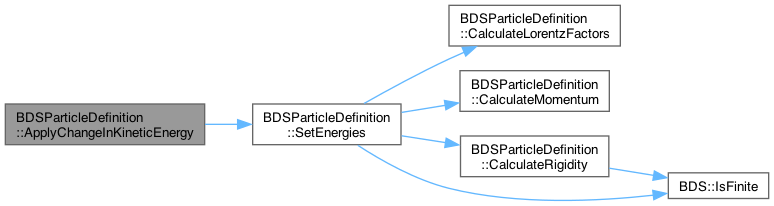

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Beta()

G4double BDSParticleDefinition::Beta ( ) const

inline

Accessor.

Definition at line 107 of file BDSParticleDefinition.hh.

References beta.

Referenced by BDSBeamlineIntegral::Integrate(), BDSComponentFactoryUser::SetDesignParticle(), BDSBunch::SetOptions(), BDSBunchPtc::SetOptions(), and Velocity().

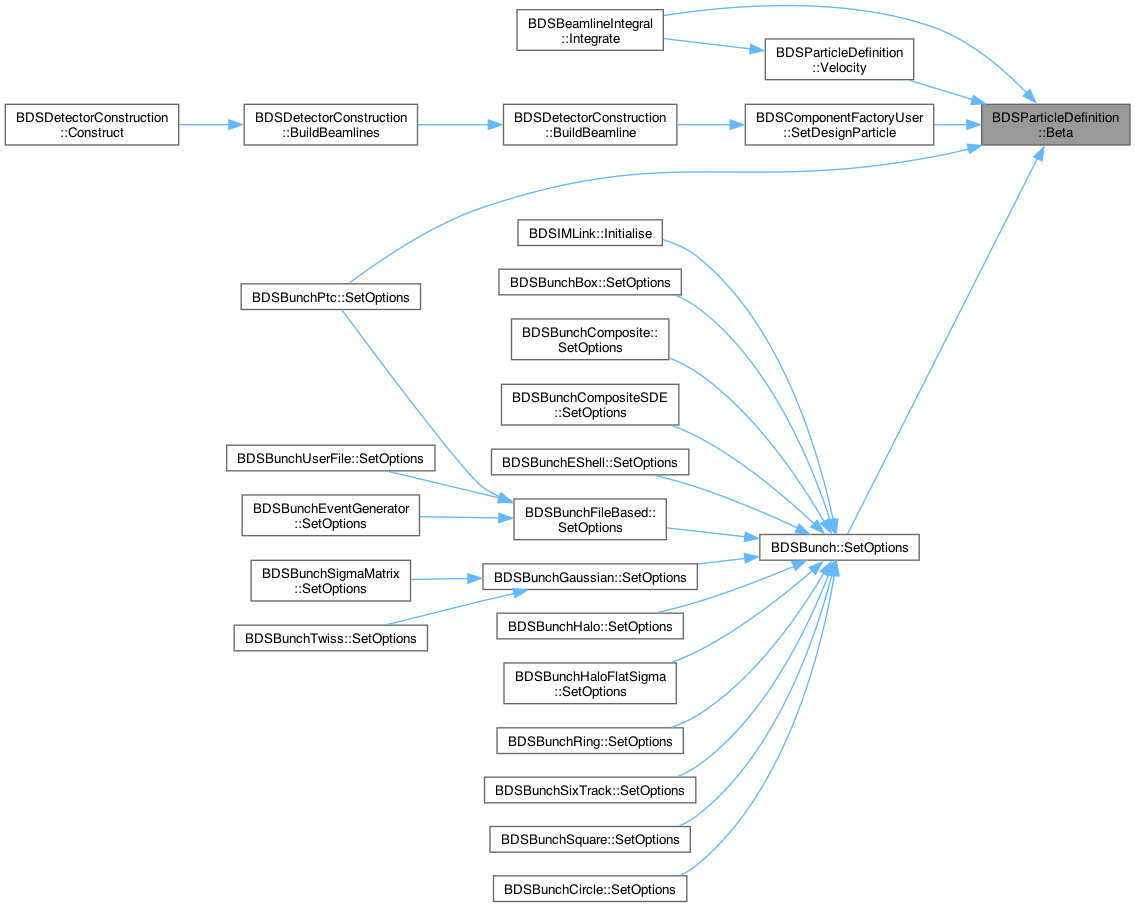

Here is the caller graph for this function:

◆ BRho()

G4double BDSParticleDefinition::BRho ( ) const

inline

Accessor.

Definition at line 108 of file BDSParticleDefinition.hh.

References brho.

Referenced by BDSFieldFactory::BDSFieldFactory(), BDSOutput::FillEventPrimaryOnly(), BDSIM::Initialise(), and BDSComponentFactoryUser::SetDesignParticle().

Here is the caller graph for this function:

◆ CalculateLorentzFactors()

void BDSParticleDefinition::CalculateLorentzFactors ( )

private

Calculate and set lorentz factors.

Definition at line 262 of file BDSParticleDefinition.cc.

References beta, gamma, mass, and totalEnergy.

Referenced by SetEnergies().

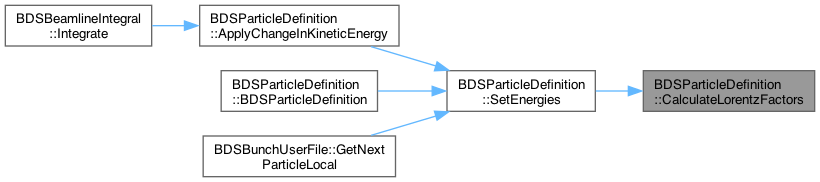

Here is the caller graph for this function:

◆ CalculateMomentum()

void BDSParticleDefinition::CalculateMomentum ( )

private

Calculate and set momentum based on totalEnergy and mass.

Definition at line 242 of file BDSParticleDefinition.cc.

References mass, momentum, and totalEnergy.

Referenced by SetEnergies().

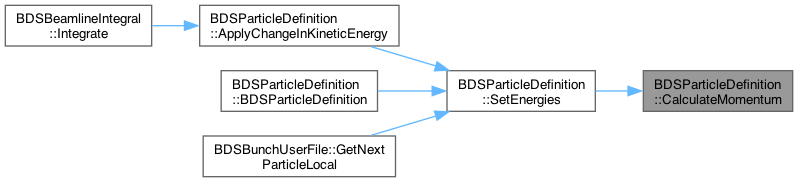

Here is the caller graph for this function:

◆ CalculateRigidity()

void BDSParticleDefinition::CalculateRigidity ( const G4double & ffactIn )

private

Calculate and set rigidity based on charge and momentum.

Definition at line 250 of file BDSParticleDefinition.cc.

References brho, charge, BDS::cOverGeV, BDS::IsFinite(), and momentum.

Referenced by SetEnergies().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Charge()

G4double BDSParticleDefinition::Charge ( ) const

inline

Accessor.

Definition at line 102 of file BDSParticleDefinition.hh.

References charge.

Referenced by BDSOutput::FillEventPrimaryOnly(), BDSLinkPrimaryGeneratorAction::GeneratePrimaries(), BDSPrimaryGeneratorAction::GeneratePrimaries(), and BDSBeamlineIntegral::Integrate().

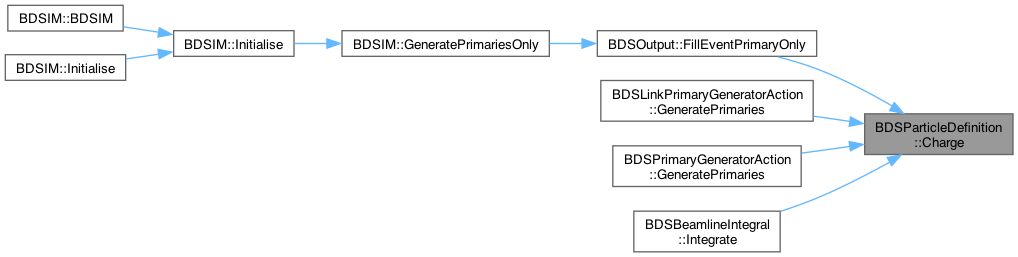

Here is the caller graph for this function:

◆ FFact()

G4double BDSParticleDefinition::FFact ( ) const

inline

Accessor.

Definition at line 109 of file BDSParticleDefinition.hh.

References ffact.

◆ Forwards()

G4bool BDSParticleDefinition::Forwards ( ) const

inline

Accessor.

Definition at line 113 of file BDSParticleDefinition.hh.

References forwards.

◆ Gamma()

G4double BDSParticleDefinition::Gamma ( ) const

inline

Accessor.

Definition at line 106 of file BDSParticleDefinition.hh.

References gamma.

Referenced by BDSBunch::SetEmittances().

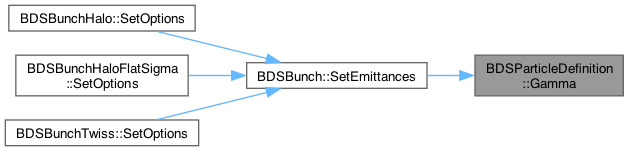

Here is the caller graph for this function:

◆ IonDefinition()

BDSIonDefinition * BDSParticleDefinition::IonDefinition ( ) const

inline

Accessor.

Definition at line 99 of file BDSParticleDefinition.hh.

References ionDefinition.

Referenced by BDSOutput::FillEventPrimaryOnly(), BDSBunchSixTrackLink::UpdateGeant4ParticleDefinition(), BDSBunch::UpdateIonDefinition(), and BDSBunchSixTrackLink::UpdateIonDefinition().

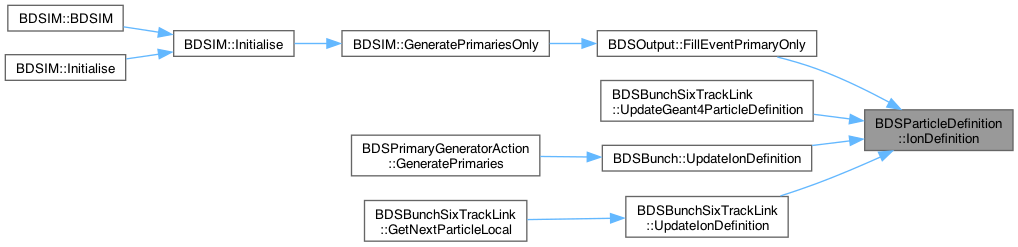

Here is the caller graph for this function:

◆ IsAnIon()

G4bool BDSParticleDefinition::IsAnIon ( ) const

inline

Accessor.

Definition at line 110 of file BDSParticleDefinition.hh.

References ionDefinition.

Referenced by BDSBunch::BeamParticleIsAnIon(), BDSOutput::FillEventPrimaryOnly(), BDSIM::Initialise(), BDSBunchSixTrackLink::UpdateGeant4ParticleDefinition(), BDSBunch::UpdateIonDefinition(), and BDSBunchSixTrackLink::UpdateIonDefinition().

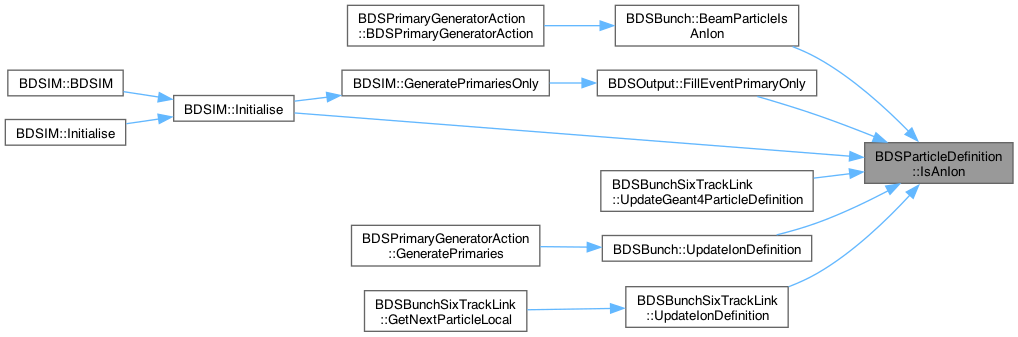

Here is the caller graph for this function:

◆ KineticEnergy()

G4double BDSParticleDefinition::KineticEnergy ( ) const

inline

Accessor.

Definition at line 104 of file BDSParticleDefinition.hh.

References kineticEnergy.

Referenced by BDSIM::Initialise(), and BDSBunch::SetOptions().

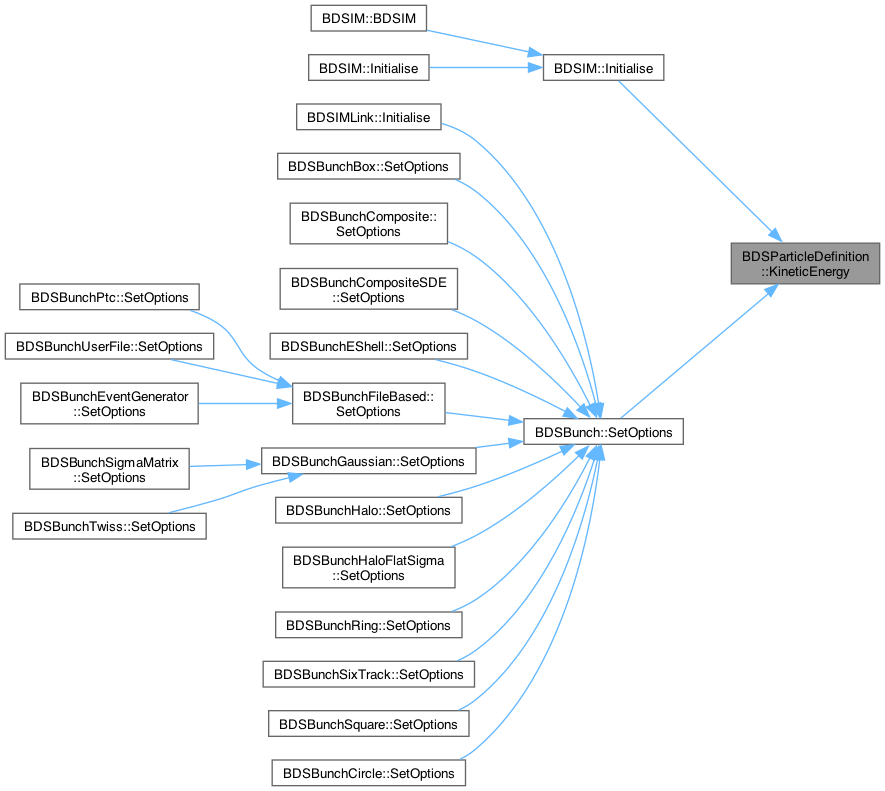

Here is the caller graph for this function:

◆ Mass()

G4double BDSParticleDefinition::Mass ( ) const

inline

Accessor.

Definition at line 101 of file BDSParticleDefinition.hh.

References mass.

Referenced by BDSPTCOneTurnMap::BDSPTCOneTurnMap(), BDSOutput::FillEventPrimaryOnly(), BDSLinkPrimaryGeneratorAction::GeneratePrimaries(), BDSPrimaryGeneratorAction::GeneratePrimaries(), BDSBunch::GetNextParticleValid(), and BDSBunchUserFile< T >::SetOptions().

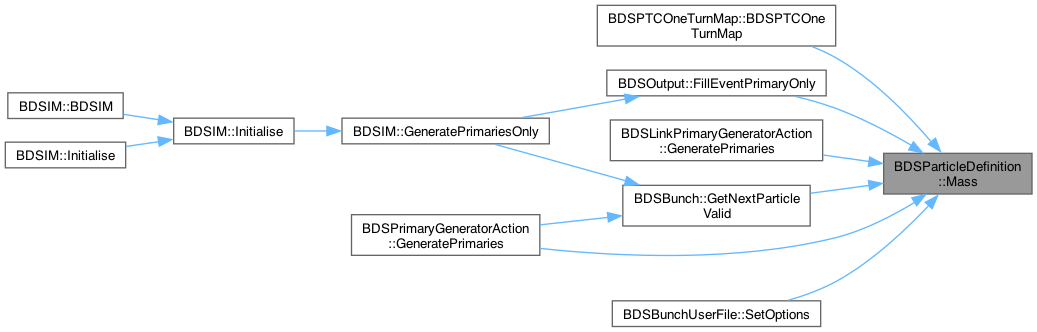

Here is the caller graph for this function:

◆ Momentum()

G4double BDSParticleDefinition::Momentum ( ) const

inline

Accessor.

Definition at line 105 of file BDSParticleDefinition.hh.

References momentum.

Referenced by BDSPTCOneTurnMap::BDSPTCOneTurnMap(), BDSOutput::FillEventPrimaryOnly(), and BDSBunch::SetOptions().

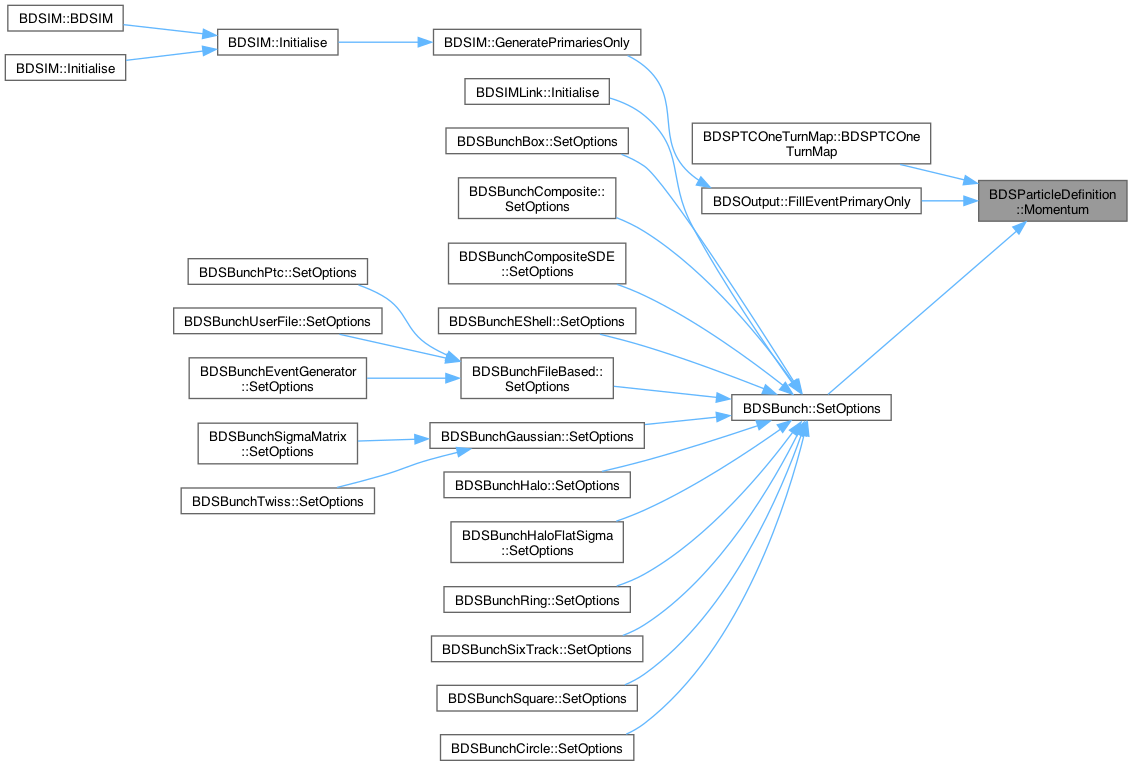

Here is the caller graph for this function:

◆ Name()

G4String BDSParticleDefinition::Name ( ) const

inline

Accessor.

Definition at line 100 of file BDSParticleDefinition.hh.

References name.

Referenced by BDSIM::Initialise(), and BDSIMLink::Initialise().

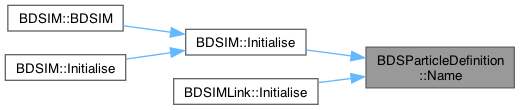

Here is the caller graph for this function:

◆ NElectrons()

G4bool BDSParticleDefinition::NElectrons ( ) const

inline

Accessor.

Definition at line 111 of file BDSParticleDefinition.hh.

References ionDefinition, and BDSIonDefinition::NElectrons().

Referenced by BDSOutput::FillEventPrimaryOnly().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ operator=()

BDSParticleDefinition & BDSParticleDefinition::operator= ( BDSParticleDefinition && other )

noexcept

Copy, move and assignment constructors specified as we have to copy the ionDefinition if it exists.

Definition at line 186 of file BDSParticleDefinition.cc.

References BDSIonDefinition::charge, and ionDefinition.

◆ ParticleDefinition()

G4ParticleDefinition * BDSParticleDefinition::ParticleDefinition ( ) const

inline

Accessor.

Definition at line 98 of file BDSParticleDefinition.hh.

References particle.

Referenced by BDS::FixGeant105ThreshholdsForBeamParticle(), BDSLinkPrimaryGeneratorAction::GeneratePrimaries(), and BDSPrimaryGeneratorAction::GeneratePrimaries().

Here is the caller graph for this function:

◆ PDGID()

G4int BDSParticleDefinition::PDGID ( ) const

Safely access the PDG ID of the particle. If the physics table isn't ready then we might not have the G4ParticleDefinition object in the case of an ion. In this case if there's an ion definition return the cache ion PDG ID, else return 0 as default.

Definition at line 216 of file BDSParticleDefinition.cc.

References ionDefinition, ionPDGID, and particle.

Referenced by BDSOutput::FillEventPrimaryOnly().

Here is the caller graph for this function:

◆ SetEnergies()

void BDSParticleDefinition::SetEnergies	(	G4double	totalEnergyIn,
		G4double	kineticEnergyIn,
		G4double	momentumIn
	)

Check in order whether totalEnergy, kineticEnergy or momentum are specified and copy that parameter to the member variable. Then calculate the other two and set them to the member variables.

Definition at line 100 of file BDSParticleDefinition.cc.

References CalculateLorentzFactors(), CalculateMomentum(), CalculateRigidity(), ffact, BDS::IsFinite(), kineticEnergy, mass, momentum, name, and totalEnergy.

Referenced by ApplyChangeInKineticEnergy(), BDSParticleDefinition(), and BDSBunchUserFile< T >::GetNextParticleLocal().

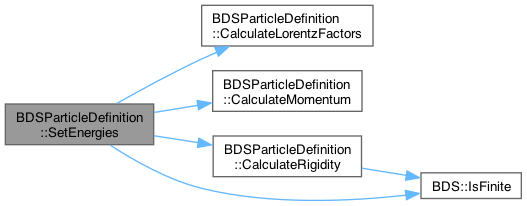

Here is the call graph for this function:

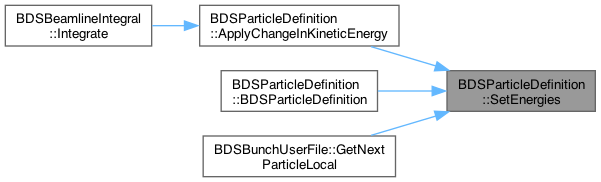

Here is the caller graph for this function:

◆ TotalEnergy()

G4double BDSParticleDefinition::TotalEnergy ( ) const

inline

Accessor.

Definition at line 103 of file BDSParticleDefinition.hh.

References totalEnergy.

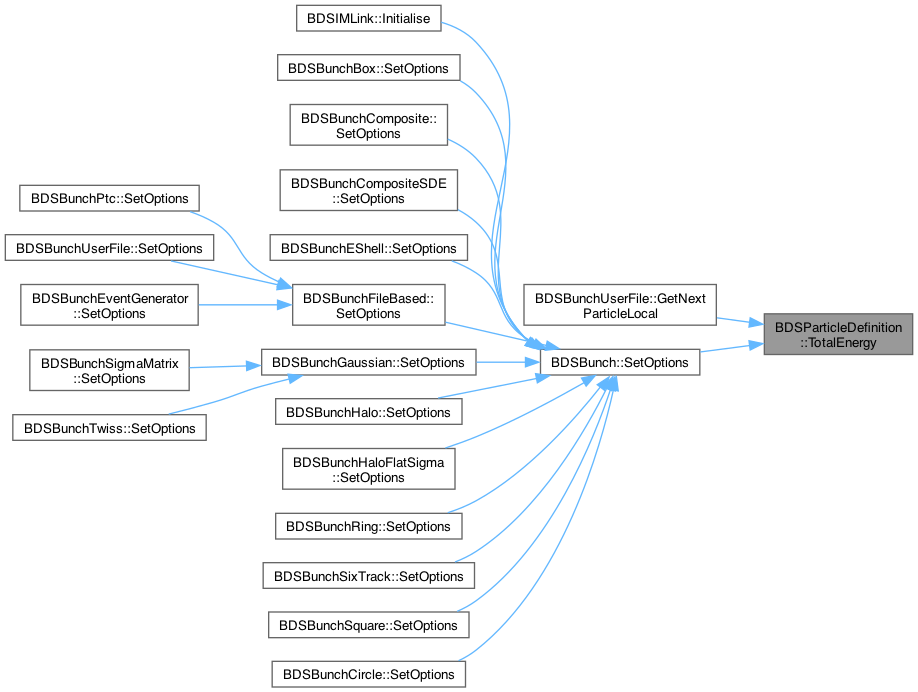

Referenced by BDSBunchUserFile< T >::GetNextParticleLocal(), and BDSBunch::SetOptions().

Here is the caller graph for this function:

◆ UpdateG4ParticleDefinition()

void BDSParticleDefinition::UpdateG4ParticleDefinition ( G4ParticleDefinition * particleIn )

inline

Update the G4 particle definition member. Developer responsibility to ensure this matches the contents of the class.

Definition at line 91 of file BDSParticleDefinition.hh.

References particle.

Referenced by BDSBunchSixTrackLink::UpdateGeant4ParticleDefinition(), BDSBunch::UpdateIonDefinition(), and BDSBunchSixTrackLink::UpdateIonDefinition().

Here is the caller graph for this function:

◆ Velocity()

G4double BDSParticleDefinition::Velocity ( ) const

inline

Accessor.

Definition at line 112 of file BDSParticleDefinition.hh.

References Beta().

Referenced by BDSBeamlineIntegral::Integrate().

Here is the call graph for this function:

Here is the caller graph for this function:

Friends And Related Function Documentation

◆ operator<<

std::ostream & operator<<	(	std::ostream &	out,
		BDSParticleDefinition const &	def
	)

friend

Output stream operator implementation.

Definition at line 226 of file BDSParticleDefinition.cc.

Field Documentation

◆ beta

G4double BDSParticleDefinition::beta

private

Relativistic beta.

Definition at line 148 of file BDSParticleDefinition.hh.

Referenced by Beta(), and CalculateLorentzFactors().

◆ brho

G4double BDSParticleDefinition::brho

private

Particle rigidity.

Definition at line 149 of file BDSParticleDefinition.hh.

Referenced by BRho(), and CalculateRigidity().

◆ charge

G4double BDSParticleDefinition::charge

private

Particle charge.

Definition at line 143 of file BDSParticleDefinition.hh.

Referenced by BDSParticleDefinition(), CalculateRigidity(), and Charge().

◆ ffact

G4double BDSParticleDefinition::ffact

private

Flip factor.

Definition at line 150 of file BDSParticleDefinition.hh.

Referenced by FFact(), and SetEnergies().

◆ forwards

G4bool BDSParticleDefinition::forwards

private

In case of change of direction.

Definition at line 151 of file BDSParticleDefinition.hh.

Referenced by ApplyChangeInKineticEnergy(), and Forwards().

◆ gamma

G4double BDSParticleDefinition::gamma

private

Relativistic gamma.

Definition at line 147 of file BDSParticleDefinition.hh.

Referenced by CalculateLorentzFactors(), and Gamma().

◆ ionDefinition

BDSIonDefinition* BDSParticleDefinition::ionDefinition

private

Optional ion definition. Does own.

Definition at line 138 of file BDSParticleDefinition.hh.

Referenced by BDSParticleDefinition(), IonDefinition(), IsAnIon(), NElectrons(), operator=(), and PDGID().

◆ ionPDGID

G4int BDSParticleDefinition::ionPDGID

private

Cache this for ions only.

Definition at line 139 of file BDSParticleDefinition.hh.

Referenced by PDGID().

◆ kineticEnergy

G4double BDSParticleDefinition::kineticEnergy

private

Particle kinetic energy.

Definition at line 145 of file BDSParticleDefinition.hh.

Referenced by ApplyChangeInKineticEnergy(), KineticEnergy(), and SetEnergies().

◆ mass

G4double BDSParticleDefinition::mass

private

Particle mass.

Definition at line 142 of file BDSParticleDefinition.hh.

Referenced by CalculateLorentzFactors(), CalculateMomentum(), Mass(), and SetEnergies().

◆ momentum

G4double BDSParticleDefinition::momentum

private

Particle momentum.

Definition at line 146 of file BDSParticleDefinition.hh.

Referenced by CalculateMomentum(), CalculateRigidity(), Momentum(), and SetEnergies().

◆ name

G4String BDSParticleDefinition::name

private

Particle name.

Definition at line 141 of file BDSParticleDefinition.hh.

Referenced by Name(), and SetEnergies().

◆ particle

G4ParticleDefinition* BDSParticleDefinition::particle

private

Does not own.

Definition at line 137 of file BDSParticleDefinition.hh.

Referenced by BDSParticleDefinition(), ParticleDefinition(), PDGID(), and UpdateG4ParticleDefinition().

◆ totalEnergy

G4double BDSParticleDefinition::totalEnergy

private

Particle total energy.

Definition at line 144 of file BDSParticleDefinition.hh.

Referenced by CalculateLorentzFactors(), CalculateMomentum(), SetEnergies(), and TotalEnergy().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/include/BDSParticleDefinition.hh
/Users/lnevay/physics/reps/bdsim/src/BDSParticleDefinition.cc

Public Member Functions

Private Member Functions

Private Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ BDSParticleDefinition() [1/4]

◆ BDSParticleDefinition() [2/4]

◆ BDSParticleDefinition() [3/4]

◆ BDSParticleDefinition() [4/4]

◆ ~BDSParticleDefinition()

Member Function Documentation

◆ ApplyChangeInKineticEnergy()

◆ Beta()

◆ BRho()

◆ CalculateLorentzFactors()

◆ CalculateMomentum()

◆ CalculateRigidity()

◆ Charge()

◆ FFact()

◆ Forwards()

◆ Gamma()

◆ IonDefinition()

◆ IsAnIon()

◆ KineticEnergy()

◆ Mass()

◆ Momentum()

◆ Name()

◆ NElectrons()

◆ operator=()

◆ ParticleDefinition()

◆ PDGID()

◆ SetEnergies()

◆ TotalEnergy()

◆ UpdateG4ParticleDefinition()

◆ Velocity()

Friends And Related Function Documentation

◆ operator<<

Field Documentation

◆ beta

◆ brho

◆ charge

◆ ffact

◆ forwards

◆ gamma

◆ ionDefinition

◆ ionPDGID

◆ kineticEnergy

◆ mass

◆ momentum

◆ name

◆ particle

◆ totalEnergy
