BDSRunAction Class Reference

Control over the beginning and end of run actions. More...

#include <BDSRunAction.hh>

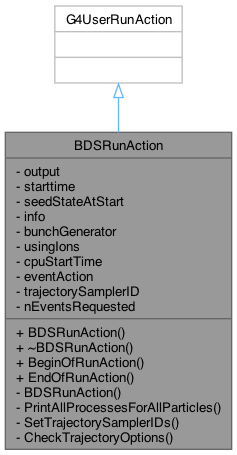

Inheritance diagram for BDSRunAction:

Collaboration diagram for BDSRunAction:

Public Member Functions
	BDSRunAction (BDSOutput *outputIn, BDSBunch *bunchGeneratorIn, G4bool usingIonsIn, BDSEventAction *eventActionIn, const G4String &trajectorySamplerIDIn)
virtual void	BeginOfRunAction (const G4Run *)
virtual void	EndOfRunAction (const G4Run *)

Private Member Functions
void	PrintAllProcessesForAllParticles () const
void	SetTrajectorySamplerIDs () const
void	CheckTrajectoryOptions () const

Private Attributes
BDSOutput *	output
	Cache of output instance. Not owned by this class.
time_t	starttime
std::string	seedStateAtStart
	Seed state at start of the run.
BDSEventInfo *	info
BDSBunch *	bunchGenerator
	Cache of bunch generator.
const G4bool	usingIons
	Cache of whether ions are being used (for particle table writing out).
std::clock_t	cpuStartTime
	Start time of run.
BDSEventAction *	eventAction
	Event action for updating information at start of run.
G4String	trajectorySamplerID
	Copy of option.
unsigned long long int	nEventsRequested
	Cache of ngenerate.

Detailed Description

Control over the beginning and end of run actions.

Unlike the regular Geant4 run action we call a beginning of run action on the bunch distribution (when we know the number of events to run).

Definition at line 43 of file BDSRunAction.hh.

Constructor & Destructor Documentation

BDSRunAction()

BDSRunAction::BDSRunAction	(	BDSOutput *	outputIn,
		BDSBunch *	bunchGeneratorIn,
		G4bool	usingIonsIn,
		BDSEventAction *	eventActionIn,
		const G4String &	trajectorySamplerIDIn
	)

Definition at line 60 of file BDSRunAction.cc.

~BDSRunAction()

BDSRunAction::~BDSRunAction ( )

virtual

Definition at line 76 of file BDSRunAction.cc.

Member Function Documentation

BeginOfRunAction()

void BDSRunAction::BeginOfRunAction ( const G4Run *  aRun )

virtual

Definition at line 81 of file BDSRunAction.cc.

CheckTrajectoryOptions()

void BDSRunAction::CheckTrajectoryOptions ( ) const

private

Check whether various trajectory options that are geometry dependent make sense and warn if not. Done now because geometry is built before run.

Definition at line 234 of file BDSRunAction.cc.

References BDSAcceleratorModel::BeamlineMain(), BDSBeamline::GetTotalArcLength(), and BDSGlobalConstants::Instance().

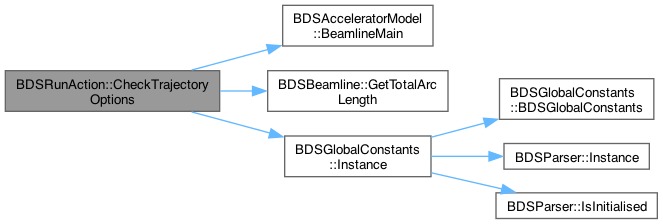

Here is the call graph for this function:

EndOfRunAction()

void BDSRunAction::EndOfRunAction ( const G4Run *  aRun )

virtual

Definition at line 138 of file BDSRunAction.cc.

PrintAllProcessesForAllParticles()

void BDSRunAction::PrintAllProcessesForAllParticles ( ) const

private

Iterate over all particles and print out all process names for each. This is private as using at the wrong time will result in Geant4 crashing.

Definition at line 183 of file BDSRunAction.cc.

SetTrajectorySamplerIDs()

void BDSRunAction::SetTrajectorySamplerIDs ( ) const

private

Access the sampler registry and find the integer sampler IDs for any samplers named in the trajectorySamplerID string. Do this at the beginning of a run and update event action because it should only happen once and it depends on the construction of the geometry being complete.

Definition at line 204 of file BDSRunAction.cc.

References eventAction, BDSSamplerRegistry::Instance(), BDSEventAction::SetSamplerIDsForTrajectories(), and trajectorySamplerID.

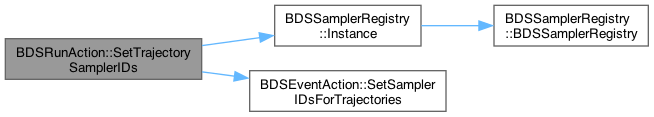

Here is the call graph for this function:

Field Documentation

bunchGenerator

BDSBunch* BDSRunAction::bunchGenerator

private

Cache of bunch generator.

Definition at line 77 of file BDSRunAction.hh.

cpuStartTime

std::clock_t BDSRunAction::cpuStartTime

private

Start time of run.

Definition at line 79 of file BDSRunAction.hh.

eventAction

BDSEventAction* BDSRunAction::eventAction

private

Event action for updating information at start of run.

Definition at line 80 of file BDSRunAction.hh.

Referenced by SetTrajectorySamplerIDs().

info

BDSEventInfo* BDSRunAction::info

private

Definition at line 76 of file BDSRunAction.hh.

nEventsRequested

unsigned long long int BDSRunAction::nEventsRequested

private

Cache of ngenerate.

Definition at line 82 of file BDSRunAction.hh.

output

BDSOutput* BDSRunAction::output

private

Cache of output instance. Not owned by this class.

Definition at line 73 of file BDSRunAction.hh.

seedStateAtStart

std::string BDSRunAction::seedStateAtStart

private

Seed state at start of the run.

Definition at line 75 of file BDSRunAction.hh.

starttime

time_t BDSRunAction::starttime

private

Definition at line 74 of file BDSRunAction.hh.

trajectorySamplerID

G4String BDSRunAction::trajectorySamplerID

private

Copy of option.

Definition at line 81 of file BDSRunAction.hh.

Referenced by SetTrajectorySamplerIDs().

usingIons

const G4bool BDSRunAction::usingIons

private

Cache of whether ions are being used (for particle table writing out).

Definition at line 78 of file BDSRunAction.hh.

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSRunAction.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSRunAction.cc
