BDSTerminatorUserLimits Class Reference

Dynamic user limits for a volume that changed based on the parameter turnstaken in BDSGlobalConstants(). More...

#include <BDSTerminatorUserLimits.hh>

Inheritance diagram for BDSTerminatorUserLimits:

Collaboration diagram for BDSTerminatorUserLimits:

Public Member Functions
	BDSTerminatorUserLimits (G4double ustepMax=std::numeric_limits< double >::max(), G4double utrakMax=std::numeric_limits< double >::max(), G4double utimeMax=std::numeric_limits< double >::max(), G4double uekinMin=0., G4double urangMin=0.)
	BDSTerminatorUserLimits (const G4String &type, G4double ustepMax=std::numeric_limits< double >::max(), G4double utrakMax=std::numeric_limits< double >::max(), G4double utimeMax=std::numeric_limits< double >::max(), G4double uekinMin=0., G4double urangMin=0.)
virtual G4double	GetUserMinEkine (const G4Track &)

Protected Attributes
G4double	keeprunningEK
	Minimum energy particle must have to keep going.
G4double	stoprunningEK
	Same, so everything < DBL_MAX so everything stopped.

Private Attributes
const G4int	turnsToTake

Detailed Description

Dynamic user limits for a volume that changed based on the parameter turnstaken in BDSGlobalConstants().

Used to control the number of turns a particle completes around a circular accelerator. An instance of these user limits is typically attached to a volume near the end of the lattice.

Author

Laurie Nevay

Definition at line 38 of file BDSTerminatorUserLimits.hh.

Constructor & Destructor Documentation

BDSTerminatorUserLimits() [1/2]

BDSTerminatorUserLimits::BDSTerminatorUserLimits	(	G4double	ustepMax = std::numeric_limits<double>::max(),
		G4double	utrakMax = std::numeric_limits<double>::max(),
		G4double	utimeMax = std::numeric_limits<double>::max(),
		G4double	uekinMin = 0.,
		G4double	urangMin = 0.
	)

Basic inheritance - just use everything normally from G4UserLimits but replace one function in inherited class. Default values are defined in G4UserLimits so all particles continue.

Definition at line 28 of file BDSTerminatorUserLimits.cc.

BDSTerminatorUserLimits() [2/2]

BDSTerminatorUserLimits::BDSTerminatorUserLimits	(	const G4String &	type,
		G4double	ustepMax = std::numeric_limits<double>::max(),
		G4double	utrakMax = std::numeric_limits<double>::max(),
		G4double	utimeMax = std::numeric_limits<double>::max(),
		G4double	uekinMin = 0.,
		G4double	urangMin = 0.
	)

Definition at line 43 of file BDSTerminatorUserLimits.cc.

~BDSTerminatorUserLimits()

virtual BDSTerminatorUserLimits::~BDSTerminatorUserLimits ( )

inlinevirtual

Definition at line 57 of file BDSTerminatorUserLimits.hh.

Member Function Documentation

GetUserMinEkine()

G4double BDSTerminatorUserLimits::GetUserMinEkine ( const G4Track &  )

inlinevirtual

Replace this function alone in G4UserLimits where we only set the limit to E=0 eV on the last turn.

Definition at line 60 of file BDSTerminatorUserLimits.cc.

References BDSGlobalConstants::Instance(), keeprunningEK, stoprunningEK, and turnsToTake.

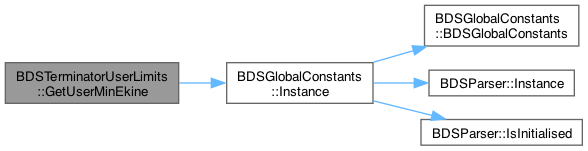

Here is the call graph for this function:

Field Documentation

keeprunningEK

G4double BDSTerminatorUserLimits::keeprunningEK

protected

Minimum energy particle must have to keep going.

Definition at line 65 of file BDSTerminatorUserLimits.hh.

Referenced by GetUserMinEkine().

stoprunningEK

G4double BDSTerminatorUserLimits::stoprunningEK

protected

Same, so everything < DBL_MAX so everything stopped.

Definition at line 66 of file BDSTerminatorUserLimits.hh.

Referenced by GetUserMinEkine().

turnsToTake

const G4int BDSTerminatorUserLimits::turnsToTake

private

Number of turns in total that simulation will progress for - not changed during run or after construction.

Definition at line 71 of file BDSTerminatorUserLimits.hh.

Referenced by GetUserMinEkine().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSTerminatorUserLimits.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSTerminatorUserLimits.cc
