BDSVisFieldModel Class Reference

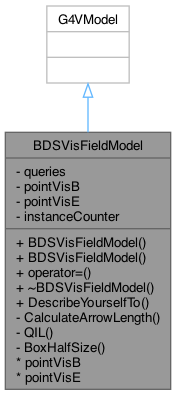

Inheritance diagram for BDSVisFieldModel:

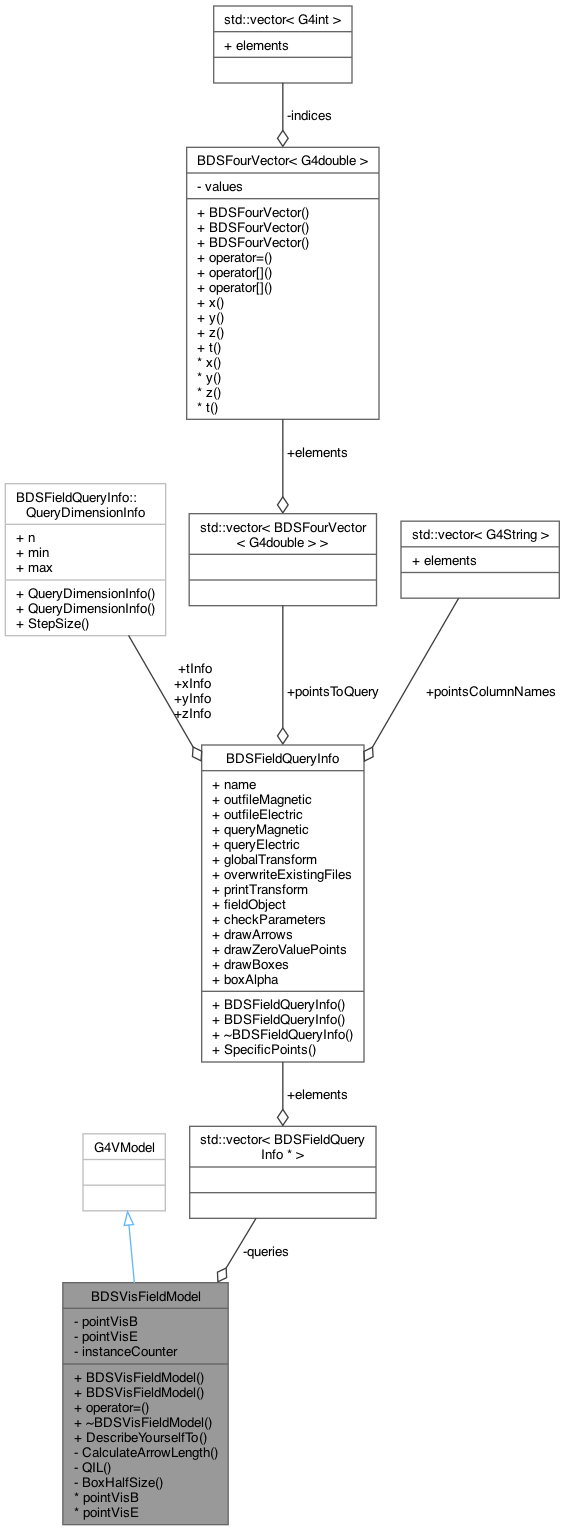

Collaboration diagram for BDSVisFieldModel:

Public Member Functions
	BDSVisFieldModel (const std::vector< BDSFieldQueryInfo * > &queriesIn)
	BDSVisFieldModel (const BDSVisFieldModel &)=delete
BDSVisFieldModel &	operator= (const BDSVisFieldModel &)=delete
virtual void	DescribeYourselfTo (G4VGraphicsScene &sceneHandler)

Private Member Functions
G4double	CalculateArrowLength (const BDSFieldQueryInfo *query) const
	Return the minimum of 0.8 x the step length in x,y,z.
G4double	QIL (const BDSFieldQueryInfo::QueryDimensionInfo &qi) const
	Query Info Length. For one dimension, return 0.8 x step size.
G4ThreeVector	BoxHalfSize (const BDSFieldQueryInfo *qi) const

Private Attributes
const std::vector< BDSFieldQueryInfo * >	queries
	Cache of queries.
G4VisAttributes *	pointVisB
	The vis attributes for a zero-field marker.
G4VisAttributes *	pointVisE
	The vis attributes for a zero-field marker.

Static Private Attributes
static G4int	instanceCounter = 0

Detailed Description

Definition at line 33 of file BDSVisFieldModel.hh.

Constructor & Destructor Documentation

BDSVisFieldModel()

BDSVisFieldModel::BDSVisFieldModel ( const std::vector< BDSFieldQueryInfo * > &  queriesIn )

explicit

Definition at line 51 of file BDSVisFieldModel.cc.

~BDSVisFieldModel()

BDSVisFieldModel::~BDSVisFieldModel ( )

virtual

Definition at line 69 of file BDSVisFieldModel.cc.

Member Function Documentation

BoxHalfSize()

G4ThreeVector BDSVisFieldModel::BoxHalfSize ( const BDSFieldQueryInfo *  qi ) const

private

Return a suitable vector of half sizes (x,y,z) for a box to represent 1 voxel of a field query in 3D even if it's 1,2 or 3D. If 2D, the 3rd dimension is 1% of the minimum of the other 2. If 1D, it's 20% of the step size of that 1 dimension.

Definition at line 275 of file BDSVisFieldModel.cc.

CalculateArrowLength()

G4double BDSVisFieldModel::CalculateArrowLength ( const BDSFieldQueryInfo *  query ) const

private

Return the minimum of 0.8 x the step length in x,y,z.

Definition at line 260 of file BDSVisFieldModel.cc.

References QIL().

Here is the call graph for this function:

DescribeYourselfTo()

void BDSVisFieldModel::DescribeYourselfTo ( G4VGraphicsScene &  sceneHandler )

virtual

Definition at line 75 of file BDSVisFieldModel.cc.

QIL()

G4double BDSVisFieldModel::QIL ( const BDSFieldQueryInfo::QueryDimensionInfo &  qi ) const

private

Query Info Length. For one dimension, return 0.8 x step size.

Definition at line 266 of file BDSVisFieldModel.cc.

Referenced by CalculateArrowLength().

Here is the caller graph for this function:

Field Documentation

instanceCounter

G4int BDSVisFieldModel::instanceCounter = 0

staticprivate

Counter variable as we need to construct a new one of this class and have it have a unique name.

Definition at line 49 of file BDSVisFieldModel.hh.

pointVisB

G4VisAttributes* BDSVisFieldModel::pointVisB

private

The vis attributes for a zero-field marker.

Definition at line 67 of file BDSVisFieldModel.hh.

pointVisE

G4VisAttributes* BDSVisFieldModel::pointVisE

private

The vis attributes for a zero-field marker.

Definition at line 68 of file BDSVisFieldModel.hh.

queries

const std::vector<BDSFieldQueryInfo*> BDSVisFieldModel::queries

private

Cache of queries.

Definition at line 64 of file BDSVisFieldModel.hh.

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/include/BDSVisFieldModel.hh
• /Users/lnevay/physics/reps/bdsim/src/BDSVisFieldModel.cc
