GMAD::Beam Class Reference

Beam class. More...

#include <beam.h>

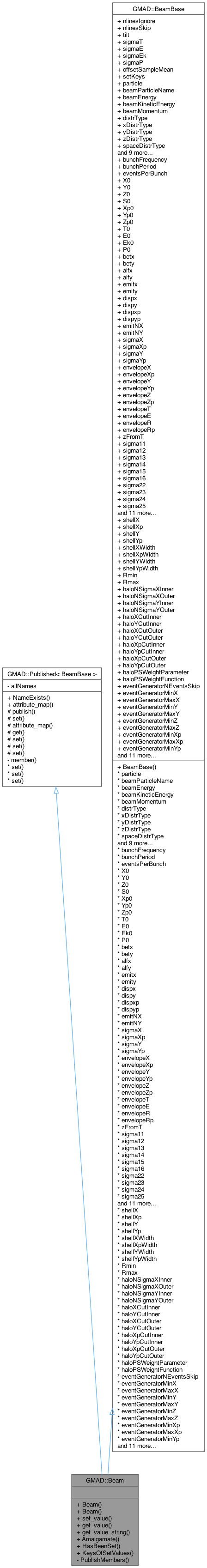

Inheritance diagram for GMAD::Beam:
Inheritance graph

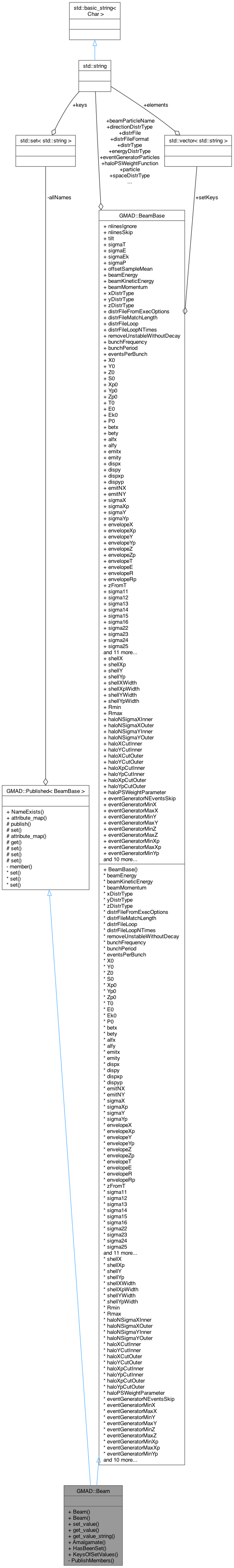

Collaboration diagram for GMAD::Beam:
Collaboration graph

Public Member Functions

 Beam (const GMAD::BeamBase &options)

template<typename T >
void set_value (std::string name, T value)
 set methods by property name

double get_value (std::string name) const
 get method (only for doubles)

std::string get_value_string (std::string property_name) const

void Amalgamate (const Beam &optionsIn, bool override, int startFromEvent=0)

bool HasBeenSet (const std::string &name) const
 Whether a parameter has been set using the set_value method or not.

const std::vector< std::string > & KeysOfSetValues () const

- Public Member Functions inherited from GMAD::Published< BeamBase >
bool NameExists (const std::string &name) const

Published< BeamBase >::template AttributeMap< T > & attribute_map () const


Private Member Functions

void PublishMembers ()
 publish members so these can be looked up from parser


Additional Inherited Members

- Data Fields inherited from GMAD::BeamBase
int nlinesIgnore
 Ignore first lines in the input bunch file.

int nlinesSkip
 Number of event lines to skip after the ignore lines.

double tilt
 tilt of beam applied as rotation about unit local z

double sigmaT
 bunch length

double sigmaE
 for the gaussian, elliptic shell, ring distributions

double sigmaEk

double sigmaP

bool offsetSampleMean

std::vector< std::string > setKeys
 A list of all the keys that have been set in this instance.

std::string particle
 beam parameters

std::string beamParticleName
 beam parameters

double beamEnergy
 beam parameters

double beamKineticEnergy
 beam parameters

double beamMomentum
 beam parameters

std::string distrType
 beam parameters

std::string xDistrType
 beam parameters

std::string yDistrType
 beam parameters

std::string zDistrType
 beam parameters

std::string spaceDistrType
 beam parameters

std::string directionDistrType
 beam parameters

std::string energyDistrType
 beam parameters

std::string distrFile
 beam parameters

std::string distrFileFormat
 beam parameters

bool distrFileFromExecOptions
 Required to know how to build the absolute path properly.

bool distrFileMatchLength
 beam parameters

bool distrFileLoop
 beam parameters

int distrFileLoopNTimes
 beam parameters

bool removeUnstableWithoutDecay
 beam parameters

double bunchFrequency
 Bunch offsets in time.

double bunchPeriod
 Bunch offsets in time.

int eventsPerBunch
 Bunch offsets in time.

double X0
 initial beam centroid

double Y0
 initial beam centroid

double Z0
 initial beam centroid

double S0
 initial beam centroid

double Xp0
 initial beam centroid

double Yp0
 initial beam centroid

double Zp0
 initial beam centroid

double T0
 initial beam centroid

double E0
 initial beam centroid

double Ek0
 initial beam centroid

double P0
 initial beam centroid

double betx
 initial twiss parameters

double bety
 initial twiss parameters

double alfx
 initial twiss parameters

double alfy
 initial twiss parameters

double emitx
 initial twiss parameters

double emity
 initial twiss parameters

double dispx
 initial twiss parameters

double dispy
 initial twiss parameters

double dispxp
 initial twiss parameters

double dispyp
 initial twiss parameters

double emitNX
 initial twiss parameters

double emitNY
 initial twiss parameters

double sigmaX
 for the gaussian beam distribution

double sigmaXp
 for the gaussian beam distribution

double sigmaY
 for the gaussian beam distribution

double sigmaYp
 for the gaussian beam distribution

double envelopeX
 for the circle/square/box beam distribution

double envelopeXp
 for the circle/square/box beam distribution

double envelopeY
 for the circle/square/box beam distribution

double envelopeYp
 for the circle/square/box beam distribution

double envelopeZ
 for the circle/square/box beam distribution

double envelopeZp
 for the circle/square/box beam distribution

double envelopeT
 for the circle/square/box beam distribution

double envelopeE
 for the circle/square/box beam distribution

double envelopeR
 for the circle/square/box beam distribution

double envelopeRp
 for the circle/square/box beam distribution

bool zFromT
 for the circle/square/box beam distribution

double sigma11
 for the gaussian sigma matrix distribution

double sigma12
 for the gaussian sigma matrix distribution

double sigma13
 for the gaussian sigma matrix distribution

double sigma14
 for the gaussian sigma matrix distribution

double sigma15
 for the gaussian sigma matrix distribution

double sigma16
 for the gaussian sigma matrix distribution

double sigma22
 for the gaussian sigma matrix distribution

double sigma23
 for the gaussian sigma matrix distribution

double sigma24
 for the gaussian sigma matrix distribution

double sigma25
 for the gaussian sigma matrix distribution

double sigma26
 for the gaussian sigma matrix distribution

double sigma33
 for the gaussian sigma matrix distribution

double sigma34
 for the gaussian sigma matrix distribution

double sigma35
 for the gaussian sigma matrix distribution

double sigma36
 for the gaussian sigma matrix distribution

double sigma44
 for the gaussian sigma matrix distribution

double sigma45
 for the gaussian sigma matrix distribution

double sigma46
 for the gaussian sigma matrix distribution

double sigma55
 for the gaussian sigma matrix distribution

double sigma56
 for the gaussian sigma matrix distribution

double sigma66
 for the gaussian sigma matrix distribution

double shellX
 for the elliptic shell distribution

double shellXp
 for the elliptic shell distribution

double shellY
 for the elliptic shell distribution

double shellYp
 for the elliptic shell distribution

double shellXWidth
 for the elliptic shell distribution

double shellXpWidth
 for the elliptic shell distribution

double shellYWidth
 for the elliptic shell distribution

double shellYpWidth
 for the elliptic shell distribution

double Rmin
 for the ring beam distribution

double Rmax
 for the ring beam distribution

double haloNSigmaXInner
 for the halo distribution

double haloNSigmaXOuter
 for the halo distribution

double haloNSigmaYInner
 for the halo distribution

double haloNSigmaYOuter
 for the halo distribution

double haloXCutInner
 for the halo distribution

double haloYCutInner
 for the halo distribution

double haloXCutOuter
 for the halo distribution

double haloYCutOuter
 for the halo distribution

double haloXpCutInner
 for the halo distribution

double haloYpCutInner
 for the halo distribution

double haloXpCutOuter
 for the halo distribution

double haloYpCutOuter
 for the halo distribution

double haloPSWeightParameter
 for the halo distribution

std::string haloPSWeightFunction
 for the halo distribution

int eventGeneratorNEventsSkip
 Event generator file filter.

double eventGeneratorMinX
 Event generator file filter.

double eventGeneratorMaxX
 Event generator file filter.

double eventGeneratorMinY
 Event generator file filter.

double eventGeneratorMaxY
 Event generator file filter.

double eventGeneratorMinZ
 Event generator file filter.

double eventGeneratorMaxZ
 Event generator file filter.

double eventGeneratorMinXp
 Event generator file filter.

double eventGeneratorMaxXp
 Event generator file filter.

double eventGeneratorMinYp
 Event generator file filter.

double eventGeneratorMaxYp
 Event generator file filter.

double eventGeneratorMinZp
 Event generator file filter.

double eventGeneratorMaxZp
 Event generator file filter.

double eventGeneratorMinRp
 Event generator file filter.

double eventGeneratorMaxRp
 Event generator file filter.

double eventGeneratorMinT
 Event generator file filter.

double eventGeneratorMaxT
 Event generator file filter.

double eventGeneratorMinEK
 Event generator file filter.

double eventGeneratorMaxEK
 Event generator file filter.

std::string eventGeneratorParticles
 Event generator file filter.

bool eventGeneratorWarnSkippedParticles
 Event generator file filter.

- Protected Types inherited from GMAD::Published< BeamBase >
using AttributeMap = typename std::unordered_map< std::string, T C::* >
 Define AttributeMap of string and class member pointer.

- Protected Member Functions inherited from GMAD::Published< BeamBase >
void publish (const std::string &name, T C::*mp)
 Make pointer to member from class C and type T with accessible with a name.

void set (BeamBase *instance, const BeamBase *instance2, const std::string &name)
 Set member with name of class instance to value of second instance.

AttributeMap< T > & attribute_map () const
 Access method to static map for type T and class C.

get (const BeamBase *instance, const std::string &name) const
 Get method for class C.

void set (BeamBase *instance, const std::string &name, double value)

void set (BeamBase *instance, const std::string &name, GMAD::Array *const &value)

void set (BeamBase *instance, const std::string &name, const T &value)


Detailed Description

Beam class.

Beam passed with beam command. This inherits the BeamBase class which contains all the members and provides templated filling functions. This separation allows the BeamBase class to be more easily written out to ROOT files or other formats for strong reproducibility in a BDSIM run.

Author
I. Agapov, J. Snuverink

Definition at line 43 of file beam.h.

Constructor & Destructor Documentation

◆ Beam() [1/2]

Beam::Beam ( )

Definition at line 27 of file beam.cc.

◆ Beam() [2/2]

Beam::Beam ( const GMAD::BeamBase options)
explicit

Definition at line 33 of file beam.cc.

Member Function Documentation

◆ Amalgamate()

void Beam::Amalgamate ( const Beam optionsIn,
bool  override,
int  startFromEvent = 0
)

Take another instance of options and copy the values that have been set (through setKeys, which although private each instance has access to as C++ treats encapsulation at the class level). If override is true, the input option will override the existing one in this instance.

Definition at line 97 of file beam.cc.

References GMAD::BeamBase::nlinesIgnore, GMAD::Published< BeamBase >::set(), and GMAD::BeamBase::setKeys.

Referenced by BDSParser::AmalgamateBeam(), and BDSExecOptions::BDSExecOptions().

Here is the call graph for this function:
Here is the caller graph for this function:

◆ get_value()

double Beam::get_value ( std::string  name) const

get method (only for doubles)

Definition at line 39 of file beam.cc.

Referenced by BDS::ConflictingParametersSet().

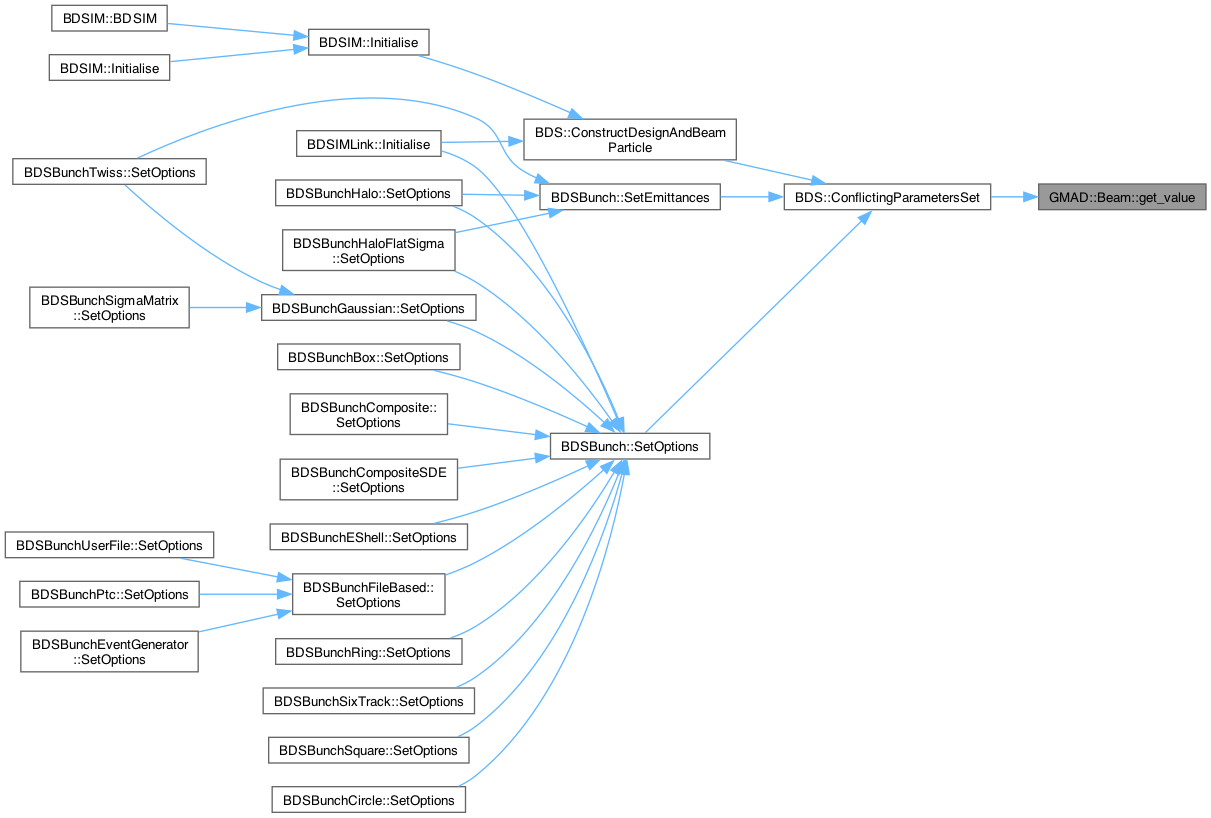

Here is the caller graph for this function:

◆ get_value_string()

std::string Beam::get_value_string ( std::string  property_name) const

Definition at line 63 of file beam.cc.

◆ HasBeenSet()

bool Beam::HasBeenSet ( const std::string &  name) const

Whether a parameter has been set using the set_value method or not.

Definition at line 142 of file beam.cc.

References GMAD::BeamBase::setKeys.

Referenced by BDS::NBeamParametersSet().

Here is the caller graph for this function:

◆ KeysOfSetValues()

const std::vector< std::string > & GMAD::Beam::KeysOfSetValues ( ) const
inline

Definition at line 68 of file beam.h.

◆ PublishMembers()

void Beam::PublishMembers ( )
private

publish members so these can be looked up from parser

Definition at line 151 of file beam.cc.

References GMAD::BeamBase::alfx, GMAD::BeamBase::alfy, GMAD::BeamBase::beamEnergy, GMAD::BeamBase::beamKineticEnergy, GMAD::BeamBase::beamMomentum, GMAD::BeamBase::beamParticleName, GMAD::BeamBase::betx, GMAD::BeamBase::bety, GMAD::BeamBase::bunchFrequency, GMAD::BeamBase::bunchPeriod, GMAD::BeamBase::directionDistrType, GMAD::BeamBase::dispx, GMAD::BeamBase::dispxp, GMAD::BeamBase::dispy, GMAD::BeamBase::dispyp, GMAD::BeamBase::distrFile, GMAD::BeamBase::distrFileFormat, GMAD::BeamBase::distrFileFromExecOptions, GMAD::BeamBase::distrFileLoop, GMAD::BeamBase::distrFileLoopNTimes, GMAD::BeamBase::distrFileMatchLength, GMAD::BeamBase::distrType, GMAD::BeamBase::E0, GMAD::BeamBase::Ek0, GMAD::BeamBase::emitNX, GMAD::BeamBase::emitNY, GMAD::BeamBase::emitx, GMAD::BeamBase::emity, GMAD::BeamBase::energyDistrType, GMAD::BeamBase::envelopeE, GMAD::BeamBase::envelopeR, GMAD::BeamBase::envelopeRp, GMAD::BeamBase::envelopeT, GMAD::BeamBase::envelopeX, GMAD::BeamBase::envelopeXp, GMAD::BeamBase::envelopeY, GMAD::BeamBase::envelopeYp, GMAD::BeamBase::envelopeZ, GMAD::BeamBase::envelopeZp, GMAD::BeamBase::eventGeneratorMaxEK, GMAD::BeamBase::eventGeneratorMaxRp, GMAD::BeamBase::eventGeneratorMaxX, GMAD::BeamBase::eventGeneratorMaxXp, GMAD::BeamBase::eventGeneratorMaxY, GMAD::BeamBase::eventGeneratorMaxYp, GMAD::BeamBase::eventGeneratorMaxZ, GMAD::BeamBase::eventGeneratorMaxZp, GMAD::BeamBase::eventGeneratorMinEK, GMAD::BeamBase::eventGeneratorMinRp, GMAD::BeamBase::eventGeneratorMinT, GMAD::BeamBase::eventGeneratorMinX, GMAD::BeamBase::eventGeneratorMinXp, GMAD::BeamBase::eventGeneratorMinY, GMAD::BeamBase::eventGeneratorMinYp, GMAD::BeamBase::eventGeneratorMinZ, GMAD::BeamBase::eventGeneratorMinZp, GMAD::BeamBase::eventGeneratorNEventsSkip, GMAD::BeamBase::eventGeneratorParticles, GMAD::BeamBase::eventGeneratorWarnSkippedParticles, GMAD::BeamBase::eventsPerBunch, GMAD::BeamBase::haloNSigmaXInner, GMAD::BeamBase::haloNSigmaXOuter, GMAD::BeamBase::haloNSigmaYInner, GMAD::BeamBase::haloNSigmaYOuter, GMAD::BeamBase::haloPSWeightFunction, GMAD::BeamBase::haloPSWeightParameter, GMAD::BeamBase::haloXCutInner, GMAD::BeamBase::haloXCutOuter, GMAD::BeamBase::haloXpCutInner, GMAD::BeamBase::haloXpCutOuter, GMAD::BeamBase::haloYCutInner, GMAD::BeamBase::haloYCutOuter, GMAD::BeamBase::haloYpCutInner, GMAD::BeamBase::haloYpCutOuter, GMAD::BeamBase::nlinesIgnore, GMAD::BeamBase::nlinesSkip, GMAD::BeamBase::P0, GMAD::BeamBase::particle, GMAD::Published< BeamBase >::publish(), GMAD::BeamBase::removeUnstableWithoutDecay, GMAD::BeamBase::Rmax, GMAD::BeamBase::Rmin, GMAD::BeamBase::S0, GMAD::BeamBase::shellX, GMAD::BeamBase::shellXp, GMAD::BeamBase::shellXpWidth, GMAD::BeamBase::shellXWidth, GMAD::BeamBase::shellY, GMAD::BeamBase::shellYp, GMAD::BeamBase::shellYpWidth, GMAD::BeamBase::shellYWidth, GMAD::BeamBase::sigma11, GMAD::BeamBase::sigma12, GMAD::BeamBase::sigma13, GMAD::BeamBase::sigma14, GMAD::BeamBase::sigma15, GMAD::BeamBase::sigma16, GMAD::BeamBase::sigma22, GMAD::BeamBase::sigma23, GMAD::BeamBase::sigma24, GMAD::BeamBase::sigma25, GMAD::BeamBase::sigma26, GMAD::BeamBase::sigma33, GMAD::BeamBase::sigma34, GMAD::BeamBase::sigma35, GMAD::BeamBase::sigma36, GMAD::BeamBase::sigma44, GMAD::BeamBase::sigma45, GMAD::BeamBase::sigma46, GMAD::BeamBase::sigma55, GMAD::BeamBase::sigma56, GMAD::BeamBase::sigma66, GMAD::BeamBase::sigmaE, GMAD::BeamBase::sigmaT, GMAD::BeamBase::sigmaX, GMAD::BeamBase::sigmaXp, GMAD::BeamBase::sigmaY, GMAD::BeamBase::sigmaYp, GMAD::BeamBase::spaceDistrType, GMAD::BeamBase::T0, GMAD::BeamBase::tilt, GMAD::BeamBase::X0, GMAD::BeamBase::xDistrType, GMAD::BeamBase::Xp0, GMAD::BeamBase::Y0, GMAD::BeamBase::yDistrType, GMAD::BeamBase::Yp0, GMAD::BeamBase::Z0, GMAD::BeamBase::zDistrType, GMAD::BeamBase::zFromT, and GMAD::BeamBase::Zp0.

Here is the call graph for this function:

◆ set_value()

template<typename T >
void Beam::set_value ( std::string  name,
value
)

set methods by property name

Definition at line 76 of file beam.h.

References GMAD::Published< BeamBase >::set(), and GMAD::BeamBase::setKeys.

Referenced by BDSExecOptions::Parse().

Here is the call graph for this function:
Here is the caller graph for this function:

The documentation for this class was generated from the following files:
