GMAD::CavityModel Class Reference

RF CavityModel class for parser. More...

#include <cavitymodel.h>

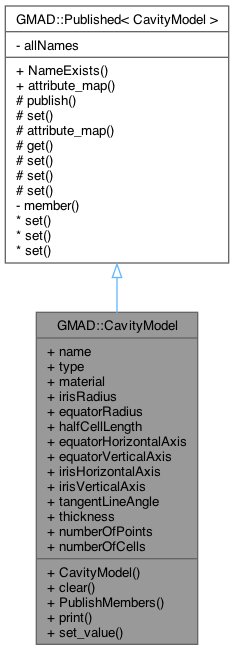

Inheritance diagram for GMAD::CavityModel:

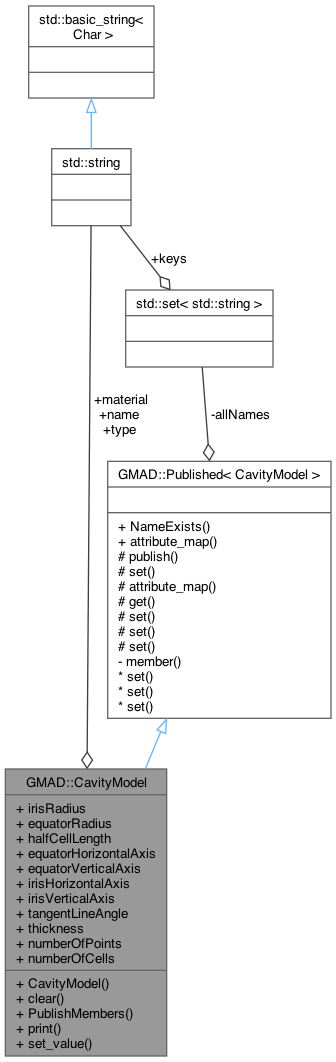

Collaboration diagram for GMAD::CavityModel:

Public Member Functions
	CavityModel ()
	constructor
void	clear ()
	reset
void	PublishMembers ()
	publish members
void	print () const
	print some properties
template<typename T >
void	set_value (std::string property, T value)
	set methods by property name and value
Public Member Functions inherited from GMAD::Published< CavityModel >
bool	NameExists (const std::string &name) const
Published< CavityModel >::template AttributeMap< T > &	attribute_map () const

Data Fields
std::string	name
	name
std::string	type
	geometry type
std::string	material
	material name
double	irisRadius
	iris radius
double	equatorRadius
	equator radius
double	halfCellLength
	half cell length
double	equatorHorizontalAxis
	equator ellipse vertical semi axis;
double	equatorVerticalAxis
	equator ellipse horizontal semi axis;
double	irisHorizontalAxis
	iris horizontal axis
double	irisVerticalAxis
	Iris axis.
double	tangentLineAngle
	tangent angle
double	thickness
	thickness
int	numberOfPoints
int	numberOfCells
	number of cells per cavity

Additional Inherited Members
Protected Types inherited from GMAD::Published< CavityModel >
using	AttributeMap = typename std::unordered_map< std::string, T C::* >
	Define AttributeMap of string and class member pointer.
Protected Member Functions inherited from GMAD::Published< CavityModel >
void	publish (const std::string &name, T C::*mp)
	Make pointer to member from class C and type T with accessible with a name.
void	set (CavityModel *instance, const CavityModel *instance2, const std::string &name)
	Set member with name of class instance to value of second instance.
AttributeMap< T > &	attribute_map () const
	Access method to static map for type T and class C.
T	get (const CavityModel *instance, const std::string &name) const
	Get method for class C.
void	set (CavityModel *instance, const std::string &name, double value)
void	set (CavityModel *instance, const std::string &name, GMAD::Array *const &value)
void	set (CavityModel *instance, const std::string &name, const T &value)

Detailed Description

RF CavityModel class for parser.

Author

Jochem Snuverink

Definition at line 35 of file cavitymodel.h.

Constructor & Destructor Documentation

CavityModel()

CavityModel::CavityModel

(

)

constructor

Definition at line 23 of file cavitymodel.cc.

References clear(), and PublishMembers().

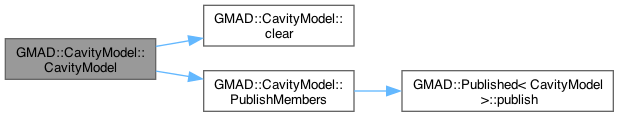

Here is the call graph for this function:

Member Function Documentation

clear()

void CavityModel::clear

(

)

reset

Definition at line 29 of file cavitymodel.cc.

References equatorHorizontalAxis, equatorRadius, equatorVerticalAxis, halfCellLength, irisHorizontalAxis, irisRadius, irisVerticalAxis, material, name, numberOfCells, numberOfPoints, tangentLineAngle, thickness, and type.

Referenced by CavityModel().

Here is the caller graph for this function:

print()

void CavityModel::print

(

)

const

print some properties

Definition at line 65 of file cavitymodel.cc.

References equatorHorizontalAxis, equatorRadius, equatorVerticalAxis, halfCellLength, irisHorizontalAxis, irisRadius, irisVerticalAxis, material, name, numberOfCells, numberOfPoints, tangentLineAngle, thickness, and type.

PublishMembers()

void CavityModel::PublishMembers

(

)

publish members

Definition at line 47 of file cavitymodel.cc.

References equatorHorizontalAxis, equatorRadius, equatorVerticalAxis, halfCellLength, irisHorizontalAxis, irisRadius, irisVerticalAxis, material, name, numberOfCells, numberOfPoints, GMAD::Published< CavityModel >::publish(), tangentLineAngle, thickness, and type.

Referenced by CavityModel().

Here is the call graph for this function:

Here is the caller graph for this function:

set_value()

template<typename T >

void GMAD::CavityModel::set_value	(	std::string	property,
		T	value
	)

set methods by property name and value

Definition at line 70 of file cavitymodel.h.

References GMAD::Published< CavityModel >::set().

Here is the call graph for this function:

Field Documentation

equatorHorizontalAxis

double GMAD::CavityModel::equatorHorizontalAxis

equator ellipse vertical semi axis;

Definition at line 43 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

equatorRadius

double GMAD::CavityModel::equatorRadius

equator radius

Definition at line 41 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

equatorVerticalAxis

double GMAD::CavityModel::equatorVerticalAxis

equator ellipse horizontal semi axis;

Definition at line 44 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

halfCellLength

double GMAD::CavityModel::halfCellLength

half cell length

Definition at line 42 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

irisHorizontalAxis

double GMAD::CavityModel::irisHorizontalAxis

iris horizontal axis

Definition at line 45 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

irisRadius

double GMAD::CavityModel::irisRadius

iris radius

Definition at line 40 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

irisVerticalAxis

double GMAD::CavityModel::irisVerticalAxis

Iris axis.

Definition at line 46 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

material

std::string GMAD::CavityModel::material

material name

Definition at line 39 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

name

std::string GMAD::CavityModel::name

name

Definition at line 37 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

numberOfCells

int GMAD::CavityModel::numberOfCells

number of cells per cavity

Definition at line 54 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

numberOfPoints

int GMAD::CavityModel::numberOfPoints

number of points that will be used to make the cell shape more will be more accurate but will also increase tracking time

Definition at line 52 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

tangentLineAngle

double GMAD::CavityModel::tangentLineAngle

tangent angle

Definition at line 47 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

thickness

double GMAD::CavityModel::thickness

thickness

Definition at line 48 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

type

std::string GMAD::CavityModel::type

geometry type

Definition at line 38 of file cavitymodel.h.

Referenced by clear(), print(), and PublishMembers().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/parser/cavitymodel.h
• /Users/lnevay/physics/reps/bdsim/parser/cavitymodel.cc
