Field class for parser. More...

#include <field.h>

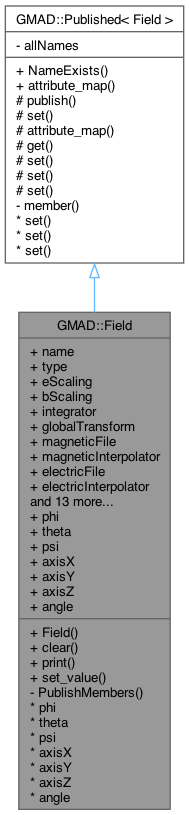

Inheritance diagram for GMAD::Field:

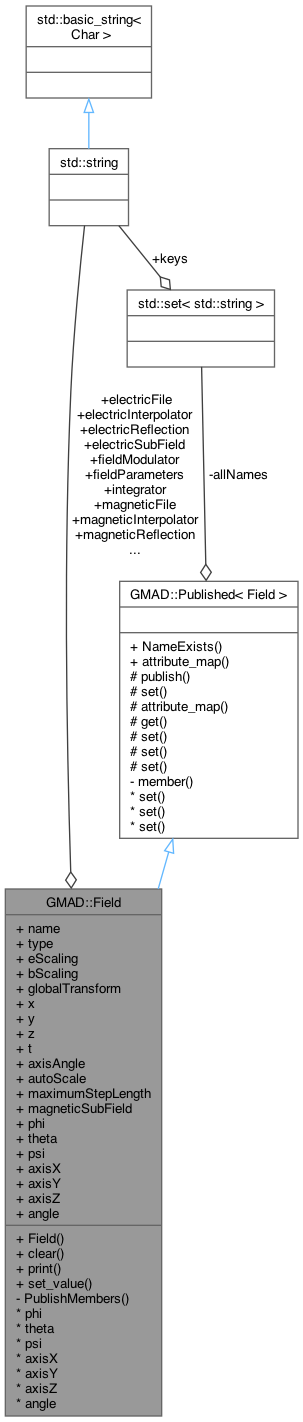

Collaboration diagram for GMAD::Field:

Public Member Functions
	Field ()
	Constructor.

void	clear ()
	Reset.

void	print () const
	Print some properties.

template<typename T >
void	set_value (std::string property, T value)
	Set methods by property name and value.

Public Member Functions inherited from GMAD::Published< Field >
bool	NameExists (const std::string &name) const

Published< Field >::template AttributeMap< T > &	attribute_map () const

Data Fields
std::string	name
	Name.

std::string	type
	Type.

double	eScaling
	E Field Scaling factor.

double	bScaling
	B Field Scaling factor.

std::string	integrator
	Which integrator to use.

bool	globalTransform
	Provide global to curvilinear coordinate transform.

std::string	magneticFile
	File for magnetic field map.

std::string	magneticInterpolator
	Interpolator for the magnetic field.

std::string	electricFile
	File for the electric field map.

std::string	electricInterpolator
	Interpolator for the electric field.

std::string	fieldModulator
	Name of field modulator object.

double	x
	Offset in x.

double	y
	Offset in y.

double	z
	Offset in z.

double	t

bool	axisAngle
	Flag to use the axis angle construction of rotation.

bool	autoScale
	Scale the field to the magnet it's attached to.

double	maximumStepLength
	Maximum permitted step length in the volumes the field is attached to.

std::string	magneticSubField

std::string	electricSubField

std::string	magneticReflection

std::string	electricReflection

std::string	fieldParameters


double	phi
	Euler angle for rotation.

double	theta
	Euler angle for rotation.

double	psi
	Euler angle for rotation.


double	axisX

double	axisY

double	axisZ

double	angle

Private Member Functions
void	PublishMembers ()
	publish members

Additional Inherited Members
Protected Types inherited from GMAD::Published< Field >
using	AttributeMap = typename std::unordered_map< std::string, T C::* >
	Define AttributeMap of string and class member pointer.

Protected Member Functions inherited from GMAD::Published< Field >
void	publish (const std::string &name, T C::*mp)
	Make pointer to member from class C and type T with accessible with a name.

void	set (Field instance, const Field instance2, const std::string &name)
	Set member with name of class instance to value of second instance.

AttributeMap< T > &	attribute_map () const
	Access method to static map for type T and class C.

T	get (const Field *instance, const std::string &name) const
	Get method for class C.

void	set (Field *instance, const std::string &name, double value)

void	set (Field instance, const std::string &name, GMAD::Array const &value)

void	set (Field *instance, const std::string &name, const T &value)

Detailed Description

Field class for parser.

Author: Laurie Nevay

Definition at line 36 of file field.h.

Constructor & Destructor Documentation

◆ Field()

Field::Field ( )

Constructor.

Definition at line 23 of file field.cc.

References clear(), and PublishMembers().

Here is the call graph for this function:

Member Function Documentation

◆ clear()

void Field::clear ( )

Reset.

Definition at line 29 of file field.cc.

References angle, autoScale, axisAngle, axisX, axisY, axisZ, bScaling, electricFile, electricInterpolator, eScaling, fieldModulator, globalTransform, integrator, magneticFile, magneticInterpolator, maximumStepLength, name, phi, psi, t, theta, type, x, y, and z.

Referenced by Field().

Here is the caller graph for this function:

◆ print()

void Field::print ( ) const

Print some properties.

Definition at line 97 of file field.cc.

References angle, autoScale, axisAngle, axisX, axisY, axisZ, bScaling, electricFile, electricInterpolator, eScaling, fieldModulator, integrator, magneticFile, magneticInterpolator, maximumStepLength, name, phi, psi, t, theta, type, x, y, and z.

◆ PublishMembers()

void Field::PublishMembers ( )

private

publish members

Definition at line 63 of file field.cc.

References angle, autoScale, axisAngle, axisX, axisY, axisZ, bScaling, electricFile, electricInterpolator, eScaling, fieldModulator, globalTransform, integrator, magneticFile, magneticInterpolator, maximumStepLength, name, phi, psi, GMAD::Published< Field >::publish(), t, theta, type, x, y, and z.

Referenced by Field().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ set_value()

template<typename T >

void GMAD::Field::set_value	(	std::string	property,
		T	value
	)

Set methods by property name and value.

Definition at line 98 of file field.h.

References GMAD::Published< Field >::set().

Here is the call graph for this function:

Field Documentation

◆ angle

double GMAD::Field::angle

Axis angle rotation.

Definition at line 64 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ autoScale

bool GMAD::Field::autoScale

Scale the field to the magnet it's attached to.

Definition at line 68 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ axisAngle

bool GMAD::Field::axisAngle

Flag to use the axis angle construction of rotation.

Definition at line 66 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ axisX

double GMAD::Field::axisX

Axis angle rotation.

Definition at line 61 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ axisY

double GMAD::Field::axisY

Axis angle rotation.

Definition at line 62 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ axisZ

double GMAD::Field::axisZ

Axis angle rotation.

Definition at line 63 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ bScaling

double GMAD::Field::bScaling

B Field Scaling factor.

Definition at line 42 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ electricFile

std::string GMAD::Field::electricFile

File for the electric field map.

Definition at line 47 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ electricInterpolator

std::string GMAD::Field::electricInterpolator

Interpolator for the electric field.

Definition at line 48 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ electricReflection

std::string GMAD::Field::electricReflection

Definition at line 77 of file field.h.

◆ electricSubField

std::string GMAD::Field::electricSubField

Definition at line 74 of file field.h.

◆ eScaling

double GMAD::Field::eScaling

E Field Scaling factor.

Definition at line 41 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ fieldModulator

std::string GMAD::Field::fieldModulator

Name of field modulator object.

Definition at line 49 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ fieldParameters

std::string GMAD::Field::fieldParameters

Definition at line 79 of file field.h.

◆ globalTransform

bool GMAD::Field::globalTransform

Provide global to curvilinear coordinate transform.

Definition at line 44 of file field.h.

Referenced by clear(), and PublishMembers().

◆ integrator

std::string GMAD::Field::integrator

Which integrator to use.

Definition at line 43 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ magneticFile

std::string GMAD::Field::magneticFile

File for magnetic field map.

Definition at line 45 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ magneticInterpolator

std::string GMAD::Field::magneticInterpolator

Interpolator for the magnetic field.

Definition at line 46 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ magneticReflection

std::string GMAD::Field::magneticReflection

Definition at line 76 of file field.h.

◆ magneticSubField

std::string GMAD::Field::magneticSubField

Definition at line 73 of file field.h.

◆ maximumStepLength

double GMAD::Field::maximumStepLength

Maximum permitted step length in the volumes the field is attached to.

Definition at line 71 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ name

std::string GMAD::Field::name

Name.

Definition at line 39 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ phi

double GMAD::Field::phi

Euler angle for rotation.

Definition at line 56 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ psi

double GMAD::Field::psi

Euler angle for rotation.

Definition at line 58 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ t

double GMAD::Field::t

Offset in t.

Definition at line 54 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ theta

double GMAD::Field::theta

Euler angle for rotation.

Definition at line 57 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ type

std::string GMAD::Field::type

Type.

Definition at line 40 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ x

double GMAD::Field::x

Offset in x.

Definition at line 51 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ y

double GMAD::Field::y

Offset in y.

Definition at line 52 of file field.h.

Referenced by clear(), print(), and PublishMembers().

◆ z

double GMAD::Field::z

Offset in z.

Definition at line 53 of file field.h.

Referenced by clear(), print(), and PublishMembers().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/parser/field.h
/Users/lnevay/physics/reps/bdsim/parser/field.cc
