GMAD::Tunnel Class Reference

Tunnel class for parser. More...

#include <tunnel.h>

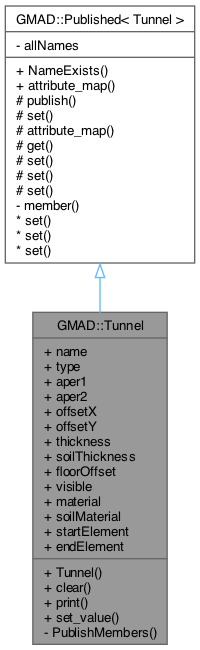

Inheritance diagram for GMAD::Tunnel:

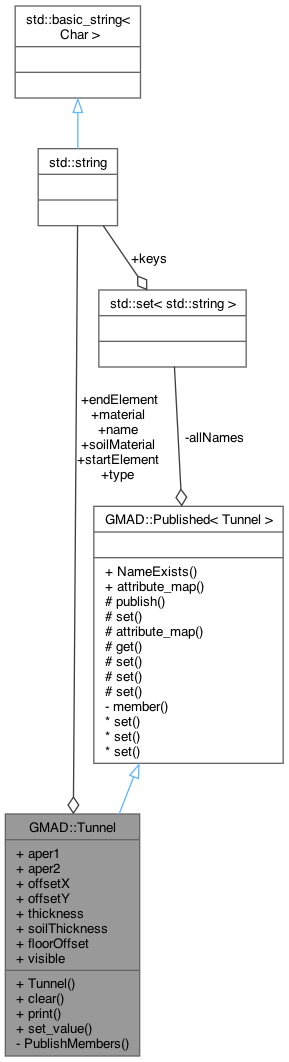

Collaboration diagram for GMAD::Tunnel:

Public Member Functions
	Tunnel ()
	constructor
void	clear ()
	reset
void	print () const
	print some properties
template<typename T >
void	set_value (std::string property, T value)
	set methods by property name and value
Public Member Functions inherited from GMAD::Published< Tunnel >
bool	NameExists (const std::string &name) const
Published< Tunnel >::template AttributeMap< T > &	attribute_map () const

Data Fields
std::string	name
std::string	type
	geometry type
double	aper1
	radius, aperture parameters
double	aper2
double	offsetX
	offset x and y
double	offsetY
double	thickness
	tunnel geometry parameters
double	soilThickness
double	floorOffset
int	visible
	visibility
std::string	material
	material
std::string	soilMaterial
	soil
std::string	startElement
	start and end element by name
std::string	endElement

Private Member Functions
void	PublishMembers ()
	Publish members.

Additional Inherited Members
Protected Types inherited from GMAD::Published< Tunnel >
using	AttributeMap = typename std::unordered_map< std::string, T C::* >
	Define AttributeMap of string and class member pointer.
Protected Member Functions inherited from GMAD::Published< Tunnel >
void	publish (const std::string &name, T C::*mp)
	Make pointer to member from class C and type T with accessible with a name.
void	set (Tunnel *instance, const Tunnel *instance2, const std::string &name)
	Set member with name of class instance to value of second instance.
AttributeMap< T > &	attribute_map () const
	Access method to static map for type T and class C.
T	get (const Tunnel *instance, const std::string &name) const
	Get method for class C.
void	set (Tunnel *instance, const std::string &name, double value)
void	set (Tunnel *instance, const std::string &name, GMAD::Array *const &value)
void	set (Tunnel *instance, const std::string &name, const T &value)

Detailed Description

Tunnel class for parser.

Author

Jochem Snuverink

Definition at line 35 of file tunnel.h.

Constructor & Destructor Documentation

Tunnel()

Tunnel::Tunnel

(

)

constructor

Definition at line 23 of file tunnel.cc.

References PublishMembers().

Here is the call graph for this function:

Member Function Documentation

clear()

void Tunnel::clear

(

)

reset

Definition at line 32 of file tunnel.cc.

References aper1, material, name, offsetX, soilMaterial, startElement, thickness, type, and visible.

print()

void Tunnel::print

(

)

const

print some properties

Definition at line 71 of file tunnel.cc.

References aper1, material, name, offsetX, soilMaterial, startElement, thickness, and type.

PublishMembers()

void Tunnel::PublishMembers ( )

private

Publish members.

Definition at line 52 of file tunnel.cc.

References aper1, material, name, offsetX, GMAD::Published< Tunnel >::publish(), soilMaterial, startElement, thickness, type, and visible.

Referenced by Tunnel().

Here is the call graph for this function:

Here is the caller graph for this function:

set_value()

template<typename T >

void GMAD::Tunnel::set_value	(	std::string	property,
		T	value
	)

set methods by property name and value

Definition at line 79 of file tunnel.h.

References GMAD::Published< Tunnel >::set().

Here is the call graph for this function:

Field Documentation

aper1

double GMAD::Tunnel::aper1

radius, aperture parameters

Definition at line 43 of file tunnel.h.

Referenced by clear(), print(), and PublishMembers().

aper2

double GMAD::Tunnel::aper2

Definition at line 44 of file tunnel.h.

endElement

std::string GMAD::Tunnel::endElement

Definition at line 61 of file tunnel.h.

floorOffset

double GMAD::Tunnel::floorOffset

Definition at line 50 of file tunnel.h.

material

std::string GMAD::Tunnel::material

material

Definition at line 56 of file tunnel.h.

Referenced by clear(), print(), and PublishMembers().

name

std::string GMAD::Tunnel::name

name

Definition at line 38 of file tunnel.h.

Referenced by clear(), print(), and PublishMembers().

offsetX

double GMAD::Tunnel::offsetX

offset x and y

Definition at line 46 of file tunnel.h.

Referenced by clear(), print(), and PublishMembers().

offsetY

double GMAD::Tunnel::offsetY

Definition at line 46 of file tunnel.h.

soilMaterial

std::string GMAD::Tunnel::soilMaterial

soil

Definition at line 58 of file tunnel.h.

Referenced by clear(), print(), and PublishMembers().

soilThickness

double GMAD::Tunnel::soilThickness

Definition at line 49 of file tunnel.h.

startElement

std::string GMAD::Tunnel::startElement

start and end element by name

Definition at line 61 of file tunnel.h.

Referenced by clear(), print(), and PublishMembers().

thickness

double GMAD::Tunnel::thickness

tunnel geometry parameters

Definition at line 48 of file tunnel.h.

Referenced by clear(), print(), and PublishMembers().

type

std::string GMAD::Tunnel::type

geometry type

Definition at line 40 of file tunnel.h.

Referenced by clear(), print(), and PublishMembers().

visible

int GMAD::Tunnel::visible

visibility

Definition at line 53 of file tunnel.h.

Referenced by clear(), and PublishMembers().

---

The documentation for this class was generated from the following files:

• /Users/lnevay/physics/reps/bdsim/parser/tunnel.h
• /Users/lnevay/physics/reps/bdsim/parser/tunnel.cc
