Analysis routines for an individual sampler. More...

#include <SamplerAnalysis.hh>

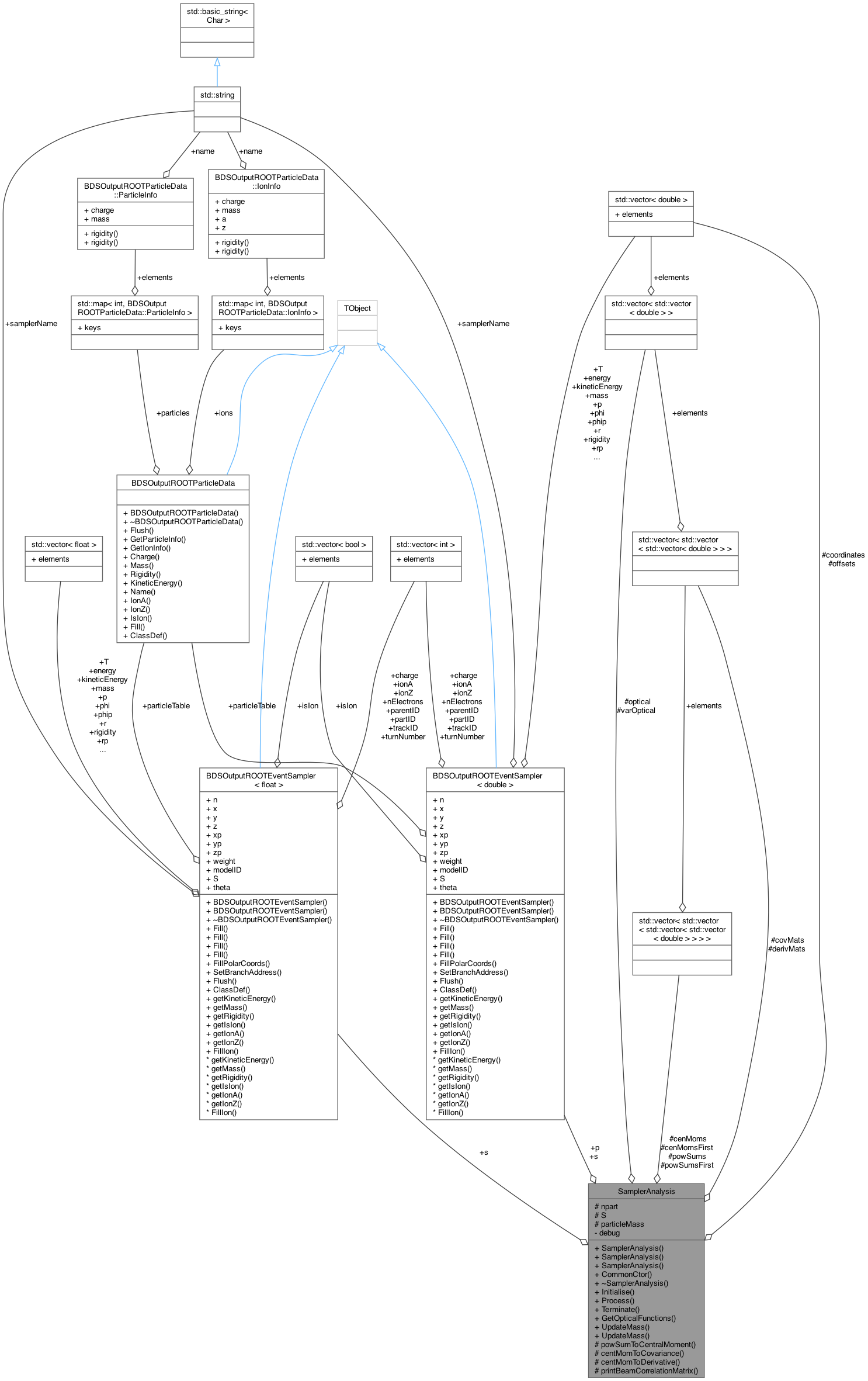

Collaboration diagram for SamplerAnalysis:

Public Member Functions
	SamplerAnalysis (BDSOutputROOTEventSampler< float > *samplerIn, bool debugIn=false)

	SamplerAnalysis (BDSOutputROOTEventSampler< double > *samplerIn, bool debugIn=false)

void	CommonCtor ()
	Initialisation of arrays for optical function calculations.

void	Initialise ()
	Initialise variables.

void	Process (bool firstTime=false)
	Loop over all entries in the sampler and accumulate power sums over variuos moments.

std::vector< double >	Terminate (std::vector< double > emittance, bool useEmittanceFromFirstSampler=true)
	Calculate optical functions based on combinations of moments already accumulated.

std::vector< std::vector< double > >	GetOpticalFunctions ()
	Accessor for optical functions.

Static Public Member Functions
static void	UpdateMass (SamplerAnalysis *s)
	Set primary particle mass for optical functions from sampler data.

static void	UpdateMass (const std::string &particleName)
	Set primary particle mass for optical functions from particle name.

Data Fields
BDSOutputROOTEventSampler< float > *	s

BDSOutputROOTEventSampler< double > *	s

BDSOutputROOTEventSampler< double > *	p

Protected Types
typedef std::vector< std::vector< double > >	twoDArray

typedef std::vector< std::vector< std::vector< double > > >	threeDArray

typedef std::vector< std::vector< std::vector< std::vector< double > > > >	fourDArray

Protected Member Functions
double	powSumToCentralMoment (fourDArray &powSum, long long int npartIn, int i, int j, int m, int n)

double	centMomToCovariance (fourDArray &centMoms, long long int npartIn, int k, int i, int j)

double	centMomToDerivative (fourDArray &centMoms, int k, int t, int i)

void	printBeamCorrelationMatrix (fourDArray &centMoms)

Protected Attributes
long long int	npart

double	S

std::vector< double >	coordinates

std::vector< double >	offsets

fourDArray	powSums

fourDArray	cenMoms

fourDArray	powSumsFirst

fourDArray	cenMomsFirst

threeDArray	covMats

threeDArray	derivMats

twoDArray	optical
	emt, alf, bta, gma, eta, etapr, mean, sigma

twoDArray	varOptical
	variances of optical functions

Static Protected Attributes
static double	particleMass = 0

Private Attributes
bool	debug

Detailed Description

Analysis routines for an individual sampler.

Author: Stewart Boogert, Andrey Abramov

Definition at line 30 of file SamplerAnalysis.hh.

Member Typedef Documentation

◆ fourDArray

typedef std::vector<std::vector<std::vector<std::vector<double> > > > SamplerAnalysis::fourDArray

protected

Definition at line 88 of file SamplerAnalysis.hh.

◆ threeDArray

typedef std::vector<std::vector<std::vector<double> > > SamplerAnalysis::threeDArray

protected

Definition at line 87 of file SamplerAnalysis.hh.

◆ twoDArray

typedef std::vector<std::vector<double> > SamplerAnalysis::twoDArray

protected

Definition at line 86 of file SamplerAnalysis.hh.

Constructor & Destructor Documentation

◆ SamplerAnalysis() [1/2]

SamplerAnalysis::SamplerAnalysis ( )

Definition at line 27 of file SamplerAnalysis.cc.

◆ SamplerAnalysis() [2/2]

SamplerAnalysis::SamplerAnalysis	(	BDSOutputROOTEventSampler< float > *	samplerIn,
		bool	debugIn = `false`
	)

Definition at line 37 of file SamplerAnalysis.cc.

◆ ~SamplerAnalysis()

SamplerAnalysis::~SamplerAnalysis ( )

virtual

Definition at line 160 of file SamplerAnalysis.cc.

Member Function Documentation

◆ centMomToCovariance()

double SamplerAnalysis::centMomToCovariance	(	fourDArray &	centMoms,
		long long int	npartIn,
		int	k,
		int	i,
		int	j
	)

protected

Returns a matrix element of the parameter covariance matrix which is a 3x3 symmetric matrix in each plane (coupling is ignored). Arguments: int k: plane specifier (k=0: horizontal, k=1: vertical, k=2: longitudinal) int i,j: indices of matrix elements (i,j=0: <uu>, i,j=1: <u'u'>, i,j=2: <uu'>) e.g. covMat[0][1][2] = cov[<x'x'>,<xx'>], covMat[1][0][0] = cov[<yy>,<yy>]

Definition at line 517 of file SamplerAnalysis.cc.

Referenced by Terminate().

Here is the caller graph for this function:

◆ centMomToDerivative()

double SamplerAnalysis::centMomToDerivative	(	fourDArray &	centMoms,
		int	k,
		int	t,
		int	i
	)

protected

Returns the derivative of an optical function w.r.t. central moments. Arguments: int t: function specifier, corresponds to index of the function in the optical function vector. int k: plane specifier (k=0: horizontal, k=1: vertical, k=2: longitudinal) int i: central moment to diffrentiate w.r.t, i=0: <uu>, i=1: <u'u'>, i=2: <uu'> e.g. derivMat[t=2][k=0][i=0]: d(beta)/d<xx> , derivMat[t=0][k=1][i=1]: d(emittance)/d<yy'>

Definition at line 595 of file SamplerAnalysis.cc.

Referenced by Terminate().

Here is the caller graph for this function:

◆ CommonCtor()

void SamplerAnalysis::CommonCtor ( )

Initialisation of arrays for optical function calculations.

Definition at line 91 of file SamplerAnalysis.cc.

References optical, and varOptical.

◆ GetOpticalFunctions()

std::vector< std::vector< double > > SamplerAnalysis::GetOpticalFunctions ( )

inline

Accessor for optical functions.

Definition at line 58 of file SamplerAnalysis.hh.

References optical.

◆ Initialise()

void SamplerAnalysis::Initialise ( )

Initialise variables.

Definition at line 163 of file SamplerAnalysis.cc.

◆ powSumToCentralMoment()

double SamplerAnalysis::powSumToCentralMoment	(	fourDArray &	powSum,
		long long int	npartIn,
		int	i,
		int	j,
		int	m,
		int	n
	)

protected

Returns a central moment calculated from the corresponding coordinate power sums. Arguments: powSums: array contatining the coordinate power sums a, b: integer identifier for the coordinate (0->x, 1->xp, 2->y, 3->yp, 4->E, 5->t) m, n: order of the moment wrt to the coordinate note: total order of the mixed moment is given by k = m + n

Definition at line 389 of file SamplerAnalysis.cc.

Referenced by Terminate().

Here is the caller graph for this function:

◆ printBeamCorrelationMatrix()

void SamplerAnalysis::printBeamCorrelationMatrix ( fourDArray & centMoms )

protected

Definition at line 751 of file SamplerAnalysis.cc.

◆ Process()

void SamplerAnalysis::Process ( bool firstTime = false )

Loop over all entries in the sampler and accumulate power sums over variuos moments.

Definition at line 168 of file SamplerAnalysis.cc.

◆ Terminate()

std::vector< double > SamplerAnalysis::Terminate	(	std::vector< double >	emittance,
		bool	useEmittanceFromFirstSampler = `true`
	)

Calculate optical functions based on combinations of moments already accumulated.

Definition at line 215 of file SamplerAnalysis.cc.

References centMomToCovariance(), centMomToDerivative(), optical, powSumToCentralMoment(), and varOptical.

Here is the call graph for this function:

◆ UpdateMass() [1/2]

void SamplerAnalysis::UpdateMass ( const std::string & particleName )

static

Set primary particle mass for optical functions from particle name.

Definition at line 72 of file SamplerAnalysis.cc.

◆ UpdateMass() [2/2]

void SamplerAnalysis::UpdateMass ( SamplerAnalysis * s )

static

Set primary particle mass for optical functions from sampler data.

Definition at line 51 of file SamplerAnalysis.cc.

Referenced by EventAnalysis::EventAnalysis().

Here is the caller graph for this function:

Field Documentation

◆ cenMoms

fourDArray SamplerAnalysis::cenMoms

protected

Definition at line 91 of file SamplerAnalysis.hh.

◆ cenMomsFirst

fourDArray SamplerAnalysis::cenMomsFirst

protected

Definition at line 94 of file SamplerAnalysis.hh.

◆ coordinates

std::vector<double> SamplerAnalysis::coordinates

protected

Definition at line 81 of file SamplerAnalysis.hh.

◆ covMats

threeDArray SamplerAnalysis::covMats

protected

Definition at line 96 of file SamplerAnalysis.hh.

◆ debug

bool SamplerAnalysis::debug

private

Definition at line 143 of file SamplerAnalysis.hh.

◆ derivMats

threeDArray SamplerAnalysis::derivMats

protected

Definition at line 97 of file SamplerAnalysis.hh.

◆ npart

long long int SamplerAnalysis::npart

protected

Definition at line 77 of file SamplerAnalysis.hh.

◆ offsets

std::vector<double> SamplerAnalysis::offsets

protected

Definition at line 84 of file SamplerAnalysis.hh.

◆ optical

twoDArray SamplerAnalysis::optical

protected

emt, alf, bta, gma, eta, etapr, mean, sigma

Definition at line 98 of file SamplerAnalysis.hh.

Referenced by CommonCtor(), GetOpticalFunctions(), and Terminate().

◆ p

BDSOutputROOTEventSampler<double>* SamplerAnalysis::p

Definition at line 70 of file SamplerAnalysis.hh.

◆ particleMass

double SamplerAnalysis::particleMass = 0

staticprotected

Definition at line 74 of file SamplerAnalysis.hh.

◆ powSums

fourDArray SamplerAnalysis::powSums

protected

Definition at line 90 of file SamplerAnalysis.hh.

◆ powSumsFirst

fourDArray SamplerAnalysis::powSumsFirst

protected

Definition at line 93 of file SamplerAnalysis.hh.

◆ s [1/2]

BDSOutputROOTEventSampler<float>* SamplerAnalysis::s

Definition at line 67 of file SamplerAnalysis.hh.

◆ s [2/2]

BDSOutputROOTEventSampler<double>* SamplerAnalysis::s

Definition at line 69 of file SamplerAnalysis.hh.

◆ S

double SamplerAnalysis::S

protected

Definition at line 78 of file SamplerAnalysis.hh.

◆ varOptical

twoDArray SamplerAnalysis::varOptical

protected

variances of optical functions

Definition at line 99 of file SamplerAnalysis.hh.

Referenced by CommonCtor(), and Terminate().

The documentation for this class was generated from the following files:

/Users/lnevay/physics/reps/bdsim/analysis/SamplerAnalysis.hh
/Users/lnevay/physics/reps/bdsim/analysis/SamplerAnalysis.cc
