Magnet Geometry

one_of_each_base.gmad

A base file that’s used (include one_of_each_base.gmad) by many examples in this directory. It’s loosely based on the one of each example in layout and contains one of each of the magnetic elements in BDSIM. Each example demonstrates a different geometry possible.

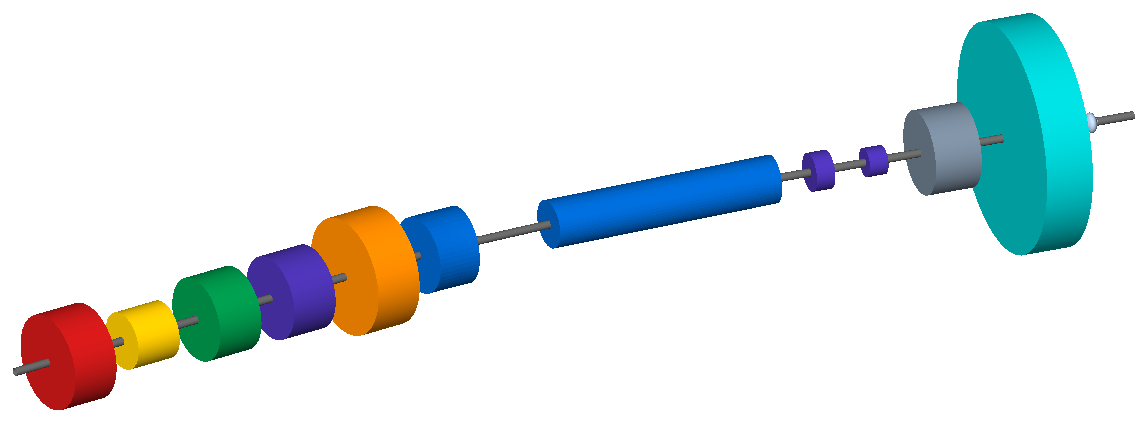

1_cylindrical.gmad

Key code:

magnetGeometryType="cylindrical";

This example uses the sequence of magnets defined in one_of_each_base.gmad and ensures that they have cylindrical geometry. This is a little redundant as the default is cylindrical.

How to run:

bdsim --file=1_cylindrical.gmad

../_images/1_cylindrical.png

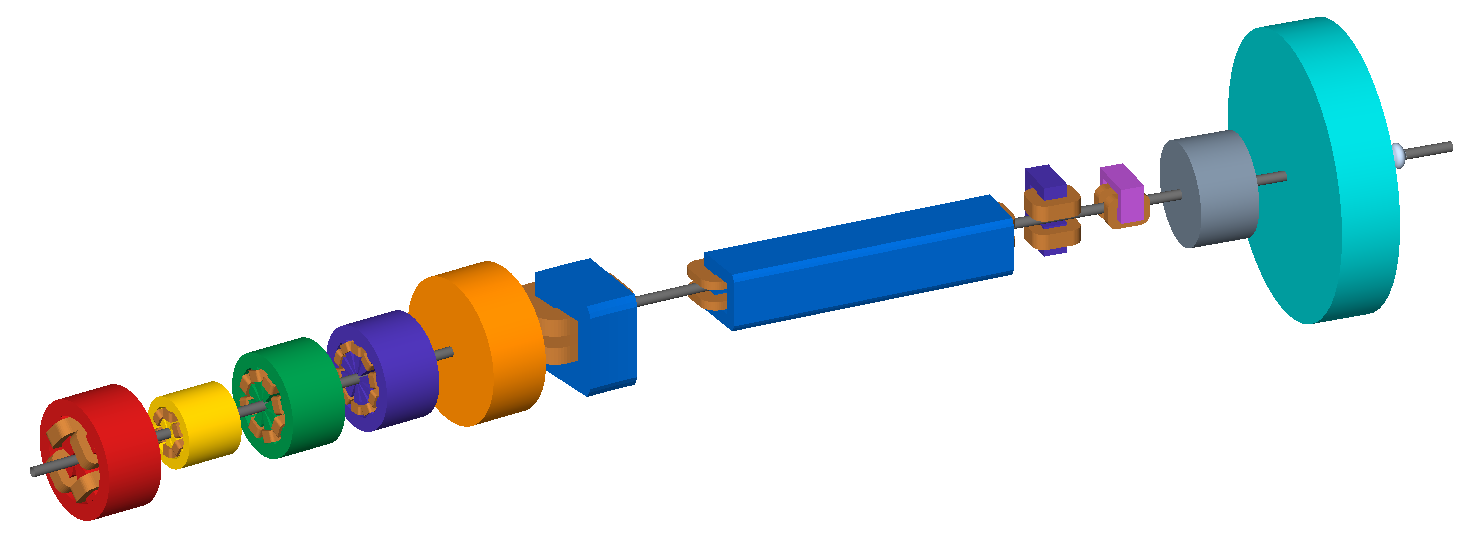

2_poles_circular.gmad

Key code:

magnetGeometryType="polescircular";

As above but with poled geometry and a circular yoke.

How to run:

bdsim --file=2_poles_circular.gmad

../_images/2_poles_circular.png

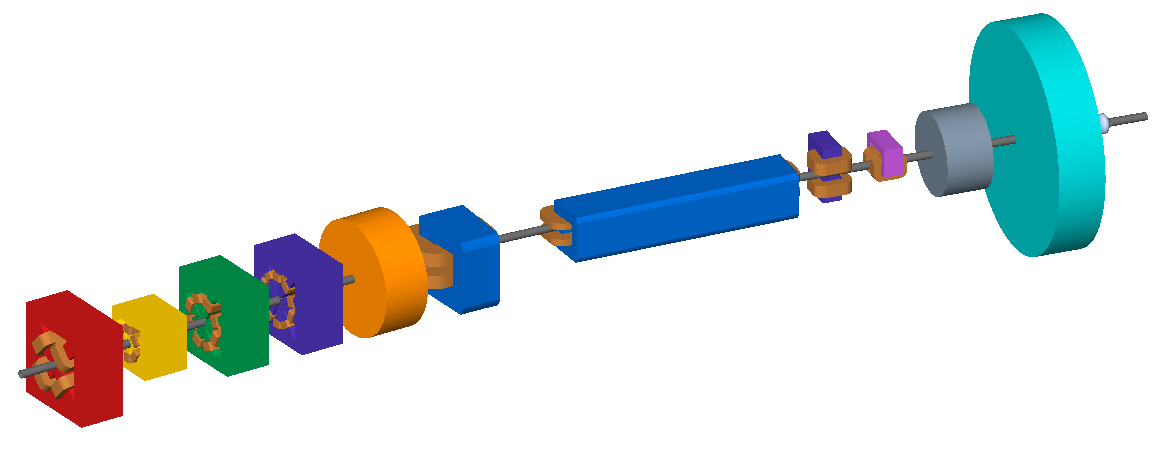

3_poles_square.gmad

Key code:

magnetGeometryType="polessquare";

As above but with poled geometry and a square yoke.

How to run:

bdsim --file=3_poles_square.gmad

../_images/3_poles_square.png

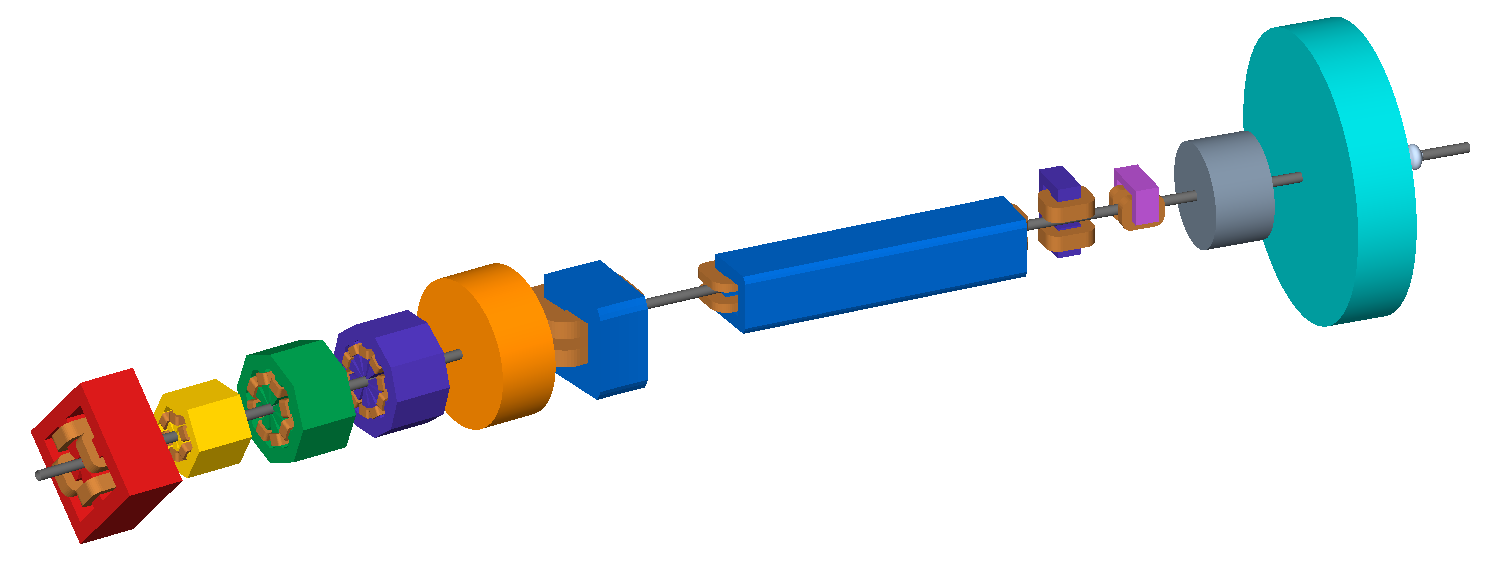

4_poles_face.gmad

Key code:

magnetGeometryType="polesfacet";

As above but with poled geometry and a square yoke rotated by 45 degrees.

How to run:

bdsim --file=4_poles_facet.gmad

../_images/4_poles_facet.png

5_poles_face_crop.gmad

Key code:

magnetGeometryType="polesfacetcrop";

As above but with poled geometry and a square yoke rotated by 45 degrees. Additionally, the corner edges are cropped giving the yoke, \(n x 2\) edges, where \(n\) is the number of poles the magnet has.

How to run:

bdsim --file=5_poles_facet_crop.gmad

../_images/5_poles_facet_crop.png

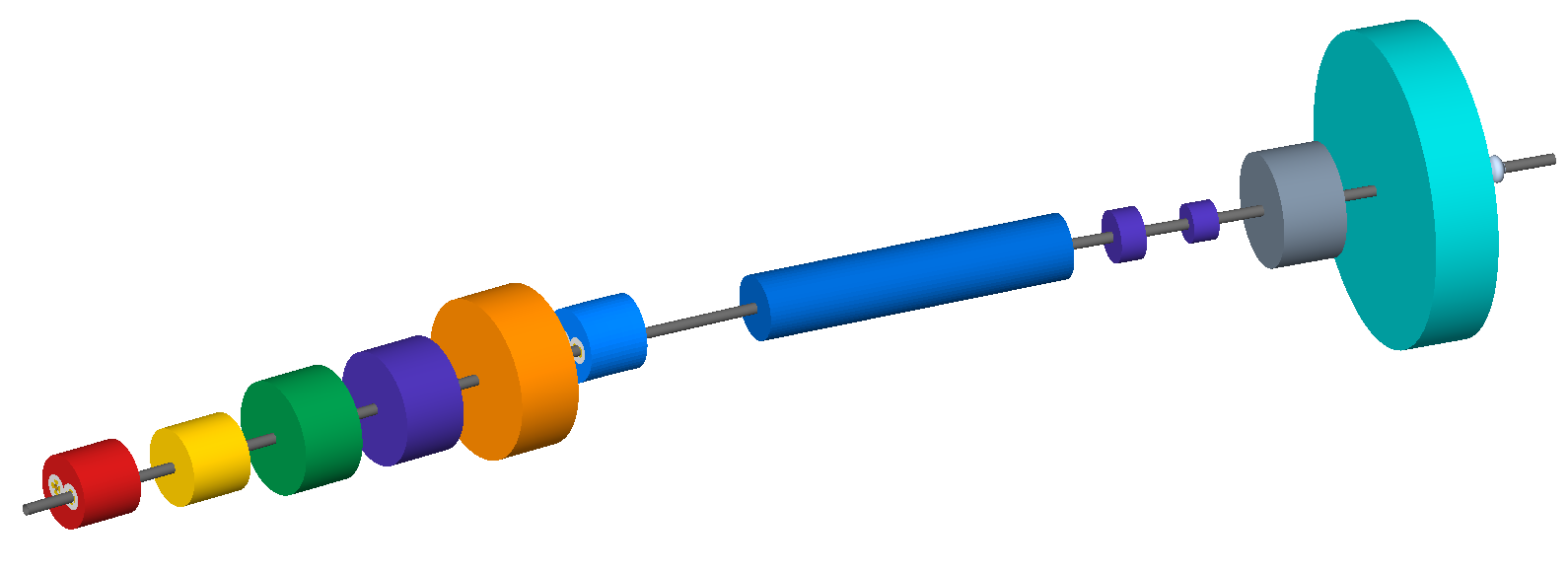

6_lhcleft.gmad & 7_lhcright.gmad

Key code:

magnetGeometryType="lhcleft";
magnetGeometryType="lhcright";

LHC cyrogenic magnet for dipoles and quadrupoles. Given the two beam nature of the LHC, the magnet is either offset to the right or two the left dictating the ‘active’ beam pipe.

../_images/7_lhcleft.png

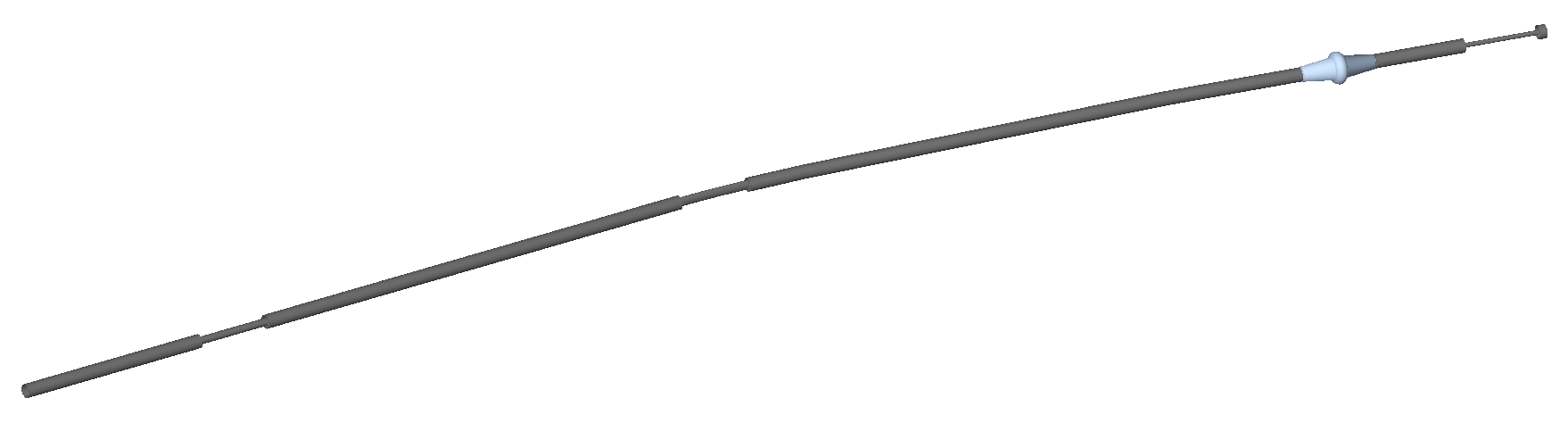

8_none.gmad

Key code:

magnetGeometryType="none";

No magnet outer geometry is built around the beam pipe - only the beam pipe exists.

../_images/8_none.png

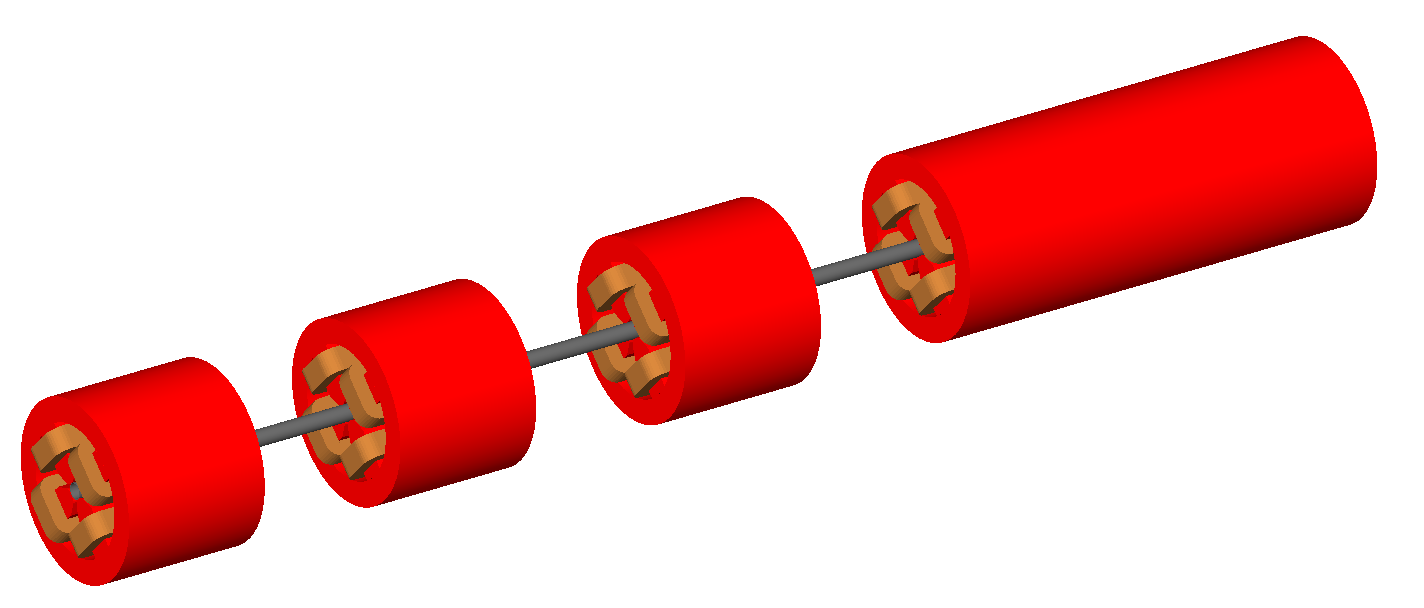

9_coils.gmad

A test with carefully split and spaced quadrupoles to test the automatic choice to place or not the coils at the end of a magnet.

../_images/9_coils.png

10_size_variation_circ_quad.gmad

An example / test to show the scaling of the circular outer geometry.

../_images/10_size_variation_circ_quad.png

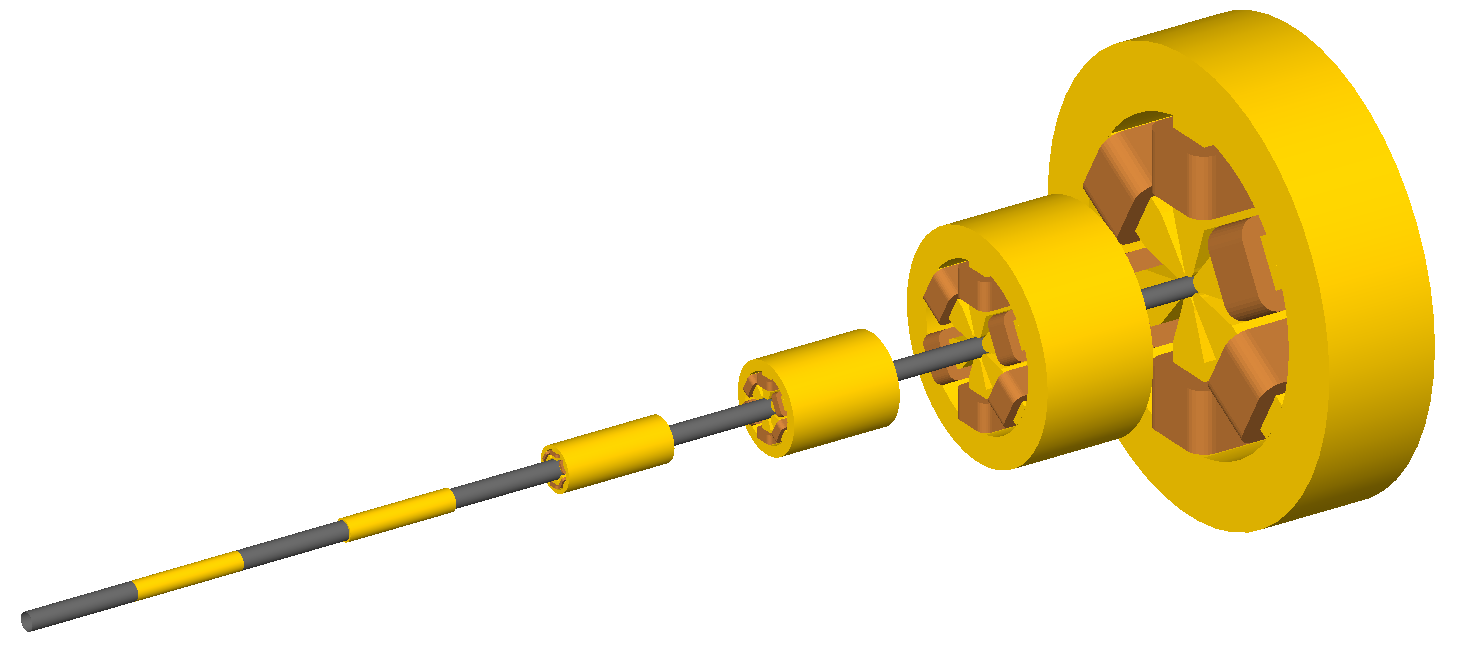

11_size_variation_circ_sext.gmad

An example / test to show the scaling of the circular outer geometry.

../_images/11_size_variation_circ_sext.png

12_size_variation_circ_oct.gmad

An example / test to show the scaling of the circular outer geometry.

../_images/12_size_variation_circ_oct.png

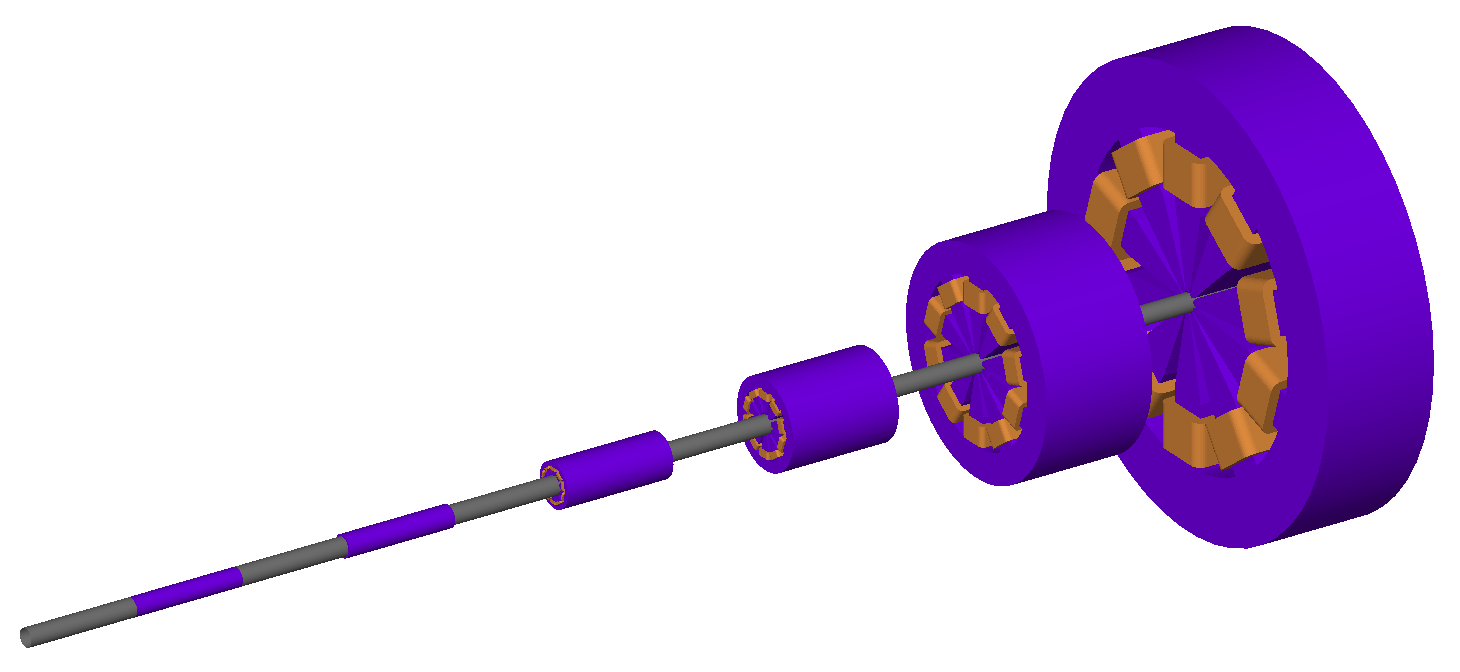

13_size_variation_circ_dec.gmad

An example / test to show the scaling of the circular outer geometry.

../_images/13_size_variation_circ_dec.png

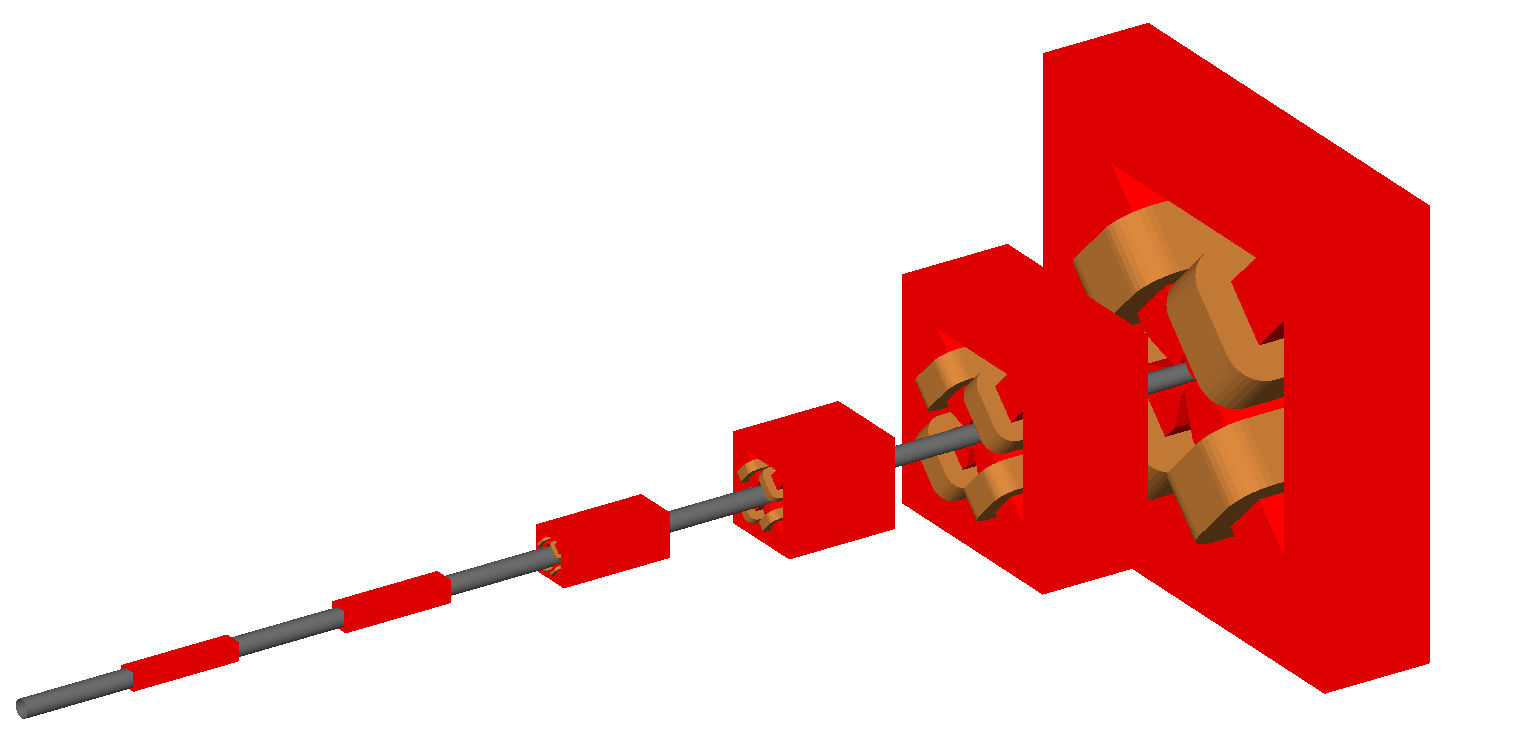

14_size_variation_sq_quad.gmad

An example / test to show the scaling of the square outer geometry.

../_images/14_size_variation_sq_quad.png

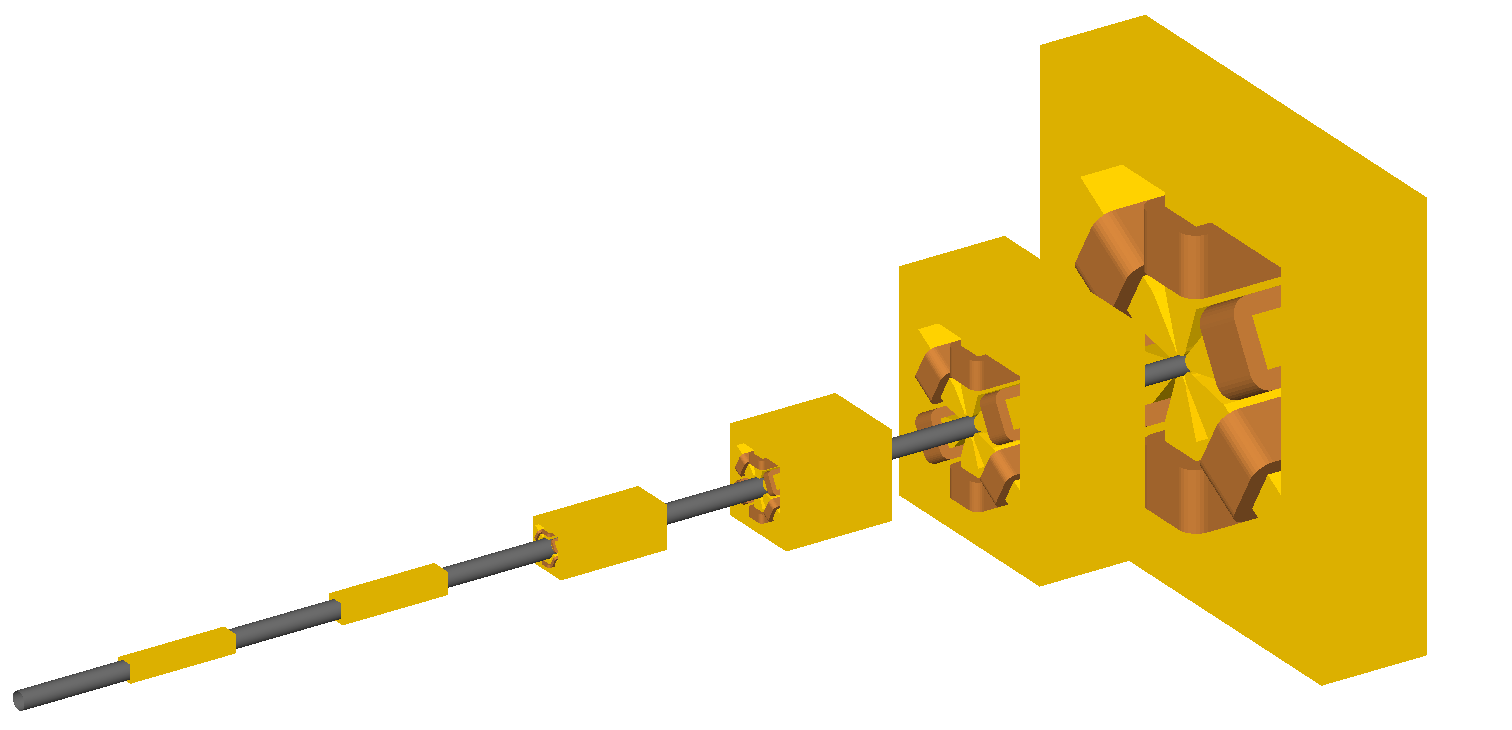

15_size_variation_sq_sext.gmad

An example / test to show the scaling of the square outer geometry.

../_images/15_size_variation_sq_sext.png

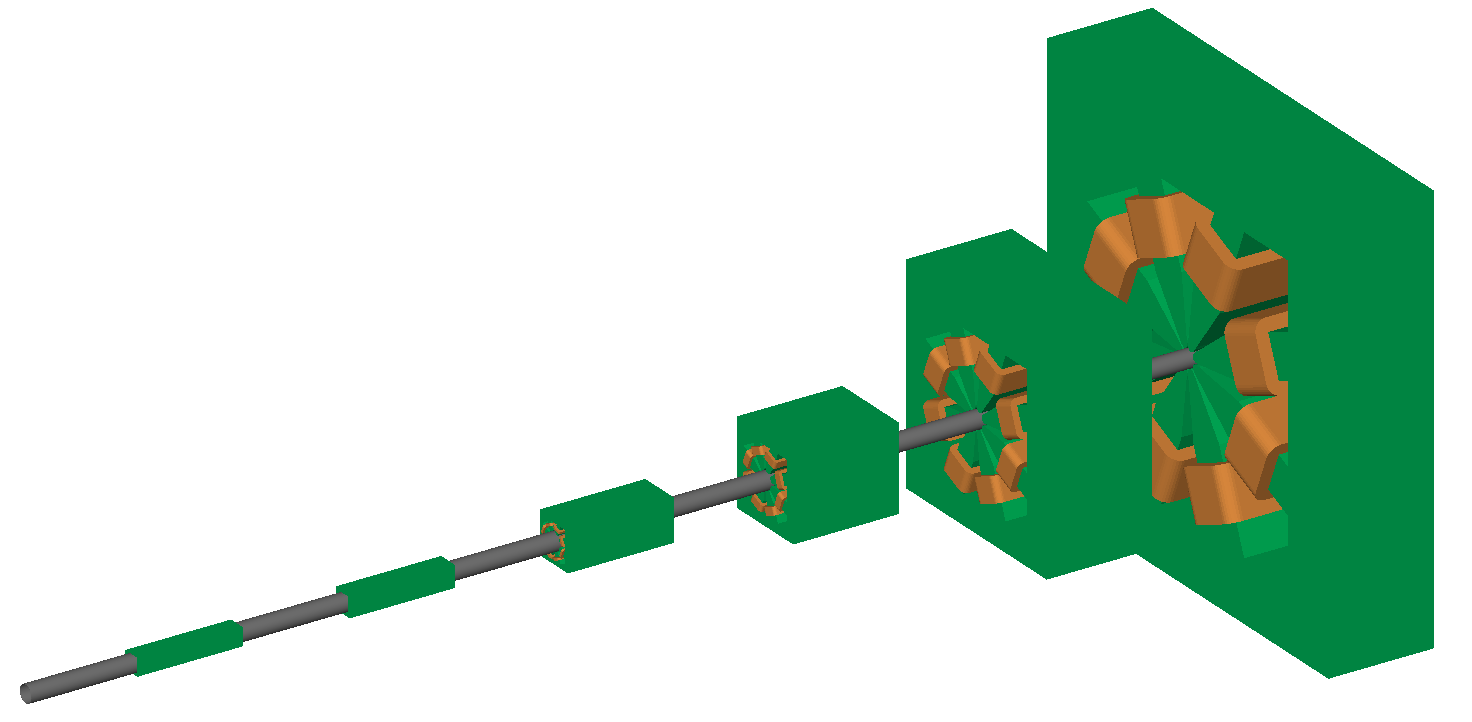

16_size_variation_sq_oct.gmad

An example / test to show the scaling of the square outer geometry.

../_images/16_size_variation_sq_oct.png

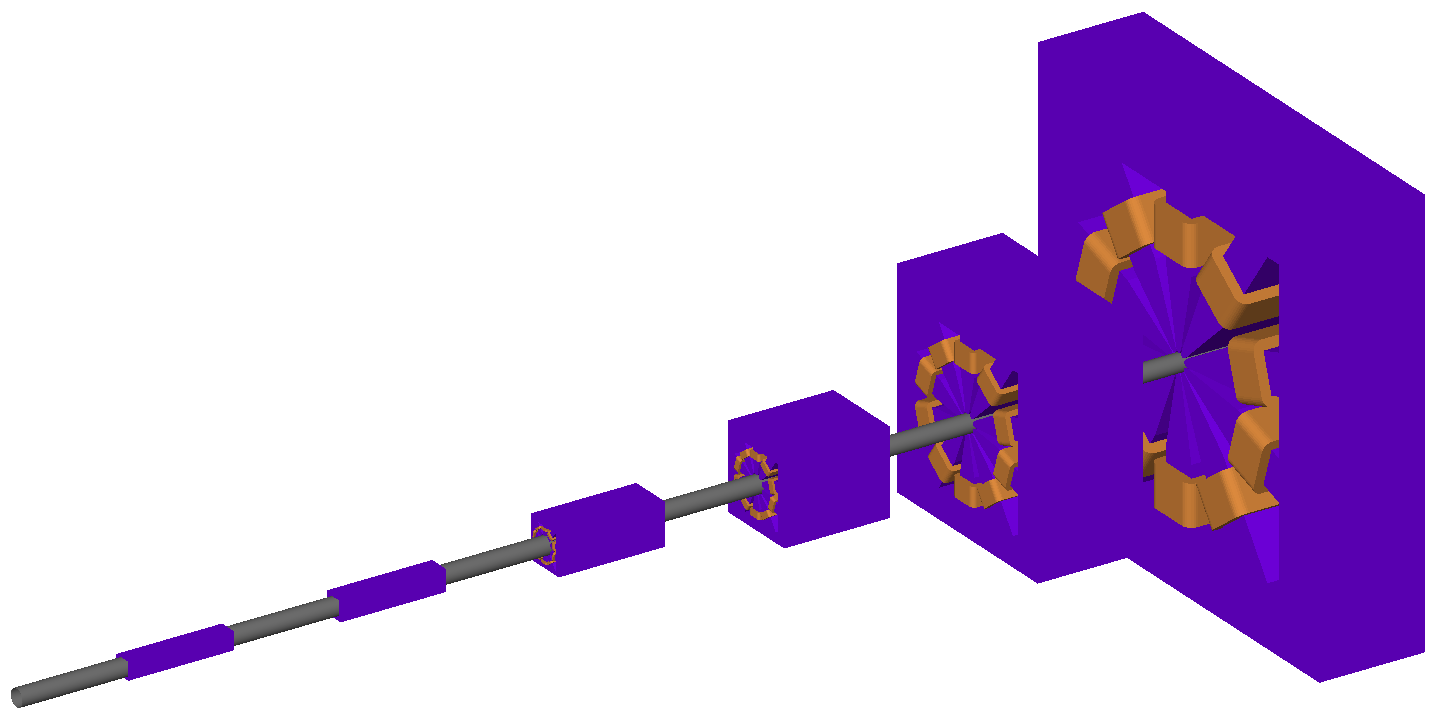

17_size_variation_sq_dec.gmad

An example / test to show the scaling of the square outer geometry.

../_images/17_size_variation_sq_dec.png

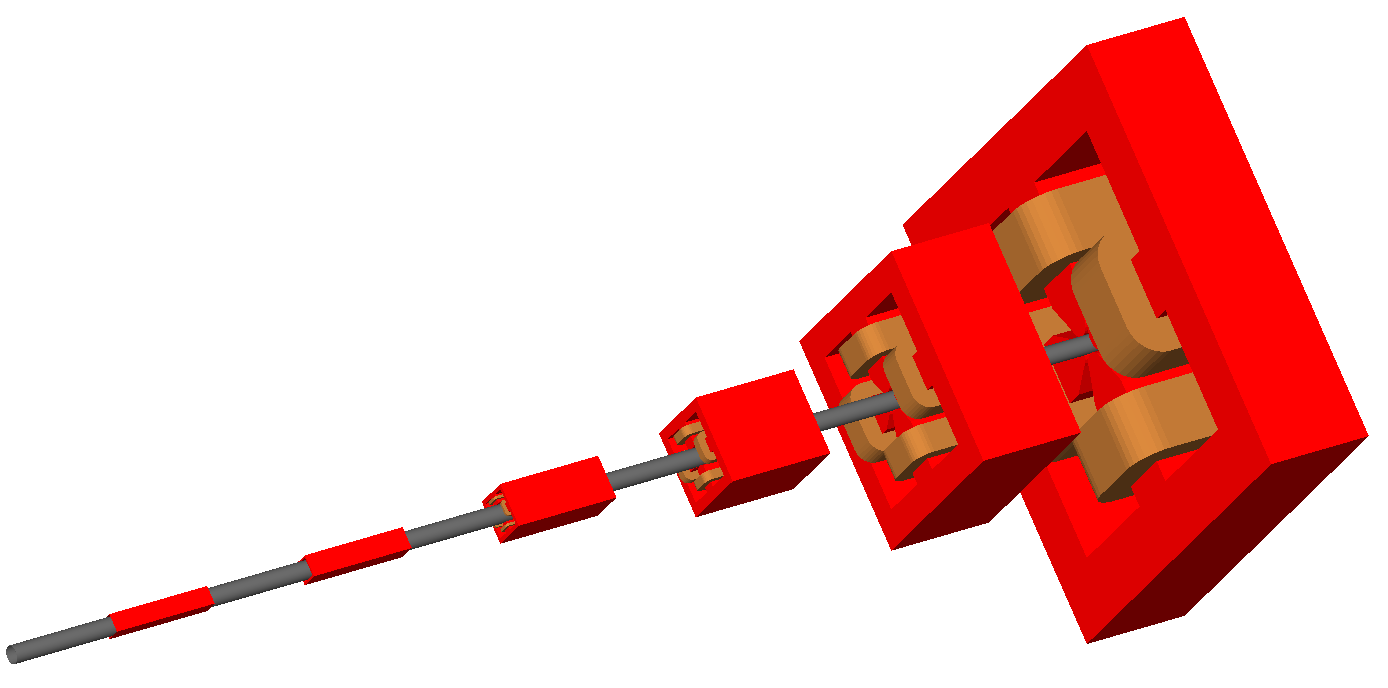

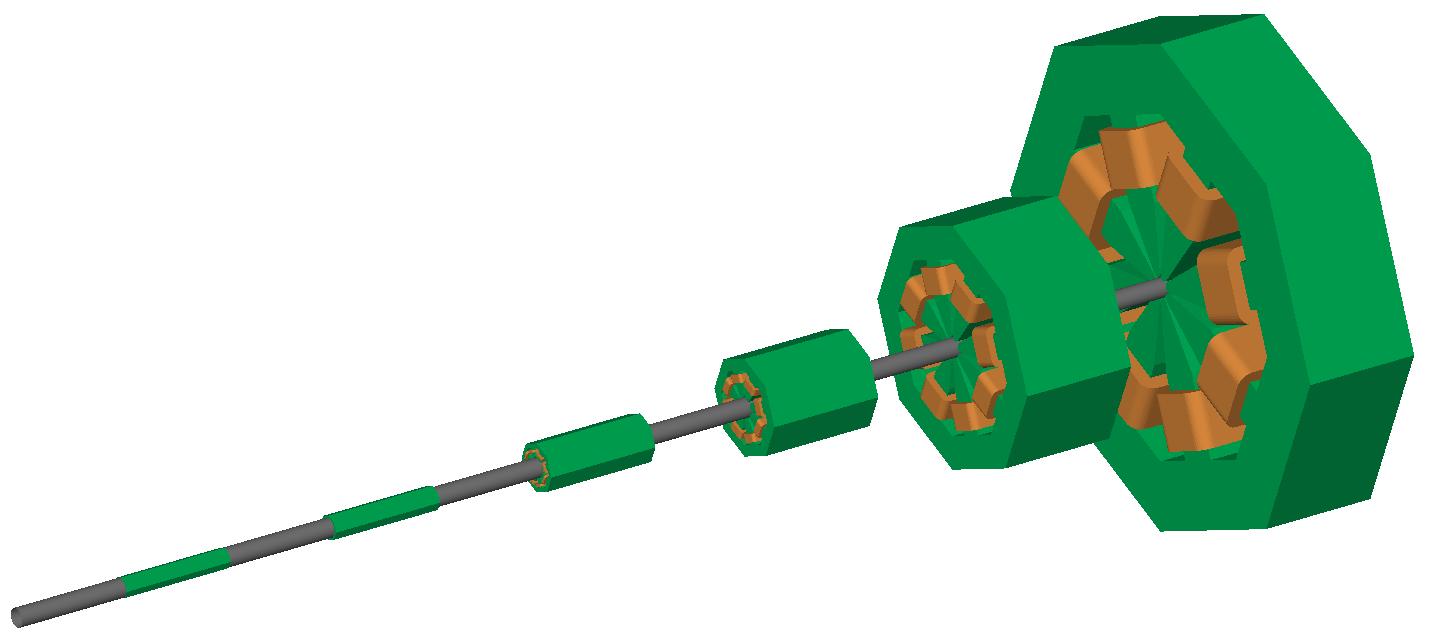

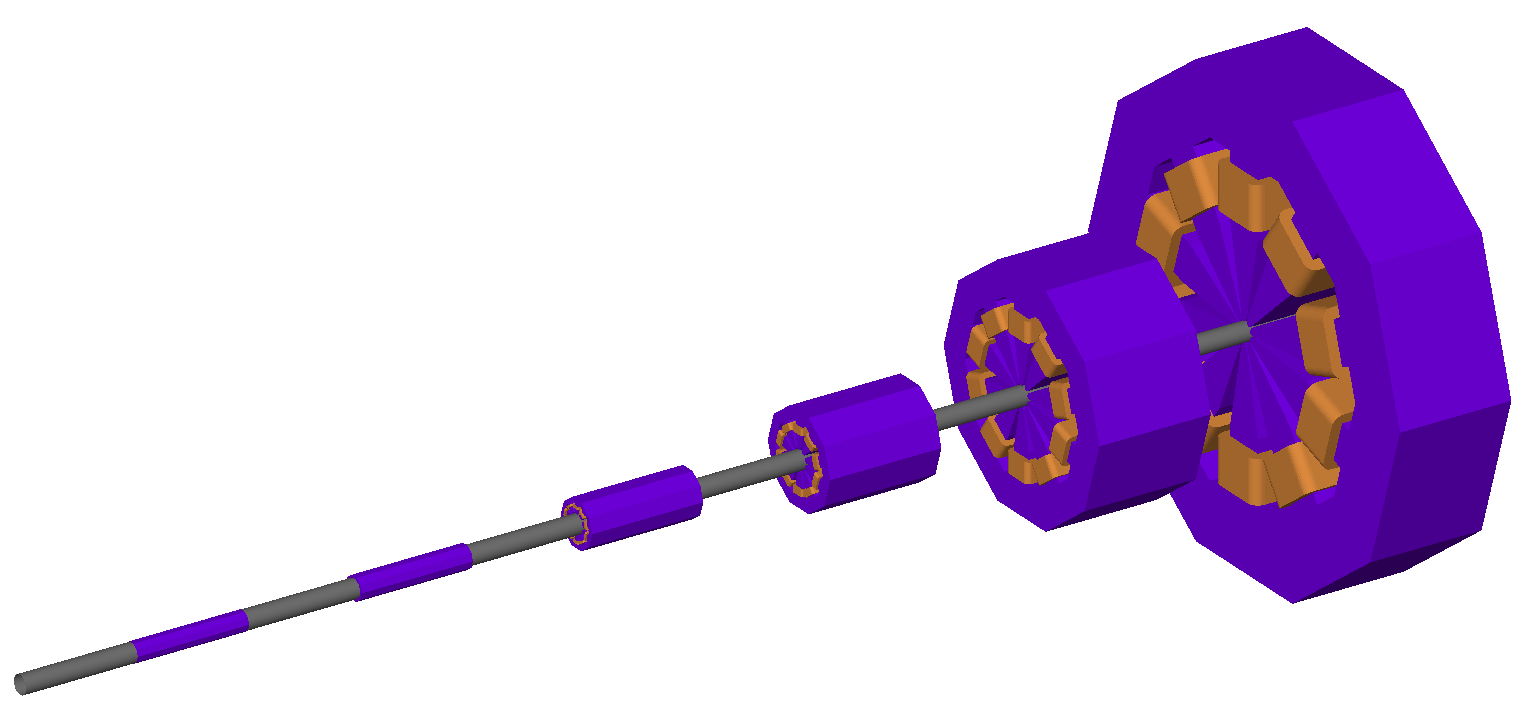

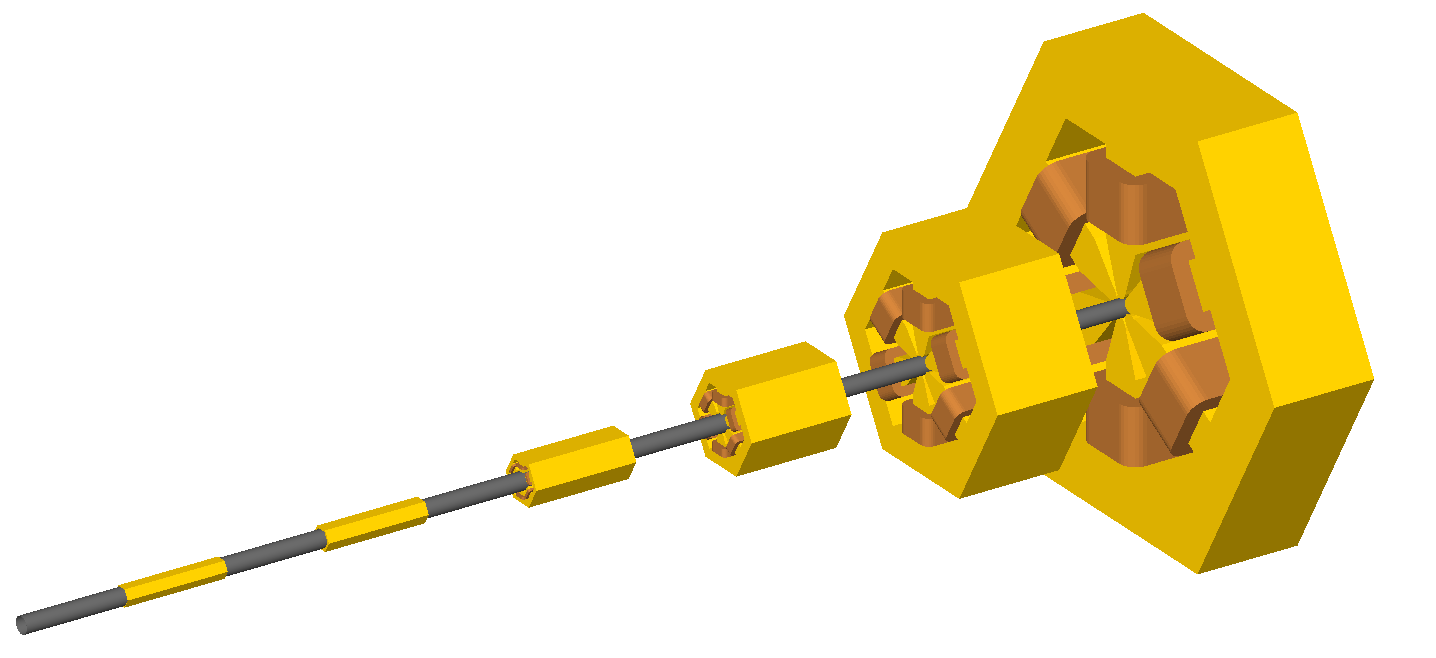

22_size_variation_facetcrop_quad.gmad

An example / test to show the scaling of facetcrop outer geometry.

../_images/22_size_variation_facetcrop_quad.png

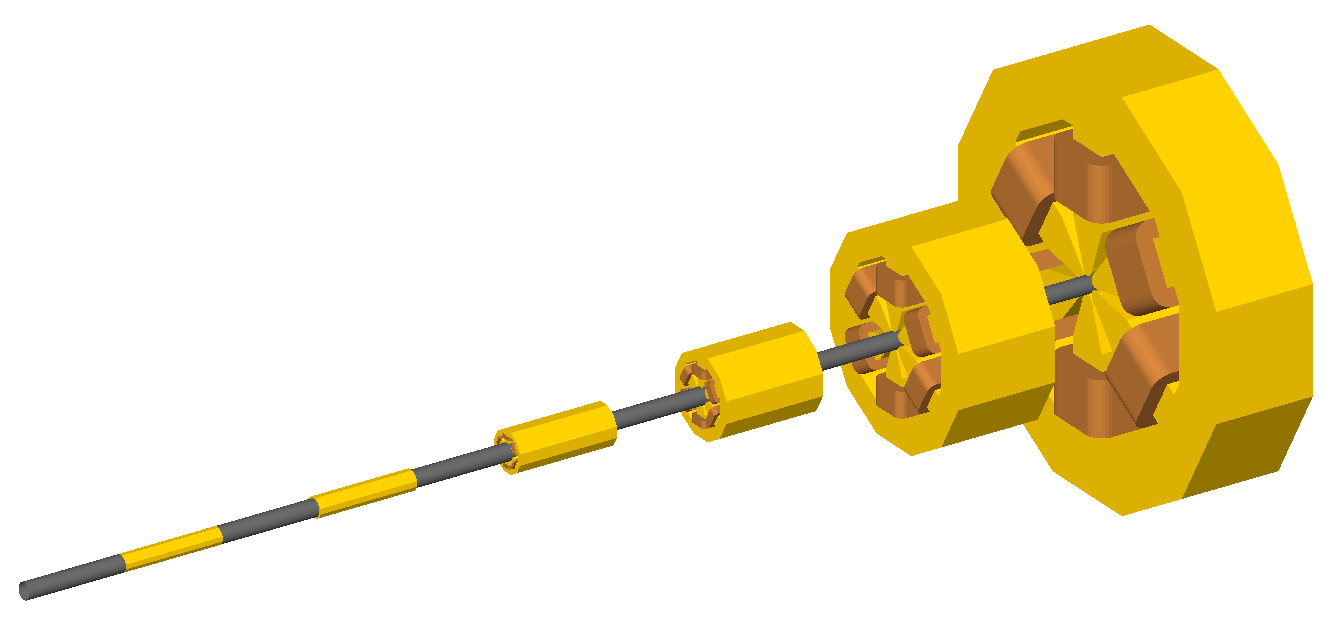

23_size_variation_facetcrop_sext.gmad

An example / test to show the scaling of facetcrop outer geometry.

../_images/23_size_variation_facetcrop_sext.png

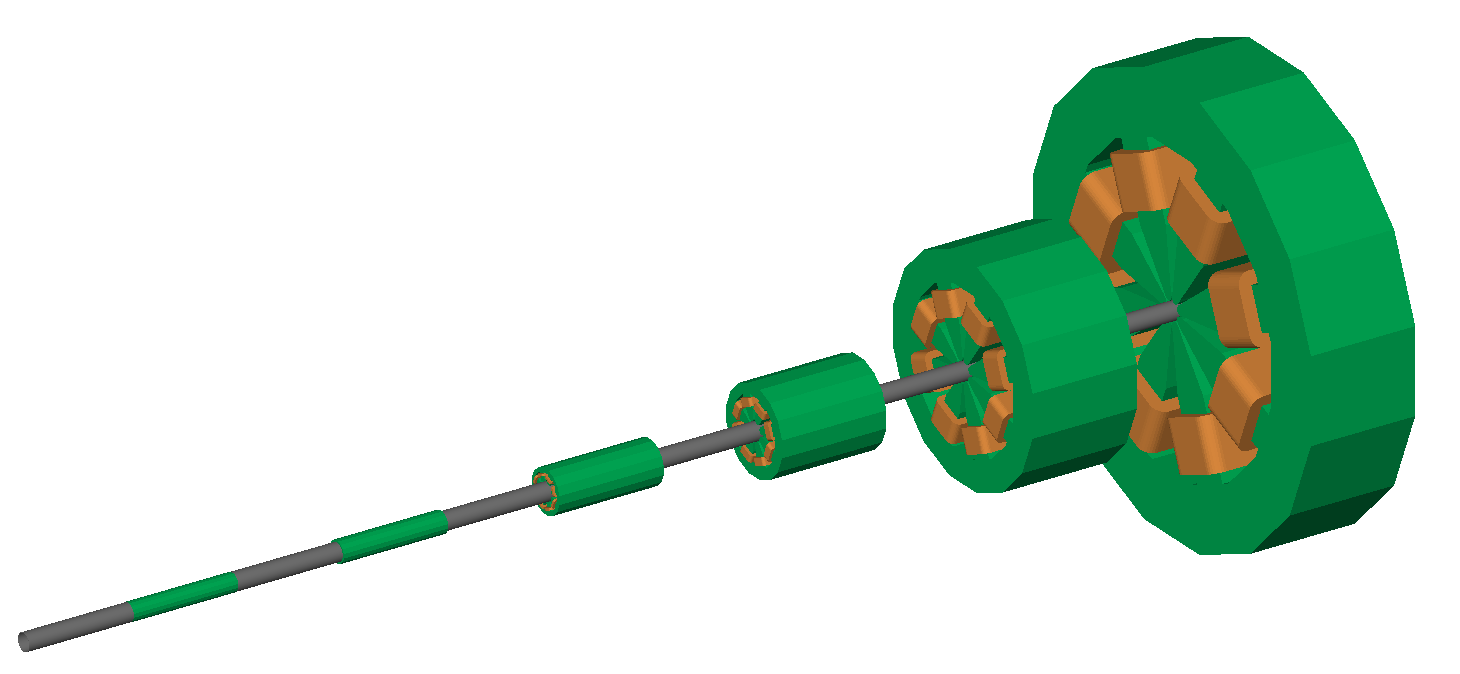

24_size_variation_facetcrop_oct.gmad

An example / test to show the scaling of facetcrop outer geometry.

../_images/24_size_variation_facetcrop_oct.png

25_size_variation_facetcrop_dec.gmad

An example / test to show the scaling of facetcrop outer geometry.

../_images/25_size_variation_facetcrop_dec.png

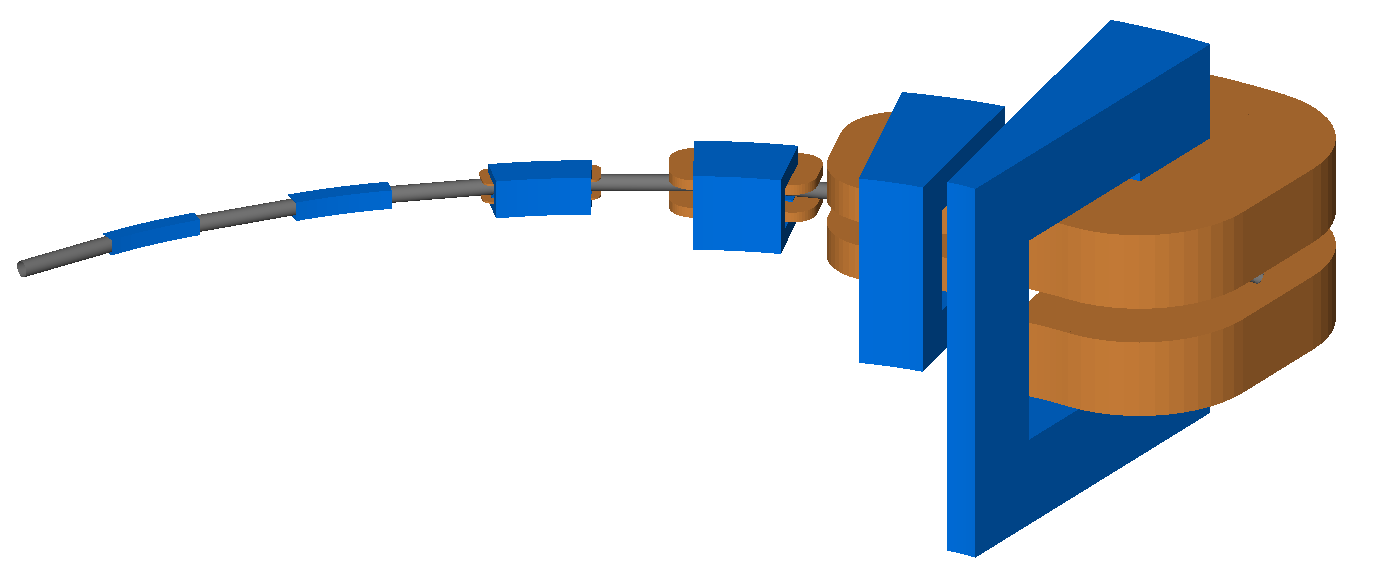

26_size_variation_sbend_c.gmad

An example / test to show the scaling of sector bend outer geometry.

../_images/26_size_variation_sbend_c.png

27_size_variation_rbend_c.gmad

An example / test to show the scaling of rectangular bend outer geometry.

../_images/27_size_variation_rbend_c.png

28_size_variation_hkicker_c.gmad

An example / test to show the scaling of horizontal kicker outer geometry.

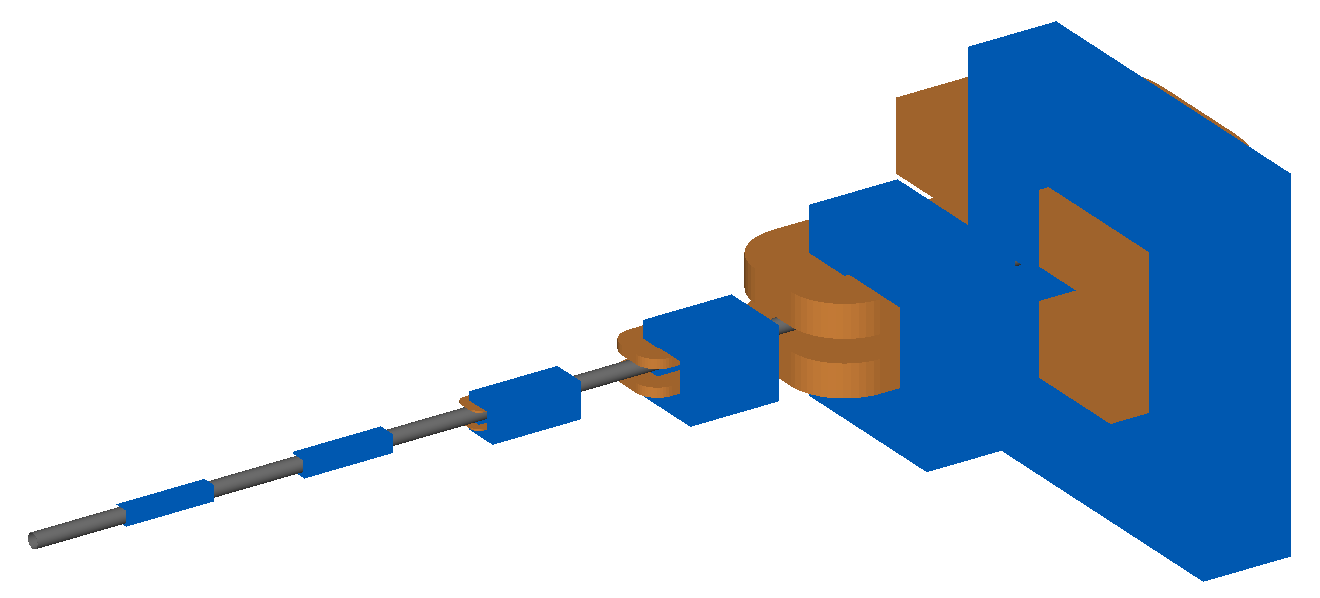

../_images/28_size_variation_hkicker_c.png

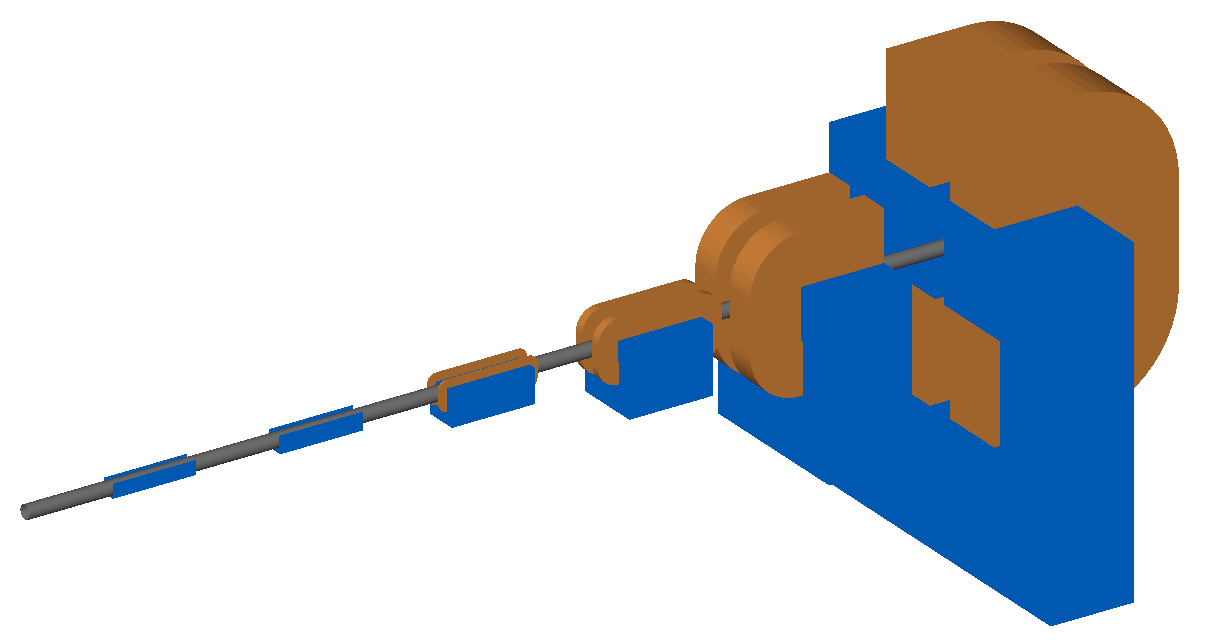

29_size_variation_vkicker_c.gmad

An example / test to show the scaling of vertical kicker outer geometry.

../_images/29_size_variation_vkicker_c.png

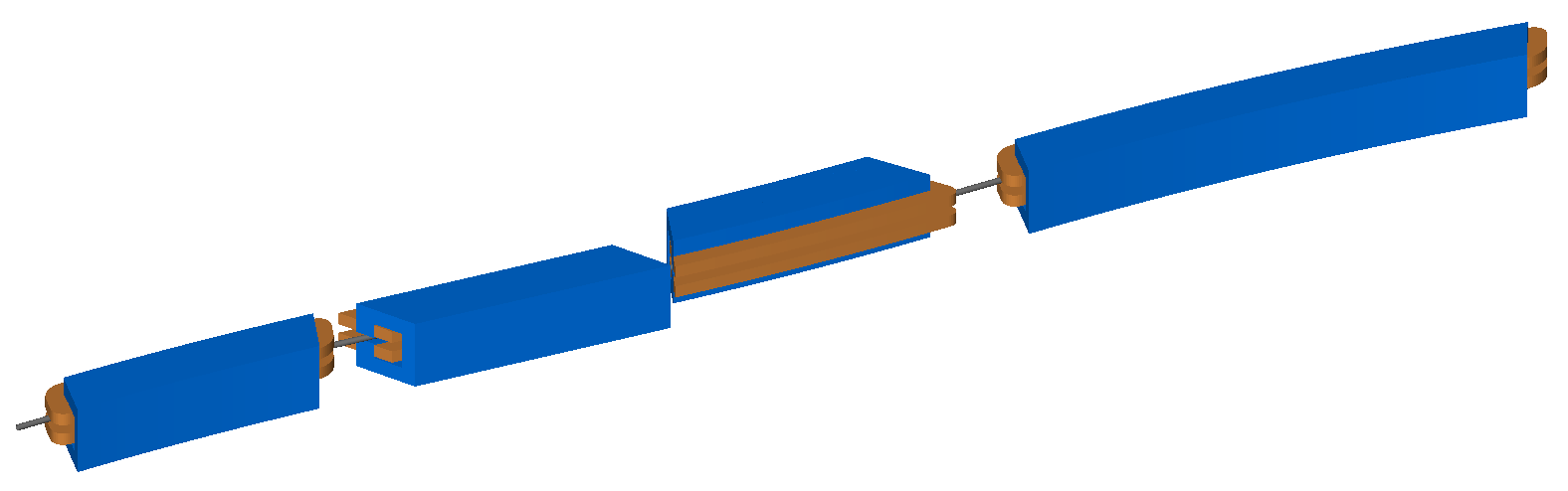

30_dipole_pole_face.gmad

An example / test to show sector bend with pole face rotation outer geometry.

../_images/30_dipole_pole_face.png
