Factory class for outer volume of magnets. Produces magnets with 2N-poles around the beampipe with a yoke of various shapes. More...

#include <BDSMagnetOuterFactoryPolesBase.hh>

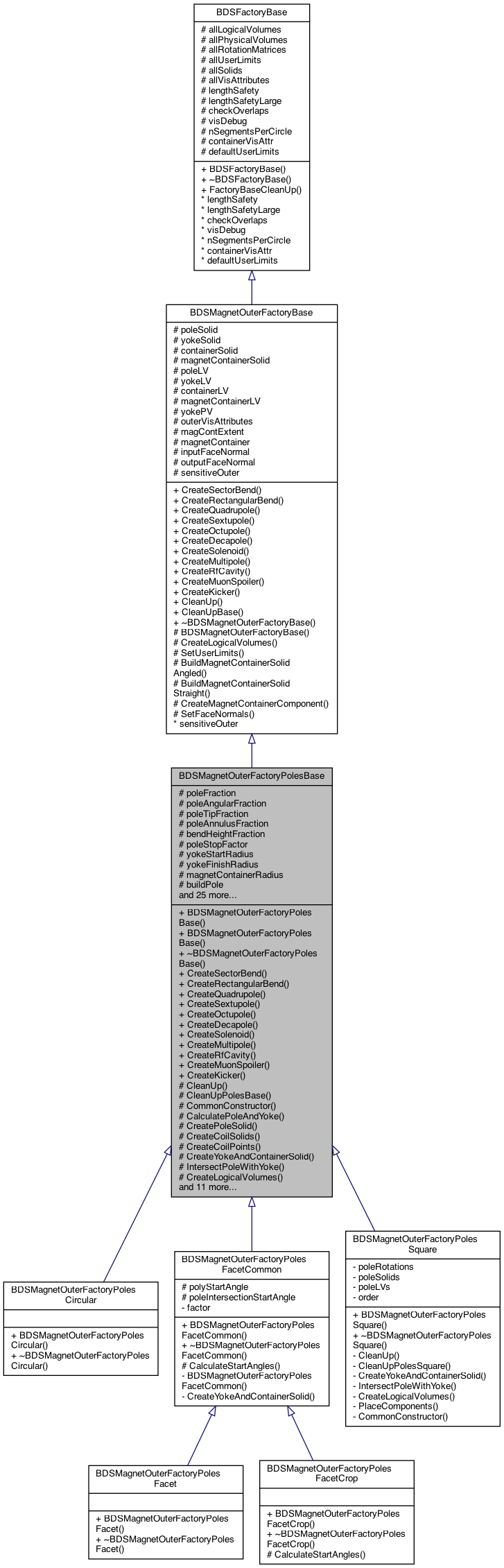

Inheritance diagram for BDSMagnetOuterFactoryPolesBase:

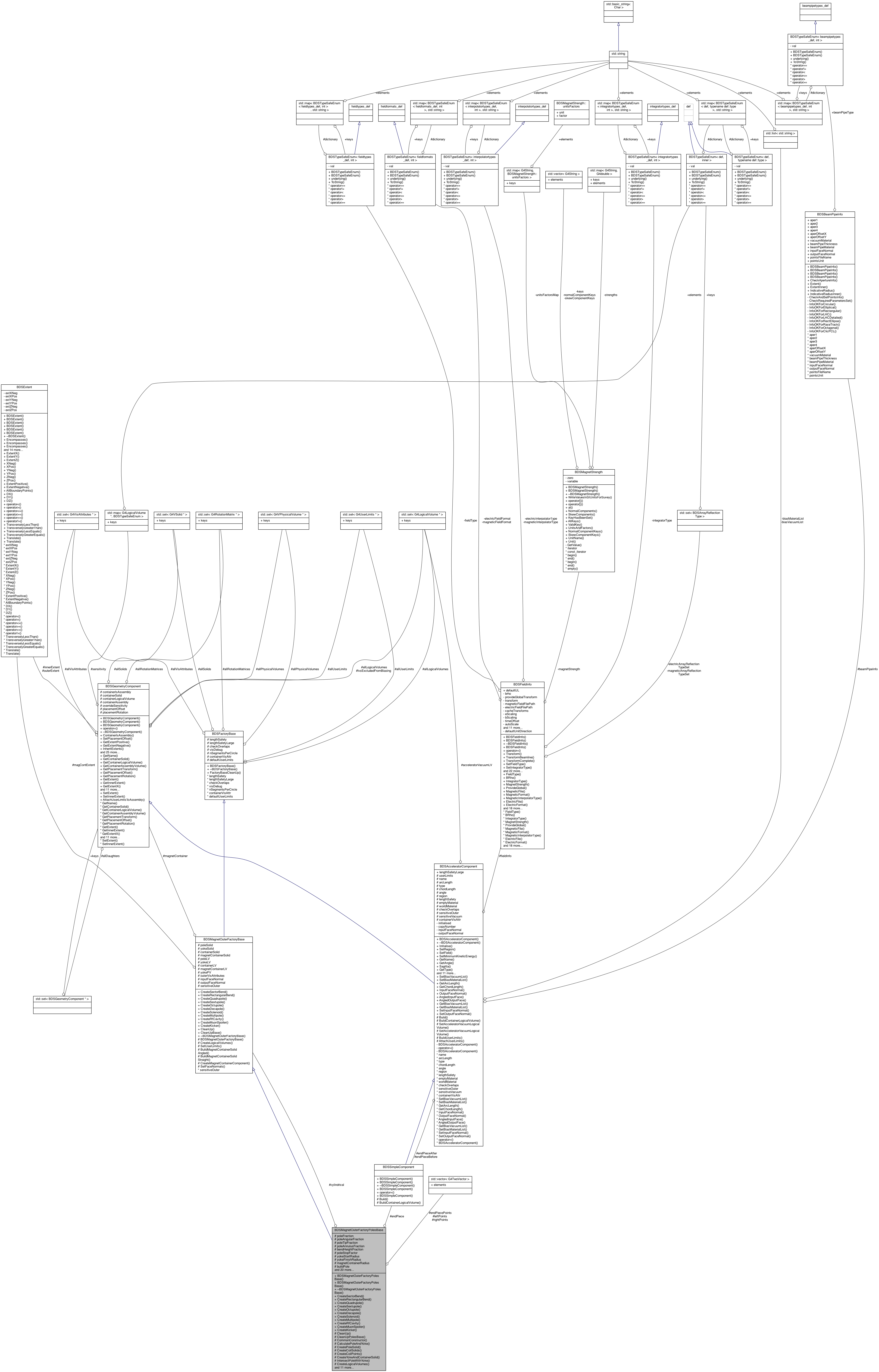

Collaboration diagram for BDSMagnetOuterFactoryPolesBase:

Public Member Functions
	BDSMagnetOuterFactoryPolesBase (G4double poleStopFactorIn)

virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	sector bend outer volume More...

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	rectangular bend outer volume More...

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	quadrupole outer volume More...

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	sextupole outer volume More...

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	octupole outer volume More...

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	decapole outer volume More...

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	solenoid outer volume More...

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	general multipole outer volume - could be any 2N order multipole More...

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	RF cavity outer volume. More...

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)
	muon spoiler outer volume More...

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)
	horizontal and vertical kicker outer volume More...

Public Member Functions inherited from BDSMagnetOuterFactoryBase
virtual BDSMagnetOuter *	CreateSectorBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sector bend outer volume More...

virtual BDSMagnetOuter *	CreateRectangularBend (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	rectangular bend outer volume More...

virtual BDSMagnetOuter *	CreateQuadrupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	quadrupole outer volume More...

virtual BDSMagnetOuter *	CreateSextupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	sextupole outer volume More...

virtual BDSMagnetOuter *	CreateOctupole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	octupole outer volume More...

virtual BDSMagnetOuter *	CreateDecapole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	decapole outer volume More...

virtual BDSMagnetOuter *	CreateSolenoid (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	solenoid outer volume More...

virtual BDSMagnetOuter *	CreateMultipole (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	general multipole outer volume - could be any 2N order multipole More...

virtual BDSMagnetOuter *	CreateRfCavity (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	RF cavity outer volume. More...

virtual BDSMagnetOuter *	CreateMuonSpoiler (G4String name, G4double length, BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe)=0
	muon spoiler outer volume More...

virtual BDSMagnetOuter *	CreateKicker (G4String name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool vertical)=0
	horizontal and vertical kicker outer volume More...

virtual void	CleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope. More...

void	CleanUpBase ()
	Non-virtual clean up that can be used in the constructor. More...

virtual	~BDSMagnetOuterFactoryBase ()
	Virtual base destructor. More...

Public Member Functions inherited from BDSFactoryBase
virtual void	FactoryBaseCleanUp ()
	Empty containers for next use - factories are never deleted so can't rely on scope. More...

Protected Member Functions

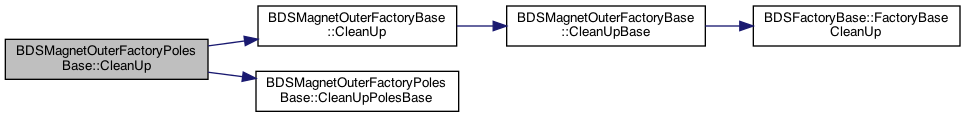

virtual void	CleanUp ()
	Empty containers for next use - this class is never deleted so can't rely on scope. More...

void	CleanUpPolesBase ()
	Non-virtual clean up to be used in constructor. More...

virtual BDSMagnetOuter *	CommonConstructor (const G4String &name, G4double length, BDSBeamPipe beamPipe, G4int order, G4double magnetContainerLength, const BDSMagnetOuterInfo recipe)
	Common construction tasks to all methods - assemble yoke and poles in container. More...

virtual void	CalculatePoleAndYoke (G4double horizontalWidth, BDSBeamPipe *beamPipe, G4int order)

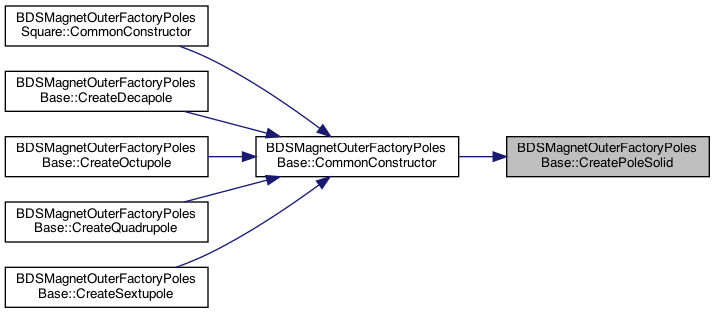

virtual void	CreatePoleSolid (const G4String &name, G4double length, G4int order)

virtual void	CreateCoilSolids (const G4String &name, G4double length)
	Create the coil solids corresponding to the pole solid. More...

virtual void	CreateCoilPoints ()
	Create all the points that make up the extruded solid of the pole. More...

virtual void	CreateYokeAndContainerSolid (const G4String &name, G4double length, G4int order, G4double magnetContainerLength, G4double magnetContainerRadiusIn)

virtual void	IntersectPoleWithYoke (const G4String &name, G4double length, G4int order)
	Chop off the top of the pole to match the appropriate yoke geometry. More...

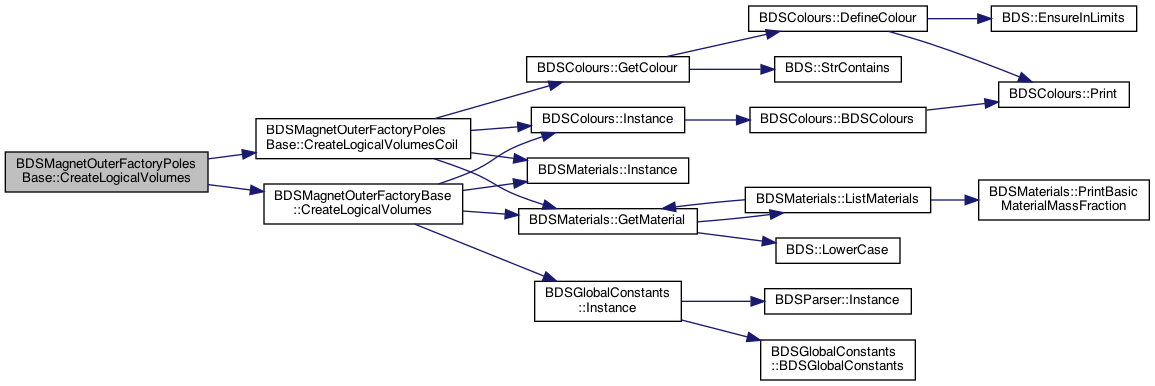

virtual void	CreateLogicalVolumes (const G4String &name, G4Colour colour, G4Material outerMaterial)

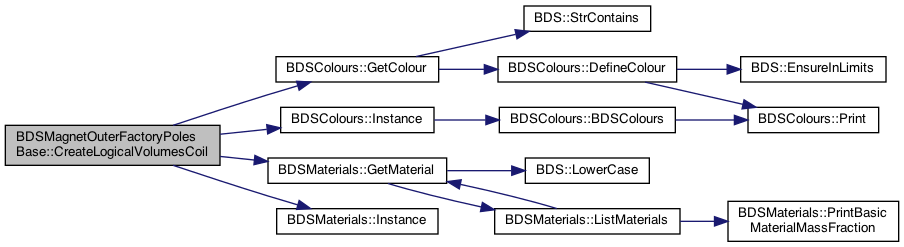

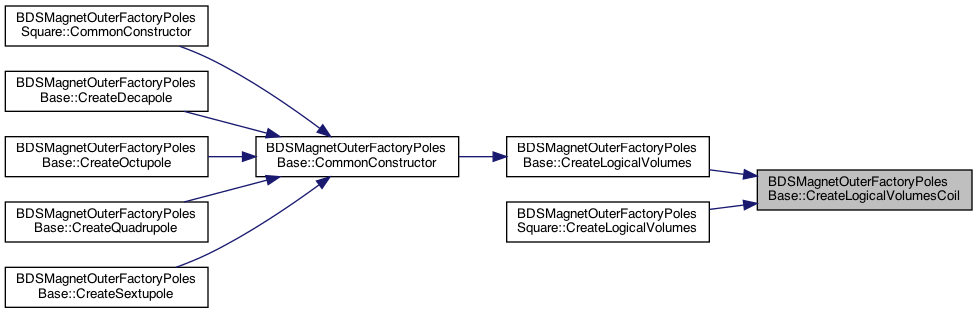

virtual void	CreateLogicalVolumesCoil (const G4String &name)

virtual void	CreateEndPiece (const G4String &name)

virtual void	PlaceComponents (const G4String &name, G4int order)
	Place the poles and yoke in the container volume. More...

virtual void	PlaceComponentsCoils (const G4String &name, G4int order)
	If we're building coils, place two coils for each pole. More...

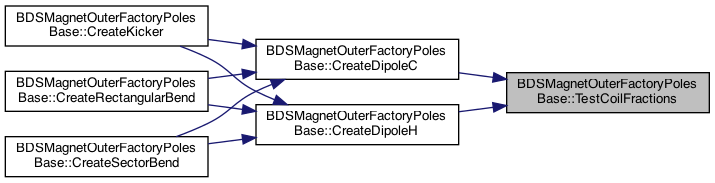

void	TestCoilFractions (G4double &coilWidthFraction, G4double &coilHeightFraction)

void	DipoleCommonPreConstruction (const G4String &name, G4double angleIn, G4double angleOut, G4double length, G4double &horizontalWidth, G4Material *&material, G4double &vhRatio)

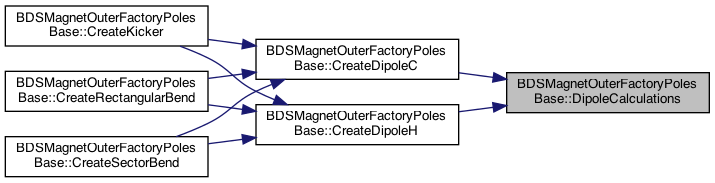

void	DipoleCalculations (G4bool hStyle, G4bool buildVertically, const BDSBeamPipe *beamPipe, G4double length, G4double horizontalWidth, G4double angleIn, G4double angleOut, G4double yokeThicknessFraction, G4double vhRatio, G4double coilWidthFraction, G4double coilHeightFraction, G4double &cShapeOuterEdge, G4double &poleHalfGap, G4double &poleWidth, G4double &poleHeight, G4double &yokeWidth, G4double &yokeHalfHeight, G4double &yokeThickness, G4double &yokeOverHang, G4double &coilWidth, G4double &coilHeightIn, G4double &coilToYokeGap, G4double &coilToPoleGap, G4double &sLength, G4double &containerSLength, G4double &intersectionRadius)

std::vector< G4ThreeVector >	CalculateCoilDisplacements (G4double poleHalfWidthIn, G4double poleHalfGapIn, G4double coilWidthIn, G4double coilHeightIn, G4double cDY, G4double &coilDY)

BDSMagnetOuter *	CreateDipoleC (const G4String &name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool buildVertically)

BDSMagnetOuter *	CreateDipoleH (const G4String &name, G4double length, const BDSBeamPipe beamPipe, G4double containerLength, const BDSMagnetOuterInfo recipe, G4bool buildVertically)
	Routine to construct an H shaped dipole magnet and can optionally be built vertically. More...

BDSMagnetOuter *	DipoleCommonConstruction (const G4String &name, G4double horizontalWidth, G4bool buildEndPiece, G4double coilWidth, G4double length, G4double containerLength, G4double sLength, G4double angleIn, G4double angleOut, G4Colour colour, G4Material material, std::vector< G4ThreeVector > &coilDisps, G4bool buildVertically, BDSExtent &ext, G4double poleHalfWidth, G4double poleHalfGap, G4double cDY, G4double coilDY, G4double intersectionRadius)

Protected Member Functions inherited from BDSMagnetOuterFactoryBase
virtual void	CreateLogicalVolumes (const G4String &name, G4Colour colour, G4Material outerMaterial)

virtual void	SetUserLimits ()
	Attach default user limits to all logical volumes. More...

void	BuildMagnetContainerSolidAngled (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius, G4bool flatFaces=false)

void	BuildMagnetContainerSolidStraight (const G4String &name, G4double magnetContainerLength, G4double magnetContainerRadius)

void	CreateMagnetContainerComponent ()

void	SetFaceNormals (BDSMagnetOuter *outer)
	Copy face normals from members to an instance of outer. More...

Protected Attributes
const G4double	poleFraction

const G4double	poleAngularFraction
	Fraction of 2pi/Npoles that the pole will occupy - always < 1. More...

const G4double	poleTipFraction

const G4double	poleAnnulusFraction

const G4double	bendHeightFraction

const G4double	poleStopFactor

G4double	yokeStartRadius
	Start radius of yoke geometry from magnet cetnre. More...

G4double	yokeFinishRadius
	Finish radius of yoke geometry from magnet centre - less than horizontalWidth. More...

G4double	magnetContainerRadius
	Radius of the container solid for the outer geometry. More...

G4bool	buildPole
	Whether or not to build poles (and therefore coils). More...

G4double	poleStartRadius
	Start radius of the pole from magnet centre. More...

G4double	poleFinishRadius
	Finish radius of the pole from magnet centre. More...

G4double	poleSquareWidth
	Full width of pole in constant width section. More...

G4double	poleSquareStartRadius
	Radius from magnet centre that constant width section starts. More...

G4double	segmentAngle
	2PI / # of poles - angle per segment allocated for each pole. More...

G4double	poleAngle
	The angle allowed for the pole to occupy - less than segmentAngle. More...

G4ThreeVector	poleTranslation
	Offste of pole for placement from magnet centre. More...

G4double	coilHeight
	Height along y for coil for coil beside 1 upgright pole aligned with y axis. More...

G4double	coilCentreRadius
	Radius from magnet centre that the centre of the coils exist at. More...

G4double	endPieceLength
	Length of the coil end piece along what will be curvilinear S. More...

G4double	endPieceInnerR
	Inner radius for end piece container. More...

G4double	endPieceOuterR
	Outer radius for end piece container. More...

G4VSolid *	poleIntersectionSolid
	Solid used to chop off pole. More...

G4VSolid *	coilLeftSolid
	Left coil solid for one pole built upright along y axis. More...

G4VSolid *	coilRightSolid
	Right coil solid. More...

G4VSolid *	endPieceContainerSolid
	End piece container solid. More...

G4LogicalVolume *	coilLeftLV
	Logical volume for left coil. More...

G4LogicalVolume *	coilRightLV
	Logical volume for right coil. More...

G4LogicalVolume *	endPieceCoilLV
	Logical volume for end piece single coil piece. More...

G4LogicalVolume *	endPieceContainerLV
	Logical volume for end piece container. More...

BDSSimpleComponent *	endPiece
	Fully constructed end piece. More...

std::vector< G4TwoVector >	leftPoints
	Vector of 2D points for left coil. More...

std::vector< G4TwoVector >	rightPoints
	Vector of 2D points for right coil. More...

std::vector< G4TwoVector >	endPiecePoints
	Vector of 2D points for end piece looking from above down z. More...

BDSMagnetOuterFactoryBase *	cylindrical
	Default factory to fall back to. More...

Protected Attributes inherited from BDSMagnetOuterFactoryBase
G4VSolid *	poleSolid
	Solid for an individual pole that will be placed multiple times. More...

G4VSolid *	yokeSolid
	Solid for outer part that connects all poles. More...

G4VSolid *	containerSolid

G4VSolid *	magnetContainerSolid

G4LogicalVolume *	poleLV

G4LogicalVolume *	yokeLV

G4LogicalVolume *	containerLV

G4LogicalVolume *	magnetContainerLV

G4VPhysicalVolume *	yokePV

G4VisAttributes *	outerVisAttributes

BDSExtent	magContExtent

BDSGeometryComponent *	magnetContainer

G4ThreeVector	inputFaceNormal

G4ThreeVector	outputFaceNormal

G4bool	sensitiveOuter
	Cache of global constants variable. More...

Protected Attributes inherited from BDSFactoryBase
std::set< G4LogicalVolume * >	allLogicalVolumes

std::set< G4VPhysicalVolume * >	allPhysicalVolumes

std::set< G4RotationMatrix * >	allRotationMatrices

std::set< G4UserLimits * >	allUserLimits

std::set< G4VSolid * >	allSolids

std::set< G4VisAttributes * >	allVisAttributes

G4double	lengthSafety
	Cache of global constants variable. More...

G4double	lengthSafetyLarge
	Cache of global constants variable. More...

G4bool	checkOverlaps
	Cache of global constants variable. More...

G4bool	visDebug
	Cache of global constants variable. More...

G4double	nSegmentsPerCircle
	Cache of global constants variable. More...

G4VisAttributes *	containerVisAttr
	Cache of global constants variable. More...

G4UserLimits *	defaultUserLimits
	Cache of global constants variable. More...

Detailed Description

Factory class for outer volume of magnets. Produces magnets with 2N-poles around the beampipe with a yoke of various shapes.

Most magnets are 2N poles, but sector and r-bends as well as muon spoilers, and h/v kickers are unique.

NOTE this is a base class in that there are derived classes with different outer shapes - all have poles, but the return yoke can for example, circular, square or faceted (with 4N facets)

Author: Laurie Nevay

Definition at line 49 of file BDSMagnetOuterFactoryPolesBase.hh.

Constructor & Destructor Documentation

◆ BDSMagnetOuterFactoryPolesBase() [1/2]

BDSMagnetOuterFactoryPolesBase::BDSMagnetOuterFactoryPolesBase ( )

Definition at line 58 of file BDSMagnetOuterFactoryPolesBase.cc.

◆ BDSMagnetOuterFactoryPolesBase() [2/2]

BDSMagnetOuterFactoryPolesBase::BDSMagnetOuterFactoryPolesBase ( G4double poleStopFactorIn )

explicit

Definition at line 70 of file BDSMagnetOuterFactoryPolesBase.cc.

◆ ~BDSMagnetOuterFactoryPolesBase()

BDSMagnetOuterFactoryPolesBase::~BDSMagnetOuterFactoryPolesBase ( )

virtual

Definition at line 65 of file BDSMagnetOuterFactoryPolesBase.cc.

Member Function Documentation

◆ CalculateCoilDisplacements()

std::vector< G4ThreeVector > BDSMagnetOuterFactoryPolesBase::CalculateCoilDisplacements	(	G4double	poleHalfWidthIn,
		G4double	poleHalfGapIn,
		G4double	coilWidthIn,
		G4double	coilHeightIn,
		G4double	cDY,
		G4double &	coilDY
	)

protected

Calculate the placement offsets for each of the four coil placements. Common to both dipole construction routines.

Definition at line 956 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSFactoryBase::lengthSafetyLarge.

Referenced by CreateDipoleC(), and CreateDipoleH().

Here is the caller graph for this function:

◆ CalculatePoleAndYoke()

void BDSMagnetOuterFactoryPolesBase::CalculatePoleAndYoke	(	G4double	horizontalWidth,
		BDSBeamPipe *	beamPipe,
		G4int	order
	)

protectedvirtual

Calculate the length of the pole and yoke radii based on the design. This is only responsible for calculating the gross proportions of the yoke and pole, not all the geometrical parameters that may be required for the final geometry.

Definition at line 302 of file BDSMagnetOuterFactoryPolesBase.cc.

References buildPole, BDSBeamPipe::GetContainerRadius(), BDSFactoryBase::lengthSafety, BDSFactoryBase::lengthSafetyLarge, magnetContainerRadius, poleAngle, poleAngularFraction, poleFinishRadius, poleFraction, poleSquareWidth, poleStartRadius, segmentAngle, yokeFinishRadius, and yokeStartRadius.

Referenced by CommonConstructor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CleanUp()

void BDSMagnetOuterFactoryPolesBase::CleanUp ( )

protectedvirtual

Empty containers for next use - this class is never deleted so can't rely on scope.

Reimplemented from BDSMagnetOuterFactoryBase.

Reimplemented in BDSMagnetOuterFactoryPolesSquare.

Definition at line 85 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSMagnetOuterFactoryBase::CleanUp(), and CleanUpPolesBase().

Referenced by BDSMagnetOuterFactoryPolesSquare::CleanUp(), CommonConstructor(), and DipoleCommonPreConstruction().

Here is the call graph for this function:

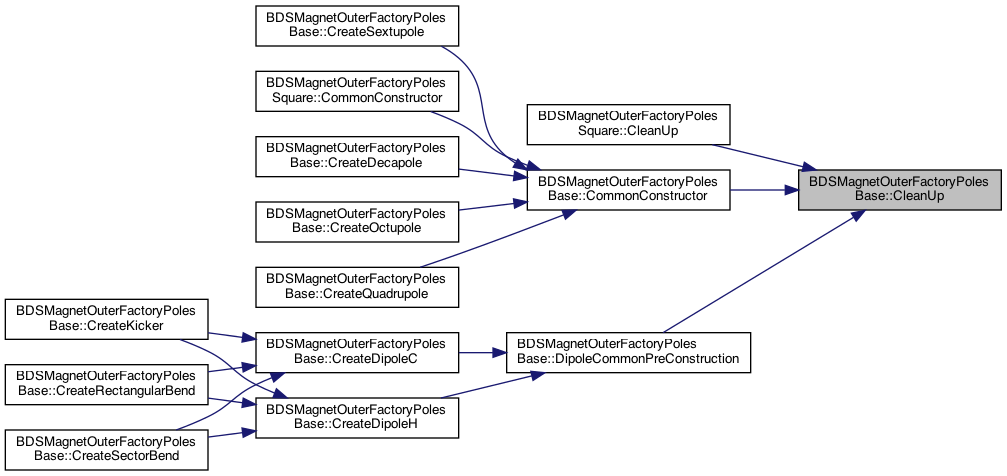

Here is the caller graph for this function:

◆ CleanUpPolesBase()

void BDSMagnetOuterFactoryPolesBase::CleanUpPolesBase ( )

protected

Non-virtual clean up to be used in constructor.

Definition at line 91 of file BDSMagnetOuterFactoryPolesBase.cc.

References buildPole, coilCentreRadius, coilHeight, coilLeftLV, coilLeftSolid, coilRightLV, coilRightSolid, endPiece, endPieceCoilLV, endPieceContainerLV, endPieceContainerSolid, endPieceInnerR, endPieceLength, endPieceOuterR, endPiecePoints, leftPoints, magnetContainerRadius, poleAngle, poleFinishRadius, poleIntersectionSolid, poleSquareStartRadius, poleSquareWidth, poleStartRadius, poleTranslation, rightPoints, segmentAngle, yokeFinishRadius, and yokeStartRadius.

Referenced by CleanUp().

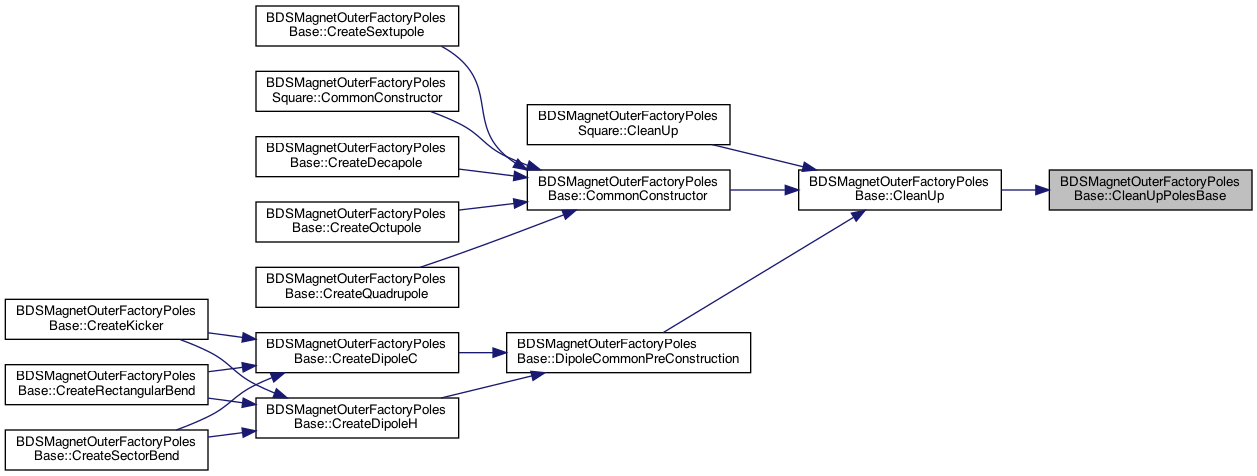

Here is the caller graph for this function:

◆ CommonConstructor()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CommonConstructor	(	const G4String &	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4int	order,
		G4double	magnetContainerLength,
		const BDSMagnetOuterInfo *	recipe
	)

protectedvirtual

Common construction tasks to all methods - assemble yoke and poles in container.

functions below here are private to this particular factory

Reimplemented in BDSMagnetOuterFactoryPolesSquare.

Definition at line 233 of file BDSMagnetOuterFactoryPolesBase.cc.

References buildPole, CalculatePoleAndYoke(), CleanUp(), CreateCoilSolids(), CreateEndPiece(), CreateLogicalVolumes(), CreatePoleSolid(), CreateYokeAndContainerSolid(), endPiece, BDSMaterials::GetMaterial(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), IntersectPoleWithYoke(), BDSFactoryBase::lengthSafety, magnetContainerRadius, PlaceComponents(), PlaceComponentsCoils(), BDSGeometryComponent::RegisterLogicalVolume(), BDSGeometryComponent::RegisterPhysicalVolume(), BDSGeometryComponent::RegisterRotationMatrix(), BDSGeometryComponent::RegisterSensitiveVolume(), BDSGeometryComponent::RegisterVisAttributes(), BDSMagnetOuterFactoryBase::sensitiveOuter, BDSMagnetOuterFactoryBase::SetFaceNormals(), and BDSMagnetOuterFactoryBase::SetUserLimits().

Referenced by BDSMagnetOuterFactoryPolesSquare::CommonConstructor(), CreateDecapole(), CreateOctupole(), CreateQuadrupole(), and CreateSextupole().

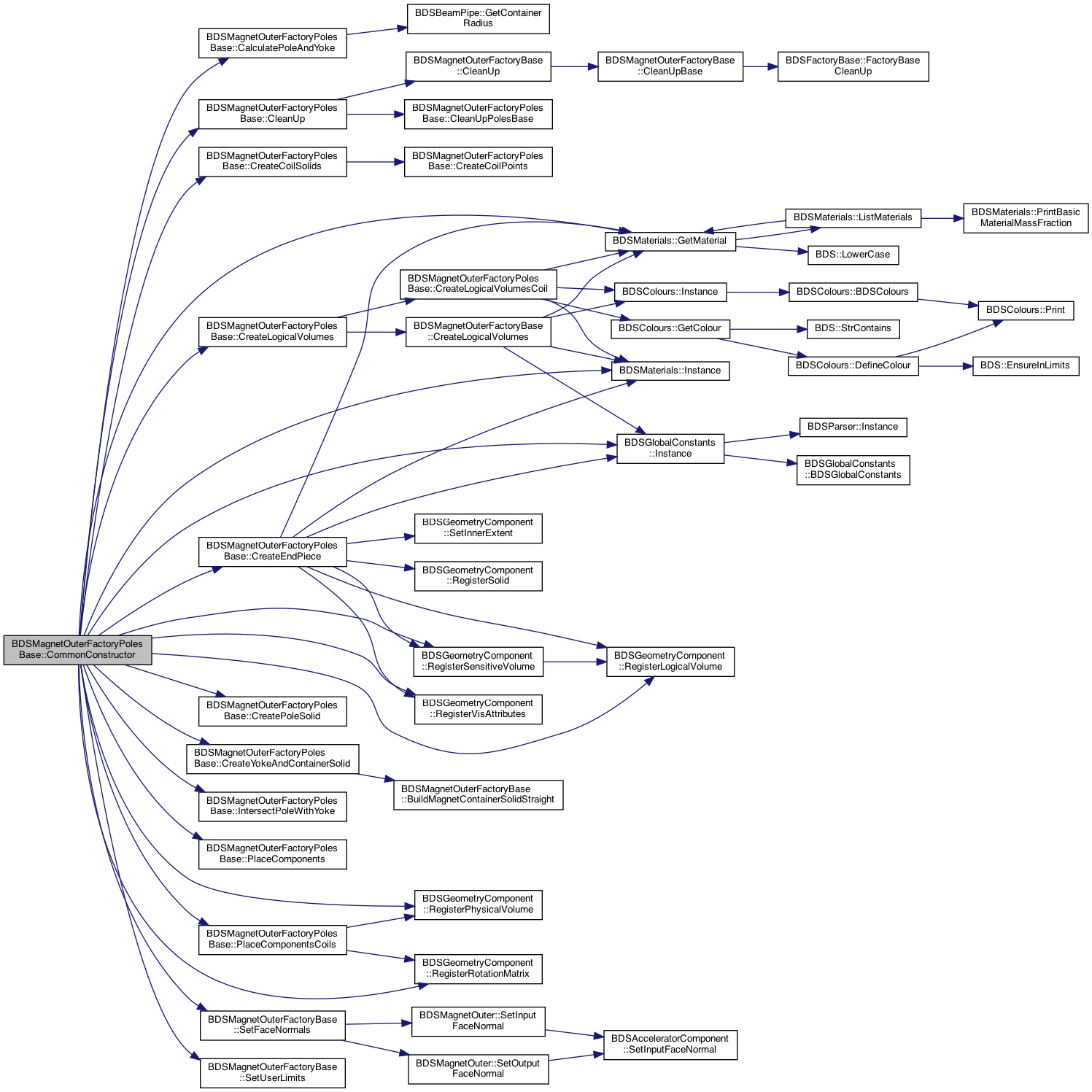

Here is the call graph for this function:

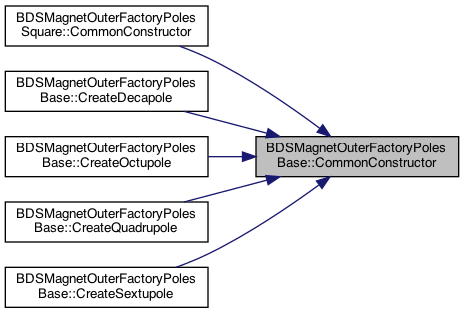

Here is the caller graph for this function:

◆ CreateCoilPoints()

void BDSMagnetOuterFactoryPolesBase::CreateCoilPoints ( )

protectedvirtual

Create all the points that make up the extruded solid of the pole.

Definition at line 443 of file BDSMagnetOuterFactoryPolesBase.cc.

References coilCentreRadius, coilHeight, endPieceInnerR, endPieceLength, endPieceOuterR, endPiecePoints, leftPoints, BDSFactoryBase::lengthSafetyLarge, poleFinishRadius, poleSquareStartRadius, poleSquareWidth, rightPoints, segmentAngle, and yokeStartRadius.

Referenced by CreateCoilSolids().

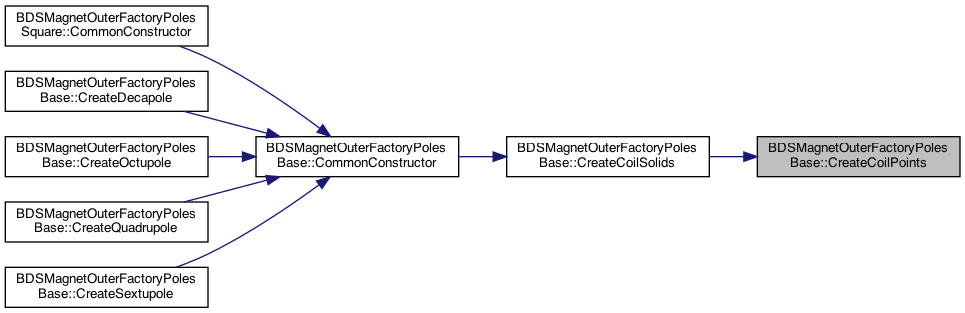

Here is the caller graph for this function:

◆ CreateCoilSolids()

void BDSMagnetOuterFactoryPolesBase::CreateCoilSolids	(	const G4String &	name,
		G4double	length
	)

protectedvirtual

Create the coil solids corresponding to the pole solid.

Definition at line 416 of file BDSMagnetOuterFactoryPolesBase.cc.

References coilLeftSolid, coilRightSolid, CreateCoilPoints(), leftPoints, BDSFactoryBase::lengthSafety, and rightPoints.

Referenced by CommonConstructor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDecapole()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateDecapole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

decapole outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 174 of file BDSMagnetOuterFactoryPolesBase.cc.

References CommonConstructor().

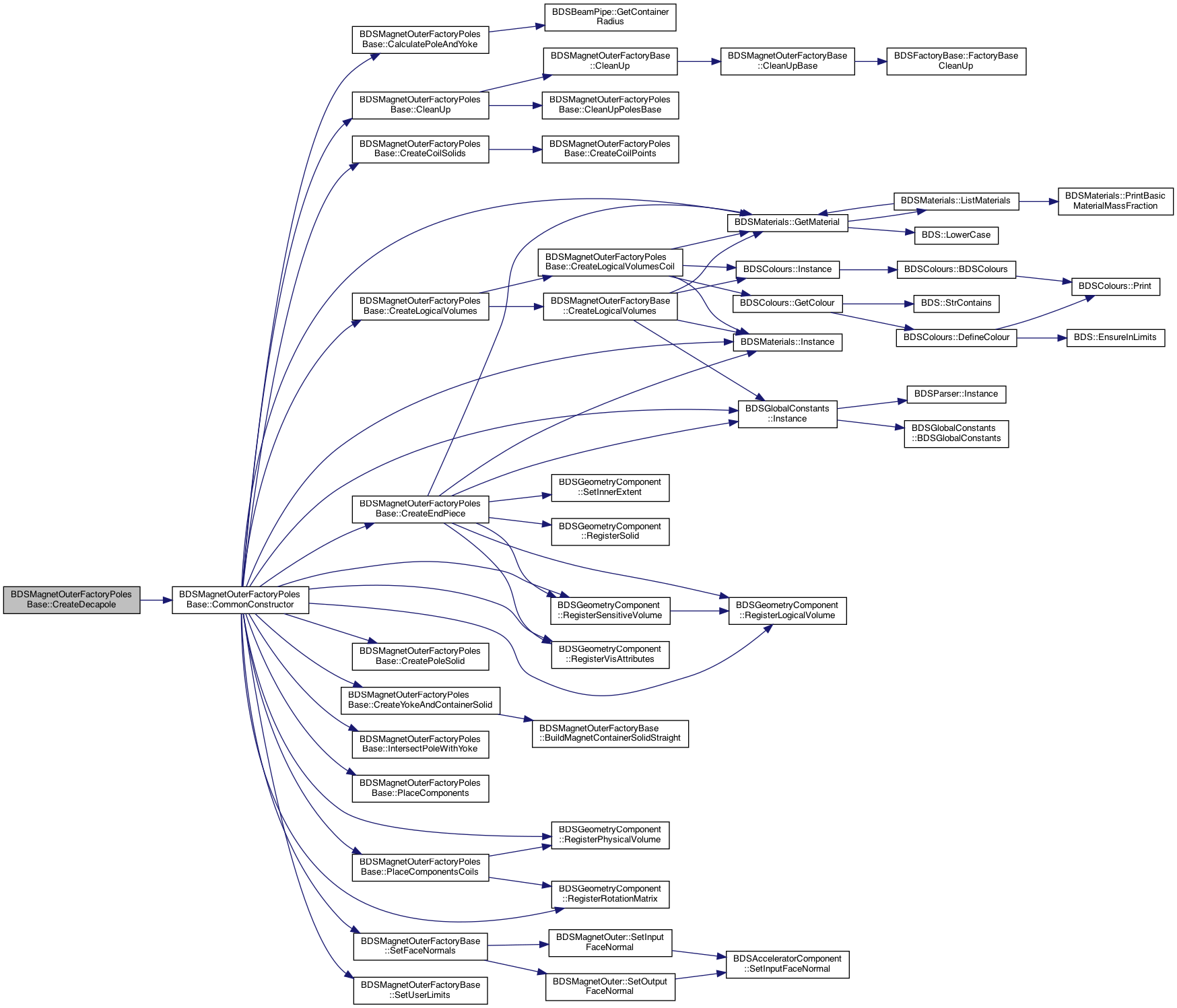

Here is the call graph for this function:

◆ CreateDipoleC()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateDipoleC	(	const G4String &	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe,
		G4bool	buildVertically
	)

protected

Routine to construct a C shaped dipole magnet with the yoke either to the left or right and can optionally be built vertically.

Definition at line 979 of file BDSMagnetOuterFactoryPolesBase.cc.

References buildPole, CalculateCoilDisplacements(), coilHeight, DipoleCalculations(), DipoleCommonPreConstruction(), BDSFactoryBase::lengthSafety, BDSFactoryBase::lengthSafetyLarge, BDS::Rotate(), TestCoilFractions(), and BDSMagnetOuterFactoryBase::yokeSolid.

Referenced by CreateKicker(), CreateRectangularBend(), and CreateSectorBend().

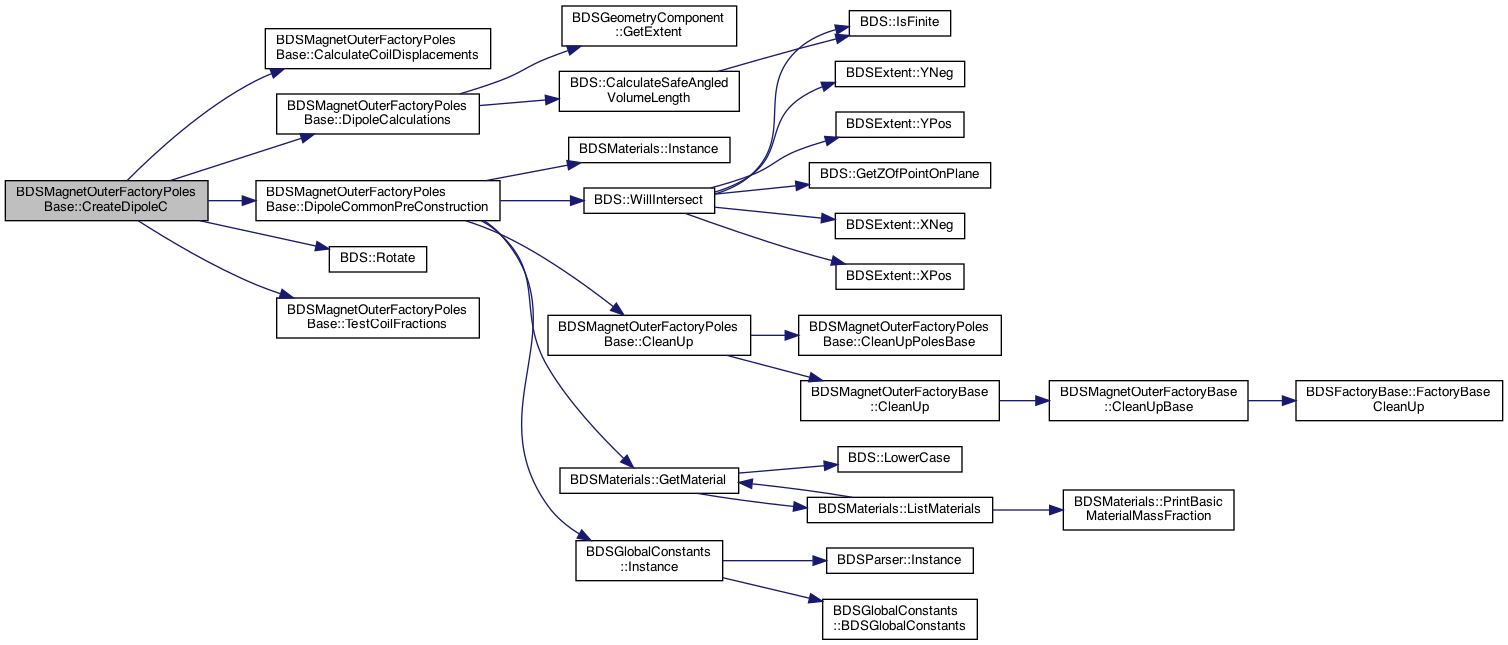

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateDipoleH()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateDipoleH	(	const G4String &	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe,
		G4bool	buildVertically
	)

protected

Routine to construct an H shaped dipole magnet and can optionally be built vertically.

Definition at line 1217 of file BDSMagnetOuterFactoryPolesBase.cc.

References buildPole, CalculateCoilDisplacements(), coilHeight, DipoleCalculations(), DipoleCommonPreConstruction(), BDSFactoryBase::lengthSafetyLarge, BDS::Rotate(), TestCoilFractions(), and BDSMagnetOuterFactoryBase::yokeSolid.

Referenced by CreateKicker(), CreateRectangularBend(), and CreateSectorBend().

Here is the call graph for this function:

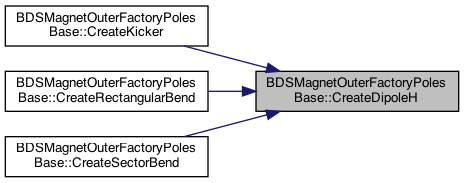

Here is the caller graph for this function:

◆ CreateEndPiece()

void BDSMagnetOuterFactoryPolesBase::CreateEndPiece ( const G4String & name )

protectedvirtual

Create the solids, logical volumes for the end piece - everything but the placement. Also, create the geometry component now.

Definition at line 714 of file BDSMagnetOuterFactoryPolesBase.cc.

References coilHeight, coilLeftLV, BDSFactoryBase::defaultUserLimits, endPiece, endPieceCoilLV, endPieceContainerLV, endPieceContainerSolid, endPieceInnerR, endPieceLength, endPieceOuterR, endPiecePoints, BDSMaterials::GetMaterial(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), BDSGeometryComponent::RegisterLogicalVolume(), BDSGeometryComponent::RegisterSensitiveVolume(), BDSGeometryComponent::RegisterSolid(), BDSGeometryComponent::RegisterVisAttributes(), BDSMagnetOuterFactoryBase::sensitiveOuter, and BDSGeometryComponent::SetInnerExtent().

Referenced by CommonConstructor().

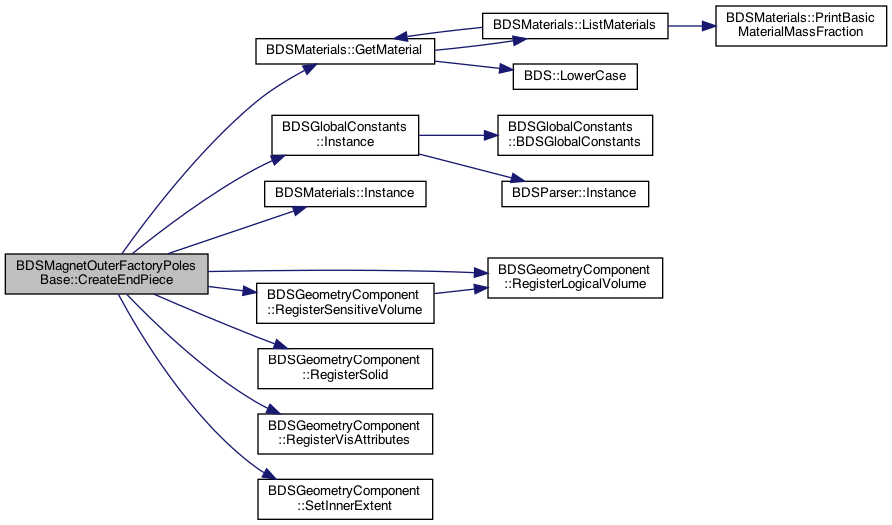

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateKicker()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateKicker	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe,
		G4bool	vertical
	)

virtual

horizontal and vertical kicker outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 219 of file BDSMagnetOuterFactoryPolesBase.cc.

References CreateDipoleC(), CreateDipoleH(), and BDSMagnetOuterInfo::hStyle.

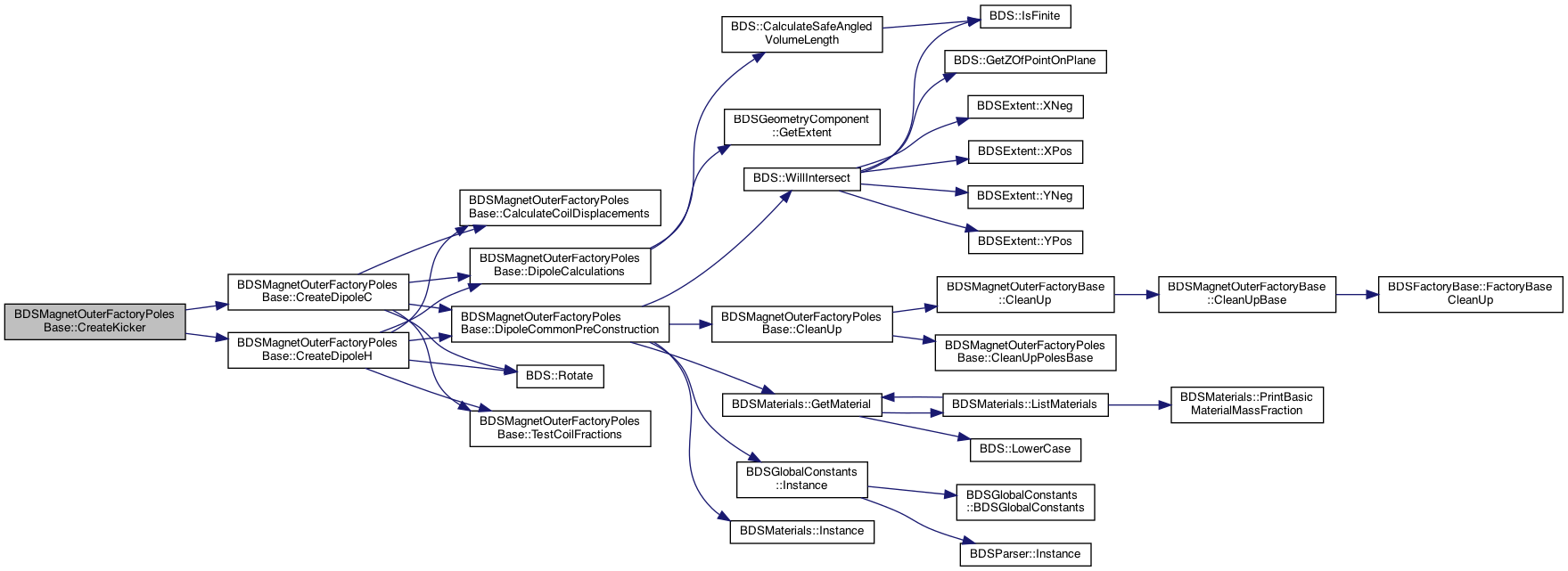

Here is the call graph for this function:

◆ CreateLogicalVolumes()

void BDSMagnetOuterFactoryPolesBase::CreateLogicalVolumes	(	const G4String &	name,
		G4Colour *	colour,
		G4Material *	outerMaterial
	)

protectedvirtual

Create logical volumes for yoke, container and magnet container - derived classes can override to extend as they need.

Reimplemented from BDSMagnetOuterFactoryBase.

Reimplemented in BDSMagnetOuterFactoryPolesSquare.

Definition at line 552 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSMagnetOuterFactoryBase::CreateLogicalVolumes(), and CreateLogicalVolumesCoil().

Referenced by CommonConstructor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateLogicalVolumesCoil()

void BDSMagnetOuterFactoryPolesBase::CreateLogicalVolumesCoil ( const G4String & name )

protectedvirtual

Discretise the coil logical volumes as even though derived factories from this one may complete override CreateLogicalVolumes as the poles can be individually unique, the coils will be the same and this allows reuse of code and lack of duplication.

Definition at line 560 of file BDSMagnetOuterFactoryPolesBase.cc.

References coilLeftLV, coilLeftSolid, coilRightLV, coilRightSolid, BDSFactoryBase::defaultUserLimits, BDSColours::GetColour(), BDSMaterials::GetMaterial(), BDSColours::Instance(), and BDSMaterials::Instance().

Referenced by CreateLogicalVolumes(), and BDSMagnetOuterFactoryPolesSquare::CreateLogicalVolumes().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ CreateMultipole()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateMultipole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

general multipole outer volume - could be any 2N order multipole

Implements BDSMagnetOuterFactoryBase.

Definition at line 192 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSMagnetOuterFactoryBase::CreateMultipole(), and cylindrical.

Here is the call graph for this function:

◆ CreateMuonSpoiler()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateMuonSpoiler	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

muon spoiler outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 210 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSMagnetOuterFactoryBase::CreateMuonSpoiler(), and cylindrical.

Here is the call graph for this function:

◆ CreateOctupole()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateOctupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

octupole outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 165 of file BDSMagnetOuterFactoryPolesBase.cc.

References CommonConstructor().

Here is the call graph for this function:

◆ CreatePoleSolid()

void BDSMagnetOuterFactoryPolesBase::CreatePoleSolid	(	const G4String &	name,
		G4double	length,
		G4int	order
	)

protectedvirtual

Create pole for magnet of order N where npoles = Nx2. This contains some calcultion of geometrical parameters pertinent to the exact geometry being required. NOTE the poles are not joined (boolean union) to the outer yoke - there is a gap of length safety. This won't affect physics results and speeds up tracking as the solid is not a boolean of order Npoles + 1.

Definition at line 341 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSFactoryBase::lengthSafety, poleAngle, poleFinishRadius, BDSMagnetOuterFactoryBase::poleSolid, poleSquareStartRadius, poleSquareWidth, poleStartRadius, poleStopFactor, and poleTipFraction.

Referenced by CommonConstructor().

Here is the caller graph for this function:

◆ CreateQuadrupole()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateQuadrupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

quadrupole outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 147 of file BDSMagnetOuterFactoryPolesBase.cc.

References CommonConstructor().

Here is the call graph for this function:

◆ CreateRectangularBend()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateRectangularBend	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

rectangular bend outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 135 of file BDSMagnetOuterFactoryPolesBase.cc.

References CreateDipoleC(), CreateDipoleH(), and BDSMagnetOuterInfo::hStyle.

Here is the call graph for this function:

◆ CreateRfCavity()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateRfCavity	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

RF cavity outer volume.

Implements BDSMagnetOuterFactoryBase.

Definition at line 201 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSMagnetOuterFactoryBase::CreateRfCavity(), and cylindrical.

Here is the call graph for this function:

◆ CreateSectorBend()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateSectorBend	(	G4String	name,
		G4double	length,
		const BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

sector bend outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 123 of file BDSMagnetOuterFactoryPolesBase.cc.

References CreateDipoleC(), CreateDipoleH(), and BDSMagnetOuterInfo::hStyle.

Here is the call graph for this function:

◆ CreateSextupole()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateSextupole	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

sextupole outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 156 of file BDSMagnetOuterFactoryPolesBase.cc.

References CommonConstructor().

Here is the call graph for this function:

◆ CreateSolenoid()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::CreateSolenoid	(	G4String	name,
		G4double	length,
		BDSBeamPipe *	beamPipe,
		G4double	containerLength,
		const BDSMagnetOuterInfo *	recipe
	)

virtual

solenoid outer volume

Implements BDSMagnetOuterFactoryBase.

Definition at line 183 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSMagnetOuterFactoryBase::CreateSolenoid(), and cylindrical.

Here is the call graph for this function:

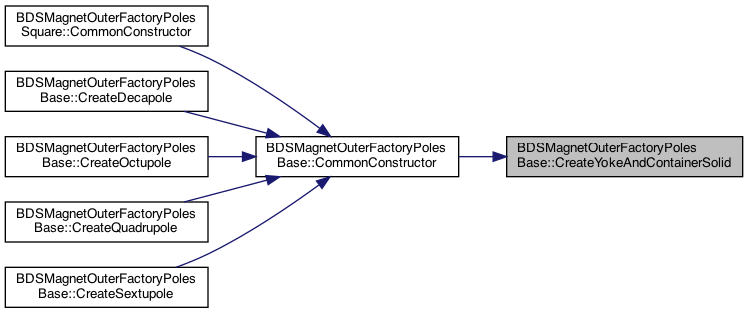

◆ CreateYokeAndContainerSolid()

void BDSMagnetOuterFactoryPolesBase::CreateYokeAndContainerSolid	(	const G4String &	name,
		G4double	length,
		G4int	order,
		G4double	magnetContainerLength,
		G4double	magnetContainerRadiusIn
	)

protectedvirtual

Create yoke that connects poles and container to put them in. Also create the poleIntersectionSolid that will be used to chop the extended pole in IntersectPoleWithYoke().

Reimplemented in BDSMagnetOuterFactoryPolesFacetCommon, and BDSMagnetOuterFactoryPolesSquare.

Definition at line 504 of file BDSMagnetOuterFactoryPolesBase.cc.

References BDSMagnetOuterFactoryBase::BuildMagnetContainerSolidStraight(), BDSFactoryBase::lengthSafety, BDSFactoryBase::lengthSafetyLarge, poleIntersectionSolid, poleStartRadius, yokeFinishRadius, BDSMagnetOuterFactoryBase::yokeSolid, and yokeStartRadius.

Referenced by CommonConstructor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DipoleCalculations()

void BDSMagnetOuterFactoryPolesBase::DipoleCalculations	(	G4bool	hStyle,
		G4bool	buildVertically,
		const BDSBeamPipe *	beamPipe,
		G4double	length,
		G4double	horizontalWidth,
		G4double	angleIn,
		G4double	angleOut,
		G4double	yokeThicknessFraction,
		G4double	vhRatio,
		G4double	coilWidthFraction,
		G4double	coilHeightFraction,
		G4double &	cShapeOuterEdge,
		G4double &	poleHalfGap,
		G4double &	poleWidth,
		G4double &	poleHeight,
		G4double &	yokeWidth,
		G4double &	yokeHalfHeight,
		G4double &	yokeThickness,
		G4double &	yokeOverHang,
		G4double &	coilWidth,
		G4double &	coilHeightIn,
		G4double &	coilToYokeGap,
		G4double &	coilToPoleGap,
		G4double &	sLength,
		G4double &	containerSLength,
		G4double &	intersectionRadius
	)

protected

Common calculations to both dipole construction routines in one place. Pass by reference to modify variables declared in each function.

Definition at line 807 of file BDSMagnetOuterFactoryPolesBase.cc.

References buildPole, BDS::CalculateSafeAngledVolumeLength(), BDSGeometryComponent::GetExtent(), and BDSFactoryBase::lengthSafetyLarge.

Referenced by CreateDipoleC(), and CreateDipoleH().

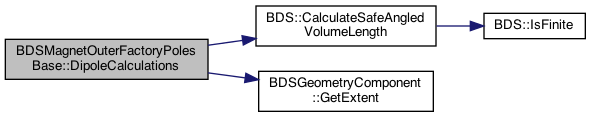

Here is the call graph for this function:

Here is the caller graph for this function:

◆ DipoleCommonConstruction()

BDSMagnetOuter * BDSMagnetOuterFactoryPolesBase::DipoleCommonConstruction	(	const G4String &	name,
		G4double	horizontalWidth,
		G4bool	buildEndPiece,
		G4double	coilWidth,
		G4double	length,
		G4double	containerLength,
		G4double	sLength,
		G4double	angleIn,
		G4double	angleOut,
		G4Colour *	colour,
		G4Material *	material,
		std::vector< G4ThreeVector > &	coilDisps,
		G4bool	buildVertically,
		BDSExtent &	ext,
		G4double	poleHalfWidth,
		G4double	poleHalfGap,
		G4double	cDY,
		G4double	coilDY,
		G4double	intersectionRadius
	)

protected

Definition at line 1429 of file BDSMagnetOuterFactoryPolesBase.cc.

◆ DipoleCommonPreConstruction()

void BDSMagnetOuterFactoryPolesBase::DipoleCommonPreConstruction	(	const G4String &	name,
		G4double	angleIn,
		G4double	angleOut,
		G4double	length,
		G4double &	horizontalWidth,
		G4Material *&	material,
		G4double &	vhRatio
	)

protected

Common task to both dipole construction routines. Clean up, test inputs and check if faces will intersect and warn user. Note reference to material pointer so it can be fixed if needs be to the default.

Definition at line 771 of file BDSMagnetOuterFactoryPolesBase.cc.

References CleanUp(), BDSMaterials::GetMaterial(), BDSGlobalConstants::Instance(), BDSMaterials::Instance(), and BDS::WillIntersect().

Referenced by CreateDipoleC(), and CreateDipoleH().

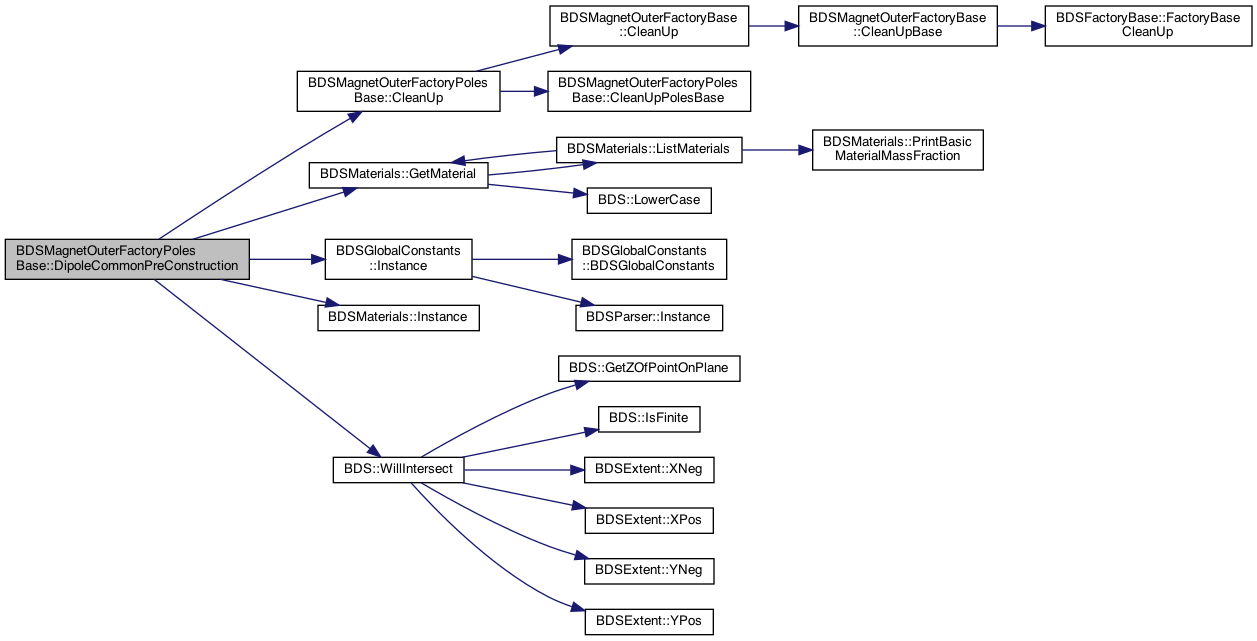

Here is the call graph for this function:

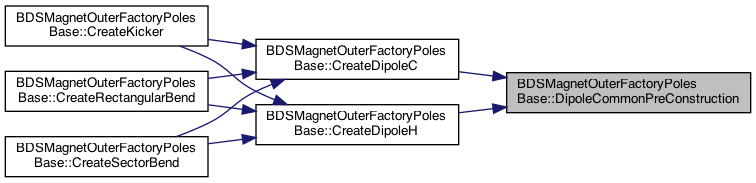

Here is the caller graph for this function:

◆ IntersectPoleWithYoke()

void BDSMagnetOuterFactoryPolesBase::IntersectPoleWithYoke	(	const G4String &	name,
		G4double	length,
		G4int	order
	)

protectedvirtual

Chop off the top of the pole to match the appropriate yoke geometry.

Reimplemented in BDSMagnetOuterFactoryPolesSquare.

Definition at line 542 of file BDSMagnetOuterFactoryPolesBase.cc.

References poleIntersectionSolid, and BDSMagnetOuterFactoryBase::poleSolid.

Referenced by CommonConstructor().

Here is the caller graph for this function:

◆ PlaceComponents()

void BDSMagnetOuterFactoryPolesBase::PlaceComponents	(	const G4String &	name,
		G4int	order
	)

protectedvirtual

Place the poles and yoke in the container volume.

Reimplemented in BDSMagnetOuterFactoryPolesSquare.

Definition at line 610 of file BDSMagnetOuterFactoryPolesBase.cc.

References buildPole, BDSFactoryBase::checkOverlaps, poleTranslation, and segmentAngle.

Referenced by CommonConstructor().

Here is the caller graph for this function:

◆ PlaceComponentsCoils()

void BDSMagnetOuterFactoryPolesBase::PlaceComponentsCoils	(	const G4String &	name,
		G4int	order
	)

protectedvirtual

If we're building coils, place two coils for each pole.

Definition at line 648 of file BDSMagnetOuterFactoryPolesBase.cc.

References buildPole, BDSFactoryBase::checkOverlaps, coilCentreRadius, coilLeftLV, coilRightLV, endPiece, endPieceCoilLV, endPieceContainerLV, endPieceLength, BDSGeometryComponent::RegisterPhysicalVolume(), BDSGeometryComponent::RegisterRotationMatrix(), and segmentAngle.

Referenced by CommonConstructor().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TestCoilFractions()

void BDSMagnetOuterFactoryPolesBase::TestCoilFractions	(	G4double &	coilWidthFraction,
		G4double &	coilHeightFraction
	)

protected

Ensure the coil fractions lie with [0.05, 0.98] and if they're negative set them to a provided default. -ve is assumed to require the default parameter and allows different usages of the function (in C and H dipoles) to control the defaults.

Definition at line 586 of file BDSMagnetOuterFactoryPolesBase.cc.

Referenced by CreateDipoleC(), and CreateDipoleH().

Here is the caller graph for this function:

Field Documentation

◆ bendHeightFraction

const G4double BDSMagnetOuterFactoryPolesBase::bendHeightFraction

protected

Bends are often wider in the bending plane. As we only have one parameter to pass which is outerDimaeter, make the non bending dimension a fixed (< 1) fraction of the outerDimaeter.

Definition at line 154 of file BDSMagnetOuterFactoryPolesBase.hh.

◆ buildPole

G4bool BDSMagnetOuterFactoryPolesBase::buildPole

protected

Whether or not to build poles (and therefore coils).

Definition at line 164 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), CleanUpPolesBase(), CommonConstructor(), CreateDipoleC(), CreateDipoleH(), DipoleCalculations(), PlaceComponents(), BDSMagnetOuterFactoryPolesSquare::PlaceComponents(), and PlaceComponentsCoils().

◆ coilCentreRadius

G4double BDSMagnetOuterFactoryPolesBase::coilCentreRadius

protected

Radius from magnet centre that the centre of the coils exist at.

Definition at line 173 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), and PlaceComponentsCoils().

◆ coilHeight

G4double BDSMagnetOuterFactoryPolesBase::coilHeight

protected

Height along y for coil for coil beside 1 upgright pole aligned with y axis.

Definition at line 172 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), CreateDipoleC(), CreateDipoleH(), and CreateEndPiece().

◆ coilLeftLV

G4LogicalVolume* BDSMagnetOuterFactoryPolesBase::coilLeftLV

protected

Logical volume for left coil.

Definition at line 182 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateEndPiece(), CreateLogicalVolumesCoil(), and PlaceComponentsCoils().

◆ coilLeftSolid

G4VSolid* BDSMagnetOuterFactoryPolesBase::coilLeftSolid

protected

Left coil solid for one pole built upright along y axis.

Definition at line 179 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilSolids(), and CreateLogicalVolumesCoil().

◆ coilRightLV

G4LogicalVolume* BDSMagnetOuterFactoryPolesBase::coilRightLV

protected

Logical volume for right coil.

Definition at line 183 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateLogicalVolumesCoil(), and PlaceComponentsCoils().

◆ coilRightSolid

G4VSolid* BDSMagnetOuterFactoryPolesBase::coilRightSolid

protected

Right coil solid.

Definition at line 180 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilSolids(), and CreateLogicalVolumesCoil().

◆ cylindrical

BDSMagnetOuterFactoryBase* BDSMagnetOuterFactoryPolesBase::cylindrical

protected

Default factory to fall back to.

Definition at line 356 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CreateMultipole(), CreateMuonSpoiler(), CreateRfCavity(), and CreateSolenoid().

◆ endPiece

BDSSimpleComponent* BDSMagnetOuterFactoryPolesBase::endPiece

protected

Fully constructed end piece.

Definition at line 186 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CommonConstructor(), CreateEndPiece(), and PlaceComponentsCoils().

◆ endPieceCoilLV

G4LogicalVolume* BDSMagnetOuterFactoryPolesBase::endPieceCoilLV

protected

Logical volume for end piece single coil piece.

Definition at line 184 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateEndPiece(), and PlaceComponentsCoils().

◆ endPieceContainerLV

G4LogicalVolume* BDSMagnetOuterFactoryPolesBase::endPieceContainerLV

protected

Logical volume for end piece container.

Definition at line 185 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateEndPiece(), and PlaceComponentsCoils().

◆ endPieceContainerSolid

G4VSolid* BDSMagnetOuterFactoryPolesBase::endPieceContainerSolid

protected

End piece container solid.

Definition at line 181 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), and CreateEndPiece().

◆ endPieceInnerR

G4double BDSMagnetOuterFactoryPolesBase::endPieceInnerR

protected

Inner radius for end piece container.

Definition at line 175 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), and CreateEndPiece().

◆ endPieceLength

G4double BDSMagnetOuterFactoryPolesBase::endPieceLength

protected

Length of the coil end piece along what will be curvilinear S.

Definition at line 174 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), CreateEndPiece(), and PlaceComponentsCoils().

◆ endPieceOuterR

G4double BDSMagnetOuterFactoryPolesBase::endPieceOuterR

protected

Outer radius for end piece container.

Definition at line 176 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), and CreateEndPiece().

◆ endPiecePoints

std::vector<G4TwoVector> BDSMagnetOuterFactoryPolesBase::endPiecePoints

protected

Vector of 2D points for end piece looking from above down z.

Definition at line 190 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), and CreateEndPiece().

◆ leftPoints

std::vector<G4TwoVector> BDSMagnetOuterFactoryPolesBase::leftPoints

protected

Vector of 2D points for left coil.

Definition at line 188 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), and CreateCoilSolids().

◆ magnetContainerRadius

G4double BDSMagnetOuterFactoryPolesBase::magnetContainerRadius

protected

Radius of the container solid for the outer geometry.

Definition at line 163 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), CleanUpPolesBase(), and CommonConstructor().

◆ poleAngle

G4double BDSMagnetOuterFactoryPolesBase::poleAngle

protected

The angle allowed for the pole to occupy - less than segmentAngle.

Definition at line 170 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), CleanUpPolesBase(), and CreatePoleSolid().

◆ poleAngularFraction

const G4double BDSMagnetOuterFactoryPolesBase::poleAngularFraction

protected

Fraction of 2pi/Npoles that the pole will occupy - always < 1.

Definition at line 141 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke().

◆ poleAnnulusFraction

const G4double BDSMagnetOuterFactoryPolesBase::poleAnnulusFraction

protected

Fraction of length from pole tip to outerDiamter that the expanding section of the pole will take up. There's the tip, this bit, then a straight bit.

Definition at line 149 of file BDSMagnetOuterFactoryPolesBase.hh.

◆ poleFinishRadius

G4double BDSMagnetOuterFactoryPolesBase::poleFinishRadius

protected

Finish radius of the pole from magnet centre.

Definition at line 166 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), CleanUpPolesBase(), CreateCoilPoints(), and CreatePoleSolid().

◆ poleFraction

const G4double BDSMagnetOuterFactoryPolesBase::poleFraction

protected

The fraction of the distance from the beam pipe to the horizontalWidth/2 that each pole will take - always < 1

Definition at line 138 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke().

◆ poleIntersectionSolid

G4VSolid* BDSMagnetOuterFactoryPolesBase::poleIntersectionSolid

protected

Solid used to chop off pole.

Definition at line 178 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateYokeAndContainerSolid(), BDSMagnetOuterFactoryPolesFacetCommon::CreateYokeAndContainerSolid(), BDSMagnetOuterFactoryPolesSquare::CreateYokeAndContainerSolid(), IntersectPoleWithYoke(), and BDSMagnetOuterFactoryPolesSquare::IntersectPoleWithYoke().

◆ poleSquareStartRadius

G4double BDSMagnetOuterFactoryPolesBase::poleSquareStartRadius

protected

Radius from magnet centre that constant width section starts.

Definition at line 168 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), and CreatePoleSolid().

◆ poleSquareWidth

G4double BDSMagnetOuterFactoryPolesBase::poleSquareWidth

protected

Full width of pole in constant width section.

Definition at line 167 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), CleanUpPolesBase(), CreateCoilPoints(), and CreatePoleSolid().

◆ poleStartRadius

G4double BDSMagnetOuterFactoryPolesBase::poleStartRadius

protected

Start radius of the pole from magnet centre.

Definition at line 165 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), CleanUpPolesBase(), CreatePoleSolid(), CreateYokeAndContainerSolid(), BDSMagnetOuterFactoryPolesFacetCommon::CreateYokeAndContainerSolid(), and BDSMagnetOuterFactoryPolesSquare::CreateYokeAndContainerSolid().

◆ poleStopFactor

const G4double BDSMagnetOuterFactoryPolesBase::poleStopFactor

protected

Factor by which the pole length is multiplied for the raw pole length before it's intersected with the inside of the yoke. Where the pole would normally stop at yokeStartRadius - lengthSaftey, it runs to yokeStartRadius x poleStopFactor.

Definition at line 159 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CreatePoleSolid().

◆ poleTipFraction

const G4double BDSMagnetOuterFactoryPolesBase::poleTipFraction

protected

Fraction of length from pole tip to horizontalWidth that pole tip ellisoid will take up

Definition at line 145 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CreatePoleSolid().

◆ poleTranslation

G4ThreeVector BDSMagnetOuterFactoryPolesBase::poleTranslation

protected

Offste of pole for placement from magnet centre.

Definition at line 171 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), and PlaceComponents().

◆ rightPoints

std::vector<G4TwoVector> BDSMagnetOuterFactoryPolesBase::rightPoints

protected

Vector of 2D points for right coil.

Definition at line 189 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CleanUpPolesBase(), CreateCoilPoints(), and CreateCoilSolids().

◆ segmentAngle

G4double BDSMagnetOuterFactoryPolesBase::segmentAngle

protected

2PI / # of poles - angle per segment allocated for each pole.

Definition at line 169 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), BDSMagnetOuterFactoryPolesFacetCommon::CalculateStartAngles(), BDSMagnetOuterFactoryPolesFacetCrop::CalculateStartAngles(), CleanUpPolesBase(), CreateCoilPoints(), BDSMagnetOuterFactoryPolesSquare::IntersectPoleWithYoke(), PlaceComponents(), BDSMagnetOuterFactoryPolesSquare::PlaceComponents(), and PlaceComponentsCoils().

◆ yokeFinishRadius

G4double BDSMagnetOuterFactoryPolesBase::yokeFinishRadius

protected

Finish radius of yoke geometry from magnet centre - less than horizontalWidth.

Definition at line 162 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), CleanUpPolesBase(), CreateYokeAndContainerSolid(), BDSMagnetOuterFactoryPolesFacetCommon::CreateYokeAndContainerSolid(), and BDSMagnetOuterFactoryPolesSquare::CreateYokeAndContainerSolid().

◆ yokeStartRadius

G4double BDSMagnetOuterFactoryPolesBase::yokeStartRadius

protected

Start radius of yoke geometry from magnet cetnre.

Definition at line 161 of file BDSMagnetOuterFactoryPolesBase.hh.

Referenced by CalculatePoleAndYoke(), CleanUpPolesBase(), CreateCoilPoints(), CreateYokeAndContainerSolid(), BDSMagnetOuterFactoryPolesFacetCommon::CreateYokeAndContainerSolid(), and BDSMagnetOuterFactoryPolesSquare::CreateYokeAndContainerSolid().
