#include <EventAnalysis.hh>

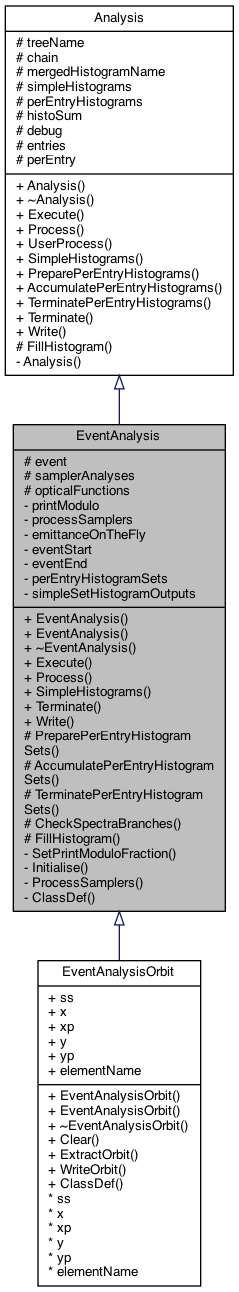

Inheritance diagram for EventAnalysis:

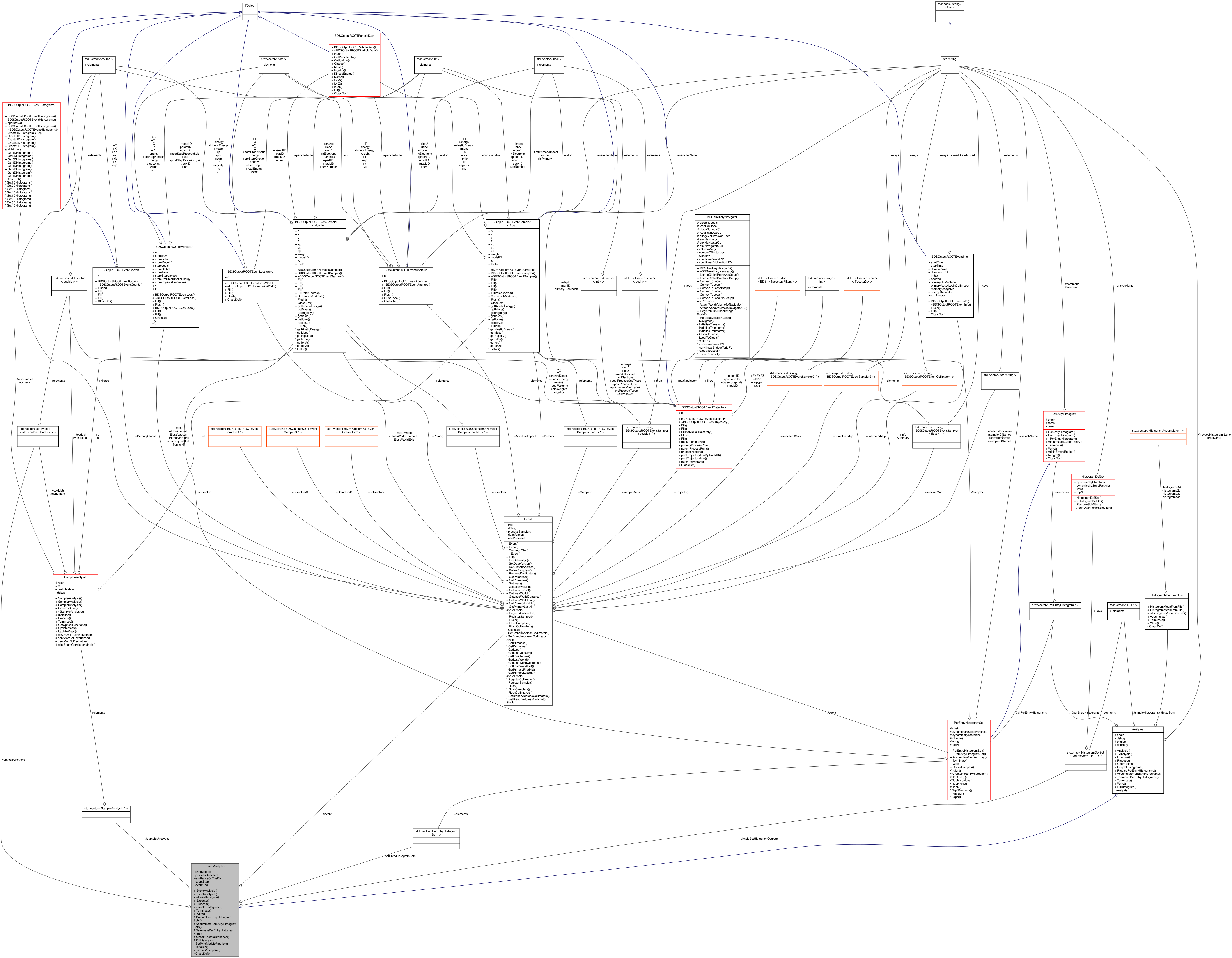

Collaboration diagram for EventAnalysis:

Public Member Functions
	EventAnalysis ()

	EventAnalysis (Event eventIn, TChain chain, bool perEntryAnalysis=true, bool processSamplersIn=true, bool debugIn=false, double printModuloFraction=0.01, bool emittanceOnTheFlyIn=false, long int eventStartIn=0, long int eventEndIn=-1, const std::string &primaryParticleName="")
	Constructor intended for use to construct an event analysis object. More...

virtual void	Execute ()

virtual void	Process ()
	Operate on each entry in the event tree. More...

virtual void	SimpleHistograms ()
	Process histogram definitions from configuration instance. More...

virtual void	Terminate ()
	Terminate each individual sampler analysis and append optical functions. More...

virtual void	Write (TFile *outputFileName)
	Write analysis including optical functions to an output file. More...

Public Member Functions inherited from Analysis
	Analysis (const std::string &treeNameIn, TChain *chainIn, const std::string &mergedHistogramNameIn, bool perEntryAnalysis=true, bool debugIn=false)

virtual void	Execute ()
	Method which calls all other methods in order. More...

virtual void	Process ()=0

virtual void	UserProcess ()
	Virtual function for user to overload and use. Does nothing by default. More...

virtual void	SimpleHistograms ()
	Process histogram definitions from configuration instance. More...

void	PreparePerEntryHistograms ()
	Create structures necessary for per entry histograms. More...

void	AccumulatePerEntryHistograms (long int entryNumber)
	Accumulate means and variances for per entry histograms. More...

void	TerminatePerEntryHistograms ()
	Prepare result of per entry histogram accumulation. More...

virtual void	Terminate ()

virtual void	Write (TFile *outputFile)
	Write rebdsim histograms. More...

Protected Member Functions
void	PreparePerEntryHistogramSets ()

void	AccumulatePerEntryHistogramSets (long int entryNumber)

void	TerminatePerEntryHistogramSets ()

void	CheckSpectraBranches ()

void	FillHistogram (HistogramDefSet *definition)
	Fill a set of simple histograms across all events. More...

Protected Member Functions inherited from Analysis
void	FillHistogram (HistogramDef definition, std::vector< TH1 > *outputHistograms=nullptr)
	Create an individual histogram based on a definition. More...

Protected Attributes
Event *	event
	Event object that data loaded from the file will be loaded into. More...

std::vector< SamplerAnalysis * >	samplerAnalyses
	Holder for sampler analysis objects. More...

std::vector< std::vector< std::vector< double > > >	opticalFunctions
	Optical functions from all samplers. More...

Protected Attributes inherited from Analysis
std::string	treeName

TChain *	chain

std::string	mergedHistogramName
	Name of directory for merged histograms. More...

std::vector< TH1 * >	simpleHistograms

std::vector< PerEntryHistogram * >	perEntryHistograms

HistogramMeanFromFile *	histoSum
	Merge of per event stored histograms. More...

bool	debug
	Whether debug print out is used or not. More...

long int	entries
	Number of entries in the chain. More...

bool	perEntry
	Whether to analyse each entry in the tree in a for loop or not. More...

Private Member Functions
void	SetPrintModuloFraction (double fraction)
	Set how often to print out information about the event. More...

void	Initialise ()
	Initialise each sampler analysis object in samplerAnalysis. More...

void	ProcessSamplers (bool firstTime=false)
	Process each sampler analysis object. More...

	ClassDef (EventAnalysis, 1)

Private Attributes
int	printModulo
	Cache of print modulo fraction. More...

bool	processSamplers
	Whether to process samplers. More...

bool	emittanceOnTheFly
	Whether to calculate emittance fresh at each sampler. More...

long int	eventStart
	Event index to start analysis from. More...

long int	eventEnd
	Event index to end analysis at. More...

std::vector< PerEntryHistogramSet * >	perEntryHistogramSets
	Cache of all per entry histogram sets. More...

std::map< HistogramDefSet , std::vector< TH1 > >	simpleSetHistogramOutputs
	Map of simple histograms created per histogram set for writing out. More...

Detailed Description

Event level analysis.

Author: Stewart Boogert

Definition at line 41 of file EventAnalysis.hh.

Constructor & Destructor Documentation

◆ EventAnalysis() [1/2]

EventAnalysis::EventAnalysis ( )

The default constructor is not intended for use and will not work for the purpose of analysis. It is required by the ROOT C++ reflection system in case you wish to save the object.

◆ EventAnalysis() [2/2]

EventAnalysis::EventAnalysis	(	Event *	eventIn,
		TChain *	chain,
		bool	perEntryAnalysis = `true`,
		bool	processSamplersIn = `true`,
		bool	debugIn = `false`,
		double	printModuloFraction = `0.01`,
		bool	emittanceOnTheFlyIn = `false`,
		long int	eventStartIn = `0`,
		long int	eventEndIn = `-1`,
		const std::string &	primaryParticleName = `""`
	)

Constructor intended for use to construct an event analysis object.

Definition at line 54 of file EventAnalysis.cc.

References Analysis::debug, event, Event::GetPrimaries(), processSamplers, samplerAnalyses, Event::Samplers, SetPrintModuloFraction(), SamplerAnalysis::UpdateMass(), and Event::UsePrimaries().

Here is the call graph for this function:

◆ ~EventAnalysis()

EventAnalysis::~EventAnalysis ( )

virtualnoexcept

Definition at line 134 of file EventAnalysis.cc.

Member Function Documentation

◆ AccumulatePerEntryHistogramSets()

void EventAnalysis::AccumulatePerEntryHistogramSets ( long int entryNumber )

protected

Definition at line 383 of file EventAnalysis.cc.

◆ CheckSpectraBranches()

void EventAnalysis::CheckSpectraBranches ( )

protected

Definition at line 210 of file EventAnalysis.cc.

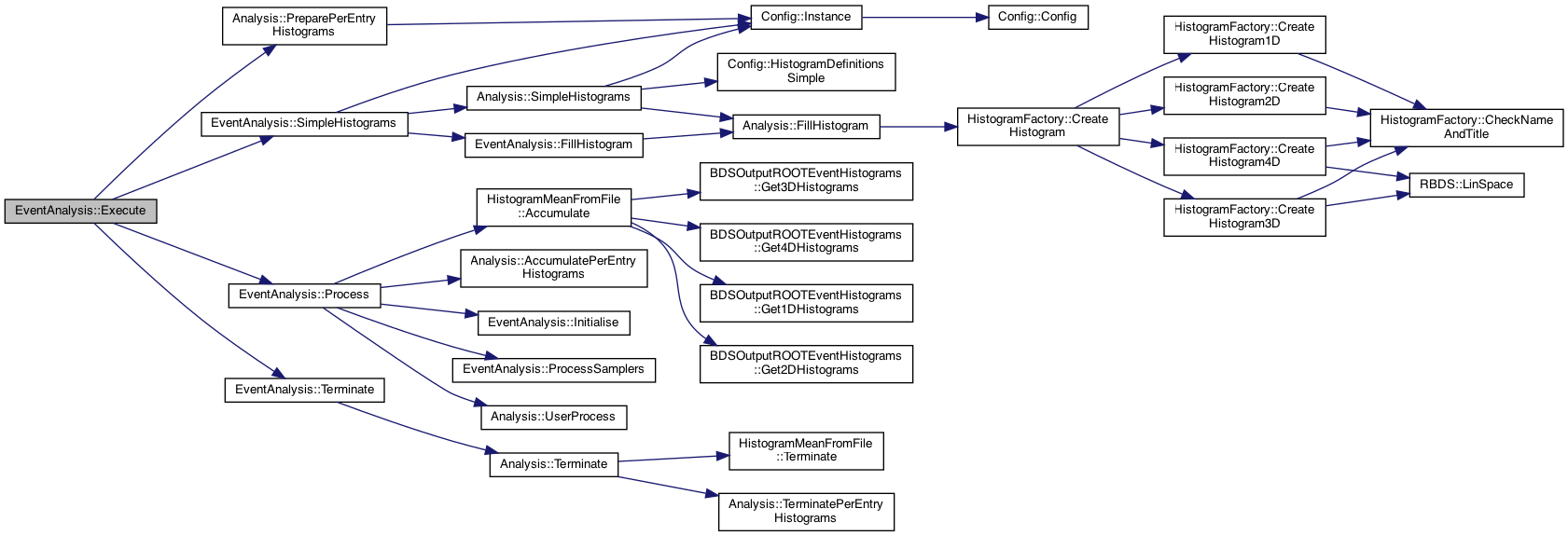

◆ Execute()

void EventAnalysis::Execute ( )

virtual

Method which calls all other methods in order. Here we also test if we have to process the samplers on whether to call Process().

Reimplemented from Analysis.

Definition at line 107 of file EventAnalysis.cc.

References Analysis::perEntry, Analysis::PreparePerEntryHistograms(), Process(), processSamplers, SimpleHistograms(), and Terminate().

Here is the call graph for this function:

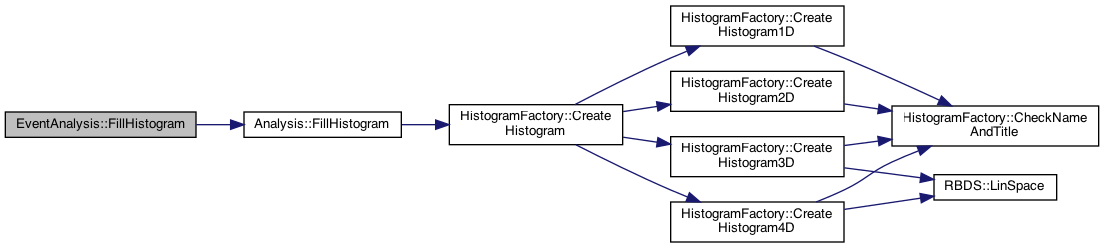

◆ FillHistogram()

void EventAnalysis::FillHistogram ( HistogramDefSet * definition )

protected

Fill a set of simple histograms across all events.

Definition at line 395 of file EventAnalysis.cc.

References HistogramDefSet::definitionsV, Analysis::FillHistogram(), and simpleSetHistogramOutputs.

Referenced by SimpleHistograms().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Initialise()

void EventAnalysis::Initialise ( )

private

Initialise each sampler analysis object in samplerAnalysis.

Definition at line 363 of file EventAnalysis.cc.

References processSamplers, and samplerAnalyses.

Referenced by Process().

Here is the caller graph for this function:

◆ PreparePerEntryHistogramSets()

void EventAnalysis::PreparePerEntryHistogramSets ( )

protected

Definition at line 372 of file EventAnalysis.cc.

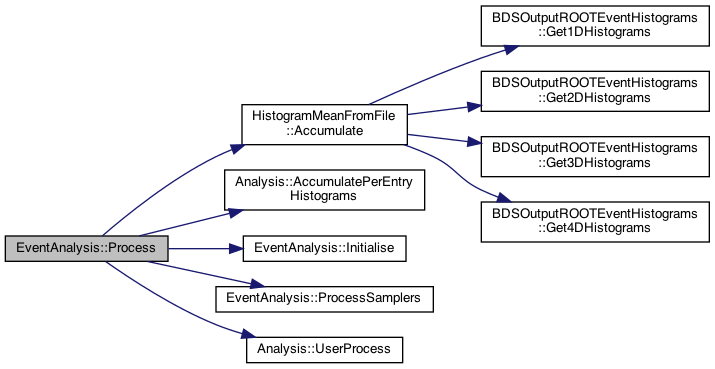

◆ Process()

void EventAnalysis::Process ( )

virtual

Operate on each entry in the event tree.

Implements Analysis.

Definition at line 142 of file EventAnalysis.cc.

References HistogramMeanFromFile::Accumulate(), Analysis::AccumulatePerEntryHistograms(), Analysis::debug, Analysis::entries, event, eventEnd, eventStart, Event::Histos, Analysis::histoSum, Initialise(), printModulo, ProcessSamplers(), processSamplers, and Analysis::UserProcess().

Referenced by Execute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ ProcessSamplers()

void EventAnalysis::ProcessSamplers ( bool firstTime = false )

private

Process each sampler analysis object.

Definition at line 354 of file EventAnalysis.cc.

References processSamplers, and samplerAnalyses.

Referenced by Process().

Here is the caller graph for this function:

◆ SetPrintModuloFraction()

void EventAnalysis::SetPrintModuloFraction ( double fraction )

private

Set how often to print out information about the event.

Definition at line 127 of file EventAnalysis.cc.

References Analysis::entries, and printModulo.

Referenced by EventAnalysis().

Here is the caller graph for this function:

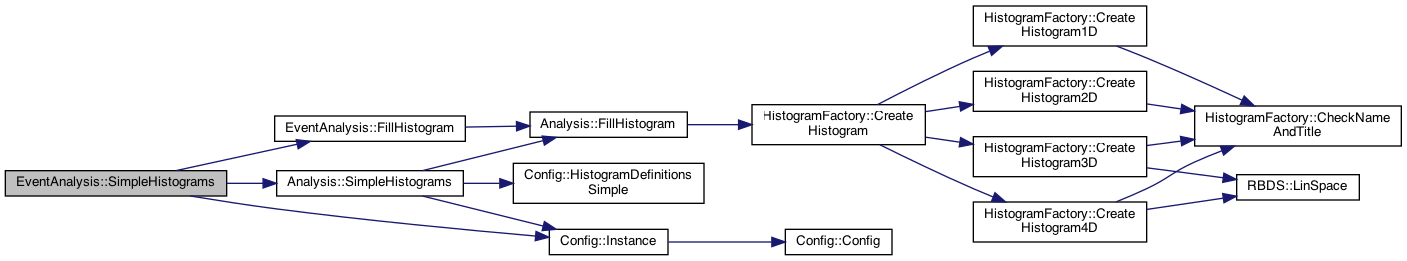

◆ SimpleHistograms()

void EventAnalysis::SimpleHistograms ( )

virtual

Process histogram definitions from configuration instance.

Reimplemented from Analysis.

Definition at line 233 of file EventAnalysis.cc.

References FillHistogram(), Config::Instance(), and Analysis::SimpleHistograms().

Referenced by Execute().

Here is the call graph for this function:

Here is the caller graph for this function:

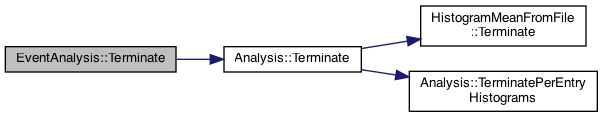

◆ Terminate()

void EventAnalysis::Terminate ( )

virtual

Terminate each individual sampler analysis and append optical functions.

Reimplemented from Analysis.

Definition at line 216 of file EventAnalysis.cc.

References emittanceOnTheFly, opticalFunctions, processSamplers, samplerAnalyses, and Analysis::Terminate().

Referenced by Execute().

Here is the call graph for this function:

Here is the caller graph for this function:

◆ TerminatePerEntryHistogramSets()

void EventAnalysis::TerminatePerEntryHistogramSets ( )

protected

Definition at line 389 of file EventAnalysis.cc.

◆ Write()

void EventAnalysis::Write ( TFile * outputFileName )

virtual

Write analysis including optical functions to an output file.

Reimplemented from Analysis.

Definition at line 242 of file EventAnalysis.cc.

References opticalFunctions, perEntryHistogramSets, processSamplers, simpleSetHistogramOutputs, and Analysis::Write().

Here is the call graph for this function:

Field Documentation

◆ emittanceOnTheFly

bool EventAnalysis::emittanceOnTheFly

private

Whether to calculate emittance fresh at each sampler.

Definition at line 104 of file EventAnalysis.hh.

Referenced by Terminate().

◆ event

Event* EventAnalysis::event

protected

Event object that data loaded from the file will be loaded into.

Definition at line 79 of file EventAnalysis.hh.

Referenced by EventAnalysis(), and Process().

◆ eventEnd

long int EventAnalysis::eventEnd

private

Event index to end analysis at.

Definition at line 106 of file EventAnalysis.hh.

Referenced by Process().

◆ eventStart

long int EventAnalysis::eventStart

private

Event index to start analysis from.

Definition at line 105 of file EventAnalysis.hh.

Referenced by Process().

◆ opticalFunctions

std::vector<std::vector<std::vector<double> > > EventAnalysis::opticalFunctions

protected

Optical functions from all samplers.

Definition at line 81 of file EventAnalysis.hh.

Referenced by Terminate(), and Write().

◆ perEntryHistogramSets

std::vector<PerEntryHistogramSet*> EventAnalysis::perEntryHistogramSets

private

Cache of all per entry histogram sets.

Definition at line 109 of file EventAnalysis.hh.

Referenced by Write().

◆ printModulo

int EventAnalysis::printModulo

private

Cache of print modulo fraction.

Definition at line 102 of file EventAnalysis.hh.

Referenced by Process(), and SetPrintModuloFraction().

◆ processSamplers

bool EventAnalysis::processSamplers

private

Whether to process samplers.

Definition at line 103 of file EventAnalysis.hh.

Referenced by EventAnalysis(), Execute(), Initialise(), Process(), ProcessSamplers(), Terminate(), and Write().

◆ samplerAnalyses

std::vector<SamplerAnalysis*> EventAnalysis::samplerAnalyses

protected

Holder for sampler analysis objects.

Definition at line 80 of file EventAnalysis.hh.

Referenced by EventAnalysis(), EventAnalysisOrbit::ExtractOrbit(), Initialise(), ProcessSamplers(), and Terminate().

◆ simpleSetHistogramOutputs

std::map<HistogramDefSet*, std::vector<TH1*> > EventAnalysis::simpleSetHistogramOutputs

private

Map of simple histograms created per histogram set for writing out.

Definition at line 112 of file EventAnalysis.hh.

Referenced by FillHistogram(), and Write().

The documentation for this class was generated from the following files:

/Users/nevay/physics/reps/bdsim/analysis/EventAnalysis.hh
/Users/nevay/physics/reps/bdsim/analysis/EventAnalysis.cc

Public Member Functions

Protected Member Functions

Protected Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ EventAnalysis() [1/2]

◆ EventAnalysis() [2/2]

◆ ~EventAnalysis()

Member Function Documentation

◆ AccumulatePerEntryHistogramSets()

◆ CheckSpectraBranches()

◆ Execute()

◆ FillHistogram()

◆ Initialise()

◆ PreparePerEntryHistogramSets()

◆ Process()

◆ ProcessSamplers()

◆ SetPrintModuloFraction()

◆ SimpleHistograms()

◆ Terminate()

◆ TerminatePerEntryHistogramSets()

◆ Write()

Field Documentation

◆ emittanceOnTheFly

◆ event

◆ eventEnd

◆ eventStart

◆ opticalFunctions

◆ perEntryHistogramSets

◆ printModulo

◆ processSamplers

◆ samplerAnalyses

◆ simpleSetHistogramOutputs
