fieldtypes_def Struct Reference

Type definition for field formats - used for comparison in factory methods. More...

#include <BDSFieldType.hh>

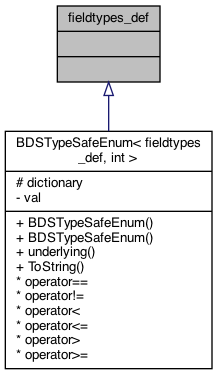

Inheritance diagram for fieldtypes_def:

Collaboration diagram for fieldtypes_def:

Public Types
enum	type {   none , bfieldzero , efieldzero , ebfieldzero ,   teleporter , bmap1d , bmap2d , bmap3d ,   bmap4d , emap1d , emap2d , emap3d ,   emap4d , ebmap1d , ebmap2d , ebmap3d ,   ebmap4d , mokka , solenoid , solenoidsheet ,   dipole , quadrupole , dipolequadrupole , sextupole ,   octupole , decapole , multipole , muonspoiler ,   skewquadrupole , skewsextupole , skewoctupole , skewdecapole ,   rfcavity , rf , cavityfringe , rmatrix ,   paralleltransporter , undulator , dipole3d , multipoleouterdipole ,   multipoleouterquadrupole , multipoleoutersextupole , multipoleouteroctupole , multipoleouterdecapole ,   skewmultipoleouterquadrupole , skewmultipoleoutersextupole , skewmultipoleouteroctupole , skewmultipoleouterdecapole ,   multipoleouterdipole3d , multipoleouterdipolelhc , multipoleouterquadrupolelhc , multipoleoutersextupolelhc }

Detailed Description

Type definition for field formats - used for comparison in factory methods.

dipole - a uniform field assumed along local unit Y dipole3d - a uniform field specified by a unit vector and field magnitude multipoleouterdipole3d - orientates itself to follow dipole3d

Author

Laurie Nevay

Definition at line 36 of file BDSFieldType.hh.

Member Enumeration Documentation

type

enum fieldtypes_def::type

Definition at line 40 of file BDSFieldType.hh.

---

The documentation for this struct was generated from the following file:

• /Users/nevay/physics/reps/bdsim/include/BDSFieldType.hh
