BDSAnalysisManager Class Reference

Analysis interface class. Create, store and access histograms. More...

#include <BDSAnalysisManager.hh>

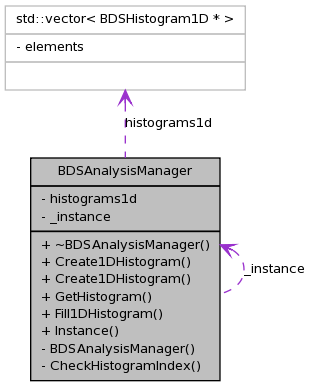

Collaboration diagram for BDSAnalysisManager:

[legend]

Public Member Functions
	~BDSAnalysisManager ()
G4int	Create1DHistogram (G4String name, G4String title, G4int nbins, G4double xmin, G4double xmax)
	Create a new histogram.
G4int	Create1DHistogram (G4String name, G4String title, std::vector< double > &edges)
BDSHistogram1D *	GetHistogram (G4int index)
	Access a histogram.
void	Fill1DHistogram (G4int histoIndex, G4double value, G4double weight=1.0)
	Fill a histogram.
Static Public Member Functions
static BDSAnalysisManager *	Instance ()
	singleton accessor
Private Member Functions
	BDSAnalysisManager ()
	private default constructor for singleton pattern
void	CheckHistogramIndex (G4int index)
	function to check whether histogram index is valid
Private Attributes
std::vector< BDSHistogram1D * >	histograms1d
Static Private Attributes
static BDSAnalysisManager *	_instance = 0

---

Detailed Description

Analysis interface class. Create, store and access histograms.

singleton pattern

This is conceptually based on the Geant4 AnalysisManager classes, however this does not inherit it nor adhere strictly to it. The purpose of this class is only to deal with histograms. The Geant4 AnalysisManagers are based on an output format. Here this will be a communal histogram class and storage system and the different output formats will write them appropriately.

Definition at line 22 of file BDSAnalysisManager.hh.

---

The documentation for this class was generated from the following files:

• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/include/BDSAnalysisManager.hh
• /scratch0/jsnuveri/BDSIM/BDSIMgit/bdsim/src/BDSAnalysisManager.cc

---
